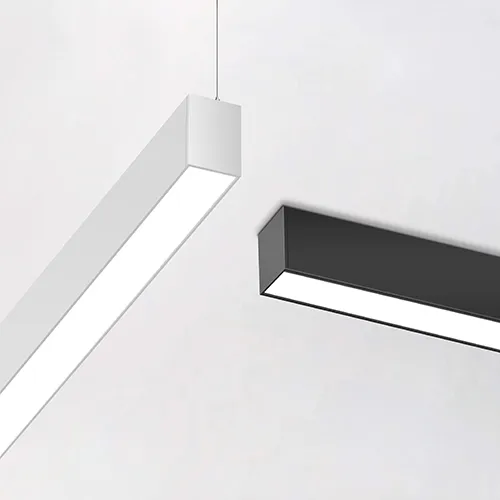

Architectural Linear

Up to 1,220 lm/ft with field-selectable CCT, wattage and up/down split, available in 1.3, 1.8, 2.3 and 3.8 in profiles and 20 W to 80 W configurations.

3.3 / 4.6 / 5.9 / 9.5 cmfour profile widths
3000 / 3500 / 4000 KCCT selected at the fixture
up to 1,220 lm/ftmaximum output per foot
Request a quoteDownloads

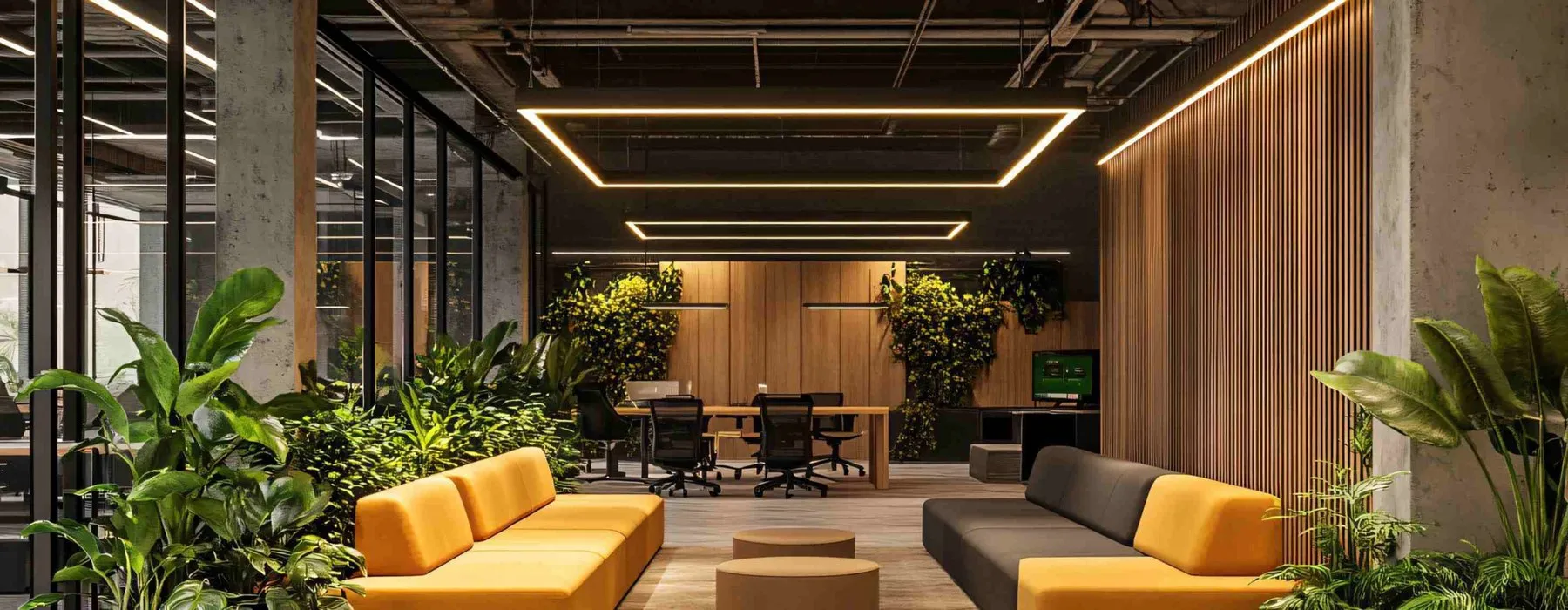

Lit rectangles over an office lounge (application example)

Compare the series

4 series
1.3 in profileThe slimmest profile: diffuser, louver or drop lens, 2 to 8 ft, pendant, surface or wall.Power10 WOutput700–1,000 lm/ftOpticsDiffuser, louver or drop lens
direct or 25/75 up/downSize3.3 cm wide × 5.7–6.3 cm highCRI90+ColoursWhite, black, customInput voltage110–277 V ACLocation ratingDamp locationOperating temperature−20 to +40 °CSee models 1.8 in profileUp to 1,200 lm/ft in a 1.8 in housing; 2, 4 and 8 ft.Power5–10 WOutput425–1,220 lm/ftOpticsDiffuser
direct or 25/75 up/downSize4.6 cm wide × 7.6 cm highCRI90+ColoursWhite, black, customInput voltage110–277 V ACLocation ratingDamp locationOperating temperature−20 to +40 °CSee models 2.3 in profileThe most versatile: diffuser, micro reflector, louver or regressed lens, up to five distributions, pendant to recessed.Power10 WOutput650–1,200 lm/ftOpticsDiffuser, micro reflector, louver or regressed lens
direct or 50/50 up/downSize5.9 cm wide × 8.8 cm highCRI90+ (micro reflector 80+)ColoursWhite, black, customInput voltage110–277 V ACLocation ratingDamp locationOperating temperature−20 to +40 °CSee models 3.8 in profileThe widest profile, up to 1,200 lm/ft, with three mounting options in one housing.Power10 WOutput900–1,200 lm/ftOpticsDiffuser or regressed lens
direct or 50/50 up/downSize9.5 cm wide × 9.5 cm highCRI80+ diffuser, 90+ regressed lensColoursWhite, black, customInput voltage110–277 V ACLocation ratingDamp locationOperating temperature−20 to +40 °CSee models

Product range

42 lumen packages

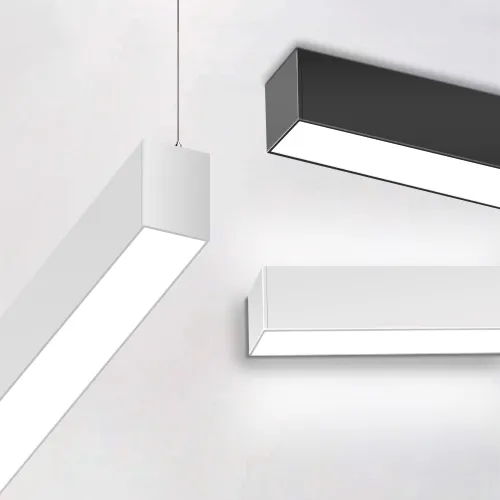

1.3 in profile

The slimmest profile: diffuser, louver or drop lens, 2 to 8 ft, pendant, surface or wall.

1.3 in profile

Lengths and section

Dimensions (mm)

Colour temperature

  • 3,000 K
  • 3,500 K
  • 4,000 K

Control

  • 0–10 V
  • ColoursWhite, black, custom
  • Input voltage110–277 V AC
  • Operating temperature−20 to +40 °C

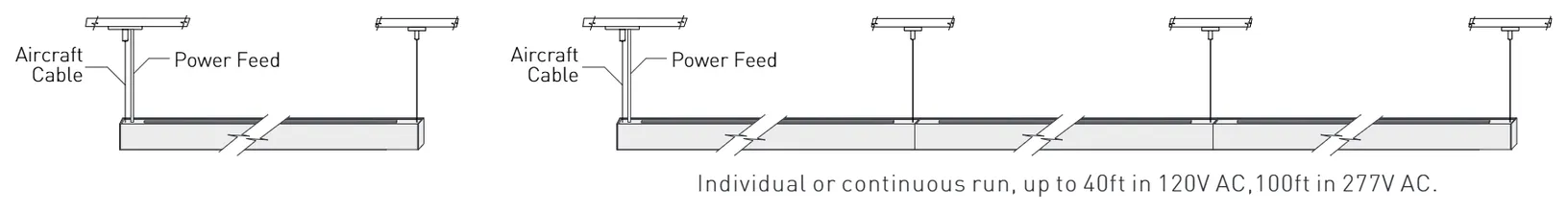

Individual or continuous run, and the joiner patterns
6 lumen packagesShow
10 W800 lm1.3 in · diffuser · white · 4000 K · direct
10 W850 lm1.3 in · diffuser · white · 4000 K · 25/75 up/down
10 W700 lm1.3 in · louver · white · 4000 K · direct
10 W750 lm1.3 in · louver · white · 4000 K · 25/75 up/down
10 W950 lm1.3 in · drop lens · white · 4000 K · direct
10 W1,000 lm1.3 in · drop lens · white · 4000 K · 25/75 up/down

1.8 in profile

Up to 1,200 lm/ft in a 1.8 in housing; 2, 4 and 8 ft.

1.8 in profile

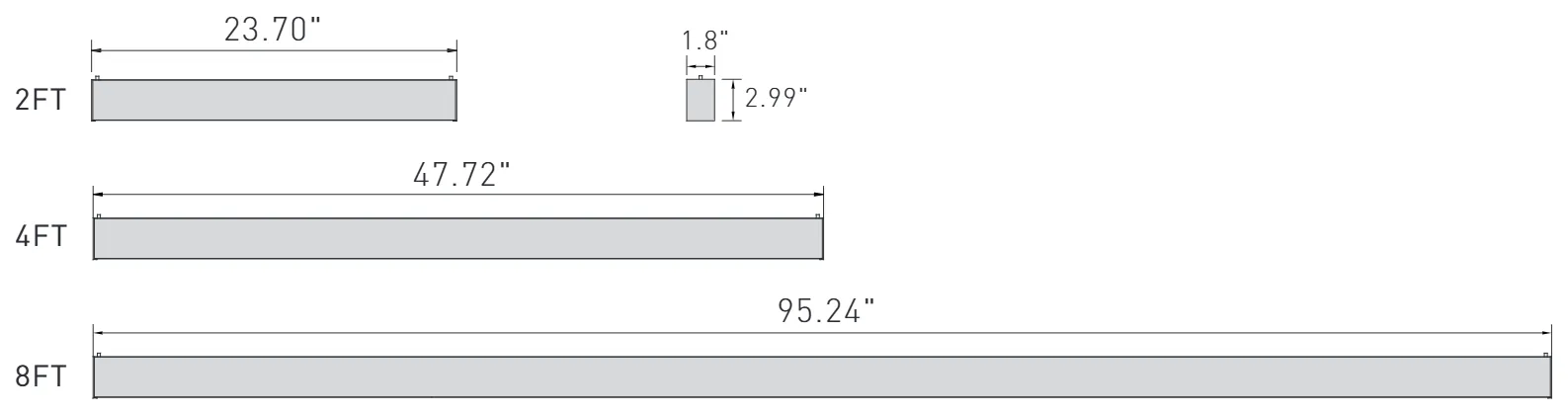

Lengths and section

Dimensions (mm)

Colour temperature

  • 3,000 K
  • 3,500 K
  • 4,000 K

Control

  • 0–10 V
  • ColoursWhite, black, custom
  • Input voltage110–277 V AC
  • Operating temperature−20 to +40 °C
24 lumen packagesShow
10 W1,050 lm1.8 in · diffuser · white · 3000 K · direct
10 W1,150 lm1.8 in · diffuser · white · 3500 K · direct
10 W1,100 lm1.8 in · diffuser · white · 4000 K · direct
10 W1,120 lm1.8 in · diffuser · white · 3000 K · 25/75 up/down
10 W1,220 lm1.8 in · diffuser · white · 3500 K · 25/75 up/down
10 W1,170 lm1.8 in · diffuser · white · 4000 K · 25/75 up/down
5 W525 lm1.8 in · diffuser · white · 3000 K · direct
5 W575 lm1.8 in · diffuser · white · 3500 K · direct
5 W550 lm1.8 in · diffuser · white · 4000 K · direct
5 W560 lm1.8 in · diffuser · white · 3000 K · 25/75 up/down
5 W610 lm1.8 in · diffuser · white · 3500 K · 25/75 up/down
5 W585 lm1.8 in · diffuser · white · 4000 K · 25/75 up/down
10 W850 lm1.8 in · diffuser · black · 3000 K · direct
10 W950 lm1.8 in · diffuser · black · 3500 K · direct
10 W900 lm1.8 in · diffuser · black · 4000 K · direct
10 W920 lm1.8 in · diffuser · black · 3000 K · 25/75 up/down
10 W1,020 lm1.8 in · diffuser · black · 3500 K · 25/75 up/down
10 W970 lm1.8 in · diffuser · black · 4000 K · 25/75 up/down
5 W425 lm1.8 in · diffuser · black · 3000 K · direct
5 W475 lm1.8 in · diffuser · black · 3500 K · direct
5 W450 lm1.8 in · diffuser · black · 4000 K · direct
5 W460 lm1.8 in · diffuser · black · 3000 K · 25/75 up/down
5 W510 lm1.8 in · diffuser · black · 3500 K · 25/75 up/down
5 W485 lm1.8 in · diffuser · black · 4000 K · 25/75 up/down

2.3 in profile

The most versatile: diffuser, micro reflector, louver or regressed lens, up to five distributions, pendant to recessed.

2.3 in profile

Lengths and section

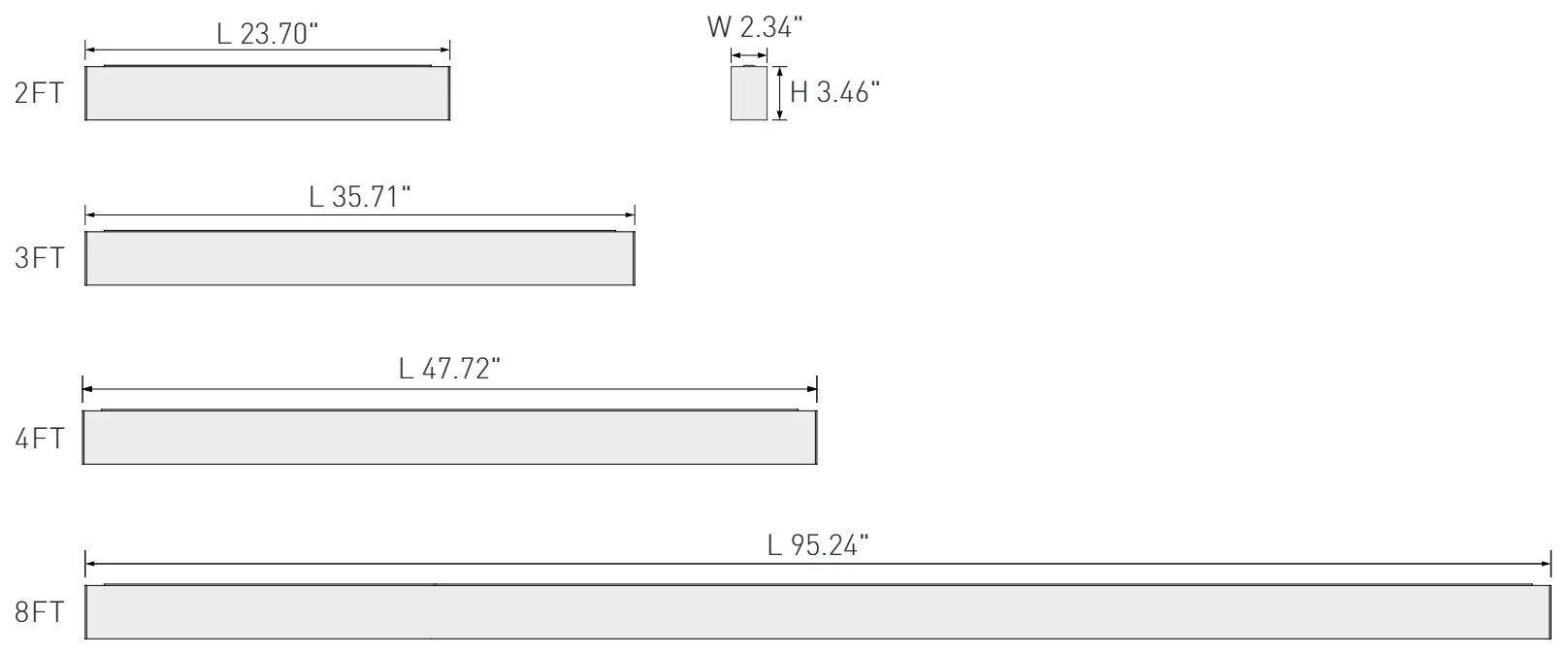

Dimensions (mm)

Colour temperature

  • 3,000 K
  • 3,500 K
  • 4,000 K

Control

  • 0–10 V
  • ColoursWhite, black, custom
  • Input voltage110–277 V AC
  • Operating temperature−20 to +40 °C
Mounting location: screw holes, cable holes and DIP switches
Recessed in the ceiling
Recessed in the ceiling

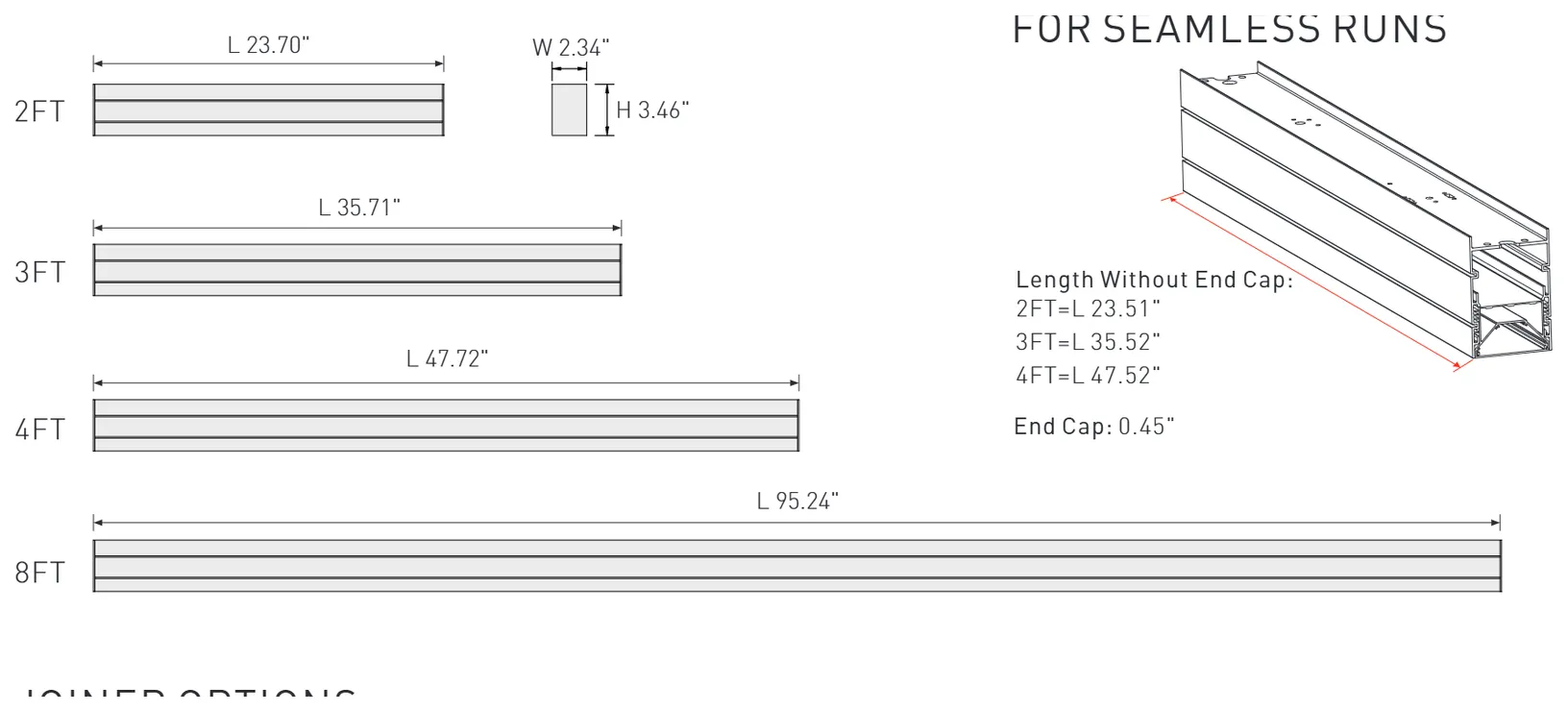

Recessed version: fixture and unit dimensions
Recessed version: fixture and unit dimensions

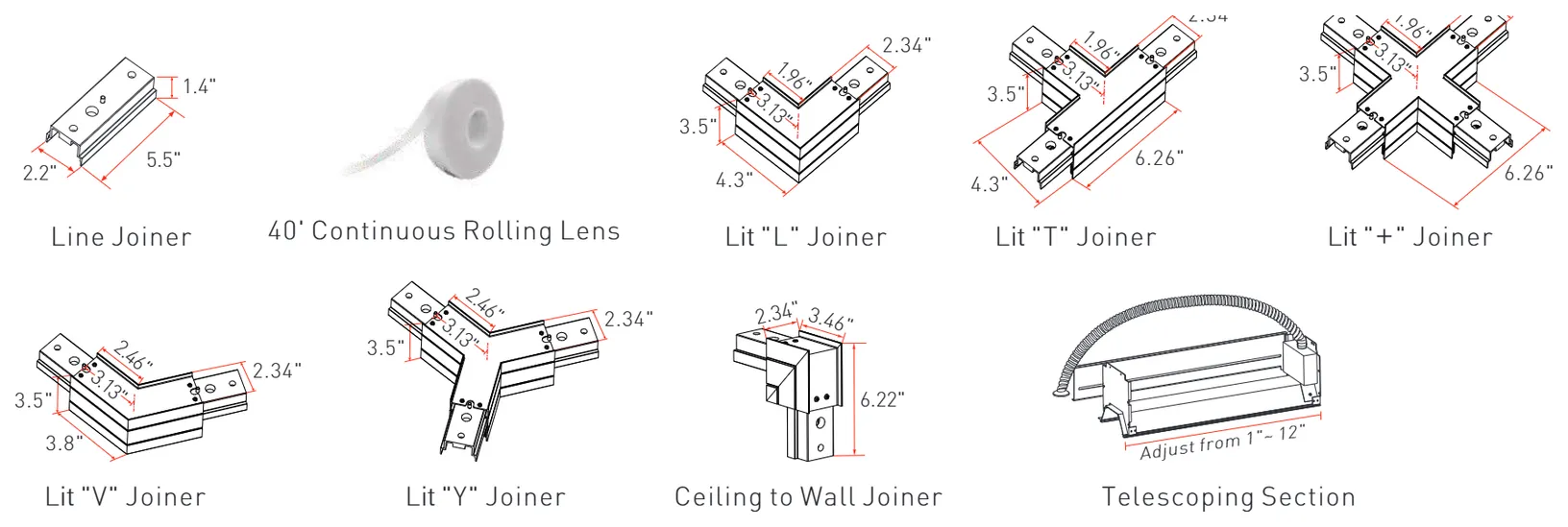

Joiner options for the recessed version
Joiner options for the recessed version
8 lumen packagesShow
10 W1,050 lm2.3 in · diffuser · white · 4000 K · direct
10 W1,200 lm2.3 in · diffuser · white · 4000 K · 50/50 up/down
10 W650 lm2.3 in · louver · white · 4000 K · direct
10 W950 lm2.3 in · louver · white · 4000 K · 50/50 up/down
10 W900 lm2.3 in · micro reflector · white · 4000 K · direct
10 W1,150 lm2.3 in · micro reflector · white · 4000 K · 50/50 up/down
10 W900 lm2.3 in · regressed lens · white · 4000 K · direct
10 W1,100 lm2.3 in · regressed lens · white · 4000 K · 50/50 up/down

3.8 in profile

The widest profile, up to 1,200 lm/ft, with three mounting options in one housing.

3.8 in profile

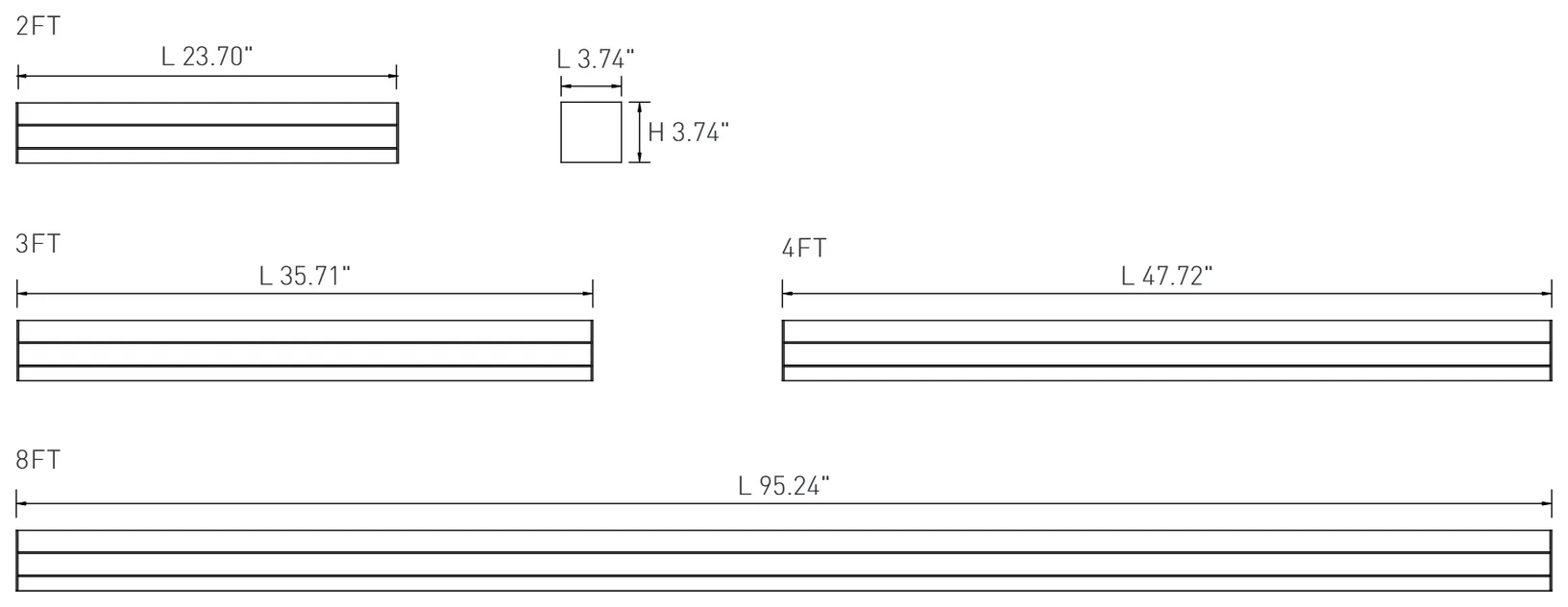

Lengths and section

Dimensions (mm)

Colour temperature

  • 3,000 K
  • 3,500 K
  • 4,000 K

Control

  • 0–10 V
  • ColoursWhite, black, custom
  • Input voltage110–277 V AC
  • Operating temperature−20 to +40 °C

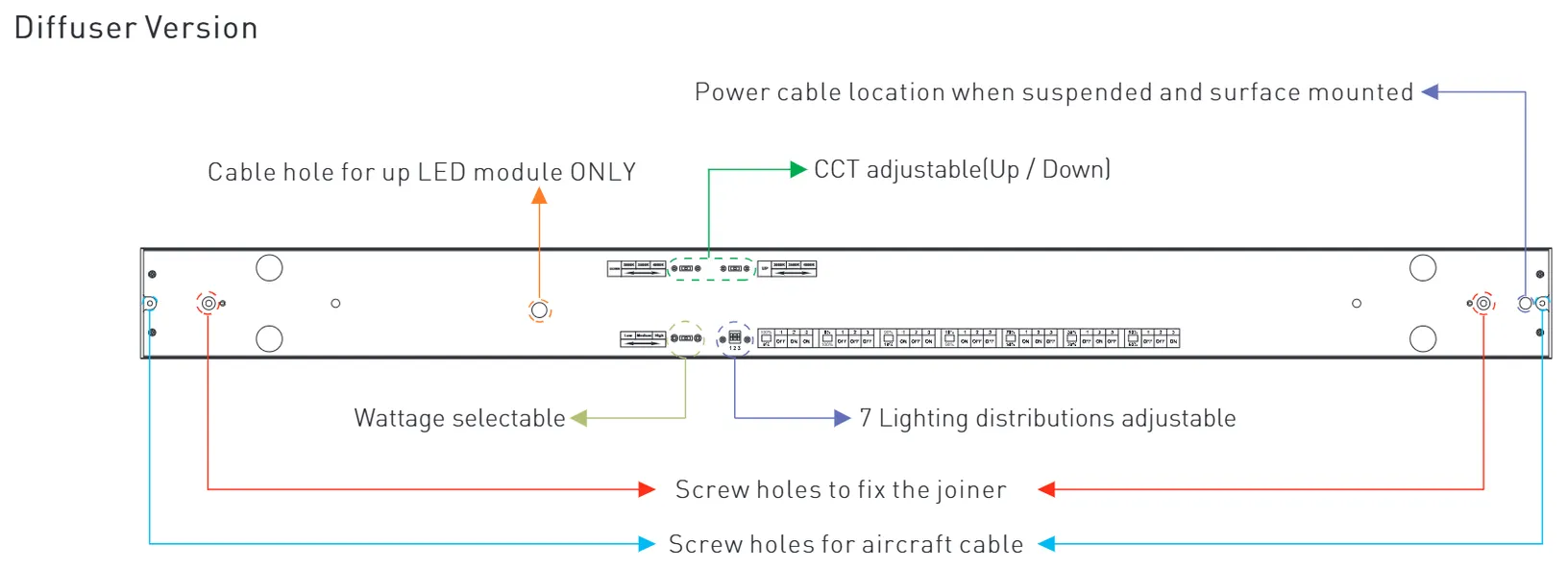

Mounting location, diffuser version

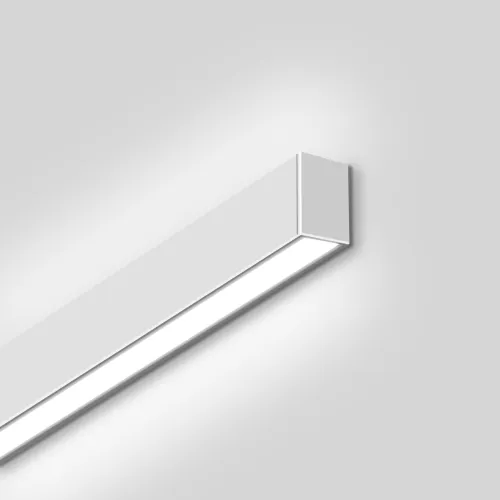

Surface mounted
Surface mounted
4 lumen packagesShow
10 W1,100 lm3.8 in · diffuser · white · 4000 K · direct
10 W1,200 lm3.8 in · diffuser · white · 4000 K · 50/50 up/down
10 W900 lm3.8 in · regressed lens · white · 4000 K · direct
10 W1,000 lm3.8 in · regressed lens · white · 4000 K · 50/50 up/down

Specifications

Construction
Profile1.3 in (3.3 cm), 1.8 in (4.6 cm), 2.3 in (5.9 cm) or 3.8 in (9.5 cm) wide
Dimensions
  • 013.3 cm wide × 5.7–6.3 cm high
  • 024.6 cm wide × 7.6 cm high
  • 035.9 cm wide × 8.8 cm high
  • 049.5 cm wide × 9.5 cm high
LengthsNominal 2, 3, 4 and 8 ft; actual 64.2 / 96.1 / 128.0 / 255.6 cm (1.3 in), 60.2 / 90.7 / 121.2 / 241.9 cm (2.3 and 3.8 in), 60.2 / 121.2 / 241.9 cm (1.8 in, 2, 4 and 8 ft only)
LensBy profile: 1.3 in diffuser, louver or drop lens; 1.8 in diffuser; 2.3 in diffuser, louver, micro reflector, regressed lens (white shade) or 30° wall-wash diffuser; 3.8 in diffuser or regressed lens (white shade)
FinishWhite or black; custom colours to order; rated outputs apply to the white finish, black rated about 18 % lower on the 1.8 in profile
MountingPendant on aircraft cable from a canopy (J-box on hard ceilings, or clips for 9/16 in and 15/16 in T-grid), surface or wall on every profile; wall versions stand 1.2 cm off the wall; recessed on the 2.3 in and 3.8 in profiles
TrimRecessed: flanged trim (bracket in dry ceiling, pendant stem, or laid on a T-grid) or trimless (plaster-in flange kit for dry ceilings, or hooks for T-grid ceilings)
RunsIndividual units or continuous runs with line joiners and a continuous rolling lens; custom patterns (square, rectangle, L, T, cross, Y, hexagon) with corner joiners; illuminated corner joiners on the 2.3 in and 3.8 in profiles; angled joiner between planes (2.3 in); ceiling-to-wall joiner (recessed versions)
Location ratingDamp location
Optical
DistributionDirect, or direct/indirect with the split set by DIP switch; direct-only versions on every profile; default 100 % down
Up/down split100 % down or 25 % up / 75 % down (1.3 and 1.8 in); five steps from 100 % up to 100 % down (2.3 in); up to seven steps incl. 10/90 and 90/10 with the diffuser (3.8 in)
Optical
Colour temperature3000 K, 3500 K or 4000 K, field-selectable at the fixture by DIP switch (default 4000 K)
CRI
  • 010290+
  • 0390+ (micro reflector 80+)
  • 0480+ diffuser, 90+ regressed lens
Output
  • 01700–1,000 lm/ft
  • 02425–1,220 lm/ft
  • 03650–1,200 lm/ft
  • 04900–1,200 lm/ft
Optics
  • 01Diffuser, louver or drop lens
    direct or 25/75 up/down
  • 02Diffuser
    direct or 25/75 up/down
  • 03Diffuser, micro reflector, louver or regressed lens
    direct or 50/50 up/down
  • 04Diffuser or regressed lens
    direct or 50/50 up/down
Electrical
Input voltage110–277 VAC
Wattage
  • 01030410 W
  • 025–10 W
Dimming0–10 V, to 10 % standard or to 1 % on request
ControlOptional occupancy sensor in the pendant canopy (1.3, 1.8 and 3.8 in); 2.3 in with diffuser: integral sensor packages with daylight harvesting, wireless node, DALI D4i driver or tunable-white options; 2.3 in external sensor (OCC-EXS) works with every lens; 3.8 in recessed: built-in sensor to order
Max run per feed40 ft (12 m) at 120 V, 100 ft (30 m) at 277 V, on every profile
Operating temperature−20 °C to +40 °C ambient
EmergencyOptional built-in 8 W LED emergency driver on 4 ft and 8 ft lengths (not on the 1.3 in profile or the 3.8 in recessed version; 2.3 in recessed: 4 ft diffuser only), or a field-installed external 16 W or 25 W driver; 3.8 in recessed: external driver with indicator module (EMD, to order)
Warranty5-year limited

Dimensions & weight

ModelLengthWidthHeightWeight
1.3 in (diffuser, louver) · 4 ft128 cm3.3 cm5.7 cm—
1.3 in (drop lens) · 4 ft128 cm3.3 cm6.3 cm—
1.8 in · 4 ft121.2 cm4.6 cm7.6 cm—
2.3 in · 4 ft121.2 cm5.9 cm8.8 cm—
3.8 in · 4 ft121.2 cm9.5 cm9.5 cm—

Ordering information

Part number format

CNX-ALNProduct type
21LengthS+Profile width
WH2Finish
20W3Wattage
D104Dimming
905CRITW+Colour temperature
A6Light distribution
DF7Lens

Example: CNX-ALN-2S-WH-20W-D10-90TW-A-DF — the first code in each numbered position; pick one code per position below to build your own

1Length + Profile width

Length

Profile width

Written as one code: 2 + S → 2S

2Finish

3Wattage

4Dimming

5CRI + Colour temperature

CRI

Colour temperature

Written as one code: 90 + TW → 90TW

6Light distribution

7Lens

Product options

Mounting

Canopy (pendant)

Power cord and aircraft cable (pendant)

Options

Pre-assembled telescoping sections (2.3 in recessed, diffuser)

Applications

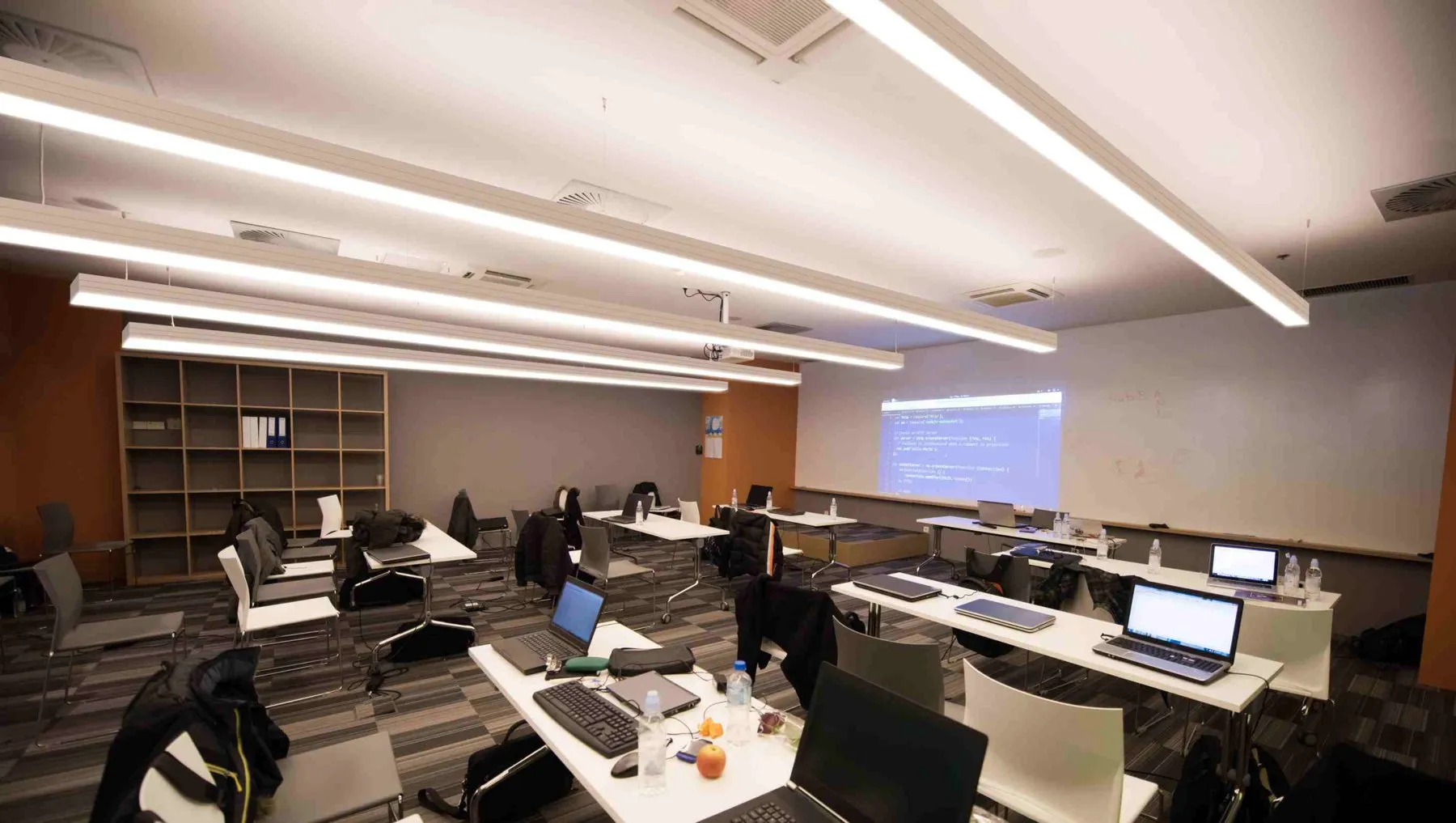

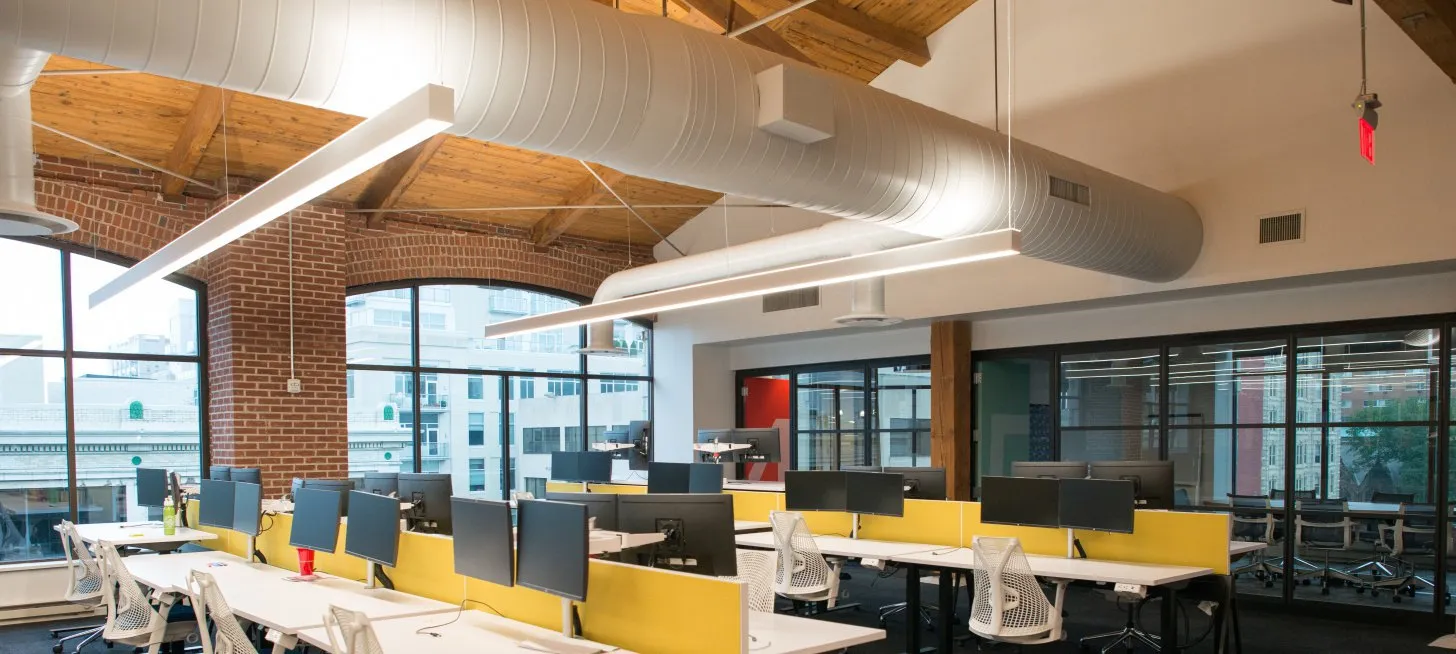

Offices and workplacesRetailEducationGovernmentHealthcareHospitalityCorridors and stairwells (wall mount)

Certifications

cULus
