What we do

Solar & power

Power that brings itself. Solar, wind and hybrid power for lighting, smart poles and IoT devices, for sites with no grid, an unreliable one, or when trenching to it is cost prohibitive.

Power wherever the grid falls short.

Where running a cable is impossible, costly or unreliable, power is generated right where it’s needed.

  • No grid nearby
  • Trenching is cost prohibitive
  • Unreliable supply
  • Temporary or moving sites
  • Clean energy from sun and wind
What we power

Four ways to go off the grid.

Solar lightingRoadway and post-top lighting that carries its own solar, battery and control.Solar smart polesWind and sun on one pole, powering light, sensors, cameras and connectivity.Solar power for IoTCameras, sensors and communications, running where there is no power to tap into.Custom solar solutionsTurnkey solar systems, battery storage, portable power and more, engineered to the site.
How it works

Harvest, store, manage, power.

  1. 01HarvestSun and wind together: when one falls short, the other keeps generating.
  2. 02StoreLithium-ion batteries, sized for long nights and cloudy days.
  3. 03ManageSmart charge control and load management make every watt-hour go further.
  4. 04PowerAnything that needs power, from lights and cameras to equipment and whole buildings.
Runs
  • Fully off grid
  • Grid hybrid
  • With generator backup
Engineered, not assumed

Sized for the darkest week, not the sunniest day.

Every system is calculated for its site before anything is ordered.

Site

  • Solar resource in the worst month
  • Wind resource
  • Shading and orientation
  • Latitude and panel tilt

Load

  • Wattage and operating hours
  • Usage profile: dimming, duty cycles and peak demand
  • Continuous loads such as cameras and sensors
  • Room for future loads

Storage

  • Days of autonomy
  • Recharge time after low sun and wind
  • Battery temperature range
  • Depth of discharge and cycle life

Structure

  • Wind loading
  • Pole height and mounting
  • Corrosion category
  • Operating temperature
In the catalog

Start with a proven design.

All solar & power products

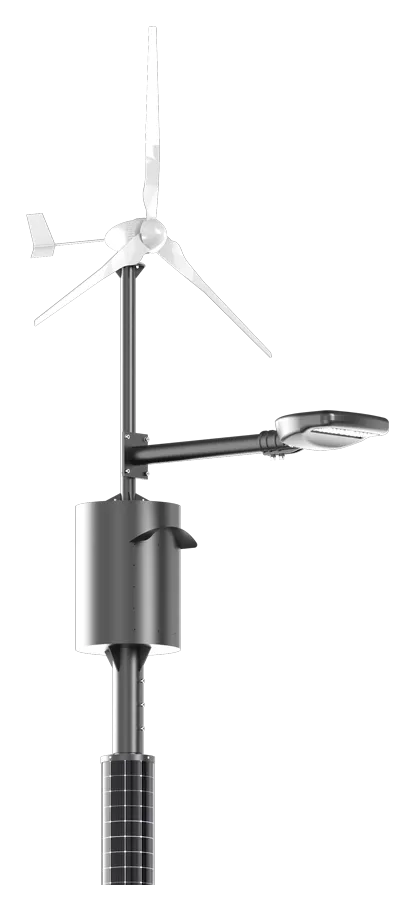

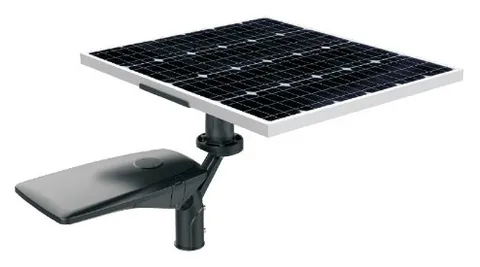

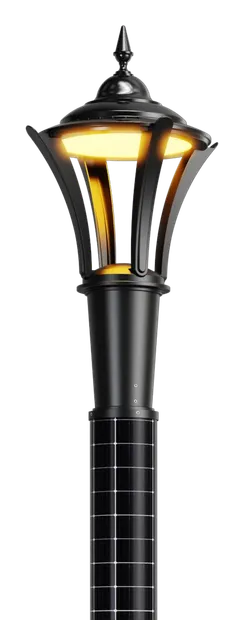

CNX-LHPHybrid Wind & Solar PoleSelf-powered hybrid pole with a 400 W wind turbine, 200 W of wrapped solar and 3,148.8 Wh of LiFePO4 storage, available in 6,000 to 10,000 lm configurations.View product CNX-LSOSolar Street LightTwo solar street lights: an all-in-one luminaire with a rotatable panel, 15 W to 50 W at up to 170 lm/W, and the LRL5 roadway housing with a separate 70 W panel and 153.6 Wh battery.View product CNX-SPTSolar Post Top LightSolar post-top luminaire up to 200 lm/W, with the solar tube built into the pole and up to 60 h autonomy, available in 15 W and 25 W configurations.View product
Works with

Part of one system.

LED lightingThe luminaires, and the photometric design to place them.Intelligent infrastructureINTELIGHT on a pole that powers itself.Financial programsFund it through an ESCO or a lease.

Off the grid, or want to be? Send us the site.

Talk to an engineerBrowse solar products
