Lithium packs of 54 Wh, 98 Wh and 490 Wh at 24.5 V, and 1,013.8 Wh at 70.4 V, shared across the portable range.

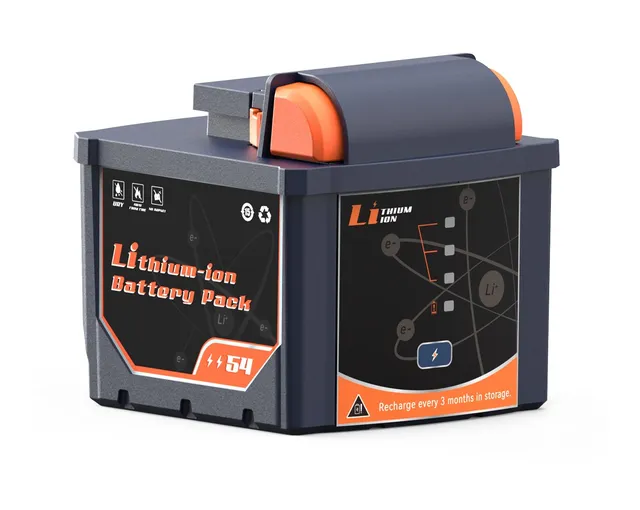

Compact pack with a four-LED charge gauge.

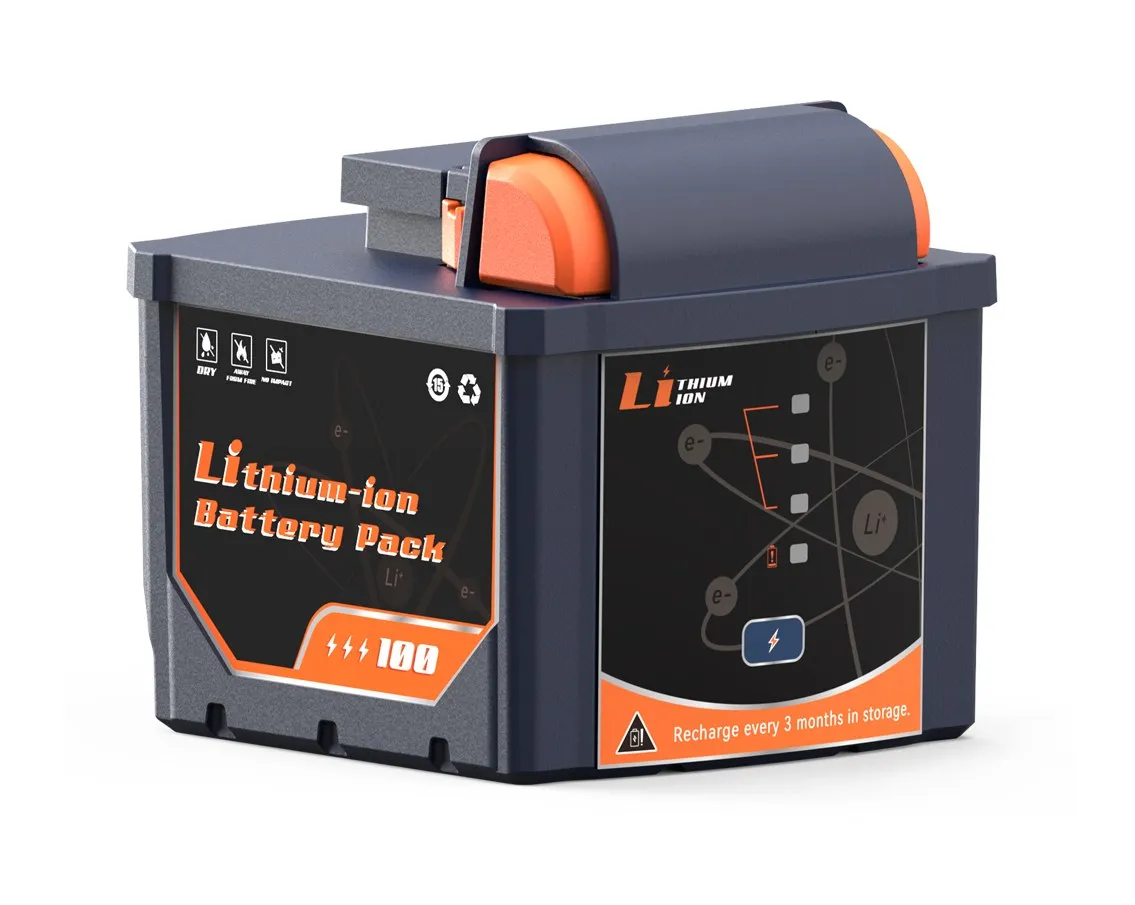

The same size with almost twice the energy; fits every battery light in the range except the TWR-500 towers.

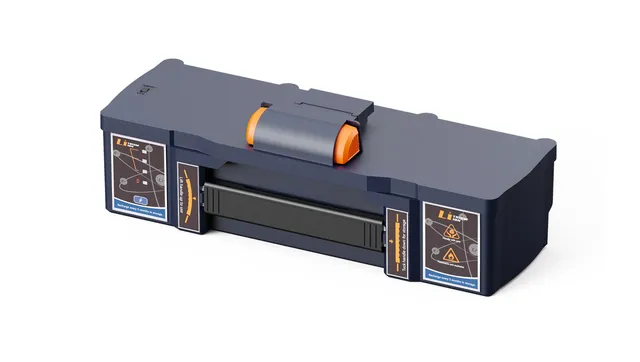

Large pack with a fold-out handle and a power protection switch.

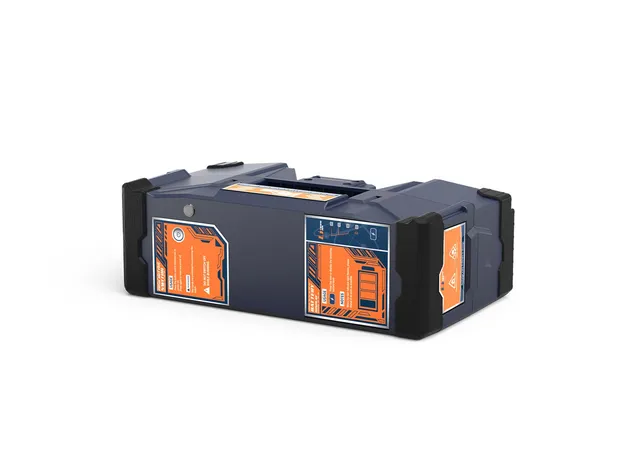

LFP pack with a power button and a charge display, three to a TWR-600.
| Energy | 54 Wh, 98 Wh, 490 Wh and 1,013.8 Wh |
|---|---|
| Voltage | 24.5 V (BAT-24 packs); 70.4 V (BAT-70-1000) |
| Cycle life | 1,000 cycles; BAT-70-1000 2,000 cycles |
| Operating temperature | −10 to 50 °C; BAT-70-1000 −20 to 60 °C |
| Storage | Recharge every 3 months in storage |
| Charge display | LED gauge with a check button on every pack |
| Model | Length | Width | Height | Weight |
|---|---|---|---|---|
| BAT-24-054 | 11.3 cm | 10.2 cm | 10.1 cm | 0.9 kg |
| BAT-24-100 | 11.3 cm | 10.2 cm | 10.1 cm | 0.9 kg |
| BAT-24-500 | 31.3 cm | 10.9 cm | 10.1 cm | 3 kg |
| BAT-70-1000 | 18.6 cm | 10.8 cm | 32.1 cm | 7.1 kg |
