Products / CNX-CHG

Chargers and Charging Cases

From a one-bay charger to a nine-battery case: 50 min for one BAT-24-100 in CHG-C9, on 100–277 V AC, a vehicle supply or a DC input.

50 minone BAT-24-100 in CHG-C9
9batteries at once, CHG-C9
12–24 Vvehicle input, CHG-CAR
Request a quote

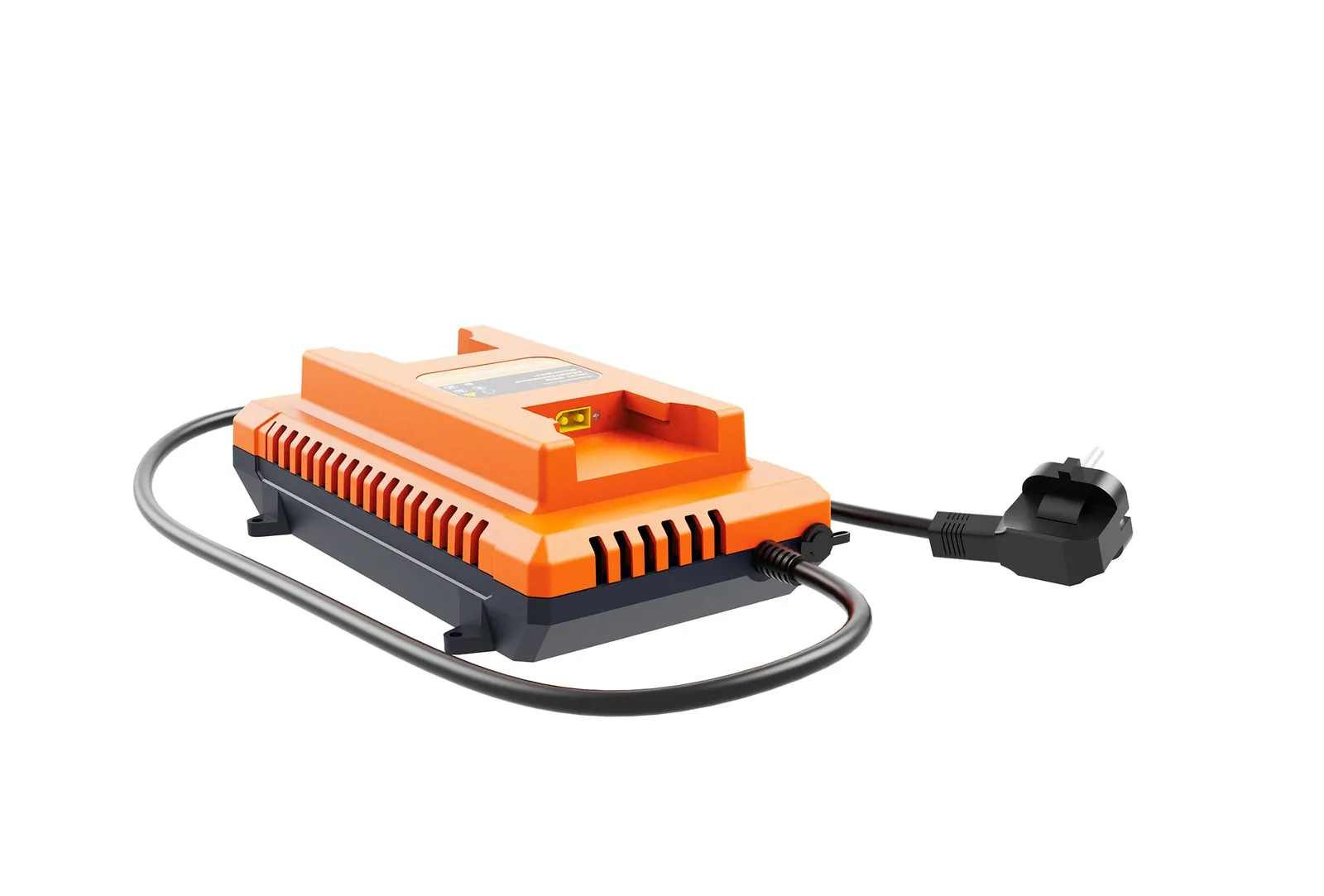

CHG-2 charger

Product range

7 models
4 part numbersShow

Chargers

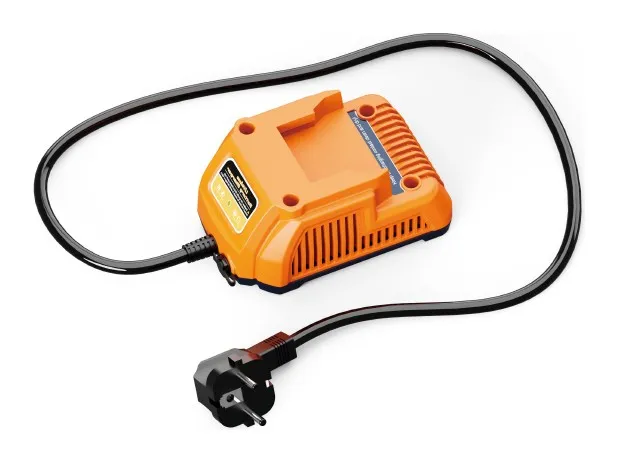

CHG-1

CHG-1

One-bay charger for the BAT-24 packs, with a hole to fix it to a wall or surface.

Input voltage
100–277 V AC, 1.5 A
Output
29.4 V 1 A
Batteries
BAT-24-054, BAT-24-100
Charging time
2 h (BAT-24-054), 4 h (BAT-24-100), to 95 %
Operating temperature
−10 to 50 °C
Humidity
1–98 %
Dimensions
135 × 90 × 65 mm
Weight
0.5 kg
CHG-2

CHG-2

Charges two BAT-24 packs at the same time.

Input voltage
100–277 V AC, 1.5 A
Output
29.2 V 2 A
Batteries
BAT-24-054, BAT-24-100
Charging time
1 h (BAT-24-054), 2 h (BAT-24-100), one pack to 95 %
Operating temperature
−10 to 50 °C
Humidity
1–98 %
Dimensions
251 × 154 × 73 mm
Weight
0.75 kg

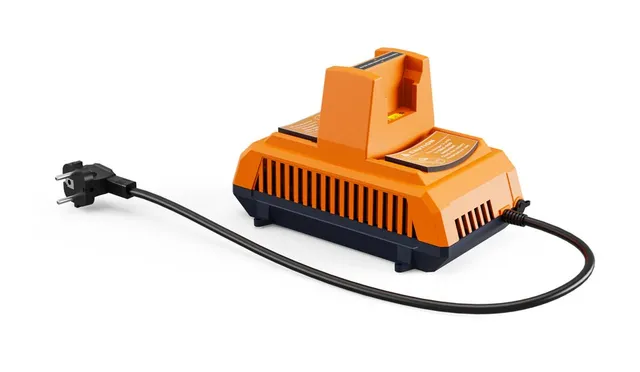

CHG-2H

CHG-2H

Rapid charger for the BAT-24-500.

Input voltage
100–277 V AC, 5 A
Output
29.4 V 6 A
Batteries
BAT-24-500
Charging time
3 h, one pack to 95 %
Operating temperature
0 to 50 °C
Humidity
20–98 %
Dimensions
251 × 154 × 153 mm
Weight
1.25 kg
CHG-CAR

CHG-CAR

Charges the BAT-24 packs from a vehicle’s 12–24 V supply.

Input voltage
12–24 V DC, max. 7 A
Output
29.4 V, max. 2 A
Batteries
BAT-24 packs of PSL-100, PSL-200, PSL-300, PSL-400, PSL-P200, PSL-P300, PSL-S200 and RHL-200
Dimensions
195 × 87 × 51 mm
Weight
1.15 kg
3 part numbersShow

Charging cases

CHG-C9

CHG-C9

Wheeled hard case with a draw-bar that carries nine BAT-24-100 packs and charges them together; marked solar compatible.

Input voltage
100–240 V AC
Output
29.2 V 4.0 A
Batteries
1–9 × BAT-24-100
Charging time
50 min, one BAT-24-100
Operating temperature
0 to 50 °C
Humidity
20–98 %
Dimensions
545 × 406 × 261 mm
Weight
15.5 kg with nine BAT-24-100

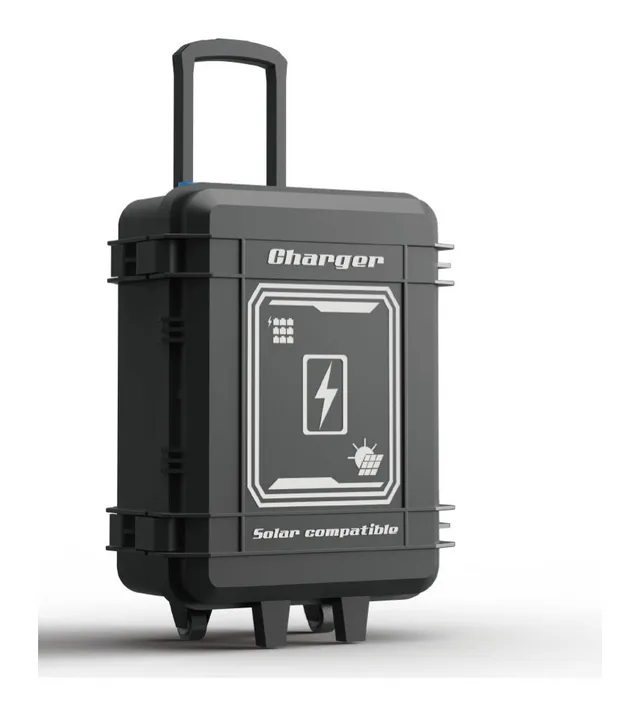

CHG-C9H

CHG-C9H

Wheeled case for the BAT-24-500, with an AC input and a solar input.

Input voltage
100–277 V AC, 7.5 A; solar input
Output
29.2 V 4.0 A
Batteries
1–3 × BAT-24-500
Charging time
5 h
Operating temperature
−10 to 50 °C
Humidity
1–98 %
Dimensions
545 × 406 × 261 mm
Weight
8.8 kg

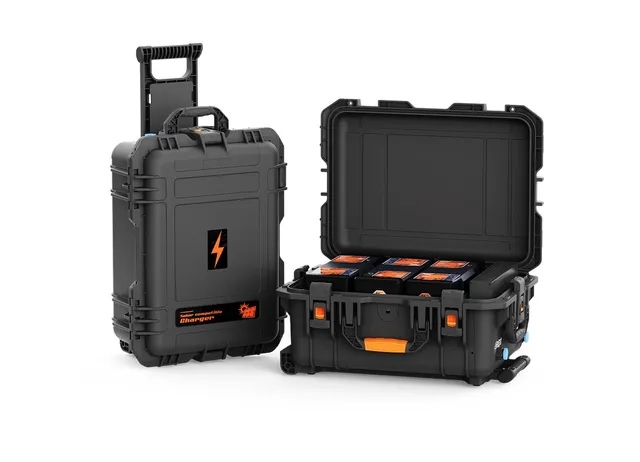

CHG-C3

CHG-C3

Hard case that carries and charges the BAT-70-1000 packs of the TWR-600.

Input voltage
80.3 V DC, 7.5 A
Batteries
BAT-70-1000
Charging time
1.5 h (one BAT-70-1000), 4.5 h (three)
Operating temperature
−15 to 50 °C
Dimensions
528 × 391 × 249 mm
Weight
7.6 kg

Specifications

Electrical
Input voltage100–277 V AC (CHG-1, CHG-2, CHG-2H, CHG-C9H); 100–240 V AC (CHG-C9); 12–24 V DC (CHG-CAR); 80.3 V DC (CHG-C3)
BatteriesBAT-24-054 and BAT-24-100: CHG-1, CHG-2, CHG-C9, CHG-CAR; BAT-24-500: CHG-2H, CHG-C9H; BAT-70-1000: CHG-C3
ProtectionCHG-C9H: over-power and short-circuit protection

Dimensions & weight

ModelLengthWidthHeightWeight
CHG-113.5 cm9 cm6.5 cm0.5 kg
CHG-225.1 cm15.4 cm7.3 cm0.75 kg
CHG-2H25.1 cm15.4 cm15.3 cm1.25 kg
CHG-CAR19.5 cm8.7 cm5.1 cm1.15 kg
CHG-C954.5 cm40.6 cm26.1 cm—
CHG-C9H54.5 cm40.6 cm26.1 cm8.8 kg
CHG-C352.8 cm39.1 cm24.9 cm7.6 kg

Applications

Site battery chargingOff-grid operationVehicle charging
