Products / CNX-DLC

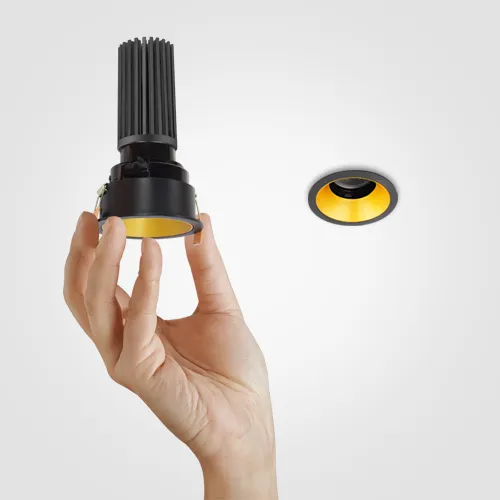

Compact Downlight
Small-aperture COB downlight up to 100 lm/W with 90+ CRI or 95+ CRI dim-to-warm, available in 2, 3 and 4 in sizes and 5 W to 19 W configurations.
5 · 7,6 · 10 cmapertures (2, 3 and 4 in)
Ra 90+ / 95+fixed CCT / dim-to-warm
0–10 V + TRIACboth dimming protocols in one driver, to 1 %
Product range
12 lumen packages01
2, 3 or 4 in · 5–19 W
One fixture in three sizes: 2 in, 3 in, 4 in.
Beam patterns
- 30°
- 50°
- 15°
- 24°
- 36°
- 60°
- 100°
Sizes
Colour temperature
- 2,700 K
- 3,000 K
- 3,500 K
- 4,000 K
Control
- 0–10 V
- TRIAC
- ColoursWhite or black
trimmed or trimless - Input voltage110–277 V AC
- Operating temperature−20 to +40 °C
12 lumen packagesShow
5 W335 lm67 lm/W2 in · 30° · 3000 K
8 W544 lm68 lm/W2 in · 30° · 3000 K
10 W670 lm67 lm/W2 in · 30° · 3000 K
13 W832 lm64 lm/W2 in · 30° · 3000 K
16 W976 lm61 lm/W2 in · 30° · 3000 K
5 W475 lm95 lm/W3 in round · 24° · 3000 K
8 W800 lm100 lm/W3 in round · 24° · 3000 K
10 W990 lm99 lm/W3 in round · 24° · 3000 K
13 W1,235 lm95 lm/W3 in round · 24° · 3000 K
16 W1,456 lm91 lm/W3 in round · 24° · 3000 K
19 W1,690 lm89 lm/W3 in round · 24° · 3000 K
19 W1,900 lm100 lm/W4 in · white trim · 3000 K
Specifications
| Sizes | 2 in (5 cm) round; 3 in (7.6 cm) round or square; 4 in (10 cm) round |
|---|---|
| Housing | Die-cast (4 in) or forged (2 in) aluminium |
| Finish | Powder-coat polyester, white or black |
| Thermal management | Housing doubles as heat sink, held at 60–70 °C |

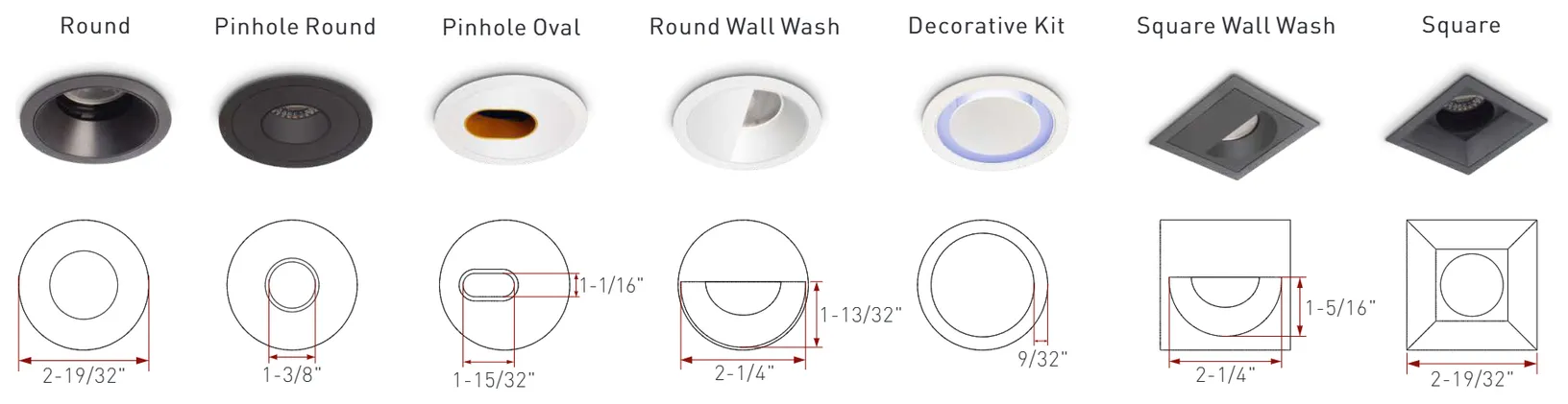

| Trim | Trimmed with white or black flange, trimless for sheetrock and plaster, or trimless for wood ceilings (made to order); shades in white, black, gold or chrome, 3 in also pinhole round, pinhole oval, round wall wash and square wall wash, 4 in also anti-glare or diffuser; twist-and-lock installation with tension clips |
| Mounting | Remodel housing (non-IC, installed from below), new-construction frame kit (non-IC, from above) or new-construction housing insulation kit (IC-rated, from above); adjustable holder with 360° rotation and up to 30° tilt (2 and 3 in), horizontal adjustment holder on 4 in |

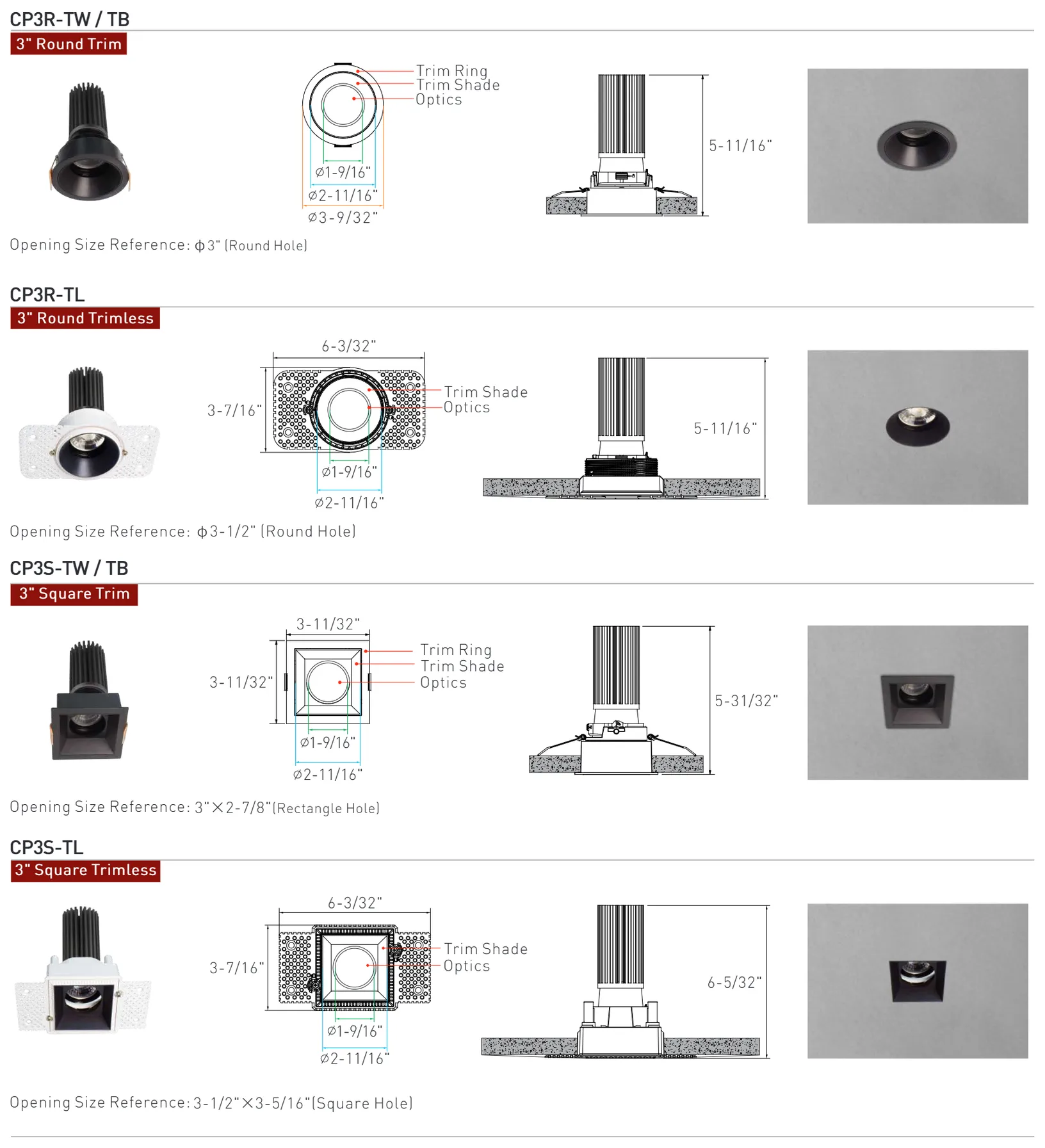

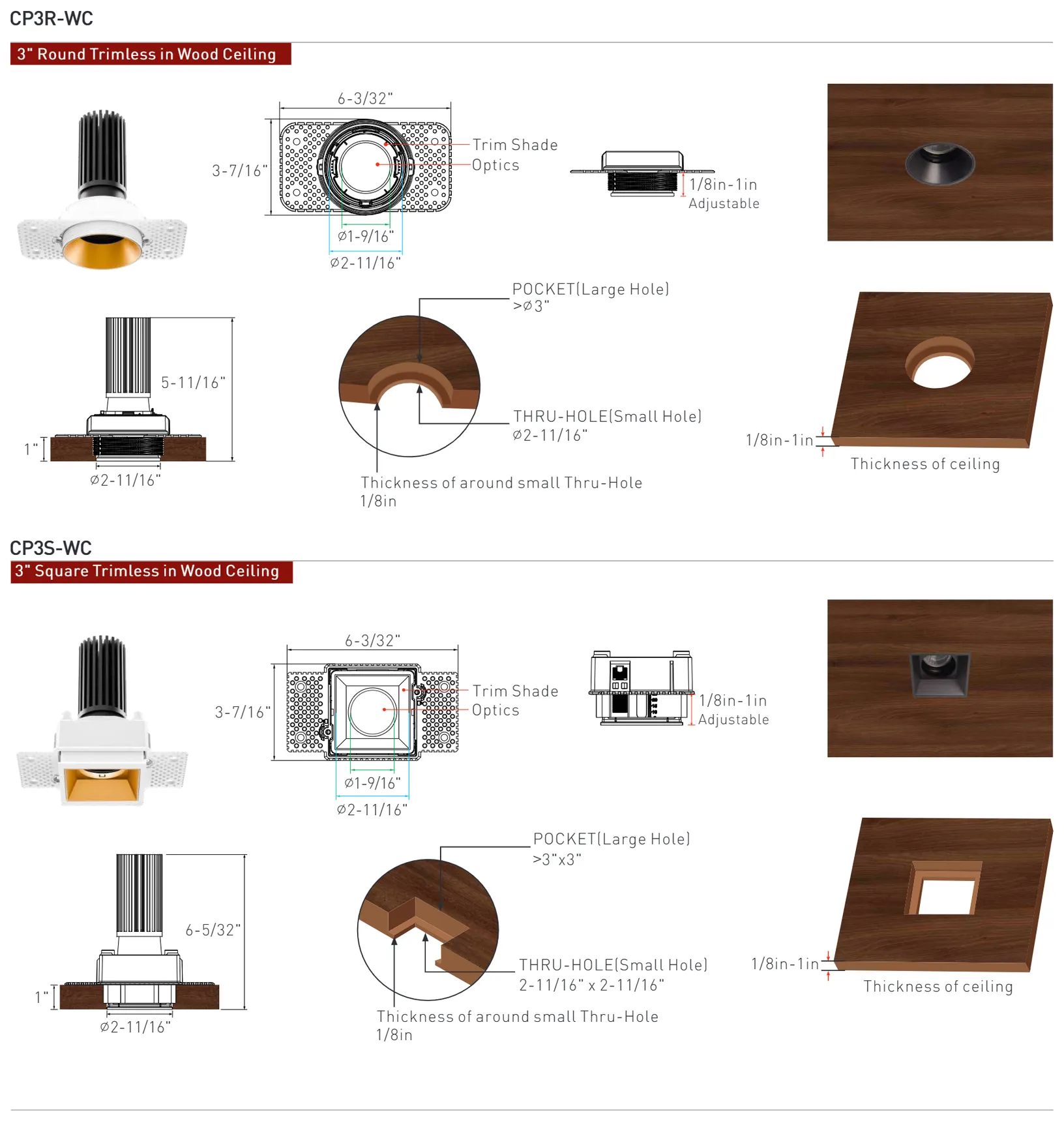

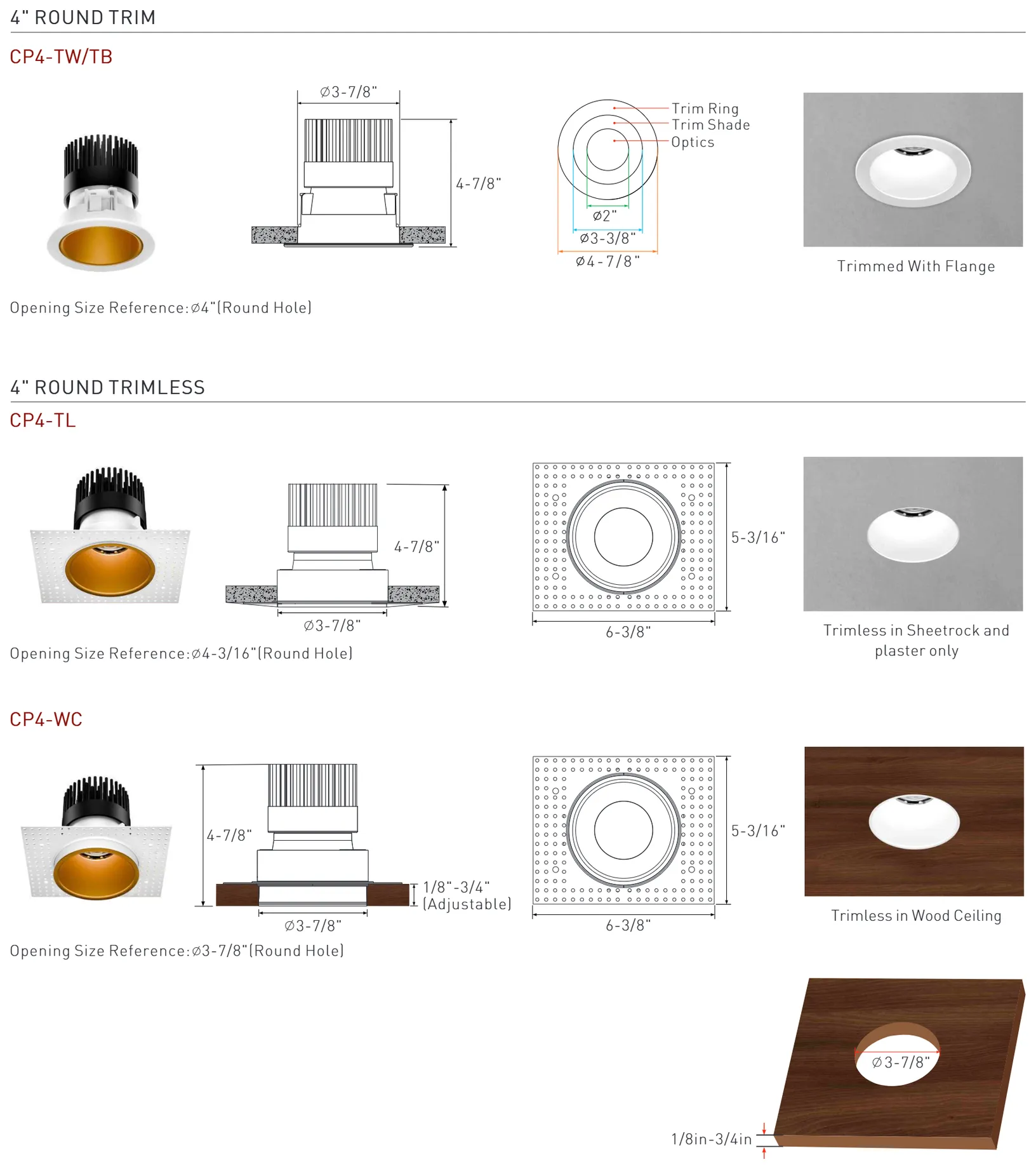

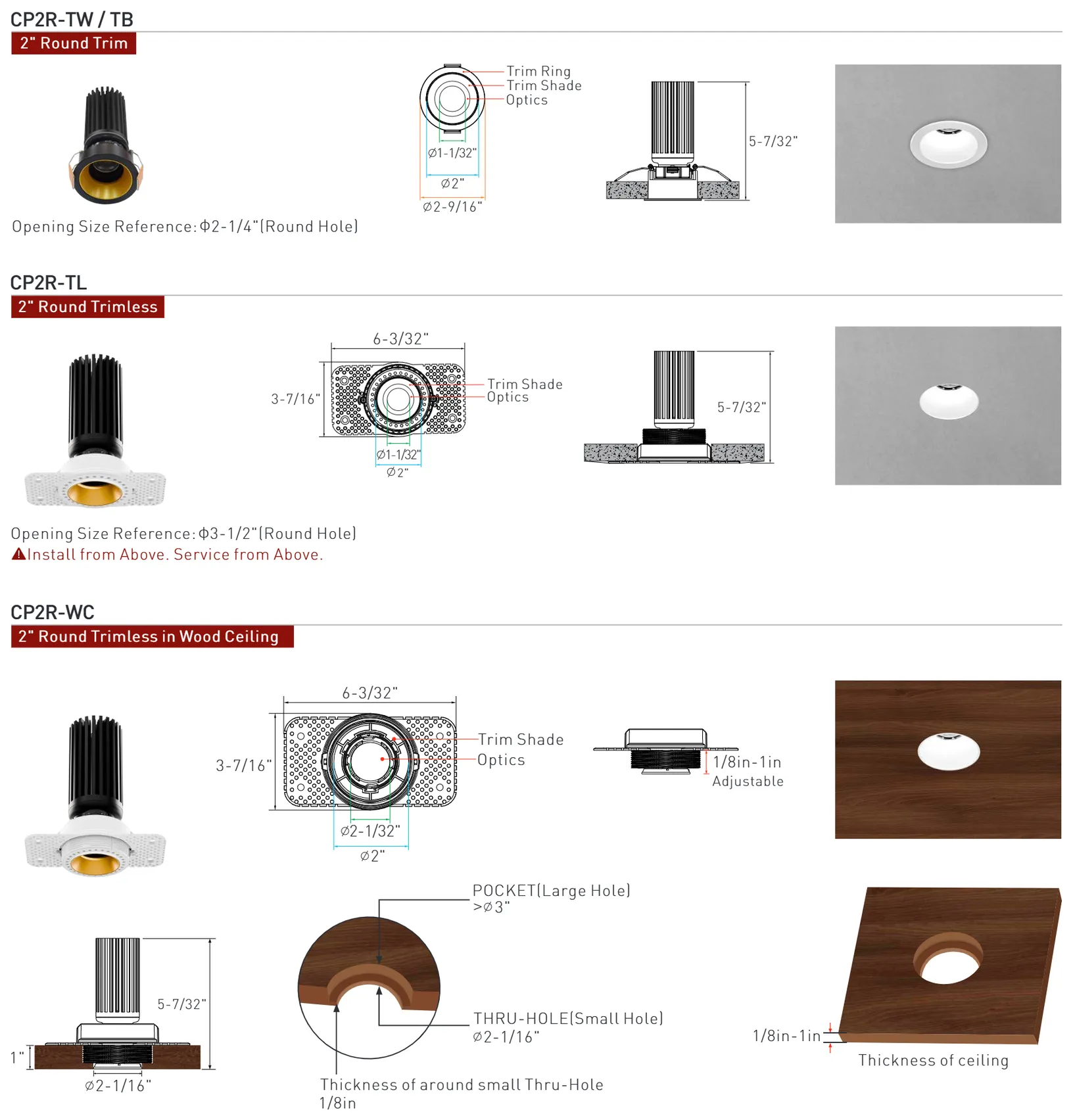

| Cut-out | 2 in: Ø 5.7 cm trimmed, Ø 8.9 cm trimless; 3 in round: Ø 7.6 cm trimmed, Ø 8.9 cm trimless; 3 in square: 7.6 × 7.3 cm trimmed, 8.9 × 8.4 cm trimless; 4 in: see the sheet; wood ceilings 5.2 cm (2 in) or 6.8 cm (3 in) through-hole, ceiling 0.3–2.5 cm thick |
| Location rating | Damp location, interior use only; wet rated with optional waterproof plate (2 and 3 in); IC or non-IC by housing kit |
| LEDs | COB |
|---|---|
| Colour temperature | Fixed 2700, 3000, 3500 or 4000 K; dim-to-warm 3000 K to 2000 K (13 W maximum) |
| CRI | 90+ at fixed CCT; 95+ dim-to-warm; 4 in also in 80+ |
| Wattage | Field-selectable: 5 / 8 / 10 / 13 / 16 W (2 in); 5 / 8 / 10 / 13 / 16 / 19 W (3 and 4 in) |
|---|---|
| Output | Electrical table: rows 1–5 the 2 in at 30° beam, rows 6–11 the 3 in round at 24° beam, row 12 the 4 in with white trim, all at 3000 K; 2 in at 50° beam: 365 / 592 / 740 / 910 / 1,072 lm (73 / 74 / 74 / 70 / 67 lm/W), dim-to-warm up to 13 W, 840 lm, 70 lm/W; 3 in square at 24° beam: 475 / 768 / 950 / 1,183 / 1,390 / 1,615 lm (95 / 96 / 95 / 91 / 87 / 85 lm/W), dim-to-warm up to 13 W, 1,200 lm, 95 lm/W; varies ±5 % with CCT, beam angle, trim shape and shade |
| Beam angle | 2 in 30° or 50°; 3 in 15°, 24°, 36°, 60° or low-glare lens 18°, 24°, 38°, 50°; 4 in 15°, 24°, 36°, 60° or 100° diffuser |
| Optics | Reflector-style, MR16 format (1.96 in / 5 cm); beam spreads interchangeable in the field without tools; optional honeycomb louvre, waterproof plate, coloured decorative kits (yellow, green, transparent, blue, red; 10 W max on 2 in, 16 W max on 3 in) |
| Rated life | [PENDING] |
| Input voltage | 110–277 VAC |
|---|---|
| Driver | Class 2, cULus recognized |
| Dimming | 0–10 V (to 1 %) and TRIAC in one driver |
| Power factor | > 0.9 |
| THD | < 20 % |
| Safety | Thermal overload protection; shuts down above design temperature |
| Operating temperature | −20 °C to +40 °C |
| Emergency | Optional 16 W LED emergency driver |
| Warranty | 5 years on parts and components (labour not included) |
Dimensions & weight
| Model | Length | Width | Height | Weight |
|---|---|---|---|---|
| 2 in · trim ring Ø / height trimmed | 6.5 cm | 6.5 cm | 13.3 cm | — |
| 3 in round · trim ring Ø / height trimmed | 8.3 cm | 8.3 cm | 14.4 cm | — |
| 3 in square · trim | 8.5 cm | 8.5 cm | 14.4 cm | — |
| 4 in · trim ring Ø / height | 12.4 cm | 12.4 cm | 12.4 cm | — |
Ordering information
Part number format
CNX-DLCProduct type2R1Size and shapeTW2Flange type16W3Maximum wattageDT14Dimming905CRI27+Colour temperatureB306BeamTA7HolderRW8Trim shadeRM9MountingExample: CNX-DLC-2R-TW-16W-DT1-9027-B30-TA-RW-RM — the first code in each numbered position; pick one code per position below to build your own
1Size and shape
2Flange type
3Maximum wattage
4Dimming
5CRI + Colour temperature
CRI
Colour temperature
Written as one code: 90 + 27 → 9027
6Beam
7Holder
8Trim shade
9Mounting
Product options
Applications
OfficesHotelsRestaurantsResidencesCommercial and institutional spaces
Certifications
cULus
Marks as printed on the current spec sheet.
