Products / CNX-DLJ

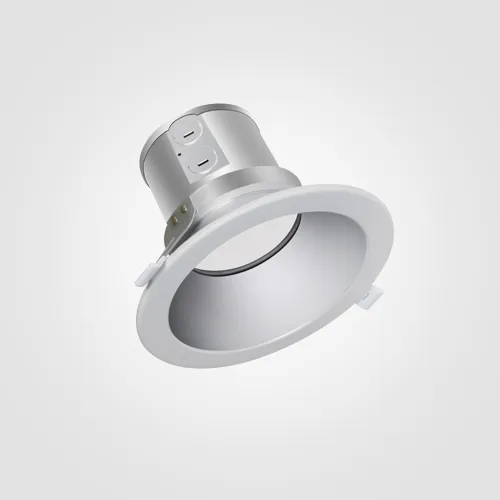

J-Box Downlight
J-box downlight up to 103 lm/W that needs no recessed housing, available in 4 to 10 in trims and 20 W to 60 W engines.
0recessed cans required: integral junction box
20 · 40 · 60 Wlight engines, each with three selectable steps
10–25 cmtrim sizes, round, square and wall wash
Product range
3 lumen packages01
20, 40 or 60 W engine
One fixture in three sizes: 20 W engine, 40 W engine, 60 W engine.
Sizes
Colour temperature
- 3,000 K
- 3,500 K
- 4,000 K
Control
- 0–10 V
- Input voltage120–347 V AC; 120–277 V AC
- ColoursRound or square trims: white, black, haze, rosé, wall wash
3 lumen packagesShow
20 W1,700 lm85 lm/W20 W engine, high step
40 W3,400 lm85 lm/W40 W engine, high step
60 W6,100 lm103 lm/W60 W engine, high step
Specifications
| Housing | Integral junction box for direct wiring; no recessed housing needed; junction box and trim separable |
|---|---|
| Mounting | Adjustable butterfly clips, directly into the ceiling; optional new-construction frame kits, round (3–8 in) and square (4–6 in), with or without junction box |
| Light engine | Twist-lock modular |
| Sizes | Trims 4, 6, 8 and 10 in (10, 15, 20, 25 cm); 8 and 10 in in round trims only |
| Trim | Round white ring with haze reflector, round black, round haze, round rosé, square white, round wall wash, square wall wash (15° tilt on wall wash) |
| Cut-out | 4 in trim 4.7–5.2 in (11.9–13.2 cm); 6 in 6–7.3 in (15.2–18.5 cm); 8 in 7.4–8.9 in (18.8–22.6 cm); 10 in 9.5–10.8 in (24.1–27.4 cm) |
| Insulation contact | 20 W engine with 3000 / 4000 / 5000 K IC-rated; all other engines non-IC |
| Location rating | Damp location; optional wet-location version (made to order, non-IC, 4, 6 and 8 in round, 20 W and 40 W engines, mounting space 17 × 10 × 8 in / 43 × 25 × 20 cm) |
| Output | 20 W engine: 20 / 15 / 10 W selectable, 1,700 lm at 20 W; 40 W engine: 40 / 34 / 27 W selectable, 3,400 lm at 40 W; 60 W engine: 60 / 50 / 40 W selectable, 6,100 lm at 60 W, 6, 8 and 10 in round and 6 in square trims only; lower wattage steps [PENDING] |
|---|---|
| Efficacy | 85 lm/W (20 W and 40 W engines); 103 lm/W (60 W engine) |
| Colour temperature | 3000 / 3500 / 4000 K switchable at the fixture, or 3000 / 4000 / 5000 K on the IC-rated 20 W engine |
| CRI | [PENDING] |
| Rated life | [PENDING] |
| Input voltage | 120–347 VAC (20 W and 40 W engines); 120–277 VAC (60 W engine) |
|---|---|
| Dimming | 0–10 V to 10 % (20 W and 40 W engines) or to 1 % (60 W engine); 20 W non-dimming variant available |
| Emergency | Optional external 16 W or 25 W LED driver with indicator, field-installed (pre-wired option available) |

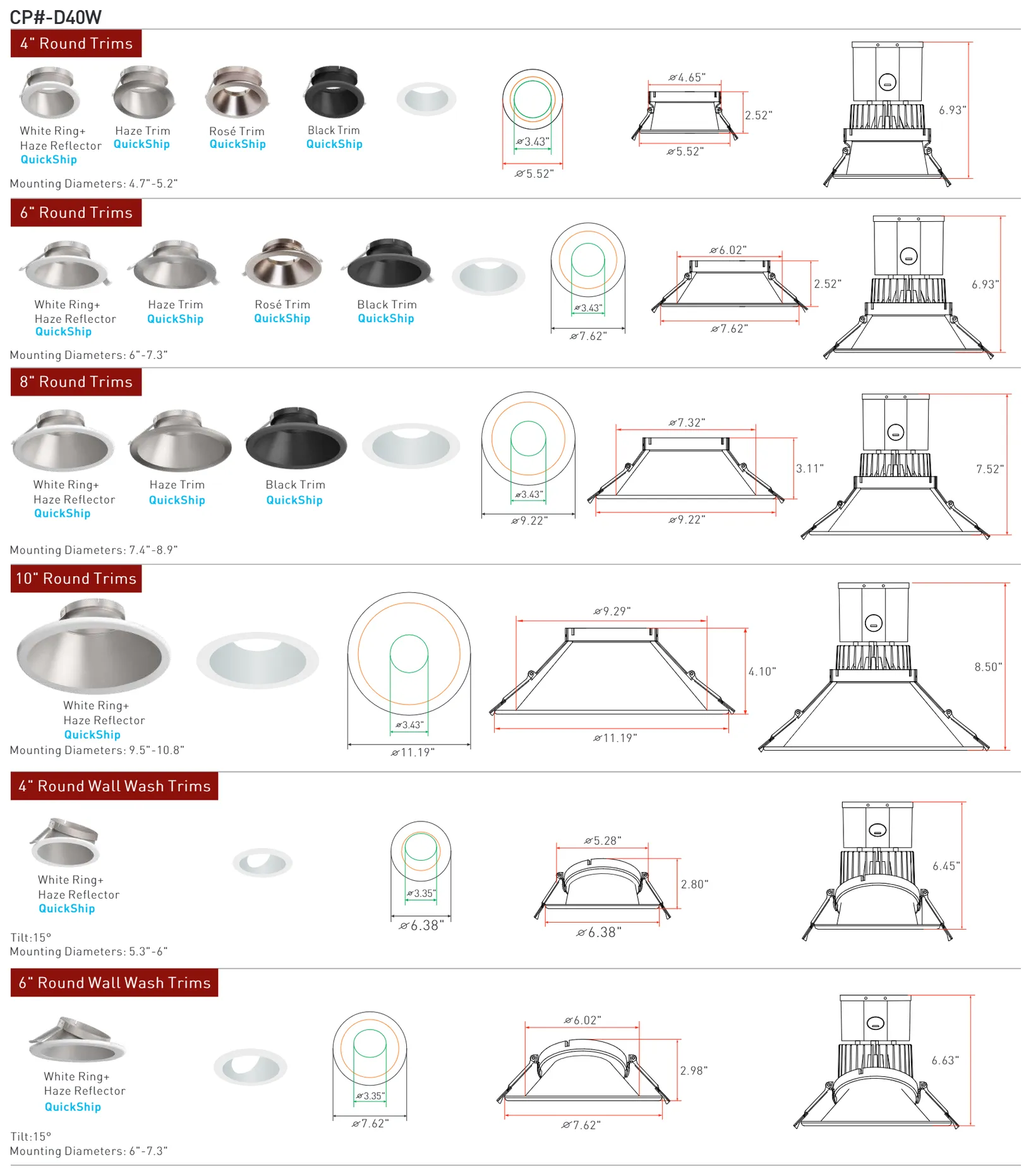

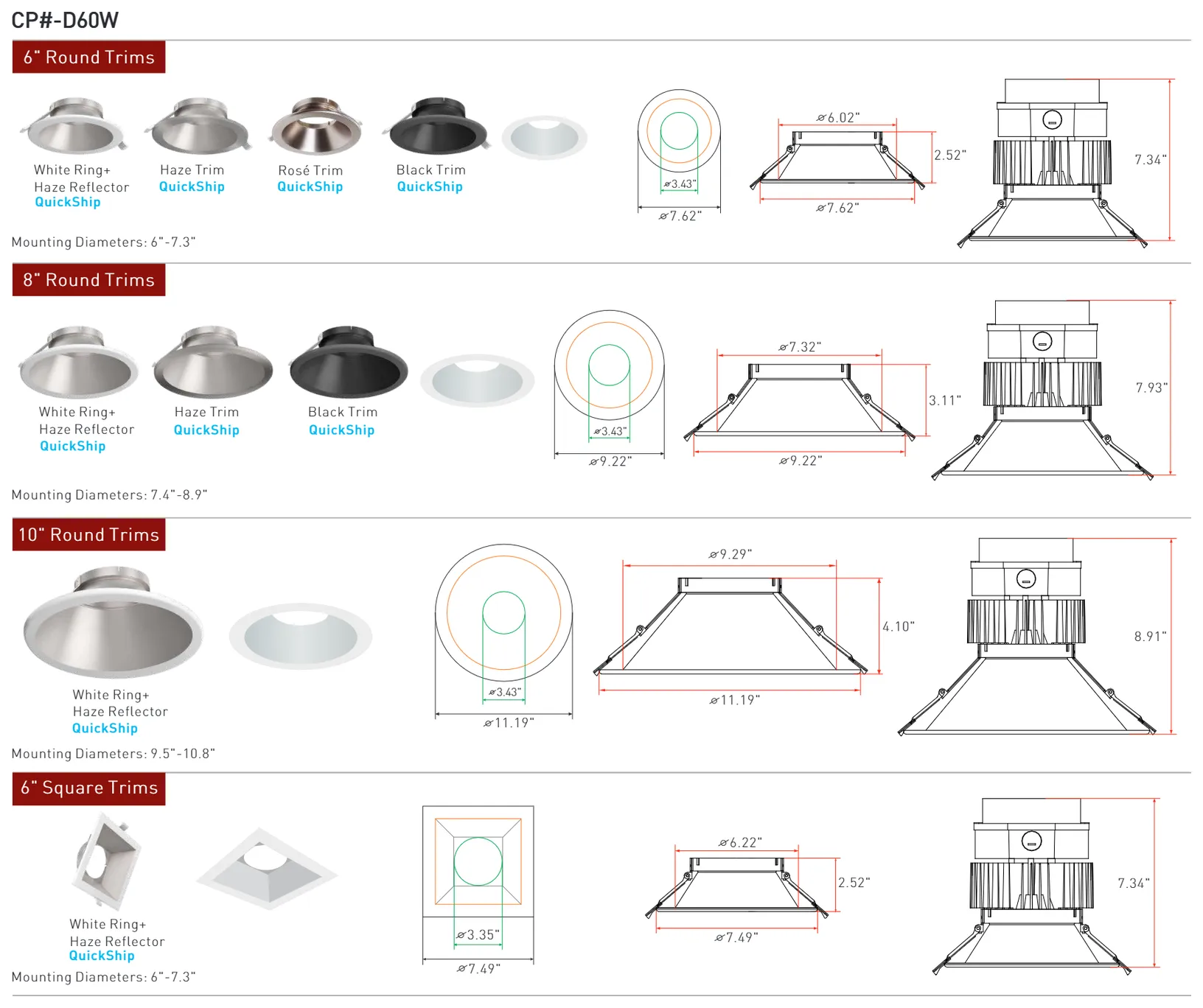

Dimensions & weight
| Model | Length | Width | Height | Weight |
|---|---|---|---|---|
| 4 in round trim (OD 5.52 in) | 14 cm | 14 cm | 8.7 cm | — |
| 6 in round trim (OD 7.62 in) | 19.4 cm | 19.4 cm | 8.7 cm | — |
| 8 in round trim (OD 9.22 in) | 23.4 cm | 23.4 cm | 8.7 cm | — |
| 10 in round trim (OD 11.19 in) | 28.4 cm | 28.4 cm | 8.7 cm | — |
Ordering information
Part number format
CNX-DLJProduct type41Trim sizeD2Dimming20W-35T+Wattage and CCTExample: CNX-DLJ-4-D20W-35T — the first code in each numbered position; pick one code per position below to build your own
1Trim size
2Dimming + Wattage and CCT
Dimming
Wattage and CCT
Written as one code: D + 20W-35T → D20W-35T
Product options
Applications
Shopping mallsHospitalsAirportsHotel lobbiesCommercial and public buildings
Certifications
cULusEnergy Star
Marks as printed on the current spec sheet.
