Products / CNX-DLR
Regressed Downlight

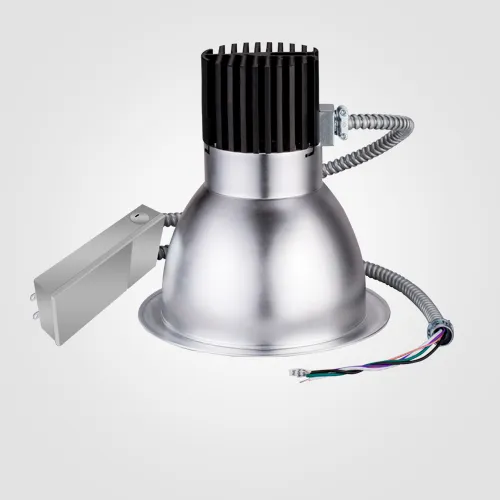

Regressed commercial downlight up to 85 lm/W with a twist-lock engine that retrofits existing cans, available in 4, 6, 8 and 10 in apertures and 14 W to 80 W configurations.
10 · 15 · 20 · 25 cmfour apertures, one light engine
14–80 Wselectable wattage, three steps per engine
3000 · 3500 · 4000 KCCT switchable at the fixture (27 W and 40 W engines)
Product range
9 lumen packages01
4 or 6 / 8 / 10 in · 14–80 W
One fixture in three sizes: 4 in (27 W engine), 6 / 8 / 10 in (40 W engine), 6 / 8 / 10 in (80 W engine).
Sizes
Colour temperature
- 3,000 K
- 3,500 K
- 4,000 K
Control
- 0–10 V
- ColoursWhite trim ring, haze reflector
- Input voltage110–277 V AC
- Operating temperature−20 to +40 °C
- Rated life50,000 h min.
9 lumen packagesShow
14 W1,200 lm85.7 lm/W4 in · 27 W engine, low step · 3500 K
20 W1,600 lm80 lm/W4 in · 27 W engine, medium step · 3500 K
27 W2,025 lm75 lm/W4 in · 27 W engine, high step · 3500 K
18 W1,500 lm83.3 lm/W6/8/10 in · 40 W engine, low step · 3500 K
27 W2,300 lm85.2 lm/W6/8/10 in · 40 W engine, medium step · 3500 K
40 W3,500 lm87.5 lm/W6/8/10 in · 40 W engine, high step · 3500 K
50 W4,200 lm84 lm/W6/8/10 in · 80 W engine, low step · 3500 K
65 W5,500 lm84.6 lm/W6/8/10 in · 80 W engine, medium step · 3500 K
80 W6,800 lm85 lm/W6/8/10 in · 80 W engine, high step · 3500 K
Specifications
| Sizes | Apertures 4 in (10 cm), 6 in (15 cm), 8 in (20 cm) and 10 in (25 cm) |
|---|---|
| Trim | White trim ring; spun aluminium reflector with haze finish |
| Lens | Deeply regressed diffusing lens, conceals the LEDs from direct view |
| Thermal management | Light engine mounted directly to the aluminium trim, which acts as the heat sink |
| Light engine | Twist-lock modular; one engine fits all trims |

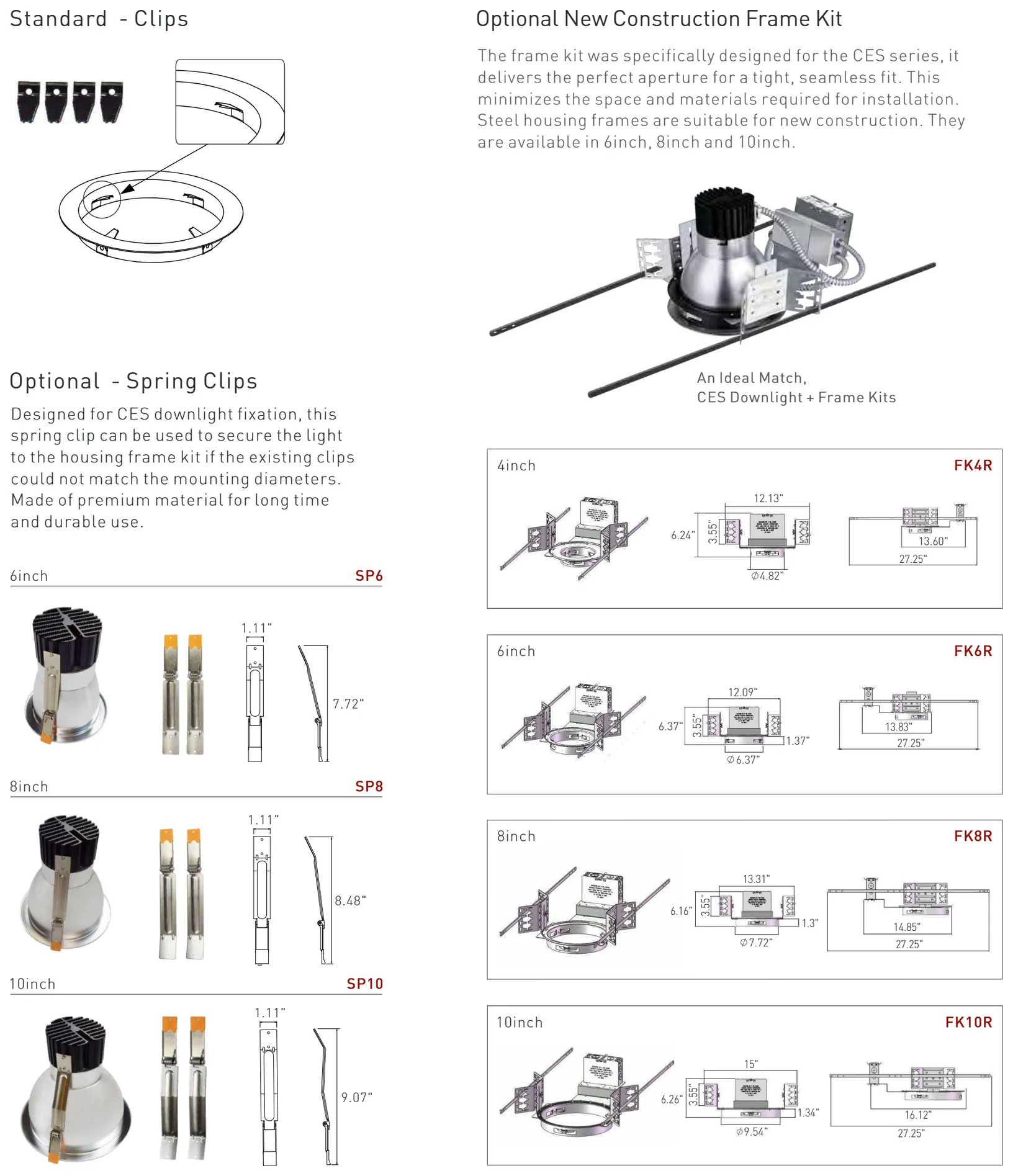

| Mounting | Spring-steel friction clips for commercial open-frame rough-in sections; optional spring clips for 6, 8 and 10 in; optional steel new-construction housing frame kits for 4, 6, 8 and 10 in |
| Insulation contact | 40 W engine (6, 8 and 10 in) IC-rated; 27 W (4 in) and 80 W engines non-IC |
| Location rating | Damp location |
| Cut-out | Mounting diameters 11.2–12.7 cm (4 in), 15.2–17.0 cm (6 in), 19.6–21.3 cm (8 in), 23.9–25.4 cm (10 in); aperture Ø 7.4 cm (4 in, 27 W) or 10.2 cm |
| Output | 27 W engine (4 in): 27 / 20 / 14 W selectable, 2,025 / 1,600 / 1,200 lm; 40 W engine (6, 8, 10 in): 40 / 27 / 18 W selectable, 3,500 / 2,300 / 1,500 lm; 80 W engine (6, 8, 10 in): 80 / 65 / 50 W selectable, 6,800 / 5,500 / 4,200 lm; quoted at 3500 K, ±5 % with CCT and trim |
|---|
| Colour temperature | 3000 / 3500 / 4000 K switchable at the fixture on the 27 W and 40 W engines; 80 W engine ordered in fixed 3000, 3500 or 4000 K |
|---|---|
| Efficacy | Per step, derived from the published wattage and lumen figures |
| CRI | [PENDING] |
| Rated life | 50,000 h minimum with 87.8 % lumen maintenance at 25 °C, per IES LM-80; tested to IES LM-79 and LM-80 |
| Input voltage | 110–277 VAC |
|---|---|
| Driver | Class 2 LED, cULus recognized |
| Dimming | 0–10 V, continuous to 10 % |
| Power factor | > 0.9 |
| THD | < 20 % |
| Operating temperature | −20 °C to +40 °C |
| Emergency | Optional external 16 W or 25 W LED driver with indicator, field-installed (pre-wired option available) |
| Warranty | 5-year limited |

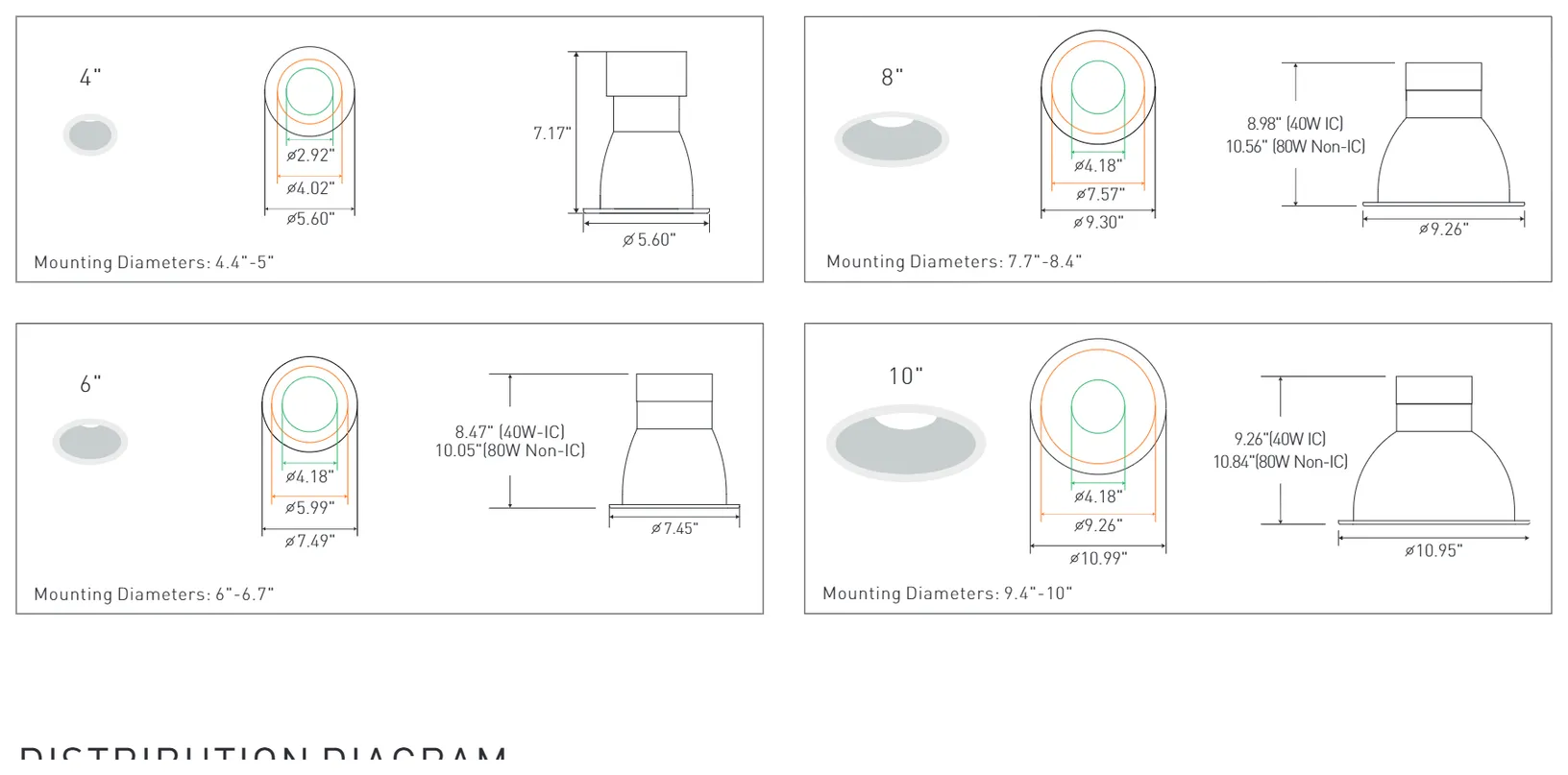

Dimensions & weight
| Model | Length | Width | Height | Weight |
|---|---|---|---|---|
| 4 in · trim Ø / height | 14.2 cm | 14.2 cm | 18.2 cm | — |
| 6 in · trim Ø / height, 40 W IC engine | 19 cm | 19 cm | 21.5 cm | — |
| 6 in · 80 W engine | 19 cm | 19 cm | 25.5 cm | — |
| 8 in · 40 W engine | 23.6 cm | 23.6 cm | 22.8 cm | — |
| 8 in · 80 W engine | 23.6 cm | 23.6 cm | 26.8 cm | — |
| 10 in · 40 W engine | 27.9 cm | 27.9 cm | 23.5 cm | — |
| 10 in · 80 W engine | 27.9 cm | 27.9 cm | 27.5 cm | — |
Ordering information
Part number format
CNX-DLRProduct typeC41ApertureD27W-35T2Wattage and CCTExample: CNX-DLR-C4-D27W-35T — the first code in each numbered position; pick one code per position below to build your own
1Aperture
2Wattage and CCT
Product options
Applications
Shopping mallsHospitalsAirportsHotel lobbiesCommercial and public buildings
Certifications
cULusEnergy Star
Marks as printed on the current spec sheet.
