Products / CNX-EXN
Explosion-proof Canopy Light
Efficacy of 120 lm/W in a low-profile canopy housing for classified hazardous locations, available in 20 W to 150 W configurations.
120 lm/Wefficacy
20–150 Wseven packages
IP66dust and water tight
Product range
7 modelsXX in each part number is the colour temperature code (30 / 40 / 50 / 57, or CST for a custom value within the published range), chosen at order; the options follow the wattage.
CPA
CPA series

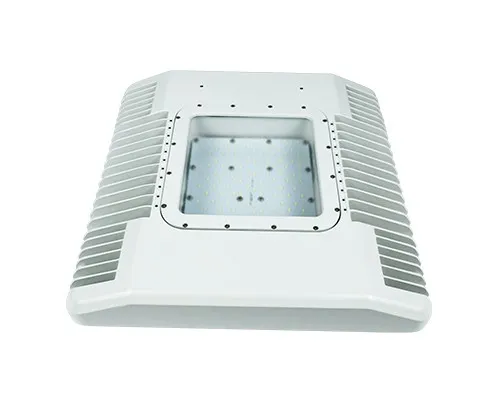

A flat white canopy housing, 20 W to 150 W, for Zone 1 areas.
Colour temperature
- 3,000 K
- 4,000 K
- 5,000 K
Control
- On/Off
- Input voltage100–277 V AC
12 / 24 / 36 V DC - Ingress ratingIP66
- Impact ratingIK10
- Rated life> 50,000 h
- Operating temperature−40 to +60 °C
7 part numbersShow
| Part number | Power | Output | Efficacy | Input voltage | CRI |
|---|---|---|---|---|---|
| CNX-EXN-CPA-XX-020 | 20 W | 2,400 lm | 120 lm/W | 100–277 V AC or 12 / 24 / 36 V DC | > 70 |
| CNX-EXN-CPA-XX-040 | 40 W | 4,800 lm | 120 lm/W | 100–277 V AC or 12 / 24 / 36 V DC | > 70 |
| CNX-EXN-CPA-XX-060 | 60 W | 7,200 lm | 120 lm/W | 100–277 V AC or 12 / 24 / 36 V DC | > 70 |
| CNX-EXN-CPA-XX-080 | 80 W | 9,600 lm | 120 lm/W | 100–277 V AC or 12 / 24 / 36 V DC | > 70 |
| CNX-EXN-CPA-XX-100 | 100 W | 12,000 lm | 120 lm/W | 100–277 V AC or 12 / 24 / 36 V DC | > 70 |
| CNX-EXN-CPA-XX-120 | 120 W | 14,400 lm | 120 lm/W | 100–277 V AC or 12 / 24 / 36 V DC | > 70 |
| CNX-EXN-CPA-XX-150 | 150 W | 18,000 lm | 120 lm/W | 100–277 V AC or 12 / 24 / 36 V DC | > 70 |
Specifications
| Impact rating | IK10 |
|---|
| Rated life | > 50,000 h |
|---|
| Output | 2,400–18,000 lm |
|---|
| Operating temperature | −40 to +60 °C |
|---|---|
| Warranty | 5 years |
| ATEX marking | II 2 G Ex eb op is IIC T5/T6 Gc · II 2 D Ex op is tb IIIC T80 °C Db |
|---|---|
| IECEx marking | Ex eb op is IIC T5/T6 Gc · Ex op is tb IIIC T80 °C Db |
| Marine | UL 1598, UL 8750 |
Ordering information
Part number format
CNX-EXNProduct typeCPA1Series302Colour temperature0203WattageP14Input voltageEMG5EmergencyExample: CNX-EXN-CPA-30-020 — the first part number in the tables above, with 3000 K in place of XX; the options follow the wattage
1Series
2Colour temperature
3Wattage
4Input voltage
5Emergency
Applications
Petroleum production and refiningPetroleum loading and transportFuel storage and retailChemical production and storagePaint facilitiesPumping stationsSmelting, foundries and fabricationMining operationsOffshore platformsMarine vesselsFood and distillingPower generation
Certifications
ATEXIECExUL 1598
Marks as printed on the current spec sheet.
