Products / CNX-EXP

Explosion-proof Pendant & Wall Lights

High efficacy up to 140 lm/W in classified hazardous locations, with wide and narrow optics, available in 10 W to 220 W configurations.

140 lm/Wefficacy
4series with guards
IK10impact resistant
Request a quoteDownloads

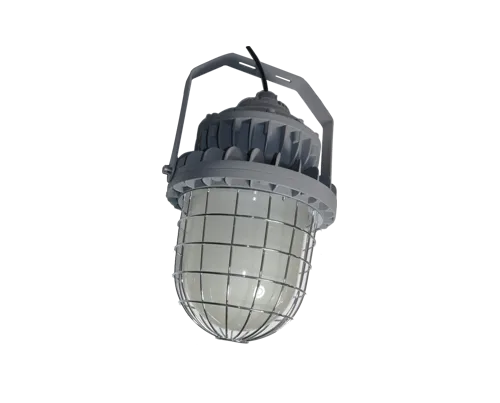

Pendant with glass dome and guard

Compare the series

4 series
E seriesFor Division 1 areas: a pendant with a guarded glass dome, 20 W to 220 W.Power20–220 WOutput2,800–30,800 lmEfficacy140 lm/WColour temperature3500–6000 KCRI> 70Input voltage100–277 V AC, 200–480 V AC
12–36 V DCHazardous locationClass I Division 1 (UL 844)Ingress ratingNEMA 4X, IP66Impact ratingIK10Rated life> 50,000 hOperating temperature−40 to +60 °CEmergencyOptionalSee models F seriesFor Division 1 areas: a guarded pendant with a wide aluminium reflector, 20 W to 80 W.Power20–80 WOutput2,800–11,200 lmEfficacy140 lm/WColour temperature3500–6000 KCRI> 70Input voltage100–277 V AC, 200–480 V AC
12–36 V DCHazardous locationClass I Division 1 (UL 844)Ingress ratingNEMA 4X, IP66Impact ratingIK10Rated life> 50,000 hOperating temperature−40 to +60 °CEmergencyOptionalSee models G seriesFor Division 1 areas: the small one, 10 W to 50 W, on a pendant, a wall arm or a pole.Power10–50 WOutput1,400–7,000 lmEfficacy140 lm/WColour temperature3500–6000 KCRI> 70Input voltage100–277 V AC, 200–480 V AC
12–36 V DCHazardous locationClass I Division 1 (UL 844)Ingress ratingNEMA 4X, IP66Impact ratingIK10Rated life> 50,000 hOperating temperature−40 to +60 °CEmergencyOptionalSee models O seriesFor Division 2 areas: a compact guarded fitting with toughened glass, 10 W to 30 W, wall, ceiling or pendant, reflector optional.Power10–30 WOutput1,400–4,200 lmEfficacy140 lm/WColour temperature2200–7000 KCRI> 70Input voltage100–277 V AC
200–480 V ACHazardous locationZone 1 / 21 · Class I Division 2Ingress ratingNEMA 3, 4X, IP66Impact ratingIK10Rated life> 50,000 hOperating temperature−40 to +60 °CEmergencyOptionalSee models

Product range

22 models

XX in each part number is the colour temperature code (30 / 40 / 50 / 57, or CST for a custom value within the published range), chosen at order; the options follow the wattage.

E series

For Division 1 areas: a pendant with a guarded glass dome, 20 W to 220 W.

E series

Colour temperature

  • 3,000 K
  • 4,000 K
  • 5,000 K

Control

  • On/Off
  • Input voltage100–277 V AC, 200–480 V AC
    12–36 V DC
  • Ingress ratingNEMA 4X, IP66
  • Impact ratingIK10
  • Rated life> 50,000 h
  • Operating temperature−40 to +60 °C
9 part numbersShow
E series
Part numberPowerOutputEfficacyInput voltageCRI
CNX-EXP-E-XX-02020 W2,800 lm140 lm/W100–277 V AC, 200–480 V AC or 12–36 V DC> 70
CNX-EXP-E-XX-04040 W5,600 lm140 lm/W100–277 V AC, 200–480 V AC or 12–36 V DC> 70
CNX-EXP-E-XX-06060 W8,400 lm140 lm/W100–277 V AC, 200–480 V AC or 12–36 V DC> 70
CNX-EXP-E-XX-08080 W11,200 lm140 lm/W100–277 V AC, 200–480 V AC or 12–36 V DC> 70
CNX-EXP-E-XX-100100 W14,000 lm140 lm/W100–277 V AC, 200–480 V AC or 12–36 V DC> 70
CNX-EXP-E-XX-120120 W16,800 lm140 lm/W100–277 V AC, 200–480 V AC or 12–36 V DC> 70
CNX-EXP-E-XX-150150 W21,000 lm140 lm/W100–277 V AC, 200–480 V AC or 12–36 V DC> 70
CNX-EXP-E-XX-200200 W28,000 lm140 lm/W100–277 V AC, 200–480 V AC or 12–36 V DC> 70
CNX-EXP-E-XX-220220 W30,800 lm140 lm/W100–277 V AC, 200–480 V AC or 12–36 V DC> 70

F series

For Division 1 areas: a guarded pendant with a wide aluminium reflector, 20 W to 80 W.

F series

Colour temperature

  • 3,000 K
  • 4,000 K
  • 5,000 K

Control

  • On/Off
  • Input voltage100–277 V AC, 200–480 V AC
    12–36 V DC
  • Ingress ratingNEMA 4X, IP66
  • Impact ratingIK10
  • Rated life> 50,000 h
  • Operating temperature−40 to +60 °C
Wide reflector
Wide reflector
4 part numbersShow
F series
Part numberPowerOutputEfficacyInput voltageCRI
CNX-EXP-F-XX-02020 W2,800 lm140 lm/W100–277 V AC, 200–480 V AC or 12–36 V DC> 70
CNX-EXP-F-XX-04040 W5,600 lm140 lm/W100–277 V AC, 200–480 V AC or 12–36 V DC> 70
CNX-EXP-F-XX-06060 W8,400 lm140 lm/W100–277 V AC, 200–480 V AC or 12–36 V DC> 70
CNX-EXP-F-XX-08080 W11,200 lm140 lm/W100–277 V AC, 200–480 V AC or 12–36 V DC> 70

G series

For Division 1 areas: the small one, 10 W to 50 W, on a pendant, a wall arm or a pole.

G series

Colour temperature

  • 3,000 K
  • 4,000 K
  • 5,000 K

Control

  • On/Off
  • Input voltage100–277 V AC, 200–480 V AC
    12–36 V DC
  • Ingress ratingNEMA 4X, IP66
  • Impact ratingIK10
  • Rated life> 50,000 h
  • Operating temperature−40 to +60 °C

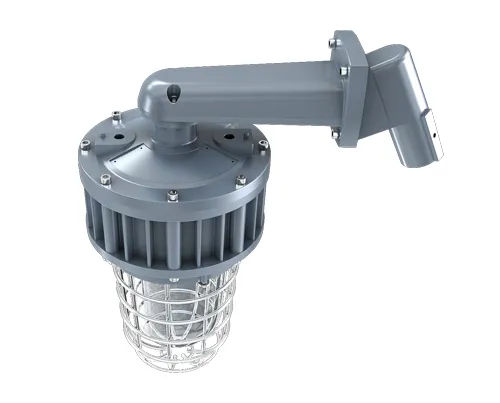

Glass dome
Glass dome

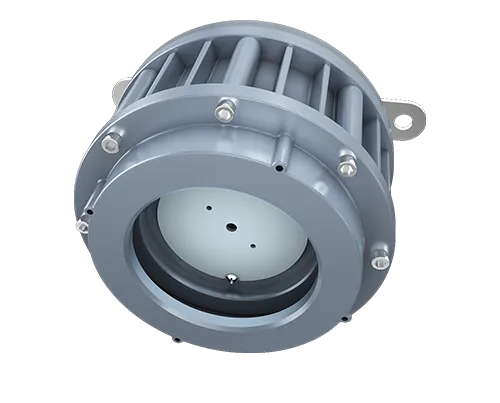

Mounting ring, from behind
Mounting ring, from behind
Pole arm mounting
Pole arm mounting

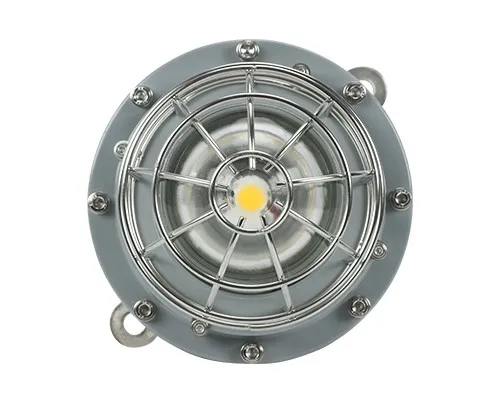

Lens, from the front
Lens, from the front
5 part numbersShow
G series
Part numberPowerOutputEfficacyInput voltageCRI
CNX-EXP-G-XX-01010 W1,400 lm140 lm/W100–277 V AC, 200–480 V AC or 12–36 V DC> 70
CNX-EXP-G-XX-02020 W2,800 lm140 lm/W100–277 V AC, 200–480 V AC or 12–36 V DC> 70
CNX-EXP-G-XX-03030 W4,200 lm140 lm/W100–277 V AC, 200–480 V AC or 12–36 V DC> 70
CNX-EXP-G-XX-04040 W5,600 lm140 lm/W100–277 V AC, 200–480 V AC or 12–36 V DC> 70
CNX-EXP-G-XX-05050 W7,000 lm140 lm/W100–277 V AC, 200–480 V AC or 12–36 V DC> 70

O series

For Division 2 areas: a compact guarded fitting with toughened glass, 10 W to 30 W, wall, ceiling or pendant, reflector optional.

O series

Colour temperature

  • 3,000 K
  • 4,000 K
  • 5,000 K

Control

  • On/Off
  • Input voltage100–277 V AC
    200–480 V AC
  • Ingress ratingNEMA 3, 4X, IP66
  • Impact ratingIK10
  • Rated life> 50,000 h
  • Operating temperature−40 to +60 °C

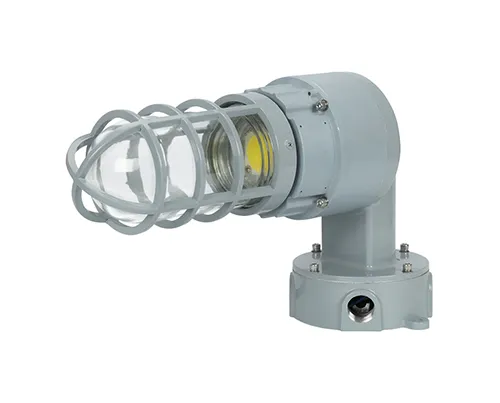

Wall arm mounting
Wall arm mounting

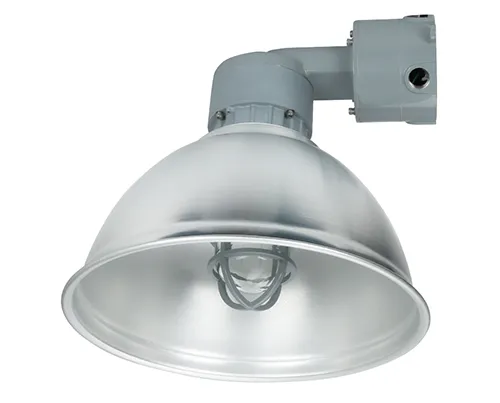

Optional reflector
Optional reflector

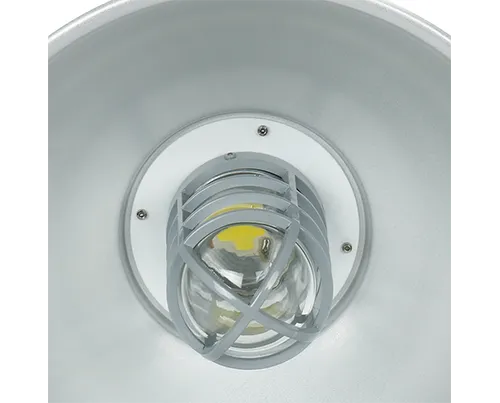

LED behind the guard
LED behind the guard
4 part numbersShow
O series
Part numberPowerOutputEfficacyInput voltageCRI
CNX-EXP-O-XX-01010 W1,400 lm140 lm/W100–277 V AC or 200–480 V AC> 70
CNX-EXP-O-XX-01515 W2,100 lm140 lm/W100–277 V AC or 200–480 V AC> 70
CNX-EXP-O-XX-02020 W2,800 lm140 lm/W100–277 V AC or 200–480 V AC> 70
CNX-EXP-O-XX-03030 W4,200 lm140 lm/W100–277 V AC or 200–480 V AC> 70

Specifications

Construction
HousingCopper-free aluminium with protective guard; toughened glass (jelly jar)
MountingPendant, wall arm, ceiling or pole; reflector optional on the jelly jar
Impact ratingIK10
Hazardous location
  • EFGClass I Division 1 (UL 844)
  • OZone 1 / 21 · Class I Division 2
Ingress rating
  • EFGNEMA 4X, IP66
  • ONEMA 3, 4X, IP66
Optical
OpticsWide and narrow optics
Rated life> 50,000 h
Optical
Output
  • E2,800–30,800 lm
  • F2,800–11,200 lm
  • G1,400–7,000 lm
  • O1,400–4,200 lm
Colour temperature
  • EFG3500–6000 K
  • O2200–7000 K
Electrical
Operating temperature−40 to +60 °C
Warranty5 years
Power
  • E20–220 W
  • F20–80 W
  • G10–50 W
  • O10–30 W
Input voltage
  • EFG100–277 V AC, 200–480 V AC
    12–36 V DC
  • O100–277 V AC
    200–480 V AC
Hazardous-location markings
ATEX marking
  • EFGATEX (marking not printed)
  • OII 2 G Ex eb mb IIC T6 Gb · II 2 D Ex tb IIIC T80 Db IP66
IECEx marking
  • EFGIECEx (marking not printed)
  • OEx eb mb IIC T6 Gb · Ex tb IIIC T80 Db IP66
UL 844 (North America)
  • EFGClass I Division 1 Groups C, D · Class I Division 2 Groups A, B, C, D · Class II Division 1 Groups E, F, G · Class II Division 2 Groups F, G · Class III
  • OClass I Division 2 Groups A, B, C, D · Class II Division 2 Groups F, G · Class III
Marine
  • EFGUL 1598, UL 1598A · marine and wet locations · CSA C22.2 No. 137 / No. 250.0
  • OUL 1598A

Ordering information

Part number format

CNX-EXPProduct type
E1Series
302Colour temperature
0103Wattage
P14Input voltage
EMG5Emergency

Example: CNX-EXP-E-30-020 — the first part number in the tables above, with 3000 K in place of XX; the options follow the wattage

1Series

2Colour temperature

3Wattage

4Input voltage

5Emergency

Applications

Petroleum production and refiningPetroleum loading and transportFuel storage and retailChemical production and storagePaint facilitiesPumping stationsSmelting, foundries and fabricationMining operationsOffshore platformsMarine vesselsFood and distillingPower generation

Certifications

UL 844

Marks as printed on the current spec sheet.
