Products / CNX-HDL

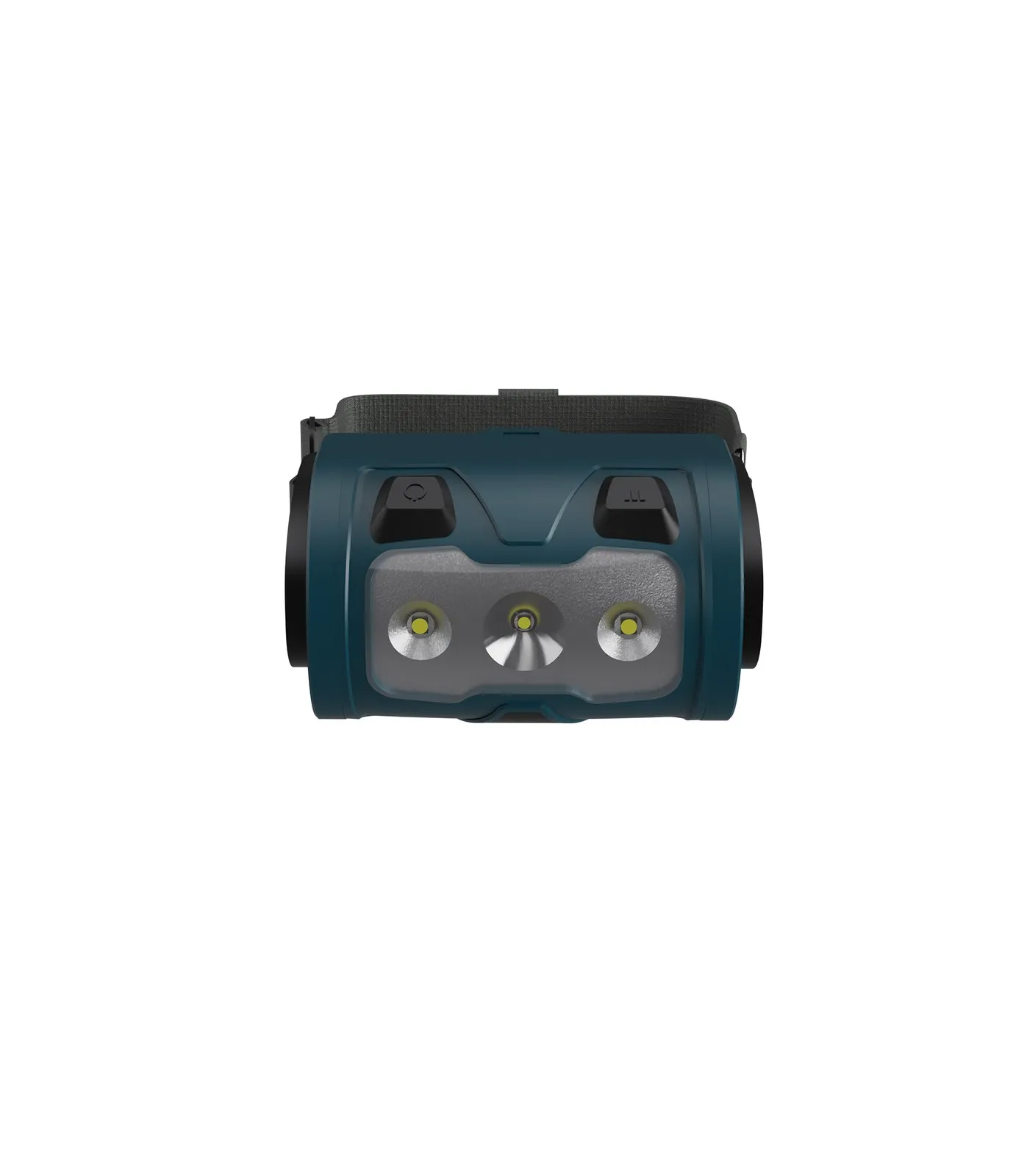

Head Light

Rechargeable head light with > 320 lm flood and > 260 lm spot, up to > 90 h, 80 g.

> 320 lmfloodlight

> 90 hlongest-running mode

80 gwithout headband

Product range

1 models

1 part numberShow

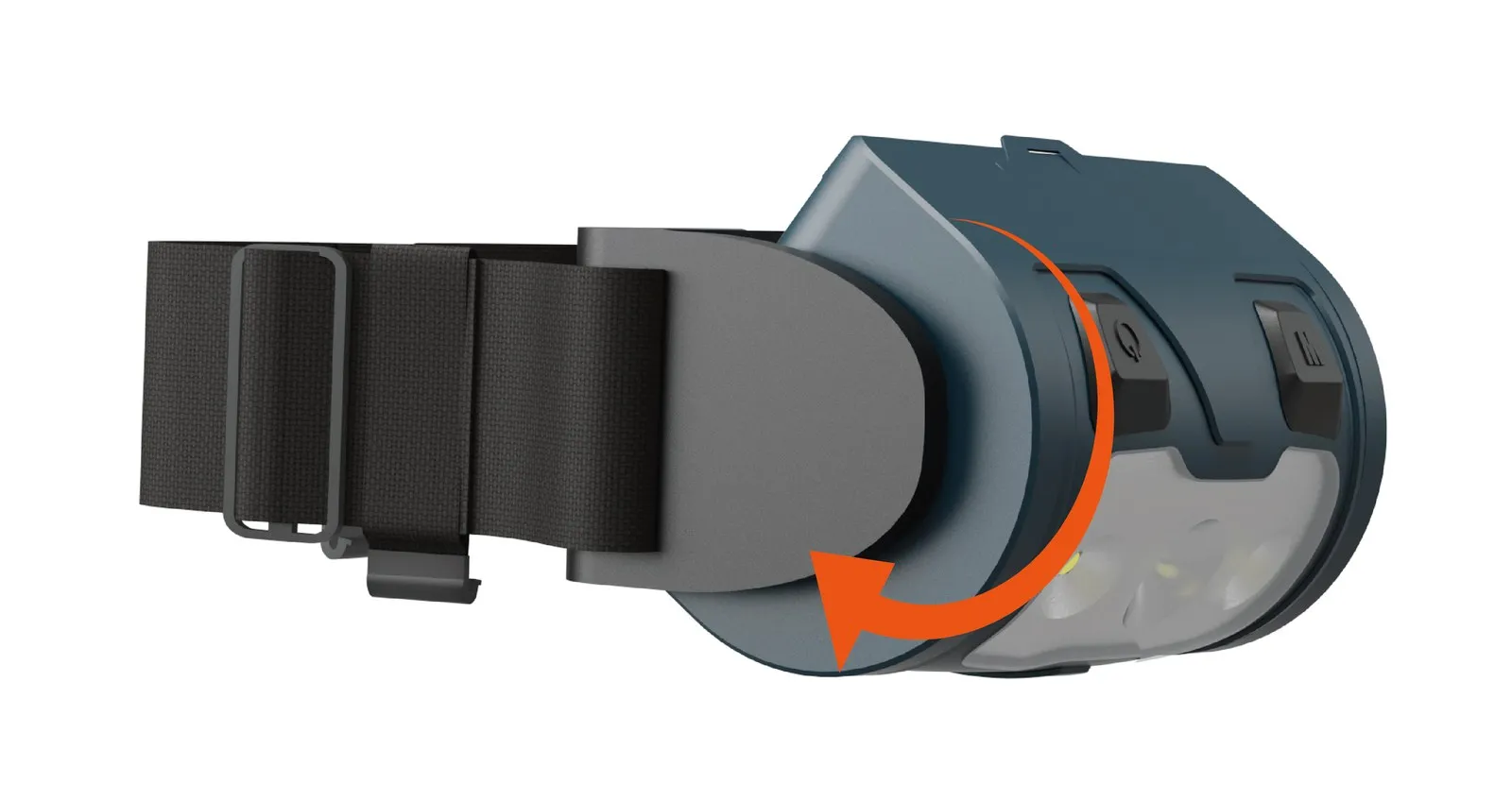

Spot and flood beams in six modes, with mode memory; the light turns through 360°.

Output: Spotlight > 260 lm, floodlight > 320 lm
Power: 3 W spotlight, 3 W floodlight, max.
Battery: 3.7 V 2,000 mAh lithium
Runtime: Spotlight high > 11 h, low > 21 h, flash > 9 h; floodlight high > 15 h, low > 35 h, long-run mode > 90 h
Charging time: 2.5 h, USB Type-C
Dimensions: 75.5 × 52.5 × 47 mm
Weight: 80 g without headband

Optical
Output	Spotlight > 260 lm; floodlight > 320 lm
Modes	Six: spotlight high, low and flash; floodlight high, low and long-run
Head adjustment	360°

Electrical
Battery	3.7 V 2,000 mAh rechargeable lithium
Charging time	2.5 h by USB Type-C
Storage	Charge, discharge and charge again every 3 months in long storage

Model	Length	Width	Height	Weight
HDL-1	7.55 cm	5.25 cm	4.7 cm	0.08 kg

Site workMining and tunnelsMaintenanceEmergencies
