Circular High Bay (CNX-LCB)

Compare the series

3 series

Fixed · 80–200 W190 lm/W with fixed colour temperature and optics: the workhorse for warehouses and plants.Power80–200 WOutput15,200–38,000 lmOptics60° or 90° (80–150 W)
120°SizeØ 29 × 16.9–17.2 cm
Ø 33.8 × 17.2 cm (200 W)Weight2.8 kg
4.1 kg (200 W)ColoursBlackInput voltage120–277 V AC
200–480 V ACIngress ratingIP66Impact rating—Operating temperature−40 to +55 °CRated life> 100,000 hSee models

Semi-tuneable · 100–200 W190 lm/W with colour temperature and power set at the fixture; a smaller, IK10 housing.Power100–200 WOutput19,000–38,000 lmOptics60°, 90° or 120°SizeØ 25.5 × 15.5 cm
Ø 31.5 × 15.7 cm (200 W)Weight1.8–1.85 kg
2.2 kg (200 W)ColoursBlackInput voltage120–277 V AC
200–480 V ACIngress ratingIP65Impact ratingIK10Operating temperature−40 to +55 °CRated life> 100,000 hSee models

Tuneable · 100–200 WColour temperature, power and beam angle all set at the fixture, at 160 lm/W.Power100–200 WOutput16,000–32,000 lmOptics60°, 90° or 120°, selectableSizeØ 25.5 × 15.5 cm
Ø 31.5 × 15.7 cm (200 W)Weight1.8–1.85 kg
2.2 kg (200 W)ColoursBlackInput voltage120–277 V AC
200–480 V ACIngress ratingIP65Impact ratingIK10Operating temperature−40 to +55 °CRated life> 100,000 hSee models

Product range

10 lumen packages

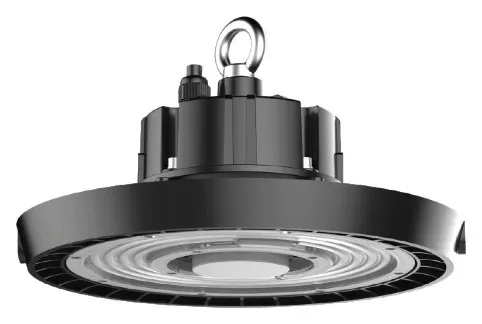

Fixed · 80–200 W

190 lm/W with fixed colour temperature and optics: the workhorse for warehouses and plants.

Beam patterns

60°
90°
120°

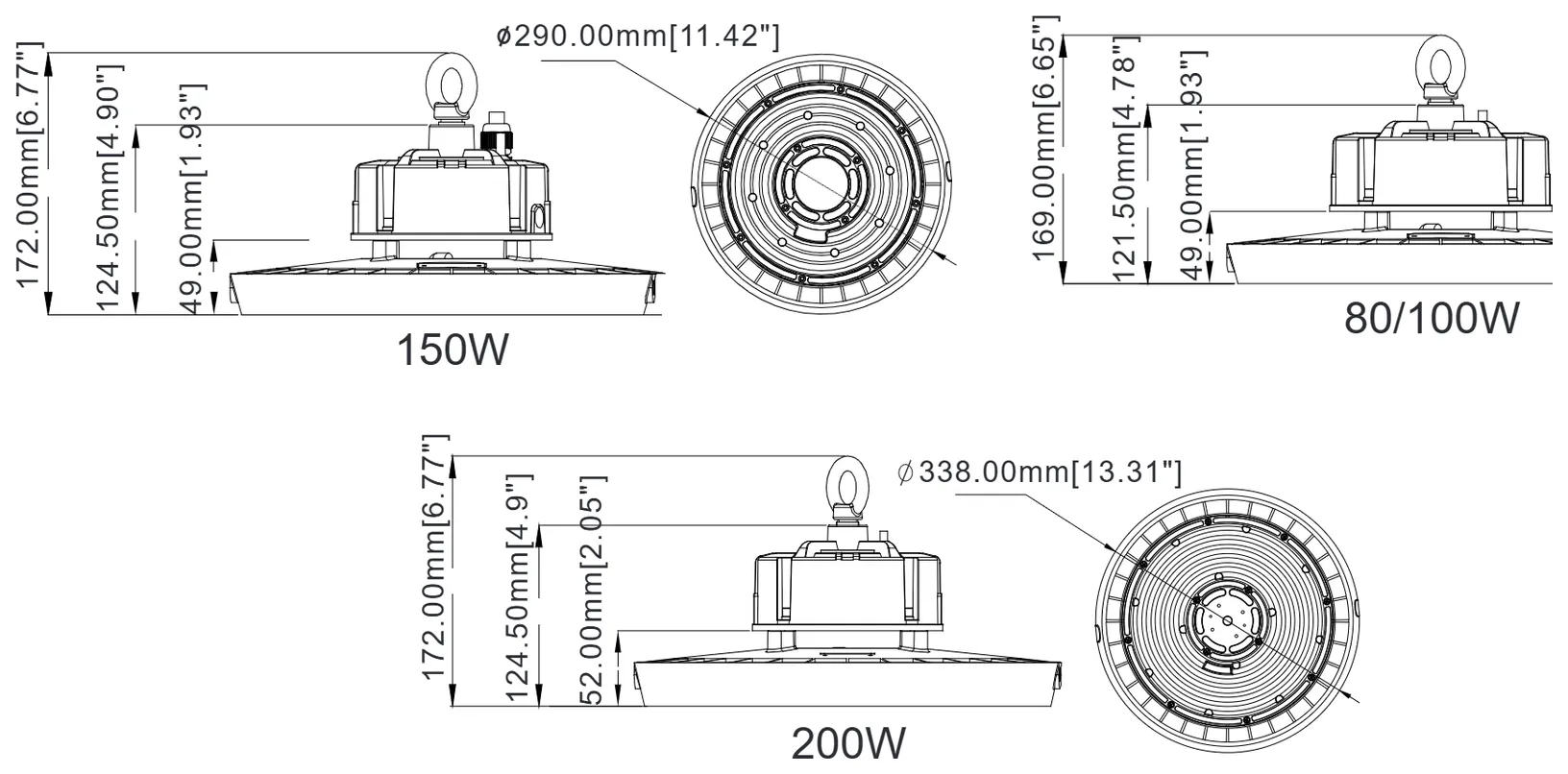

Sizes and weights

80–150 WDimensions Ø × H29 × 16.9–17.2Weight2.8 kg
200 WDimensions Ø × H33.8 × 17.2Weight4.1 kg

Colour temperature

3,000 K
4,000 K
5,000 K

Control

DALI 1–10 V
Motion sensor
Daylight harvesting

ColoursBlack
Input voltage120–277 V AC
200–480 V AC
Ingress ratingIP66
Operating temperature−40 to +55 °C
Rated life> 100,000 h

4 lumen packagesShow

80 W15,200 lm190 lm/WFixed

100 W19,000 lm190 lm/WFixed

150 W28,500 lm190 lm/WFixed

200 W38,000 lm190 lm/WFixed

Semi-tuneable · 100–200 W

190 lm/W with colour temperature and power set at the fixture; a smaller, IK10 housing.

Beam patterns

60°
90°
120°

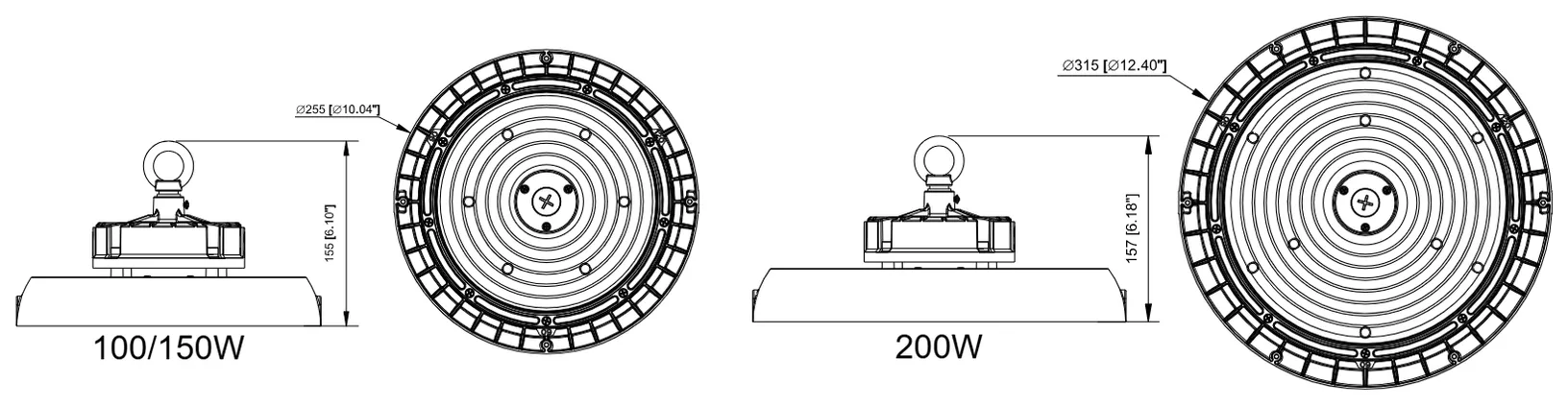

Sizes and weights

100–150 WDimensions Ø × H25.5 × 15.5Weight1.8–1.85 kg
200 WDimensions Ø × H31.5 × 15.7Weight2.2 kg

Colour temperature

3,000 K
4,000 K
5,000 K

Control

CCT tunable
Power tunable
DALI 1–10 V
Motion sensor
Motion + daylight

ColoursBlack
Input voltage120–277 V AC
200–480 V AC
Ingress ratingIP65
Impact ratingIK10
Operating temperature−40 to +55 °C
Rated life> 100,000 h

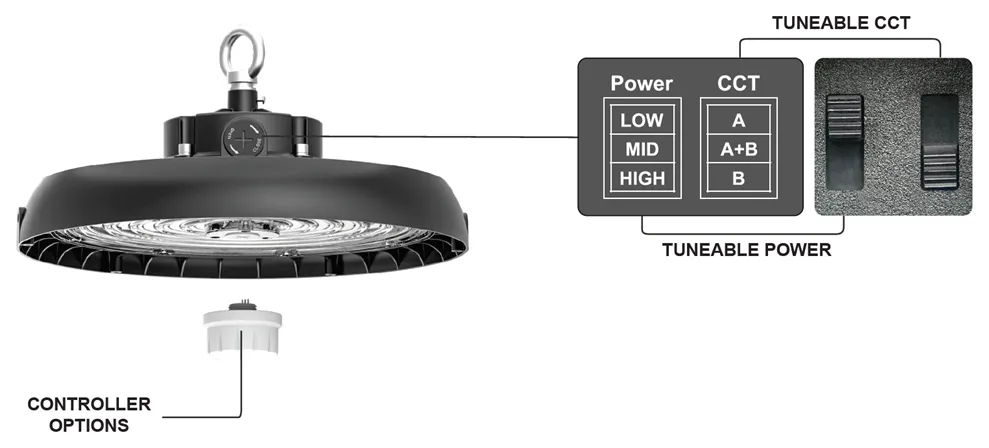

Tuneable CCT and power switches; controller options

3 lumen packagesShow

100 W19,000 lm190 lm/WSemi-tuneable: CCT + power

150 W28,500 lm190 lm/WSemi-tuneable: CCT + power

200 W38,000 lm190 lm/WSemi-tuneable: CCT + power

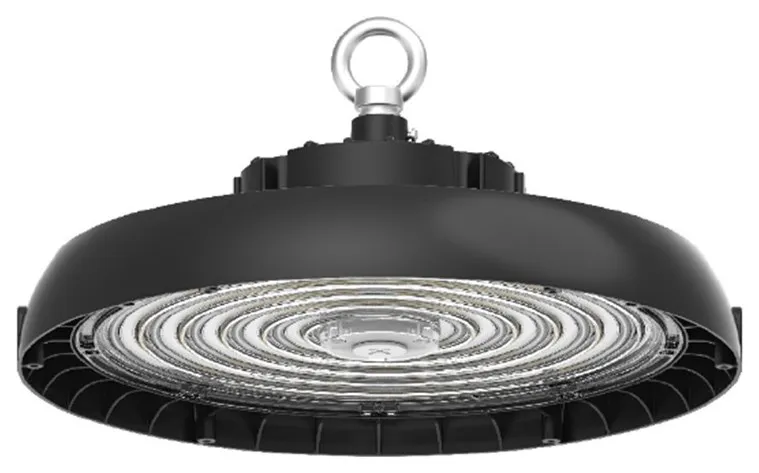

Tuneable · 100–200 W

Colour temperature, power and beam angle all set at the fixture, at 160 lm/W.

Beam patterns

60°
90°
120°

Sizes and weights

100–150 WDimensions Ø × H25.5 × 15.5Weight1.8–1.85 kg
200 WDimensions Ø × H31.5 × 15.7Weight2.2 kg

Colour temperature

3,000 K
4,000 K
5,000 K

Control

CCT tunable
Power tunable
Optics tunable
DALI 1–10 V
Motion sensor
Motion + daylight

ColoursBlack
Input voltage120–277 V AC
200–480 V AC
Ingress ratingIP65
Impact ratingIK10
Operating temperature−40 to +55 °C
Rated life> 100,000 h

Tuneable CCT, power and optics switches; controller options

3 lumen packagesShow

100 W16,000 lm160 lm/WTuneable: CCT + power + optics

150 W24,000 lm160 lm/WTuneable: CCT + power + optics

200 W32,000 lm160 lm/WTuneable: CCT + power + optics

Specifications

Construction
Formats	Fixed: 80–200 W, 190 lm/W, fixed CCT and optics. Semi-tuneable: 100–200 W, 190 lm/W, CCT and power tunable. Tuneable: 100–200 W, 160 lm/W, CCT, power and optics tunable
Housing	Single-piece die-cast aluminium, black, low profile
Thermal management	High-grade thermal paste, PCB to housing

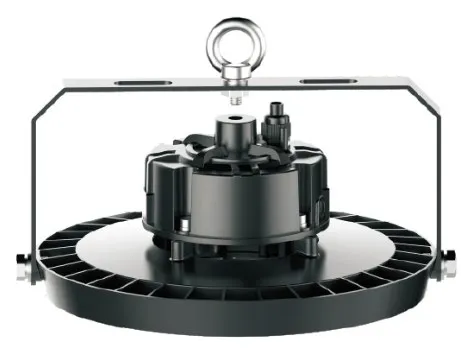

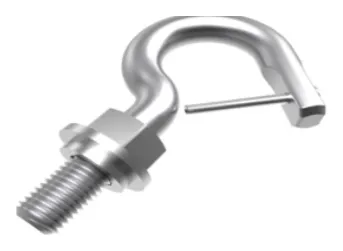

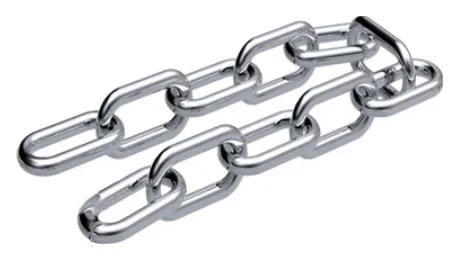

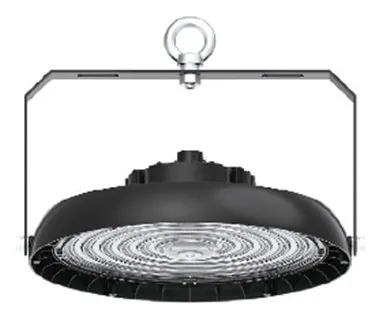

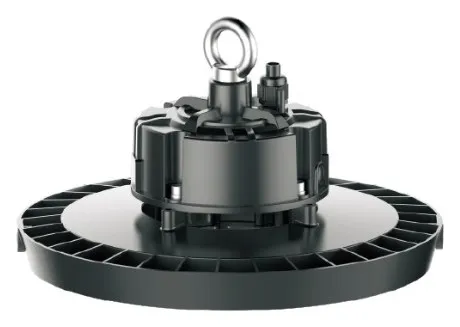

Mounting	Safety chain, cable kit, hook or ring
Ingress rating	01IP66 0203IP65
Impact rating	01— 0203IK10
Finish	Powder coat, black
Size	01Ø 29 × 16.9–17.2 cm Ø 33.8 × 17.2 cm (200 W) 0203Ø 25.5 × 15.5 cm Ø 31.5 × 15.7 cm (200 W)
Weight	012.8 kg 4.1 kg (200 W) 02031.8–1.85 kg 2.2 kg (200 W)

Optical

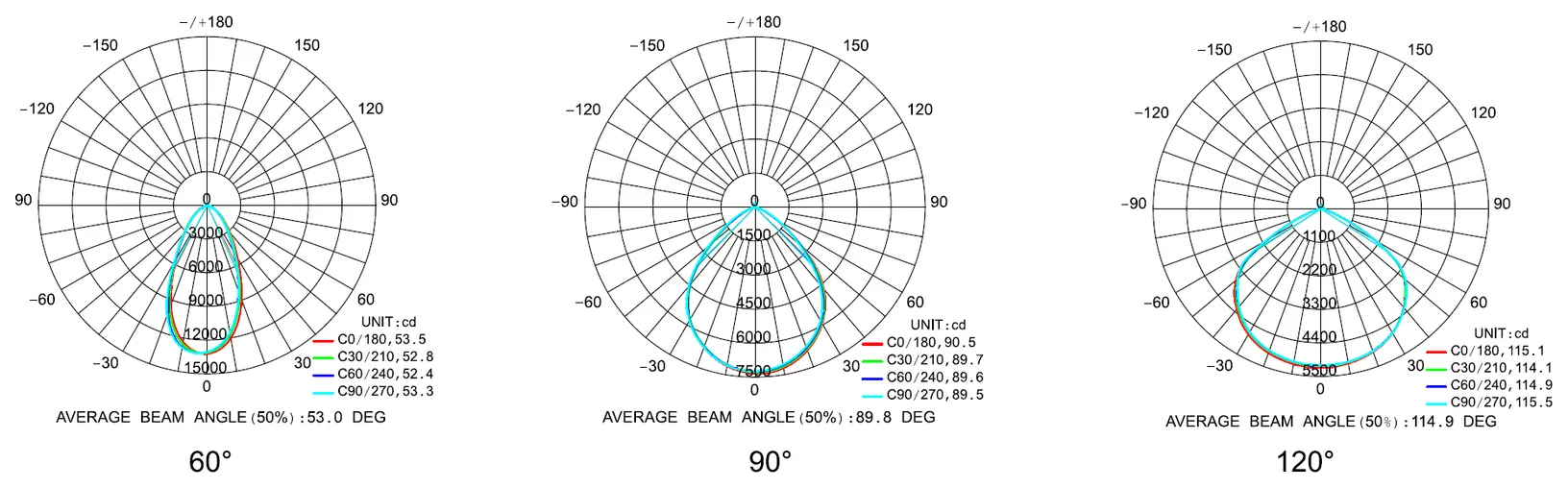

Beam angle	60°, 90° or 120°; on the fixed model 60° and 90° for 80–150 W only; selectable on the tuneable model
Lens	Anti-UV polycarbonate, > 95 % transmission (tuneable models)

Optical
Optics	0160° or 90° (80–150 W) 120° 0260°, 90° or 120° 0360°, 90° or 120°, selectable
CRI	> 80
Colour temperature	3000 K, 4000 K or 5000 K fixed; tunable between the three on the tuneable models
Rated life	> 100,000 h
Output	0115,200–38,000 lm 0219,000–38,000 lm 0316,000–32,000 lm

Electrical
Input voltage	120–277 VAC or 200–480 VAC, 50/60 Hz
Power factor	0.9 at full load
THD	< 20%
Operating temperature	−40 °C to +55 °C
Surge protection	10 kV built in
Switching cycles	100,000
Wattage	0180–200 W 0203100–200 W

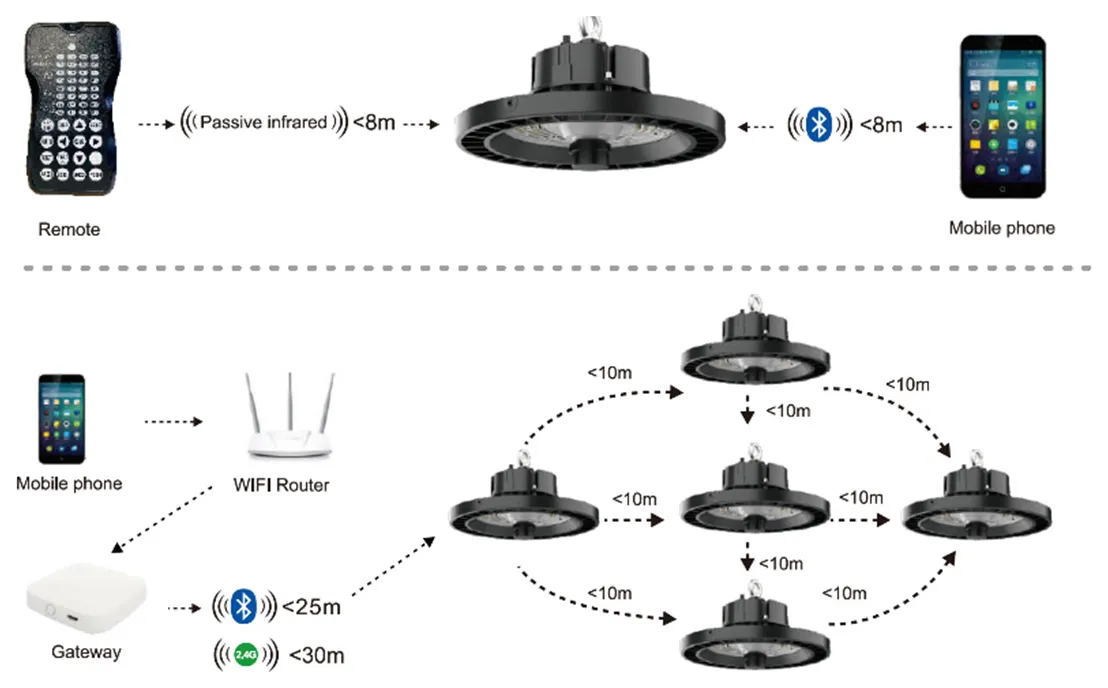

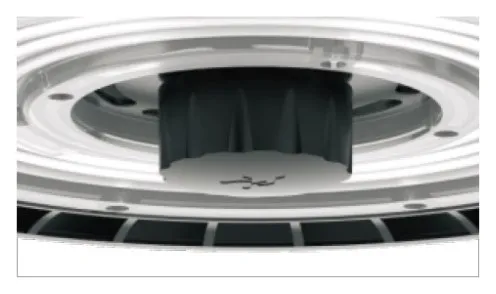

Control	Plug-in sensors: 1–10 V / DALI, motion, motion + daylight (PIR, microwave, Bluetooth, Zigbee)

Dimensions & weight

Model	Length	Height	Weight
LCB-080/100 fixed	29 cm	16.9 cm	2.8 kg
LCB-150 fixed	29 cm	17.2 cm	2.8 kg
LCB-200 fixed	33.8 cm	17.2 cm	4.1 kg
LCB-100 tuneable	25.5 cm	15.5 cm	1.8 kg
LCB-150 tuneable	25.5 cm	15.5 cm	1.85 kg
LCB-200 tuneable	31.5 cm	15.7 cm	2.2 kg

Ordering information

Part number format

CNX-LCBProduct type

301Colour temperature

0802Wattage

0603Optics

P14Input voltage

SFC5Mounting

DAL6Control

PCR7Reflector

Example: CNX-LCB-30-080-060-P1-SFC-DAL-PCR — the first code in each numbered position; pick one code per position below to build your own

1Colour temperature

2Wattage

3Optics

4Input voltage

5Mounting

6Control

7Reflector

Applications

WarehouseManufacturingParkingCommercialSports facilitiesShowroomsAutomotive

Certifications

cETLusCERoHSFCCISO 9001 (SGS)DLC Premium

Marks as printed on the current spec sheet.

Downloads

Spec sheet, fixed 190 lm/W (PDF)↓Spec sheet, semi-tuneable 190 lm/W (PDF)↓Spec sheet, tuneable 160 lm/W (PDF)↓Installation manual (PDF)↓IES files (ZIP)on request
