Products / CNX-LFL

LED Flood Light

High efficacy up to 140 lm/W and up to 85 % energy savings, available in 30 W to 200 W configurations.

140 lm/Wefficacy
Ra > 80colour rendering
IP65 · IK10sealed and impact rated
Request a quoteDownloads
LED flood light, 30 W, slip fitter

Product range

7 lumen packages

30, 50, 80–120 or 150–200 W

One fixture in four sizes: 30 W, 50 W, 80–120 W, 150–200 W.

30, 50, 80–120 or 150–200 W

Beam patterns

  • 30°
  • 50°
  • 80°
  • 90°
  • 120°
  • 60°×100°
  • 30°×70°

Sizes and weights

  • 30 WDimensions L × W × H24.4 × 16.8 × 7.0 cmWeight1.6 kg
  • 50 WDimensions L × W × H28.0 × 23.9 × 7.8 cmWeight2.6 kg
  • 80–120 WDimensions L × W × H43.4 × 31.6 × 9.3 cmWeight3.2 / 5.8 / 6.2 kg
  • 150–200 WDimensions L × W × H47.8 × 38.4 × 11.4 cmWeight8.5 kg

Colour temperature

  • 3,000 K
  • 4,000 K
  • 5,000 K
  • 5,700 K
  • 6,500 K

Control

  • DALI 1–10 V
  • ZigBee
  • Motion sensor
  • ColoursGrey, black, bronze, white, silver, custom
  • Input voltage100–277 V AC
    277–480 V AC
  • Ingress ratingIP65
  • Impact ratingIK10
  • Operating temperature−40 to +50 °C

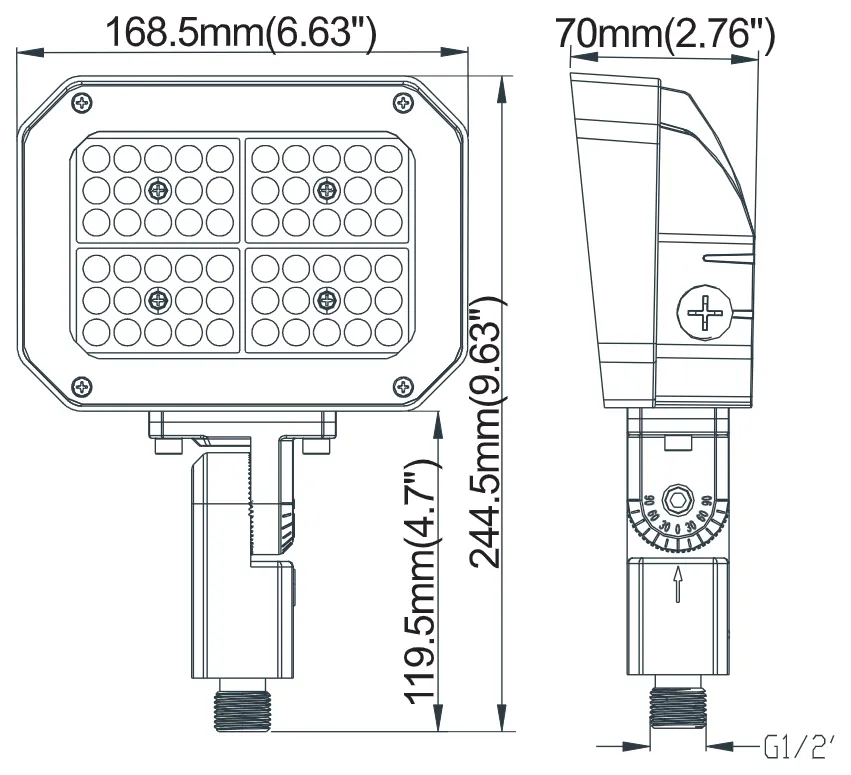

Dimensions (mm)
Slip fitter (SLP), rotates 180°

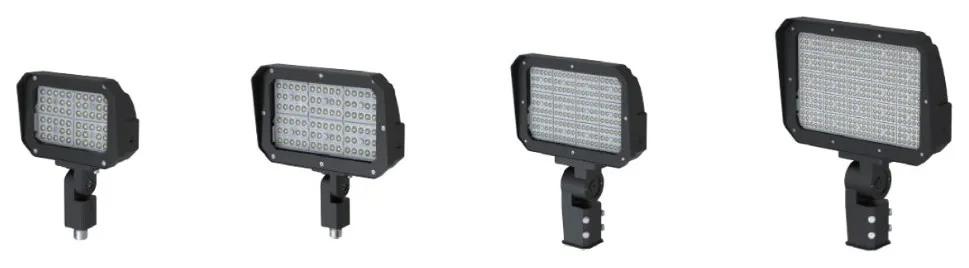

The four sizes, 30 W to 200 W
The four sizes, 30 W to 200 W

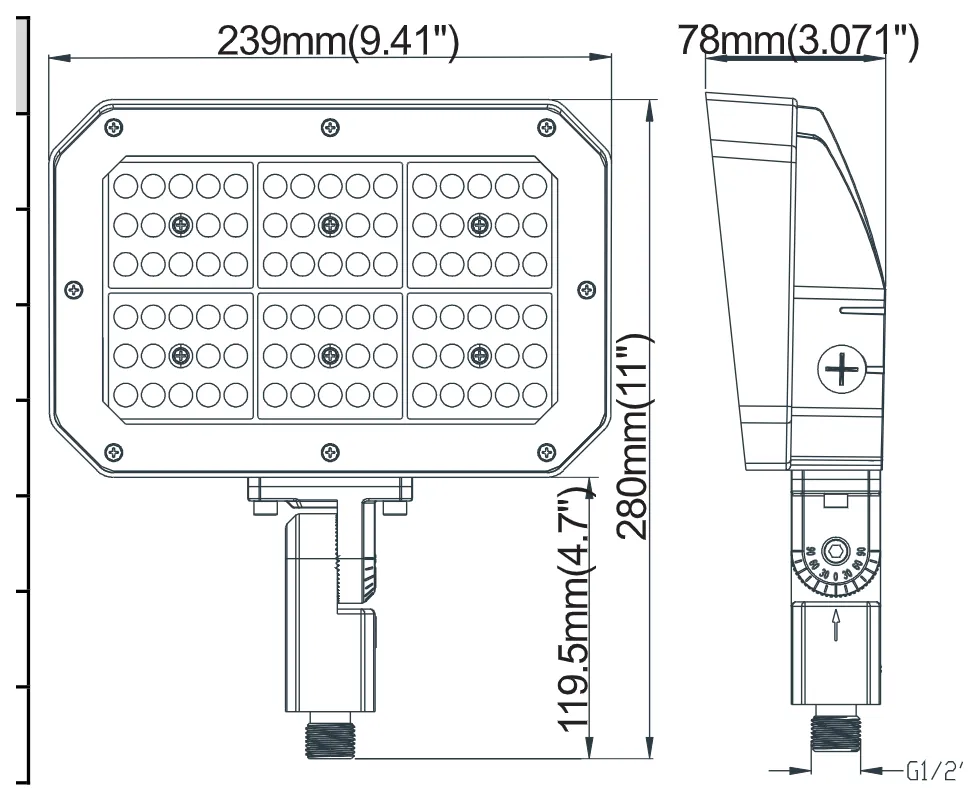

50 W: dimensions
50 W: dimensions

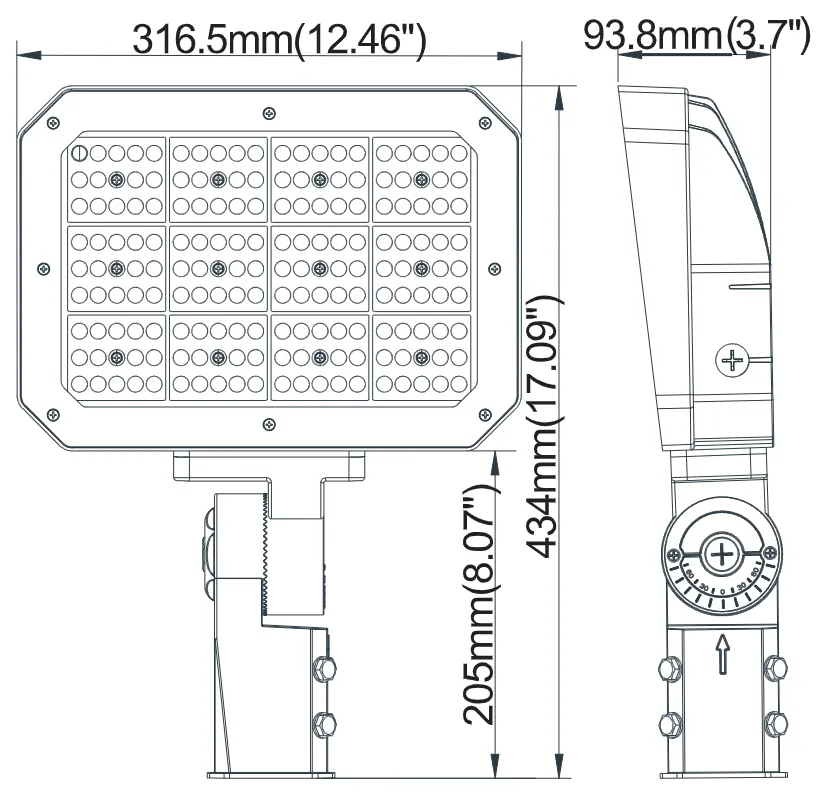

80–120 W: dimensions
80–120 W: dimensions

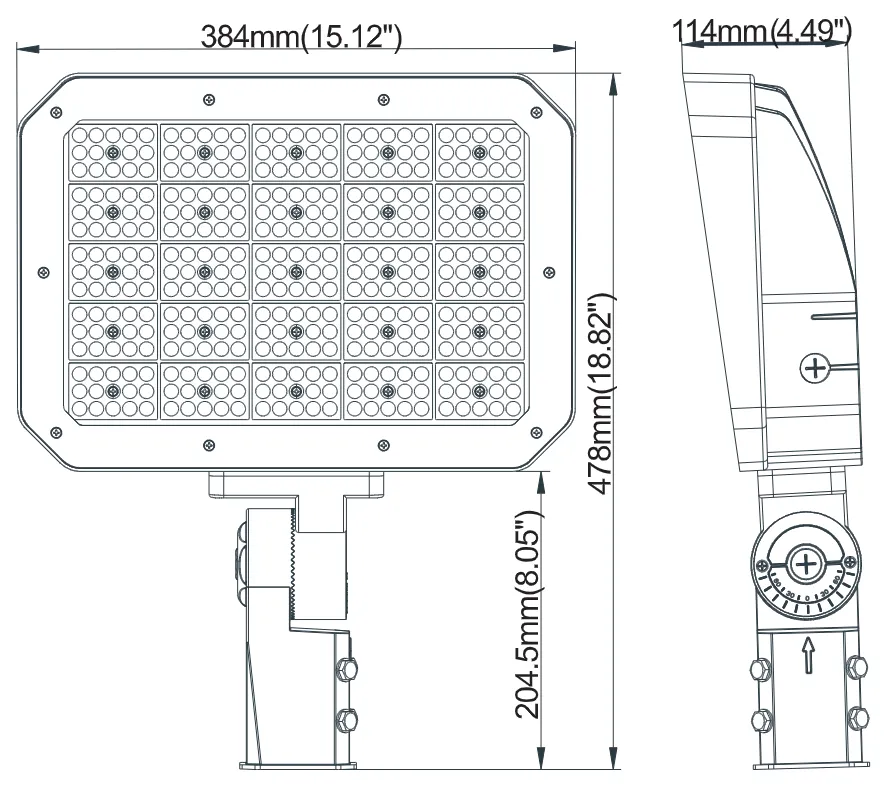

150–200 W: dimensions
150–200 W: dimensions

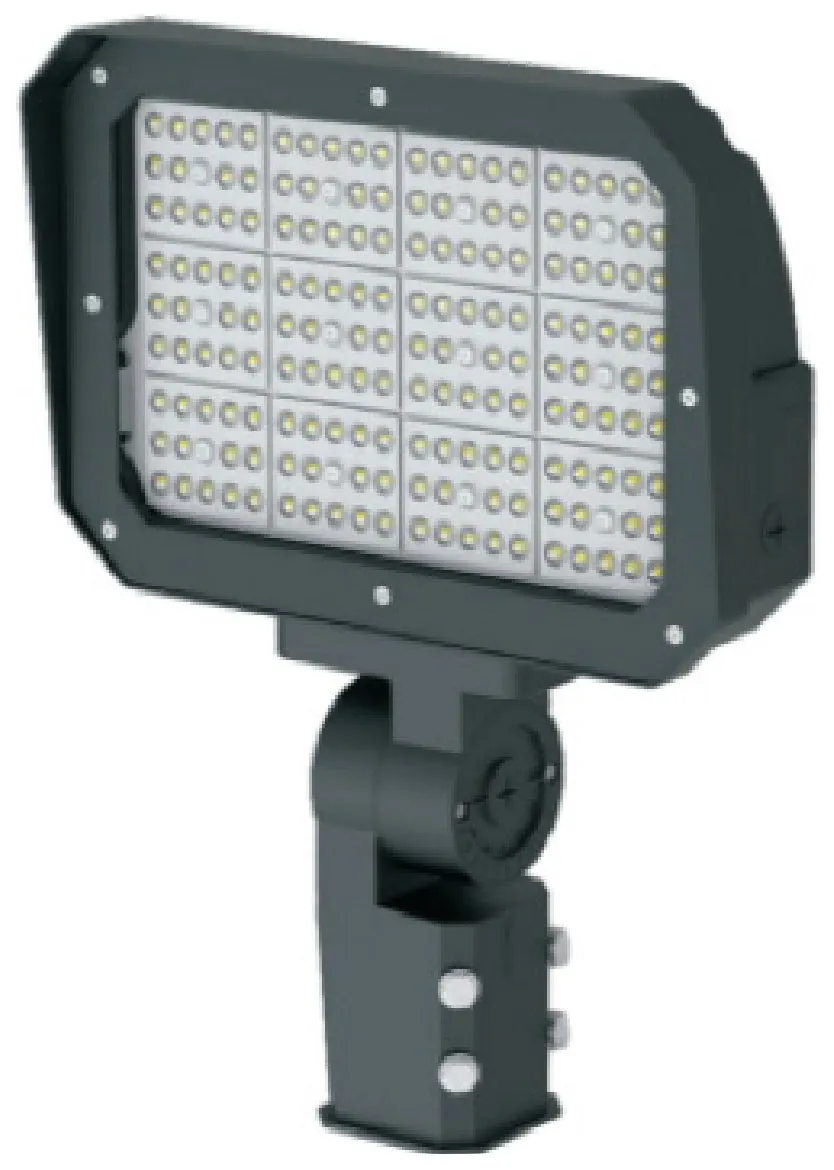

LED flood light, 30 W, slip fitter
LED flood light, 30 W, slip fitter

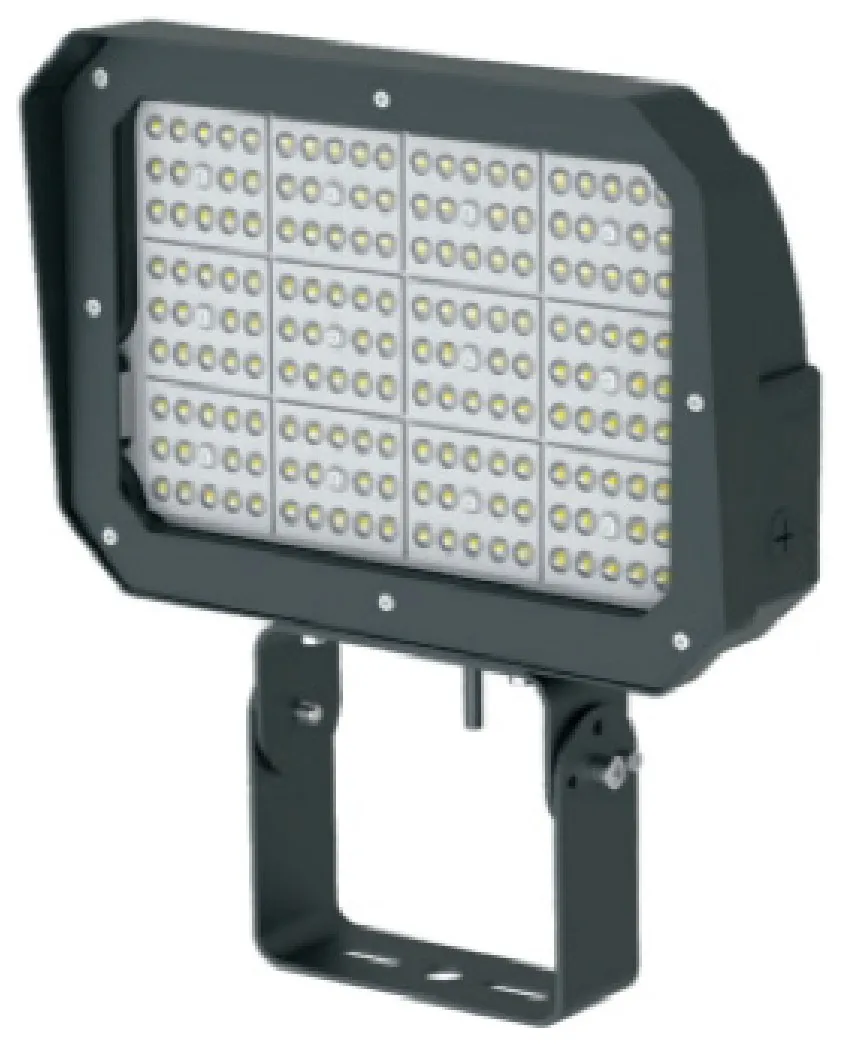

Trunnion mount (TRN)
Trunnion mount (TRN)
Yoke mount (YOK)
Yoke mount (YOK)
7 lumen packages · 140 lm/WShow
30 W4,200 lm
50 W7,000 lm
80 W11,200 lm
100 W14,000 lm
120 W16,800 lm
150 W21,000 lm
200 W28,000 lm

Specifications

Construction
HousingHigh-grade aluminium
FinishPowder coat
LensTransparent glass, textured glass, transparent PC, frosted PC or etched PC
Thermal managementHigh-grade thermal paste, PCB to housing
Ingress ratingIP65, suitable for outdoor use
Impact ratingIK10
MountingSlip fitter, trunnion or yoke
Optical
CRI> 80
Beam angle30°, 50°, 80°, 90°, 120°, 60×100°, 30×70°
Optical
Colour temperature3000 K, 4000 K, 5000 K, 5700 K or 6500 K
Light shieldBaffle, optional
Electrical
Input voltage100–277 VAC or 277–480 VAC, 50/60 Hz
Power factor> 0.9 at full load
THD< 20%
Operating temperature−40 °C to +50 °C
Surge protection6 kV built in; 10 kV/10 kA or 20 kV/20 kA optional
Switching cycles100,000

Dimensions & weight

ModelLengthWidthHeightWeight
LFL-03016.8 cm7 cm1.6 cm—
LFL-05023.9 cm7.8 cm2.6 cm—
LFL-080–12043.4 cm31.6 cm9.3 cm—
LFL-150–20047.8 cm38.4 cm11.4 cm8.5 kg

Ordering information

Part number format

CNX-LFLProduct type
301Colour temperature
0302Optics
0303Wattage
GRY4Fixture colour
P15Input voltage
SLP6Mounting
GLS7Lens
DAL8Control
BFL9Baffle

Example: CNX-LFL-30-030-030-GRY-P1-SLP-GLS-DAL-BFL — the first code in each numbered position; pick one code per position below to build your own

1Colour temperature

2Optics

3Wattage

4Fixture colour

5Input voltage

6Mounting

7Lens

8Control

9Baffle

Applications

ParkingPortsCommercialEducationHealth careAutomotiveSports facilitiesService centres

Certifications

cULusCERoHSFCCISO 9001 (SGS)DLC

Marks as printed on the current spec sheet.
