Products / CNX-LIV

LED Livestock Light

High efficacy up to 150 lm/W and up to 75 % energy savings, available in 20 W to 60 W configurations.

150 lm/Wefficacy
IP69pressure-washer safe
IK10impact rated
Request a quoteDownloads
Livestock light, tube housing

Product range

6 lumen packages

Livestock · 20–60 W

IP69 and pressure-washer safe, ammonia and corrosion resistant, with a built-in breather, for barns and wash-down areas.

Livestock · 20–60 W

Beam patterns

  • 120°

Lengths, section and weights

  • 2 ftWeight7.5 kg
  • 4 ftWeight11.5 kg
  • 5 ftWeight14.5 kg

Colour temperature

  • 3,000 K
  • 4,000 K
  • 5,000 K

Control

  • DALI
  • Motion sensor
  • ColoursWhite
  • Input voltage100–277 V AC
    277–480 V AC
  • Ingress ratingIP69
  • Impact ratingIK10
  • Operating temperature−20 to +40 °C

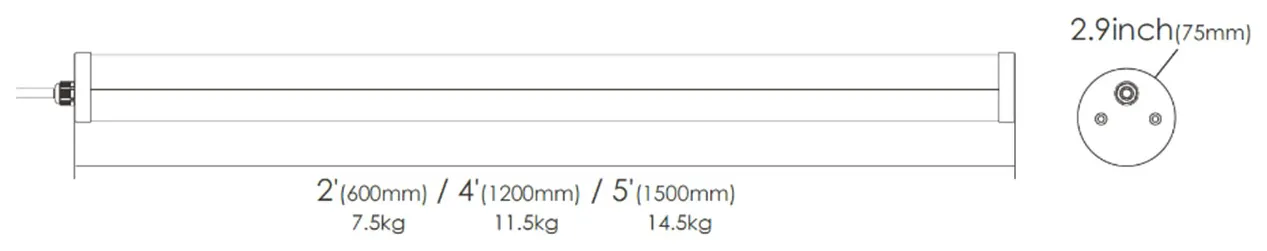

Dimensions (mm)

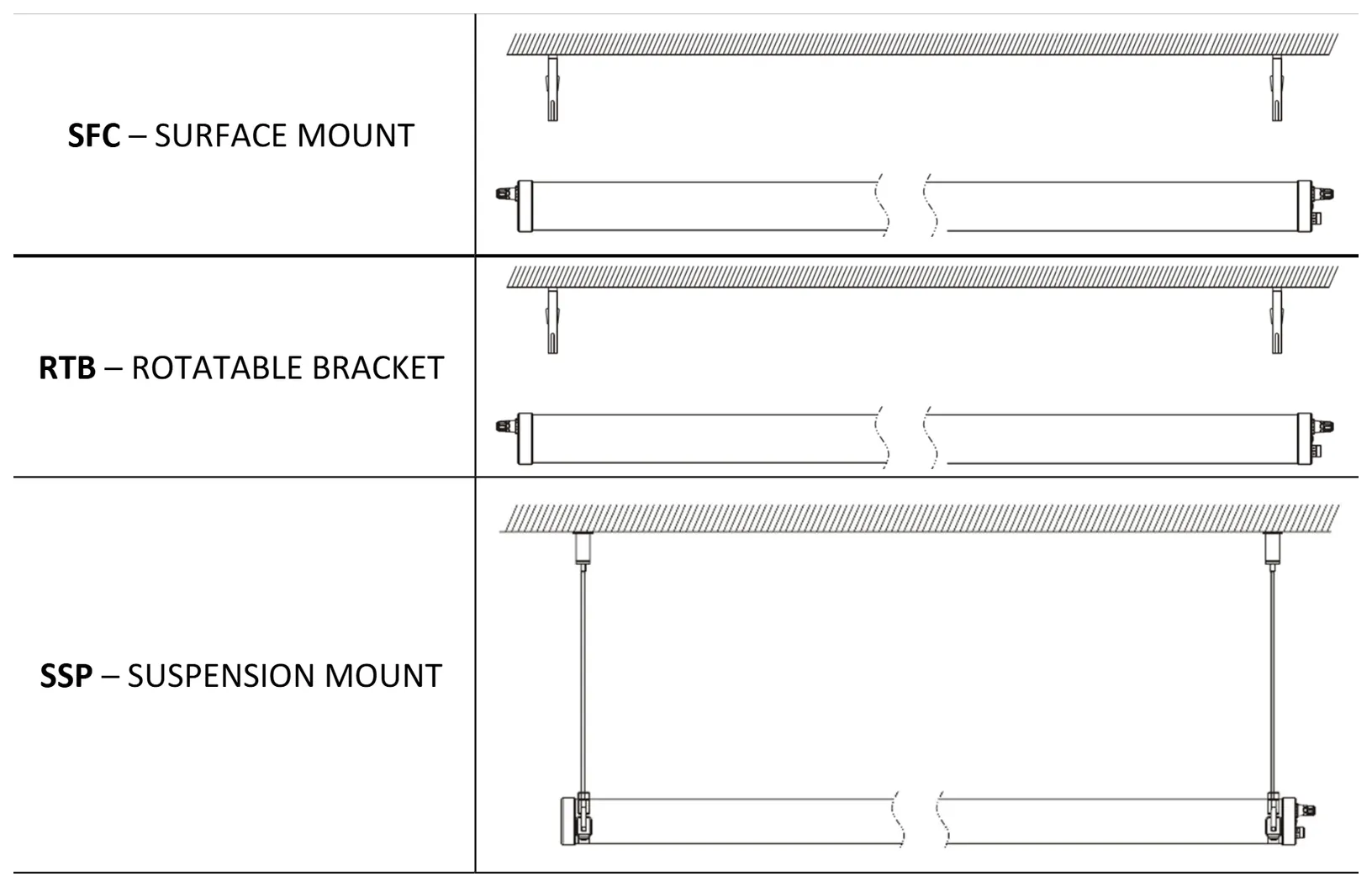

Mounting: surface, suspension or stainless bracket; linkable
Quick-connect end
Quick-connect end

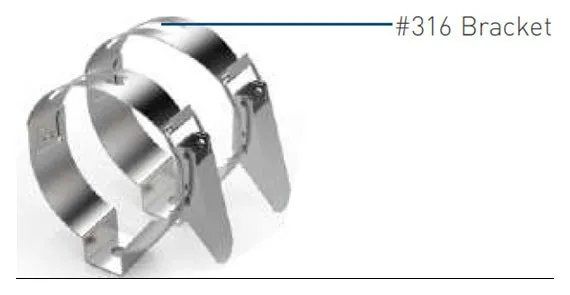

Stainless steel brackets
Stainless steel brackets

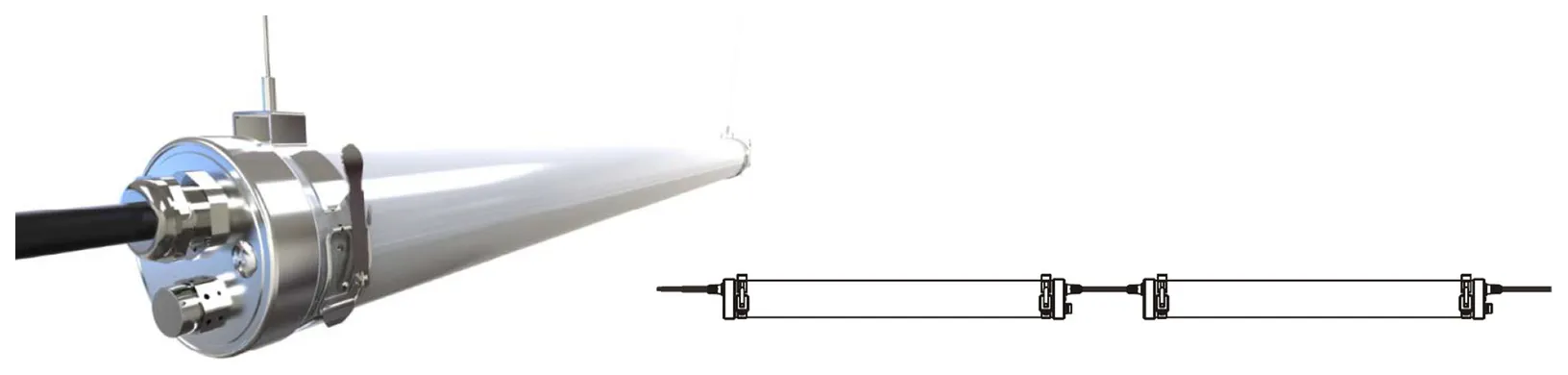

Linked end to end
Linked end to end
6 lumen packages · 150 lm/WShow
20 W3,000 lm
30 W4,500 lm
35 W5,250 lm
45 W6,750 lm
50 W7,500 lm
60 W9,000 lm

Specifications

Construction
HousingSealed tube housing; pressure-washer safe, ammonia and corrosion resistant, built-in breather
SafetyFlame-retardant 94V-0 materials
Ingress ratingIP69, indoor and outdoor
Impact ratingIK10
MountingSurface, suspension or rotatable bracket
RunsLinkable end to end
Lengths60 cm (2 ft), 120 cm (4 ft), 150 cm (5 ft), Ø 7.5 cm
Optical
Beam angle120°
LensFrosted polycarbonate or PMMA
CRI> 80; > 90 on request
Optical
Colour temperature3000 K, 4000 K or 5000 K; custom on request
Electrical
Input voltage100–277 VAC or 277–480 VAC, 50/60 Hz
Power factor> 0.95 at full load
Operating temperature−20 °C to +40 °C
Surge protectionBuilt in
DriverUL Class P certified, flicker-free, no hum
WiringStandard or flex-pipe cable; 3-pin (non-dimming) or 5-pin (dimming) linkable quick-connect
Max run per feed20 W: 16 fixtures at 110 V, 41 at 277 V; 30 W: 11 / 27; 35 W: 10 / 26; 45 W: 7 / 18; 50 W: 6 / 16; 60 W: 5 / 13
ControlDALI, motion sensor, daylight harvesting

Dimensions & weight

ModelLengthWidthHeightWeight
LIV 2 ft (20–30 W)60 cm7.5 cm7.5 cm7.5 kg
LIV 4 ft (35–50 W)120 cm7.5 cm7.5 cm11.5 kg
LIV 5 ft (60 W)150 cm7.5 cm7.5 cm14.5 kg

Ordering information

Part number format

CNX-LIVProduct type
301Colour temperature
0202Wattage
P13Input voltage
SFC4Mounting
DAL5Control
ST6Connectors

Example: CNX-LIV-30-020-P1-SFC-DAL-ST — the first code in each numbered position; pick one code per position below to build your own

1Colour temperature

2Wattage

3Input voltage

4Mounting

5Control

6Connectors

Applications

Farms and barnsLivestockFood processingWash-down environmentsCommercialAutomotiveLaboratories

Certifications

cULusNSFRoHSFCCCEDLC

Marks as printed on the current spec sheet.
