Products / CNX-LPL

LED Parking & Area Light

High efficacy up to 200 lm/W and up to 75 % energy savings, available in 60 W to 300 W configurations, field-tunable in CCT, power and beam.

200 lm/Wmaximum efficacy
60–300 Wtunable power
IP66 · IK10sealed and impact rated
Request a quoteDownloads

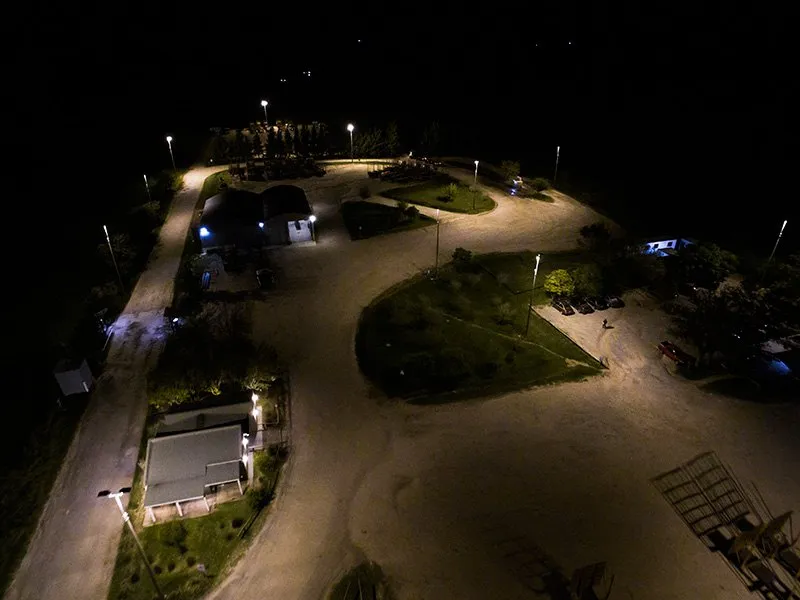

Fraylog logistics terminal, Uruguay: roadway and parking lot lighting

Product range

8 lumen packages

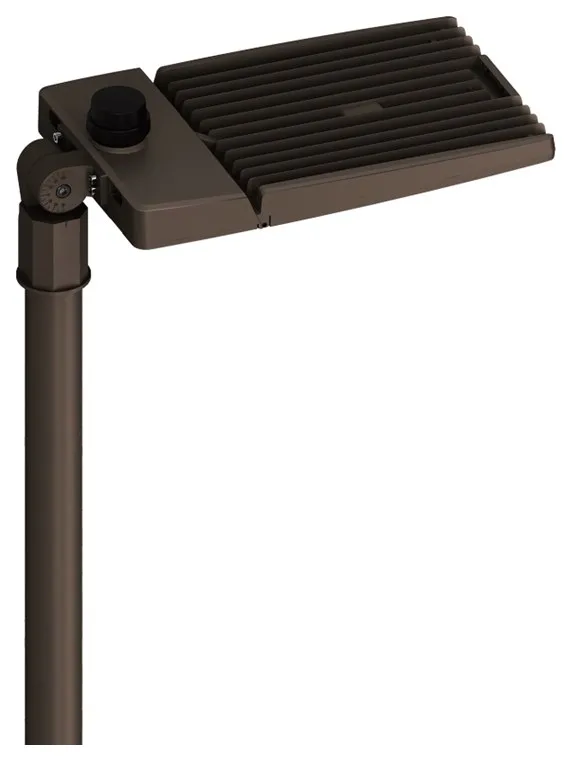

60–180 or 200–300 W housing

One fixture in two sizes: 60–180 W housing, 200–300 W housing.

60–180 or 200–300 W housing

Beam patterns

  • Type III
  • Type IV
  • Type V

Sizes and weights

  • 60–180 WDimensions L × W × H52.7 × 30.4 × 6.2 cmWeight3.2 kg
  • 200–300 WDimensions L × W × H69.6 × 31.6 × 6.2 cmWeight4.0 kg

Colour temperature

  • 3,000 K
  • 4,000 K
  • 5,000 K

Control

  • CCT tunable
  • Power tunable
  • INTELIGHT
  • 7-pin receptacle
  • Photosensor
  • Motion sensor
  • ColoursBlack, silver, custom
  • Input voltage100–277 V AC
    200–480 V AC
  • Ingress ratingIP66
  • Impact ratingIK10
  • Operating temperature−40 to +50 °C

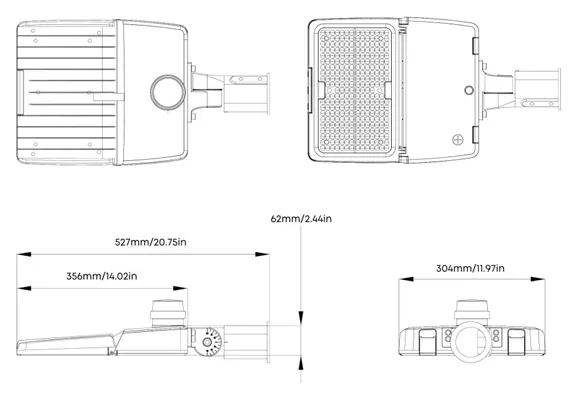

Dimensions (mm)

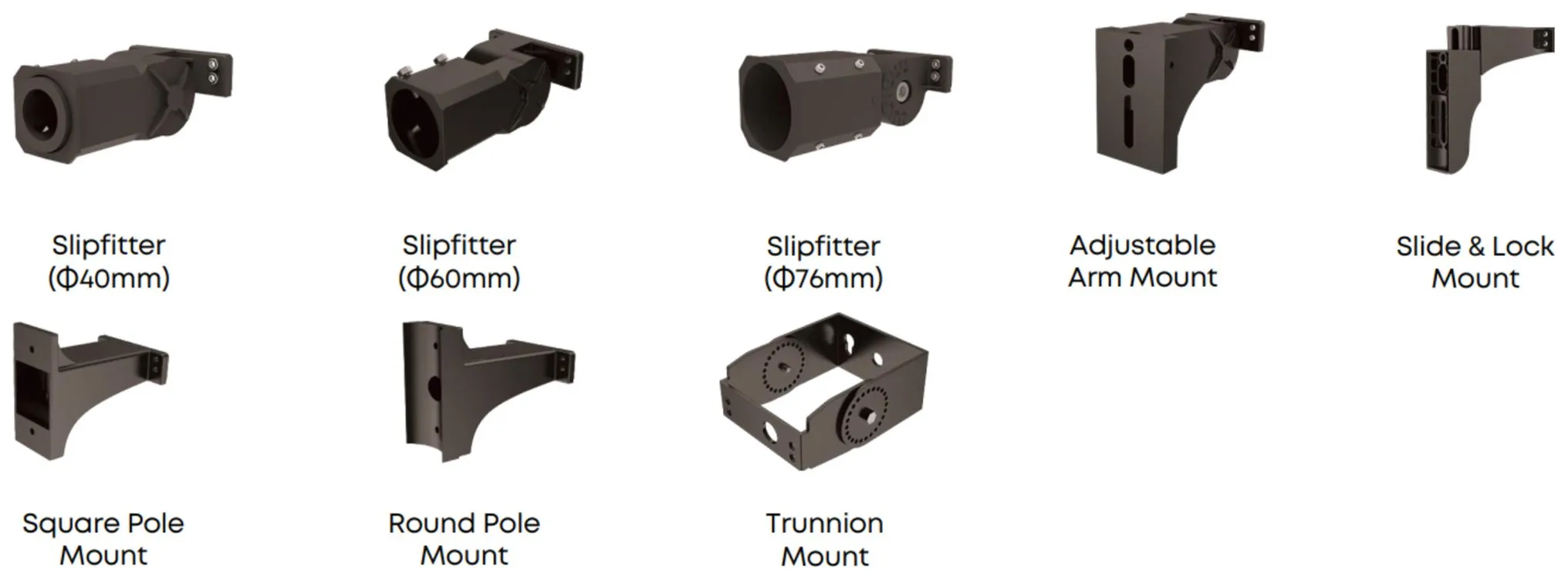

Mounting options: slipfitter 40 / 60 / 76 mm, adjustable arm, slide and lock, square or round pole, trunnion

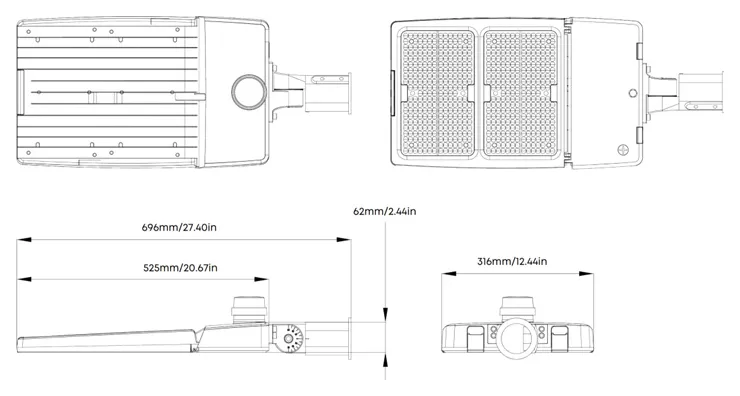

200–300 W housing: dimensions
200–300 W housing: dimensions

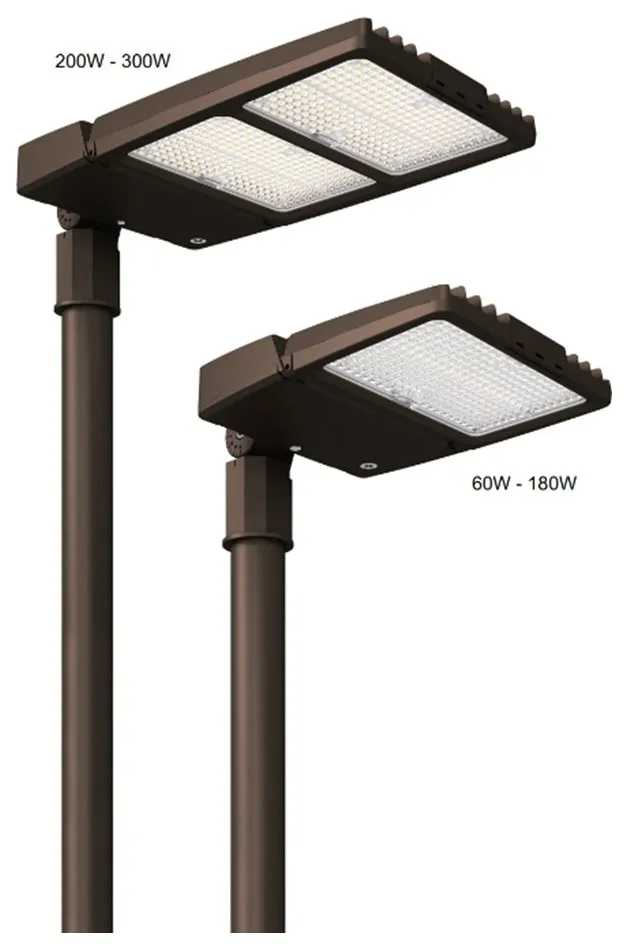

Two housing sizes on the pole
Two housing sizes on the pole

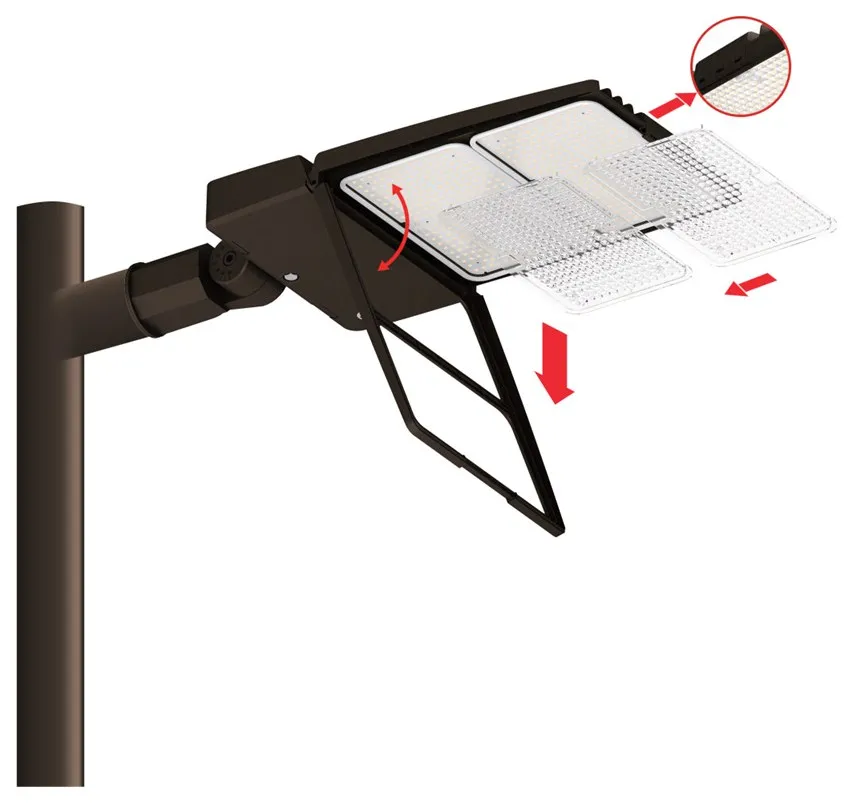

Field-replaceable optics
Field-replaceable optics

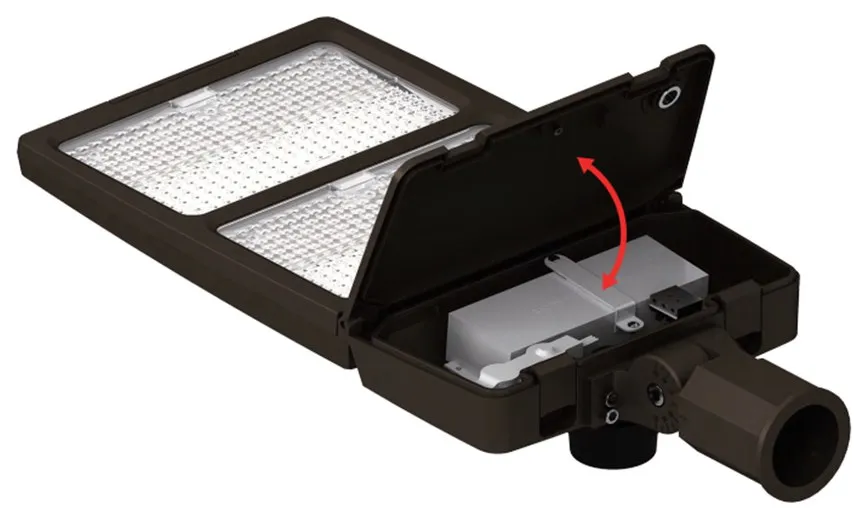

Tool-less access, housing open
Tool-less access, housing open

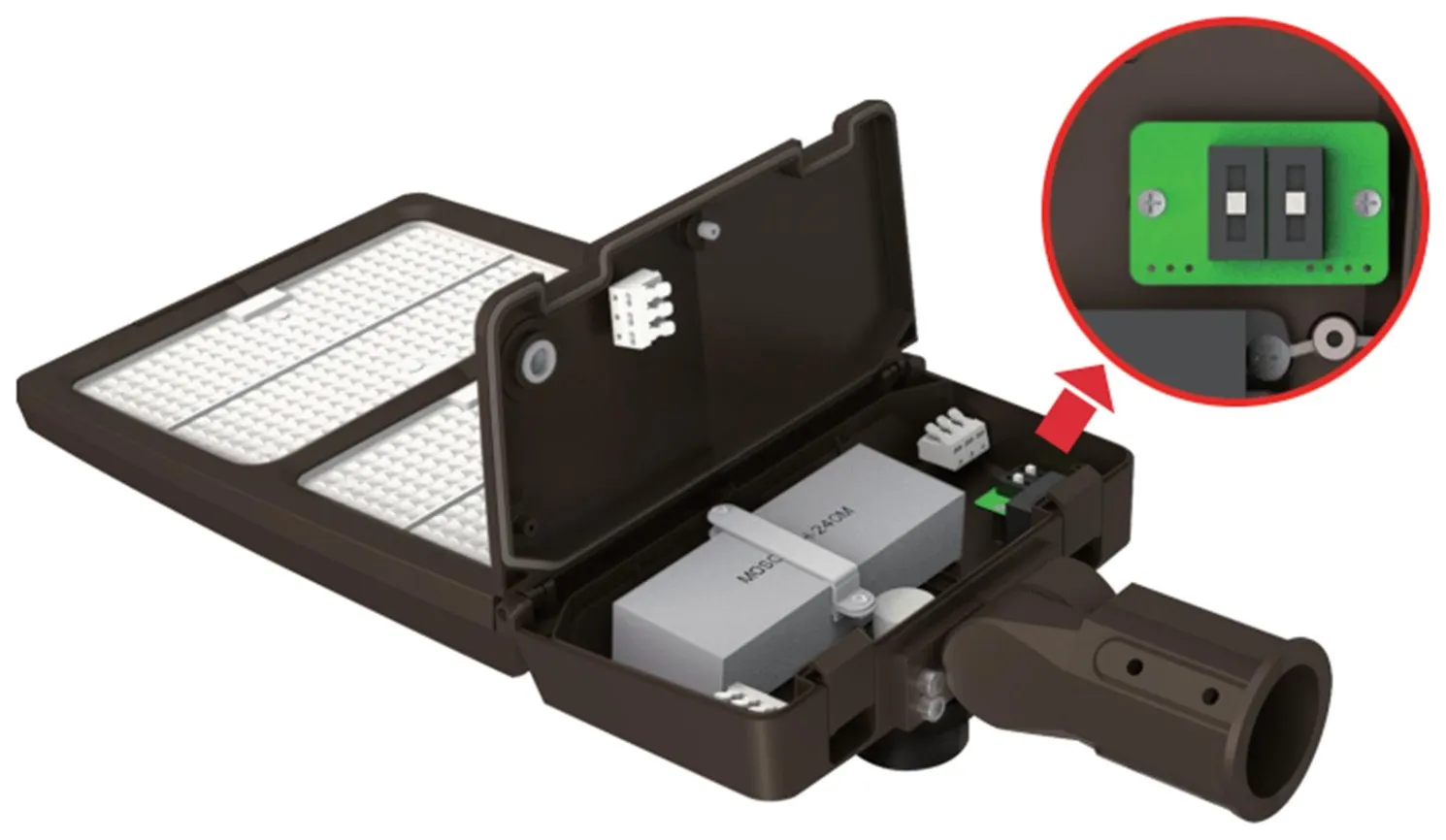

Quick-connect terminal
Quick-connect terminal
Colour temperature adjustable at the fixture
Colour temperature adjustable at the fixture
Power adjustable at the fixture
Power adjustable at the fixture
Beam angle adjustable
Beam angle adjustable
8 lumen packages · 200 lm/WShow
60 W12,000 lm
75 W15,000 lm
100 W20,000 lm
150 W30,000 lm
180 W36,000 lm
200 W40,000 lm
240 W48,000 lm
300 W60,000 lm

Specifications

Construction
HousingDie-cast aluminium
FinishAnti-UV thermosetting polyester, for corrosive environments
AccessTool-less, with locking mechanism
Thermal managementPassive
Ingress ratingIP66, suitable for outdoor use
Impact ratingIK10
MountingSlipfitter 40/60/76 mm, adjustable arm, yoke, slide and lock, square pole, round pole, trunnion
Optical
CRI70, 80 or 90
Optical
Colour temperature3000 K, 4000 K or 5000 K, tunable at the fixture
DistributionType III, IV or V
OpticsField-replaceable
Beam angleAdjustable
Light shieldOptional
Electrical
Input voltage100–277 VAC or 200–480 VAC, 50/60 Hz
Power factor> 0.97 at full load
Operating temperature−40 °C to +50 °C
WattageTunable at the fixture
Surge protection10 kV optional

Dimensions & weight

ModelLengthWidthHeightWeight
LPL 60–180 W52.7 cm30.4 cm6.2 cm3.2 kg
LPL 200–300 W69.6 cm31.6 cm6.2 cm4 kg

Ordering information

Part number format

CNX-LPLProduct type
CCT1Colour temperature
1002Wattage
P13Input voltage
34Optics
BLK5Fixture colour
INT6Control
707CRI
SLP408Mounting
10K9Surge protection
LSH10Light shield

Example: CNX-LPL-CCT-100-P1-3-BLK-INT-70-SLP40-10K-LSH — the first code in each numbered position; pick one code per position below to build your own

1Colour temperature

2Wattage

3Input voltage

4Optics

5Fixture colour

6Control

7CRI

8Mounting

9Surge protection

10Light shield

Applications

ParkingRoadwayAutomotiveService centresParks & recreation

Certifications

cULusCERoHSFCCISO 9001 (SGS)DLC Premium

Marks as printed on the current spec sheet.
