Products / CNX-LPT

LED Post Top Light

High efficacy up to 155 lm/W and up to 75 % energy savings, available in 40 W to 80 W configurations.

155 lm/Wefficacy
40–80 W6,200 to 12,400 lm
IP65lantern-style post top
Request a quoteDownloads

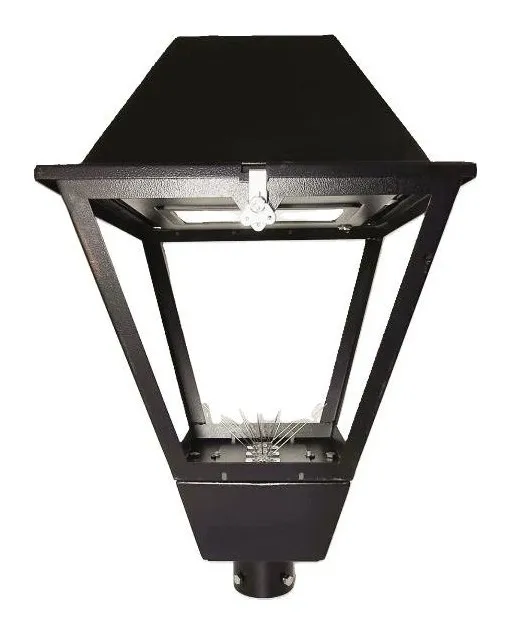

LED post top light

Product range

3 lumen packages

40–80 W lantern

A lantern-style post top for parking, parks and historic streets.

40–80 W lantern

Beam patterns

  • Type II
  • Type III
  • Type V

Sizes and weights

  • 40–80 WDimensions L × W × H46.5 × 46.5 × 75.5 cmWeight9 kg

Colour temperature

  • 3,000 K
  • 4,000 K
  • 5,000 K

Control

  • INTELIGHT
  • 7-pin receptacle
  • Photosensor
  • ColoursBlack, custom
  • Input voltage120–277 V AC
    277–480 V AC
  • Ingress ratingIP65
  • Operating temperature−40 to +50 °C

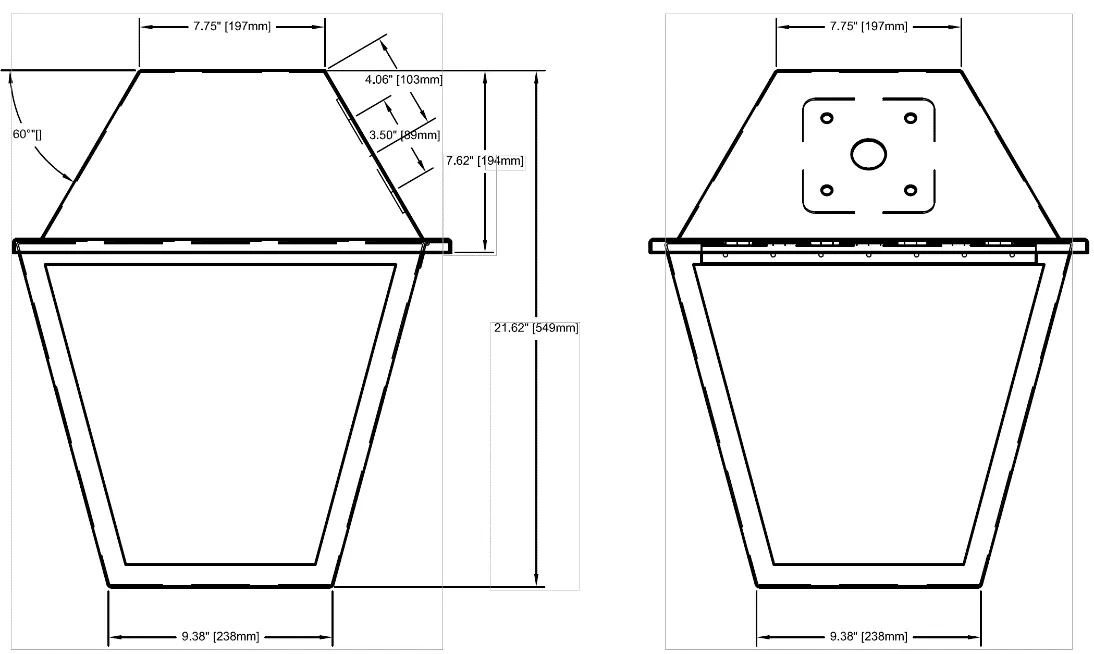

Dimensions (mm)
3 lumen packages · 155 lm/WShow
40 W6,200 lm
60 W9,300 lm
80 W12,400 lm

Specifications

Construction
HousingAluminium, architectural lantern design
AccessTool-less, with locking mechanism
Thermal managementPassive
Ingress ratingIP65; IP54 with drain holes
MountingPost top tenon or side mount
FinishBlack or custom
OptionsBird spikes; house side shield
Dimensions46.5 × 46.5 × 75.5 cm
Weight9 kg
Optical
DistributionIES Type II, III or V; short, medium or wide
Optical
Colour temperature3000 K, 4000 K or 5000 K
CRI> 70
Electrical
Input voltage120–277 V AC or 277–480 V AC, 50/60 Hz
Power factor> 0.9 at full load
THD< 20 %
Operating temperature−40 to +50 °C
Surge protectionOptional, 10 kV or 20 kV, parallel or series
Control5- or 7-pin ANSI C136.41 receptacle; photosensor

Dimensions & weight

ModelLengthWidthHeightWeight
LPT 40–80 W46.5 cm46.5 cm75.5 cm9 kg

Ordering information

Part number format

CNX-LPTProduct type
P11Input voltage
22Optic typeS+Distribution
303Colour temperature
0404Wattage
BLK5Fixture colour
XX76Control
PST7Mounting
10KP8Surge protection
SPK9Bird spikes
HSS10House side shield

Example: CNX-LPT-P1-2S-30-040-BLK-XX7-PST-10KP-SPK-HSS — the first code in each numbered position; pick one code per position below to build your own

1Input voltage

2Optic type + Distribution

Optic type

Distribution

Written as one code: 2 + S → 2S

3Colour temperature

4Wattage

5Fixture colour

6Control

7Mounting

8Surge protection

9Bird spikes

10House side shield

Applications

ParkingRoadwayService centresParks & recreationHistoric locations

Certifications

cULusCSARoHSFCCISO 9001 (SGS)

Marks as printed on the current spec sheet.
