Products / CNX-LRL5

LED Roadway Light

High efficacy up to 180 lm/W and up to 80 % energy savings, available in 30 W to 200 W configurations.

180 lm/Wefficacy
5,400–36,000 lmoutput range
IP66ingress protection
Request a quoteDownloads

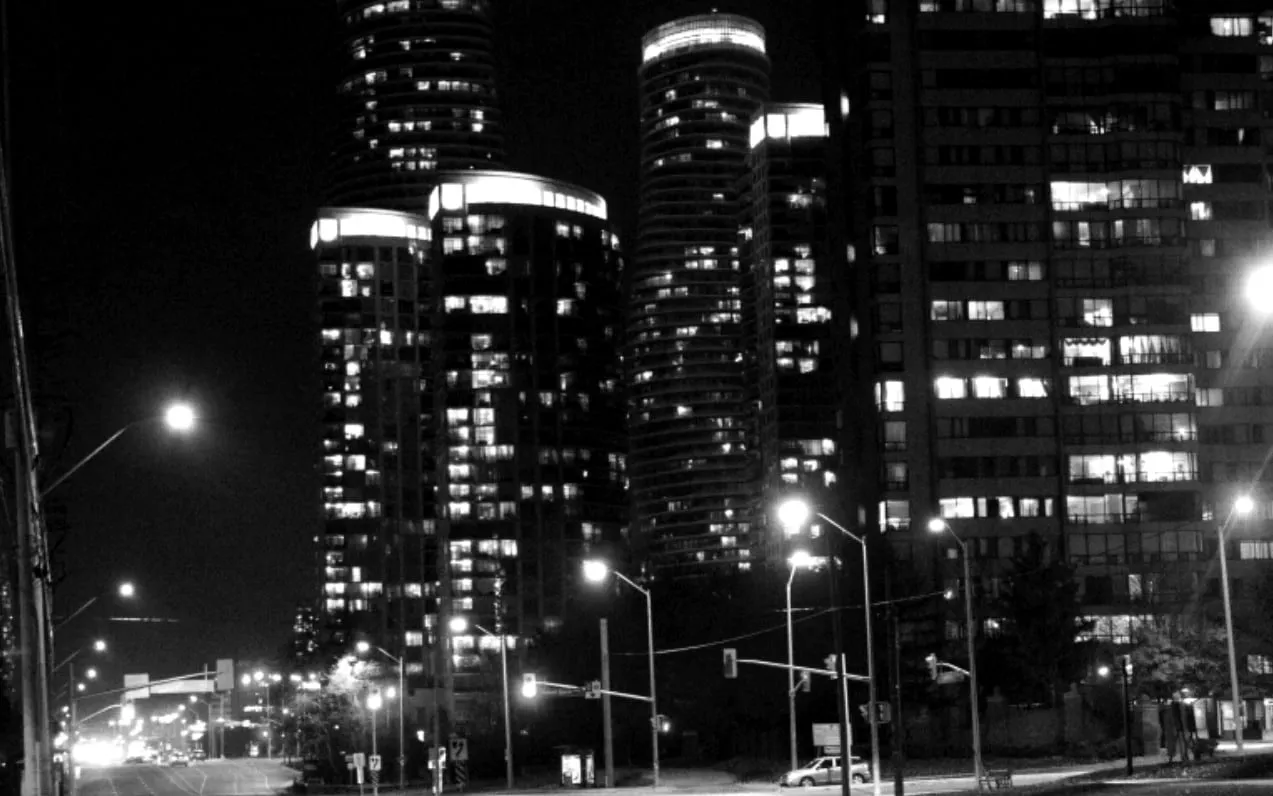

City of Mississauga: more than 60,000 CONXCORP streetlights

Product range

9 lumen packages

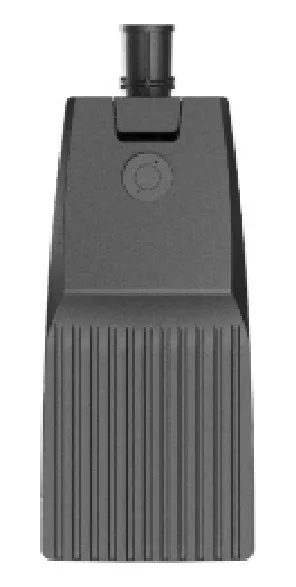

Small, Medium or Large · 30–200 W

One fixture in three sizes: Small (30–70 W), Medium (90–120 W), Large (150–200 W).

Small, Medium or Large · 30–200 W

Beam patterns

  • Type I
  • Type II
  • Type III
  • Type IV
  • Type V

Sizes and weights

  • S · 30–70 WDimensions L × H53 × 24 cmWeight6.6 kg
  • M · 90–120 WDimensions L × H59 × 27.2 cmWeight7.6 kg
  • L · 150–200 WDimensions L × H68 × 30.8 cmWeight9.8 kg

Colour temperature

  • 3,000 K
  • 4,000 K
  • 5,000 K

Control

  • 7-pin receptacle
  • DALI
  • 0–10 V
  • Photosensor
  • Motion sensor
  • INTELIGHT
  • ColoursGrey, black, bronze, white, custom
  • Input voltage100–277 V AC
    277–480 V AC
  • Ingress ratingIP66
  • Operating temperature−40 to +50 °C
  • Rated life> 100,000 h (L70)

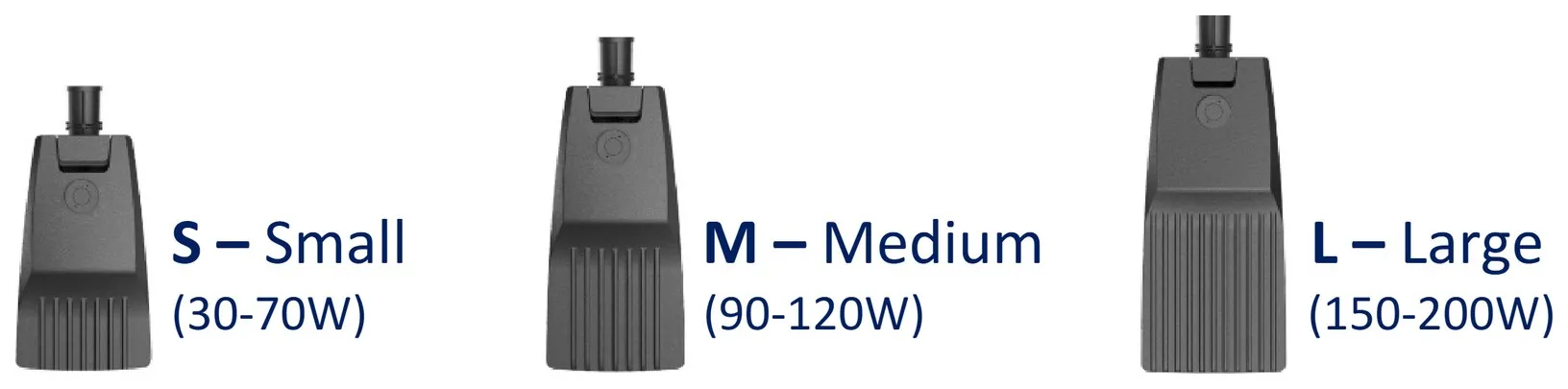

Three housing sizes: small, medium and large
Three housing sizes: small, medium and large

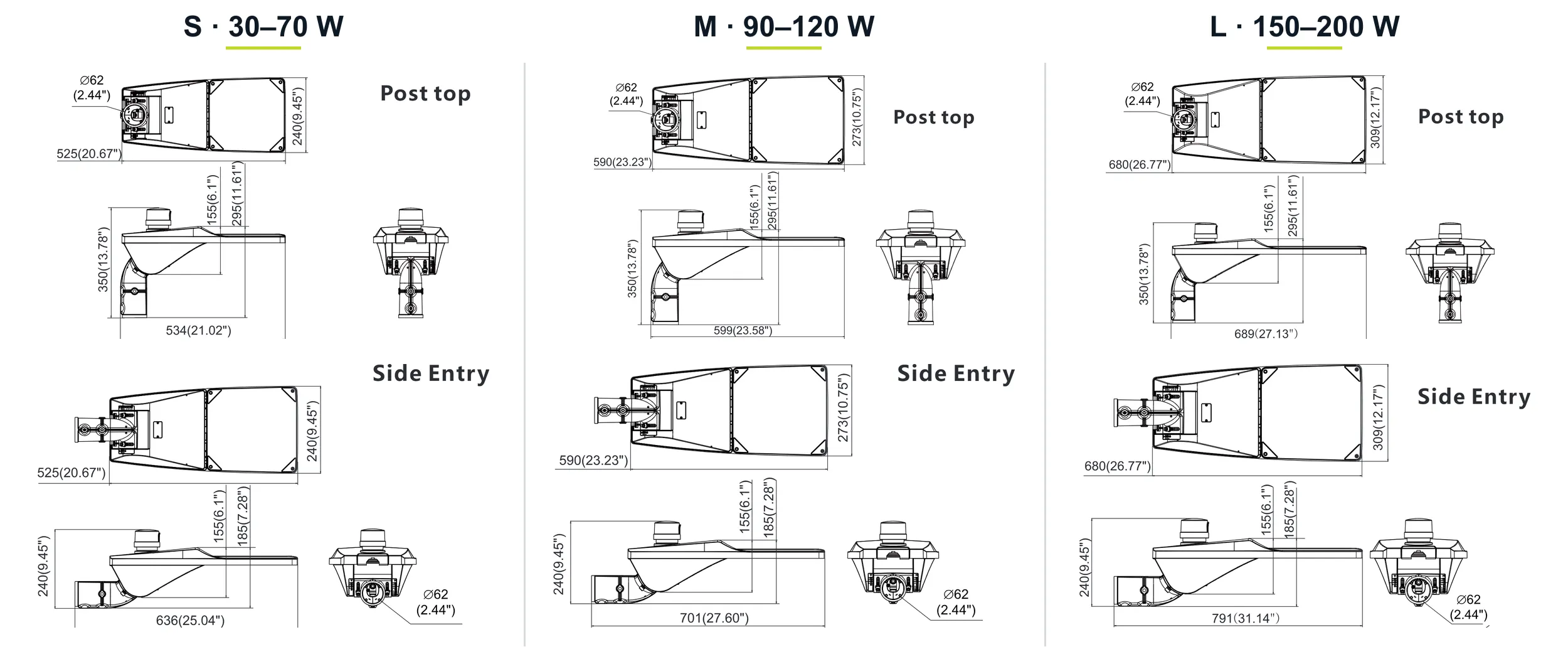

Dimensions, mm (inches): post top and side entry
Dimensions, mm (inches): post top and side entry

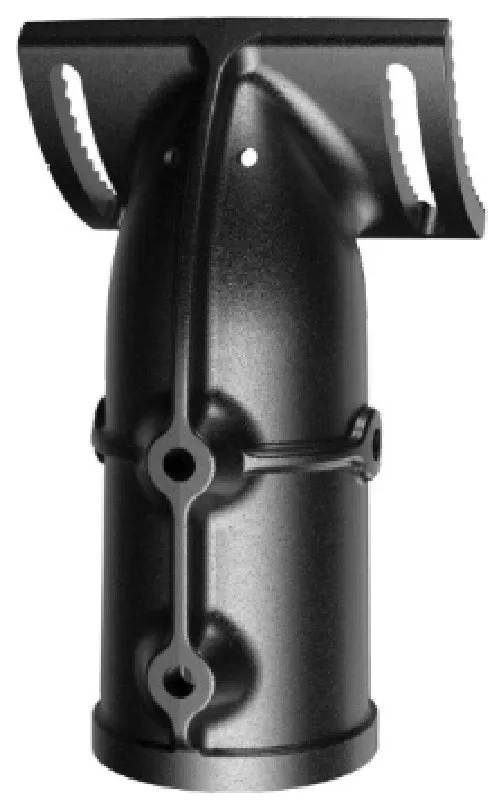

Universal mount, 34–60 mm tenon
Universal mount, 34–60 mm tenon

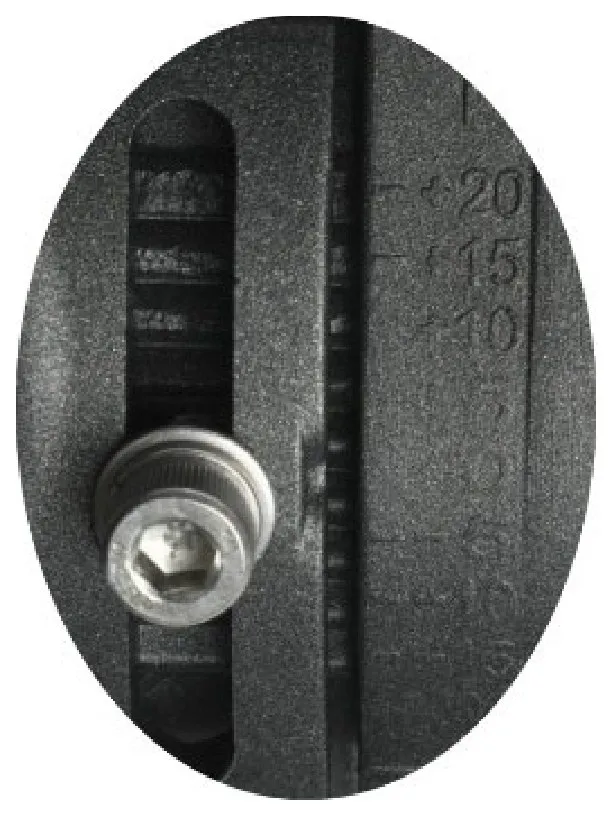

0–20° tilt in 5° steps
0–20° tilt in 5° steps

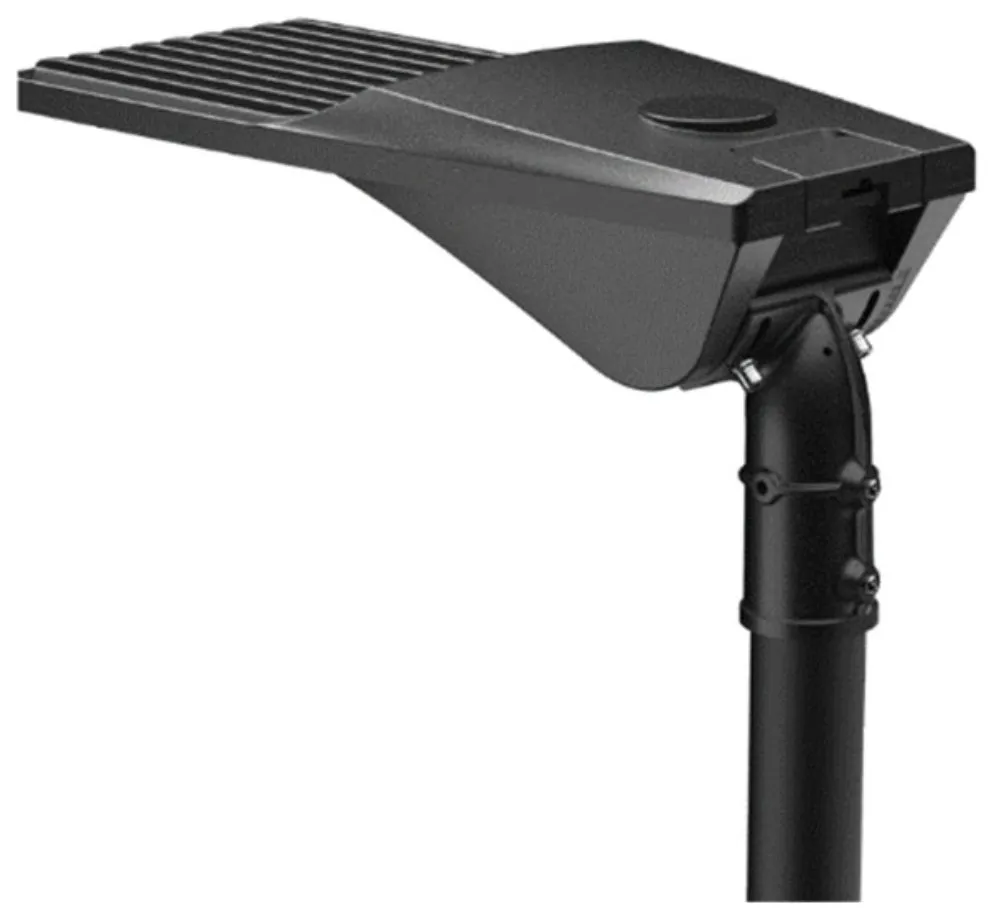

Vertical (post-top) mounting
Vertical (post-top) mounting

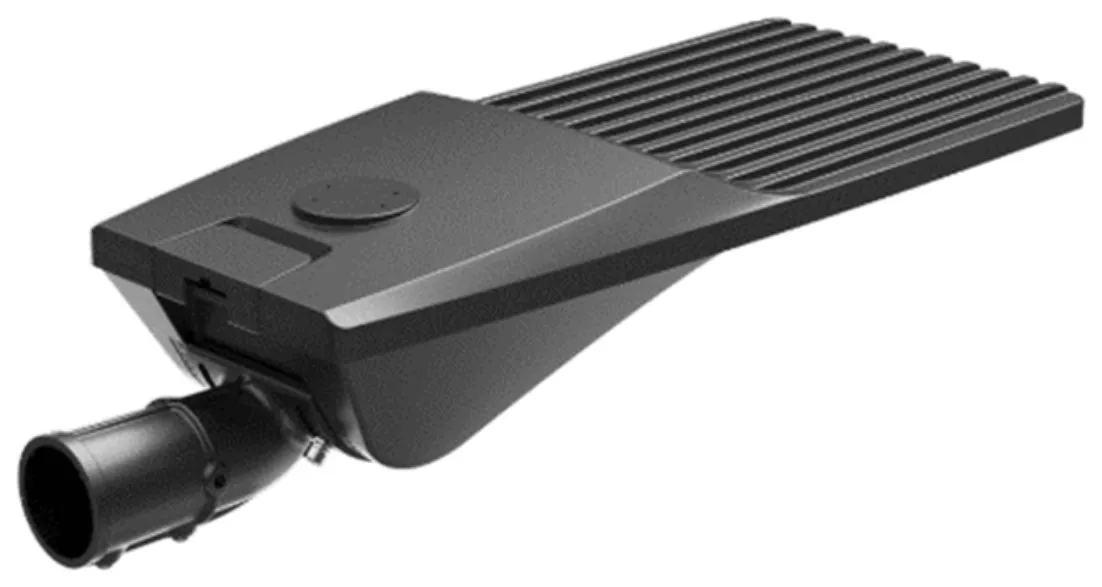

Horizontal (arm) mounting
Horizontal (arm) mounting

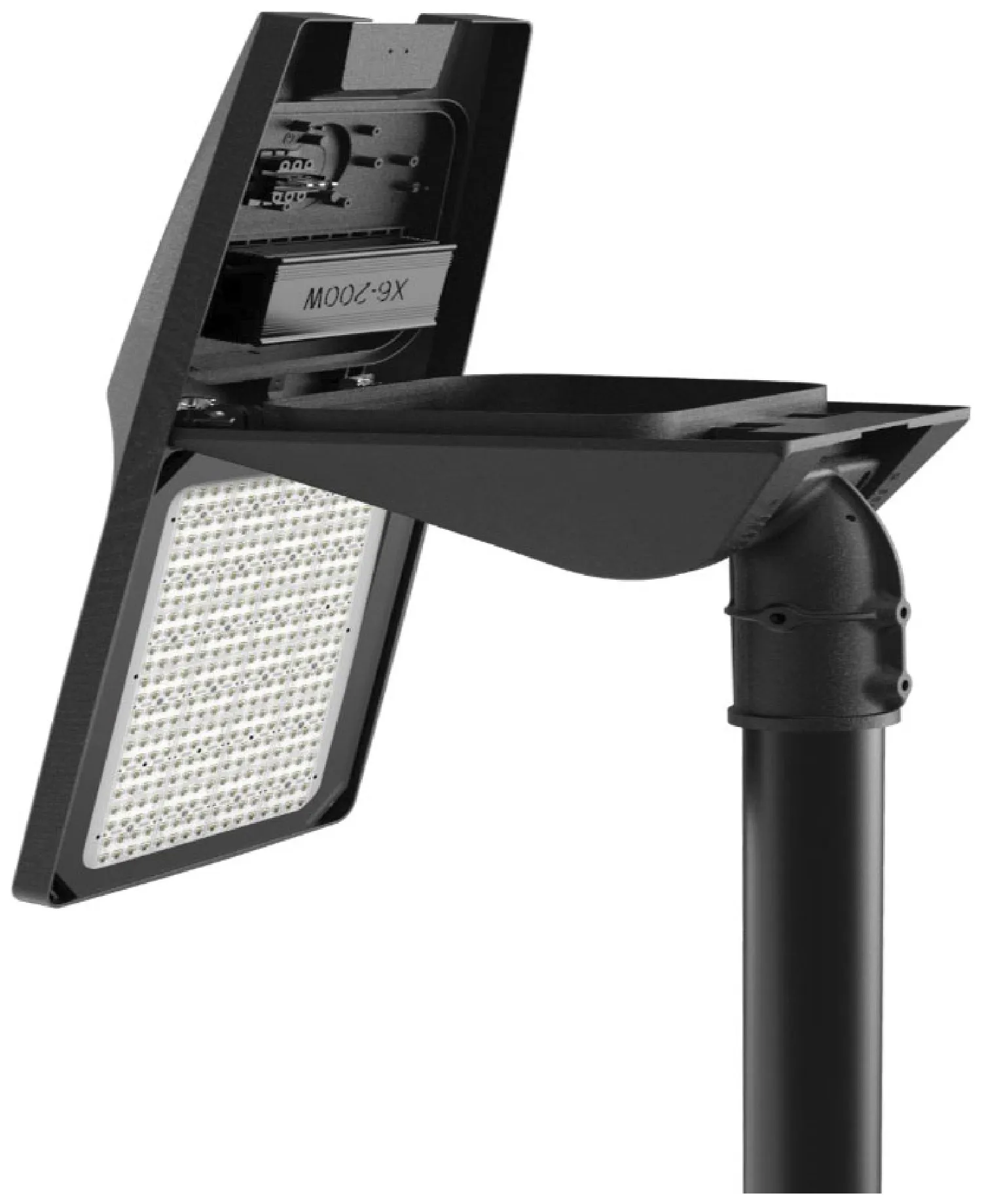

Tool-less, field-swappable component tray
Tool-less, field-swappable component tray

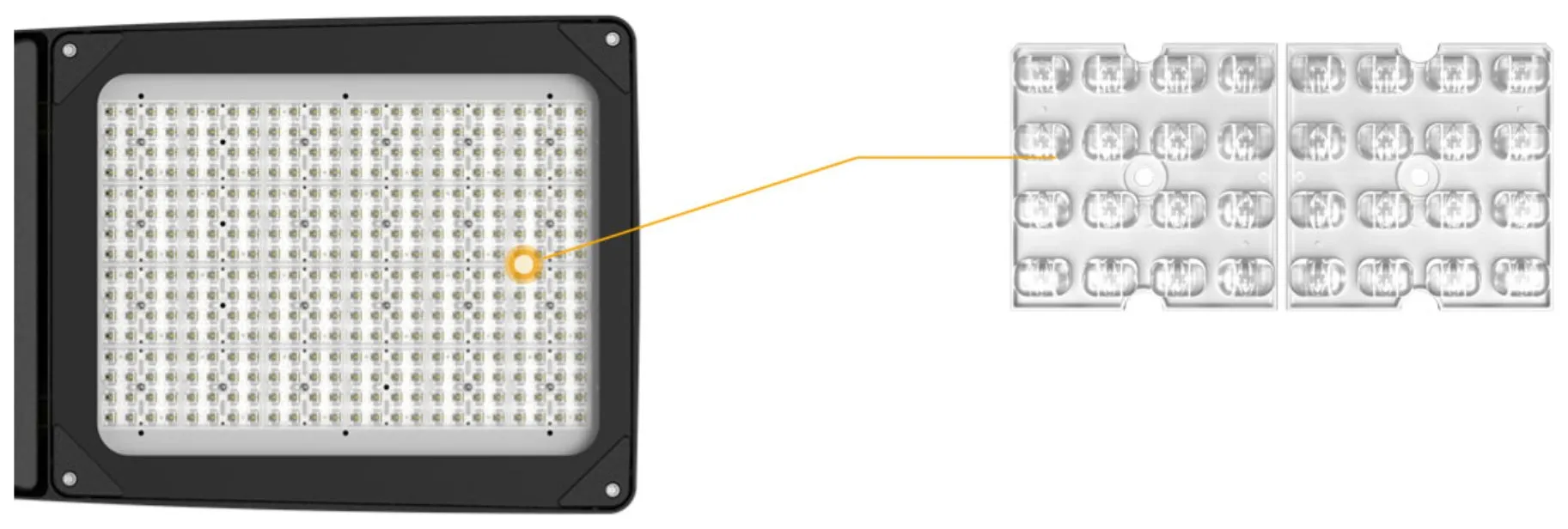

Modular optics
Modular optics

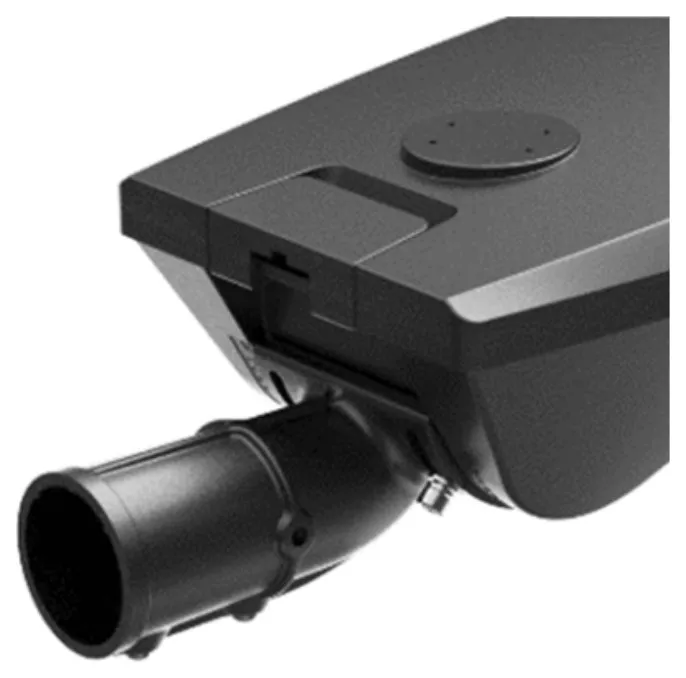

Tool-less access latch
Tool-less access latch

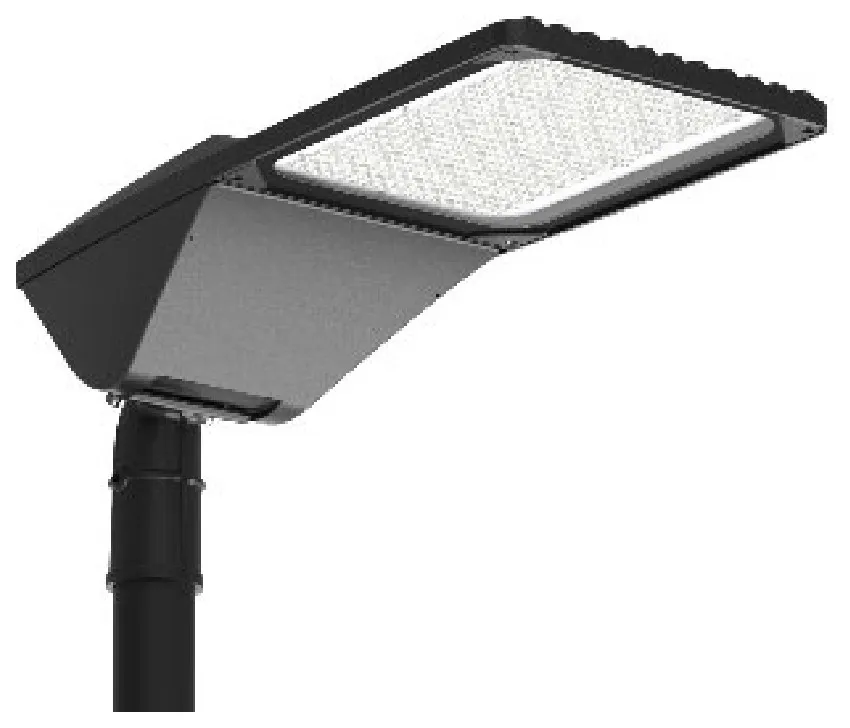

Pole mounting
Pole mounting

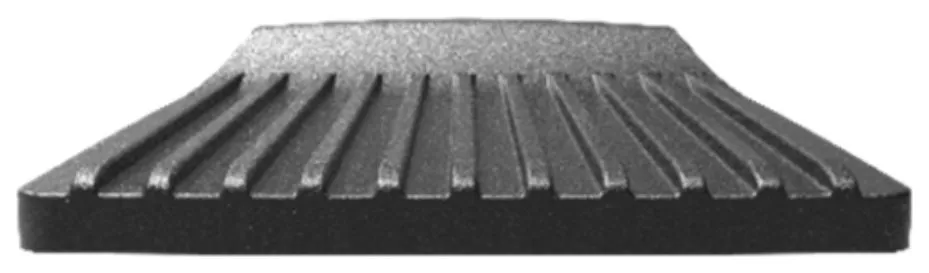

Self-cleaning passive heat sink
Self-cleaning passive heat sink

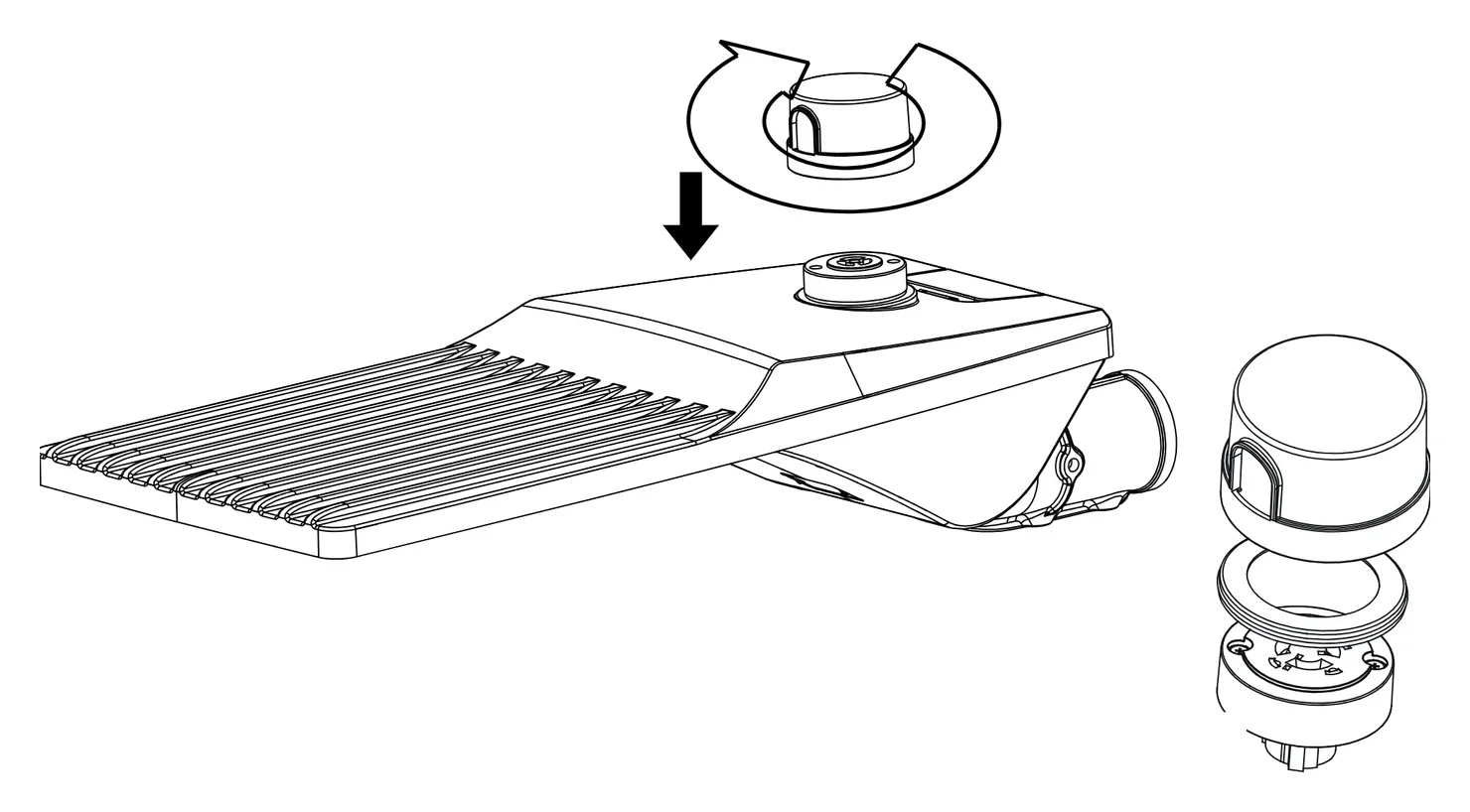

Twist-lock photocell on the NEMA receptacle
Twist-lock photocell on the NEMA receptacle
9 lumen packages · 180 lm/WShow
30 W5,400 lm
50 W9,000 lm
70 W12,600 lm
90 W16,200 lm
100 W18,000 lm
120 W21,600 lm
150 W27,000 lm
180 W32,400 lm
200 W36,000 lm

Specifications

Construction
HousingCorrosion-resistant LM6 aluminium
FinishPowder coat; grey, black, bronze, white or custom
LensTempered glass
Ingress ratingIP66
AccessTool-less, with locking mechanism
Thermal managementPassive; self-cleaning heat sink; built-in ventilator
SafetySafety cable; auto power-disconnect switch
MountingUniversal, 34–60 mm tenon, vertical or horizontal; 0–20° tilt in 5° steps
Optical
DistributionIES Type I, II, III, IV or V; short, medium or wide
Optical
Colour temperature3000 K, 4000 K or 5000 K
CRI> 70
Rated life> 100,000 h to L70
Electrical
Input voltage100–277 VAC or 277–480 VAC, 50/60 Hz
Power factor> 0.9 at full load
THD< 20%
Operating temperature−40 °C to +50 °C
Surge protection10 kV standard; 20 kV optional
Control7-pin receptacle, DALI, 0–10 V, photosensor, motion sensor; INTELIGHT adaptive, intelligence and communications options

Dimensions & weight

ModelLengthHeightWeight
LRL5-030-070 (S)53 cm24 cm6.6 kg
LRL5-090-120 (M)59 cm27.2 cm7.6 kg
LRL5-150-200 (L)68 cm30.8 cm9.8 kg

Ordering information

Part number format

CNX-LRL5Product type
P11Input voltage
12Optic typeS+Distribution
303Colour temperature
0304Wattage
S5Fixture size
XX76Control
GRY7Fixture colour

Example: CNX-LRL5-P1-1S-30-030-S-XX7-GRY — the first code in each numbered position; pick one code per position below to build your own

1Input voltage

2Optic type + Distribution

Optic type

Distribution

Written as one code: 1 + S → 1S

3Colour temperature

4Wattage

5Fixture size

6Control

7Fixture colour

Product options

INTELIGHT control

Surge protection

Timer

Applications

RoadwayParkingAutomotiveService centresParks & recreation

Certifications

cULusCERoHSFCCISO 9001 (SGS)DLC Premium

Marks as printed on the current spec sheet.
