Products / CNX-LSLR

LED Stadium Light

High efficacy up to 160 lm/W and up to 85 % energy savings, available in 300 W to 1,200 W configurations.

192,000 lmat 1,200 W
160 lm/Wefficacy
3Gvibration certified
Request a quoteDownloads

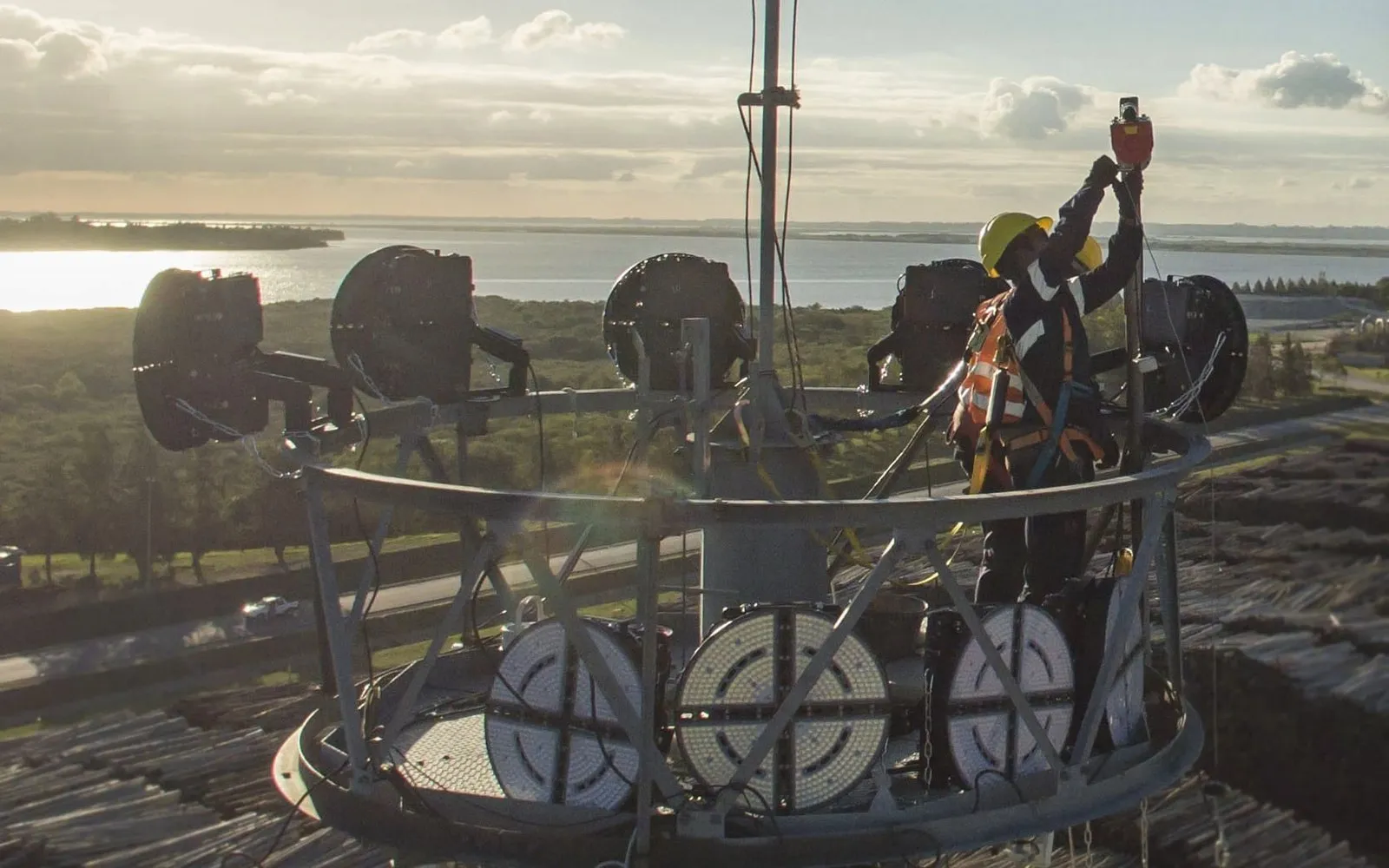

UPM log storage yard, Uruguay: stadium lights fitted on the 33 m towers

Product range

8 lumen packages

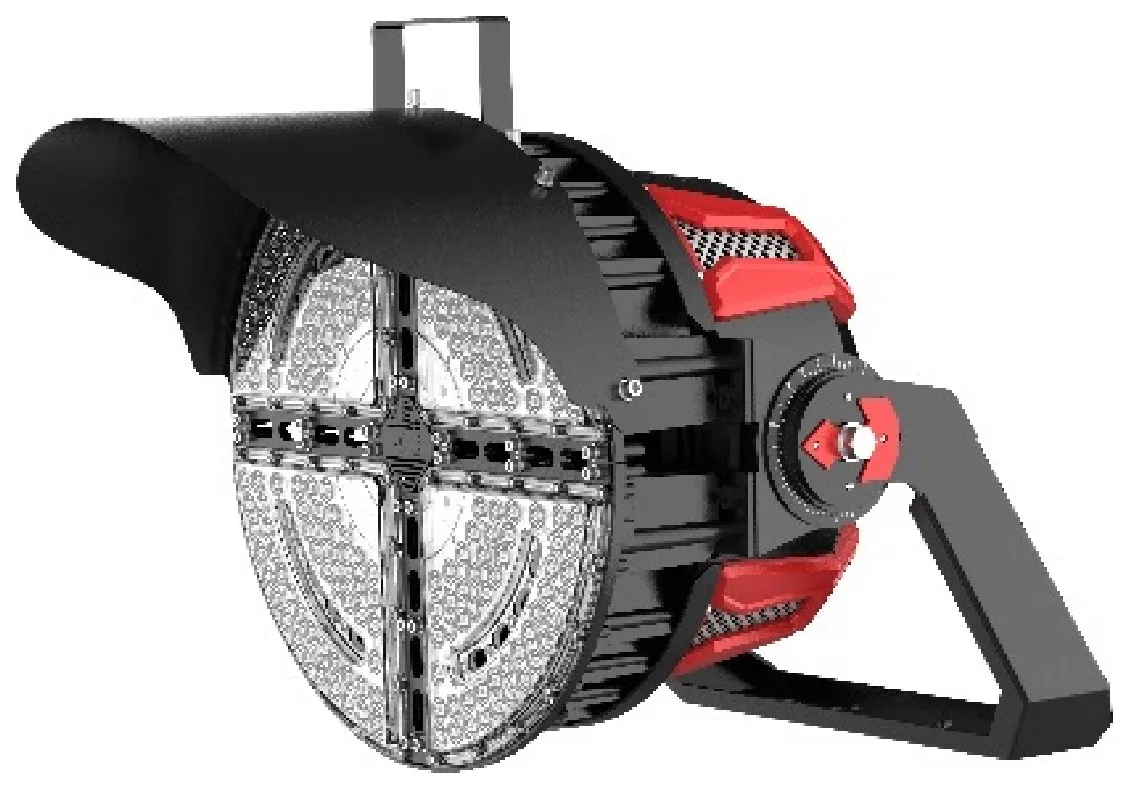

300–600 or 700–1200 W

One fixture in two sizes: 300–600 W, 700–1200 W.

300–600 or 700–1200 W

Beam patterns

  • 15°
  • 30°
  • 45°
  • 80°

Sizes and weights

  • BRKDimensions L × W × H45.3 × 64.4 × 48.4 cmWeight17.2–18.2 kg
  • RTADimensions L × W × H40.9 × 51.5 × 74.5 cmWeight17.2–18.2 kg
  • BRKDimensions L × W × H55.3 × 74.0 × 58.1 cmWeight28.7 kg
  • RTADimensions L × W × H51.0 × 61.9 × 84.9 cmWeight28.7 kg

Colour temperature

  • 3,000 K
  • 4,000 K
  • 5,000 K
  • 5,700 K

Control

  • DALI 1–10 V
  • ZigBee
  • Motion sensor
  • ColoursBlack with red, blue, green, grey or black trim
  • Input voltage120–277 V AC
    277–480 V AC
  • Ingress ratingIP66
  • Impact ratingIK10
  • Operating temperature−40 to +50 °C

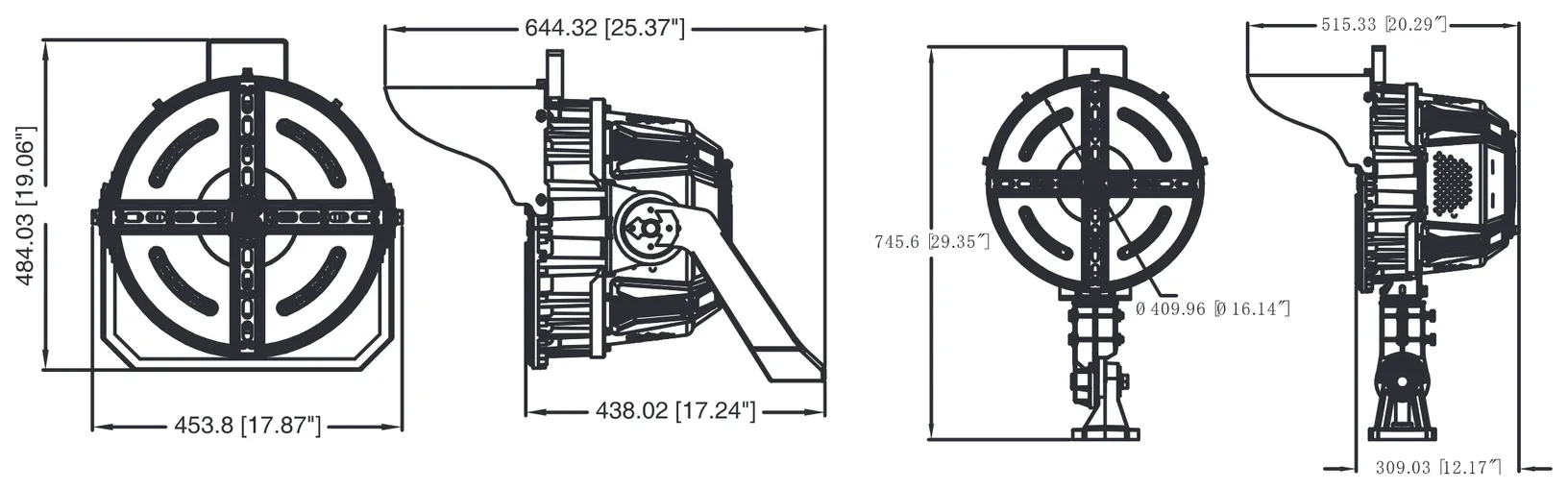

Dimensions (mm)

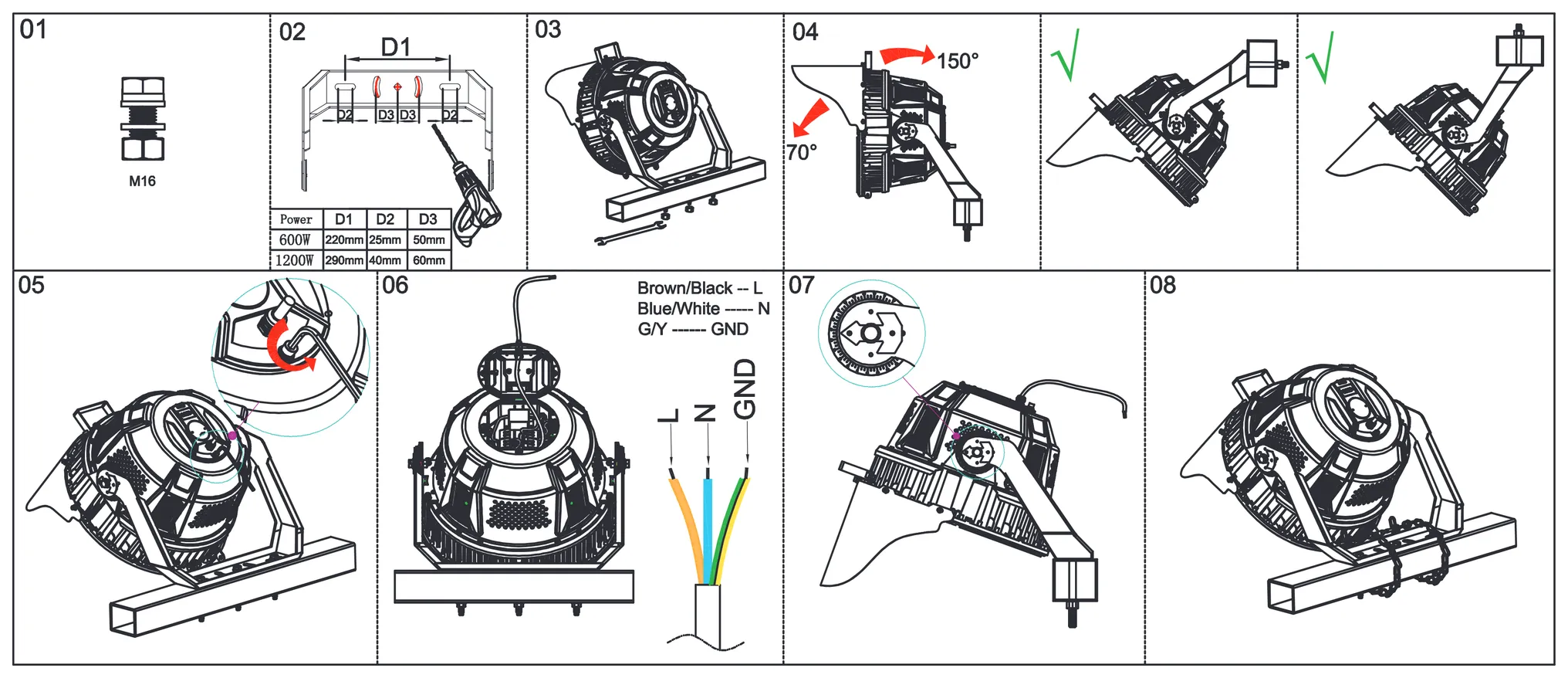

Bracket mount (BRK): installation steps, 70–150° tilt

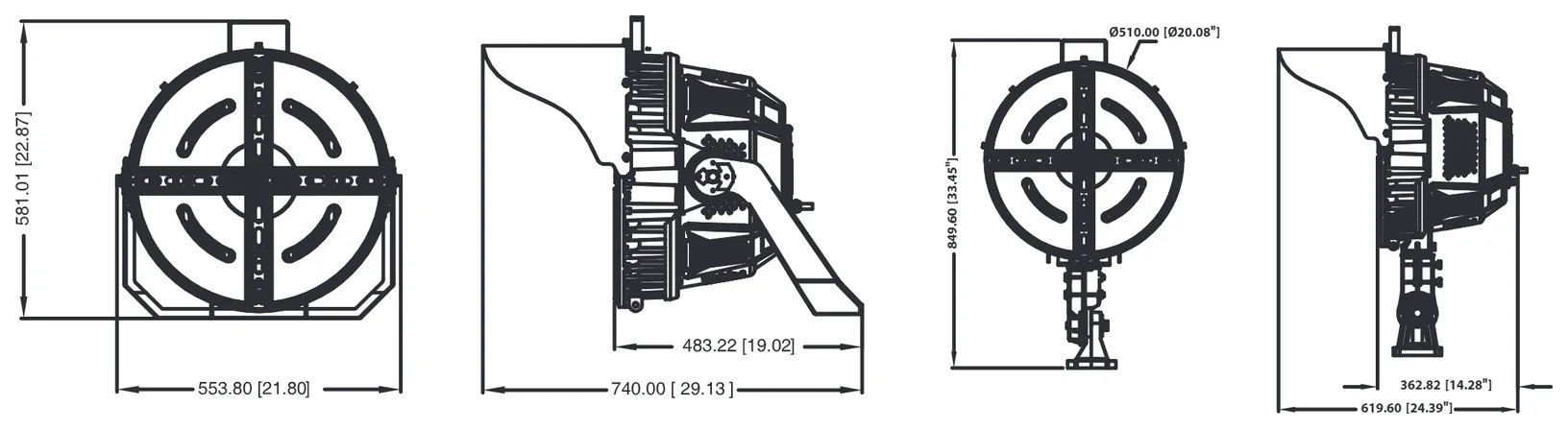

700–1200 W: dimensions
700–1200 W: dimensions

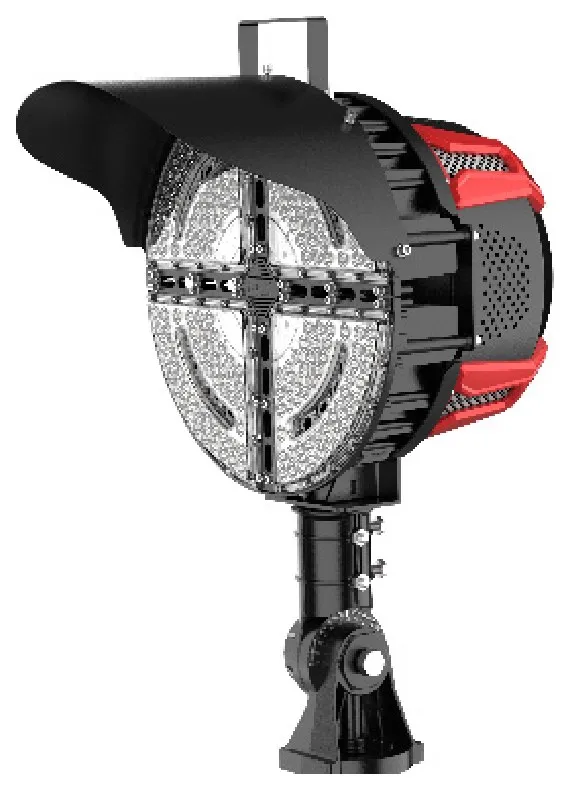

Rotatable arm mount (RTA)
Rotatable arm mount (RTA)

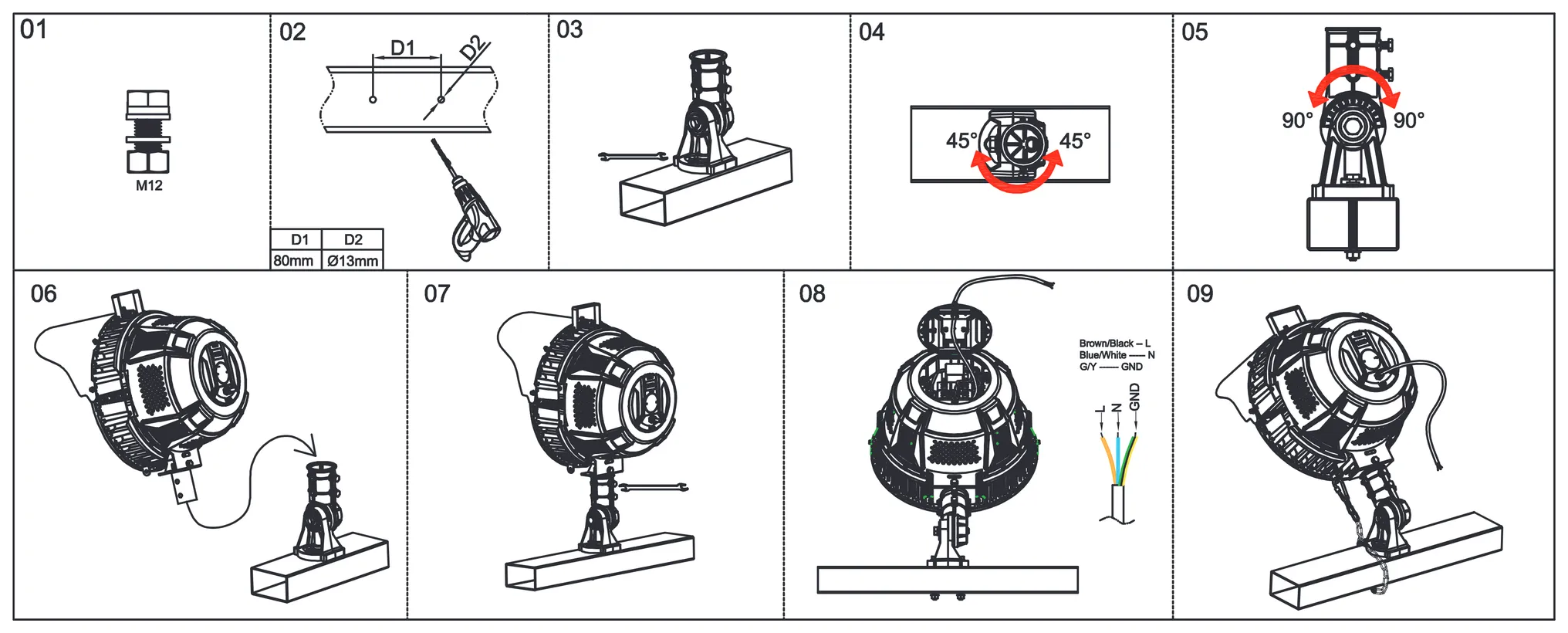

Rotatable arm mount: installation steps, ±45° and ±90° rotation
Rotatable arm mount: installation steps, ±45° and ±90° rotation
8 lumen packages · 160 lm/WShow
300 W48,000 lm
400 W64,000 lm
500 W80,000 lm
600 W96,000 lm
700 W112,000 lm
800 W128,000 lm
1000 W160,000 lm
1200 W192,000 lm

Specifications

Construction
HousingHigh-grade aluminium
FinishBlack powder coat
TrimArchitectural, multi-colour
Ingress ratingIP66, suitable for outdoor use
Impact ratingIK10
Vibration3G certified
MountingBracket or rotatable arm; optional laser sight for aiming and positioning
Optical
CRI> 70
Beam angle15°, 30°, 45°, 80°; 15° not available on 600 W and 1,200 W
Optical
Colour temperature3000 K, 4000 K, 5000 K or 5700 K
Light shieldBaffle, optional
Electrical
Input voltage120–277 VAC or 277–480 VAC, 50/60 Hz
Power factor> 0.9 at full load
THD< 20%
Operating temperature−40 °C to +50 °C
Surge protectionInternal and external, 10 kV/10 kA or 20 kV/20 kA
DriverRemote power supply on request

Dimensions & weight

ModelLengthWidthHeightWeight
LSLR-300/400/500, bracket45.3 cm64.4 cm48.4 cm17.2 kg
LSLR-300/400/500, rotatable arm40.9 cm51.5 cm74.5 cm17.2 kg
LSLR-600, bracket45.3 cm64.4 cm48.4 cm18.2 kg
LSLR-600, rotatable arm40.9 cm51.5 cm74.5 cm18.2 kg
LSLR-700–1200, bracket55.3 cm74 cm58.1 cm28.7 kg
LSLR-700–1200, rotatable arm51 cm61.9 cm84.9 cm28.7 kg

Ordering information

Part number format

CNX-LSLRProduct type
301Colour temperature
0152Optics
03003Wattage
RED4Fixture colour
P15Input voltage
BRK6Mounting
BFL7Baffle
10K8Surge protection
DAL9Control

Example: CNX-LSLR-30-015-0300-RED-P1-BRK-BFL-10K-DAL — the first code in each numbered position; pick one code per position below to build your own

1Colour temperature

2Optics

3Wattage

4Fixture colour

5Input voltage

6Mounting

7Baffle

8Surge protection

9Control

Applications

Sports facilitiesPortsMiningParkingCommercialParks & recreationAutomotiveService centres

Certifications

cULusCERoHSFCCISO 9001 (SGS)DLC

Marks as printed on the current spec sheet.
