Products / CNX-LSO

Solar Street Light

Two solar street lights: an all-in-one luminaire with a rotatable panel, 15 W to 50 W at up to 170 lm/W, and the LRL5 roadway housing with a separate 70 W panel and 153.6 Wh battery.

170 lm/Wall-in-one luminaire

2–3 daysautonomy on the battery

2 seriesto choose from

Request a quote Downloads

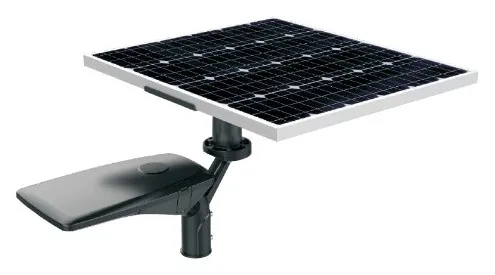

Integrated solar street light: luminaire, rotatable panel and battery on one arm

Compare the series

2 series

Integrated luminaire · 15–50 WAll in one: luminaire, panel and battery on one arm, the panel rotatable to face the sun.Power15–50 WOutput2,550–8,500 lmOpticsIES Type II, III, IV
120° × 55°, 60° or 90°Size92 × 67 × 42.3 cmWeight13 kgColoursBlack, bronze, grey, customIngress ratingIP66Energy sourceBuilt-in 30 / 50 / 150 W panel, 12 Ah batteryOperating temperature−20 to +50 °CRated life> 100,000 hSee models

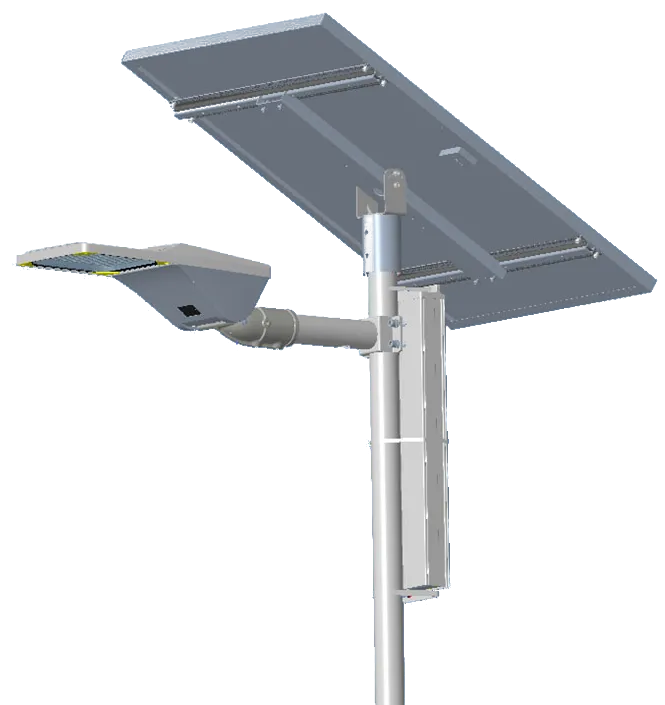

Utilizes LRL5 housingThe LRL5 roadway light on its solar input, with the panel and battery mounted separately on the pole.Power30–50 WOutput5,400–9,000 lmOpticsIES Type I to V
short, medium or wideSizeLuminaire 53 × ≈28 × 24 cm
panel ≈78 × 67 × 3 cmWeight14.5 kgColoursBlack, bronze, grey, customIngress ratingIP66Energy sourceSeparate 70 W panel, 153.6 Wh LiFePO4 battery, MPPTOperating temperature0 to +50 °CRated life> 100,000 hSee models

Product range

3 lumen packages

Integrated luminaire · 15–50 W

All in one: luminaire, panel and battery on one arm, the panel rotatable to face the sun.

Beam patterns

Type II
Type III
Type IV
120°×55°
120°×60°
120°×90°

Sizes and weights

15–50 WDimensions L × W × H92 × 67 × 42.3Weight13 kg

Colour temperature

3,000 K
4,000 K
5,000 K

Control

7-pin receptacle
Photosensor
Motion sensor
Schedules OP1–OP3

ColoursBlack, bronze, grey, custom
Ingress ratingIP66
Operating temperature−20 to +50 °C
Rated life> 100,000 h

3 lumen packages · 170 lm/WShow

15 W2,550 lm

20 W3,400 lm

50 W8,500 lm

Utilizes LRL5 housing

The LRL5 roadway light on its solar input, with the panel and battery mounted separately on the pole.

Beam patterns

Type I
Type II
Type III
Type IV
Type V

Sizes and weights

LuminaireDimensions L × W × H53 × ≈28 × 24Weight14.5 kg
Solar panelDimensions L × W × H≈78 × 67 × 3

Colour temperature

3,000 K
4,000 K
5,000 K

Control

Microwave motion sensor
7-stage night dimming
Remote controller

ColoursBlack, bronze, grey, custom
Ingress ratingIP66
Operating temperature0 to +50 °C
Rated life> 100,000 h

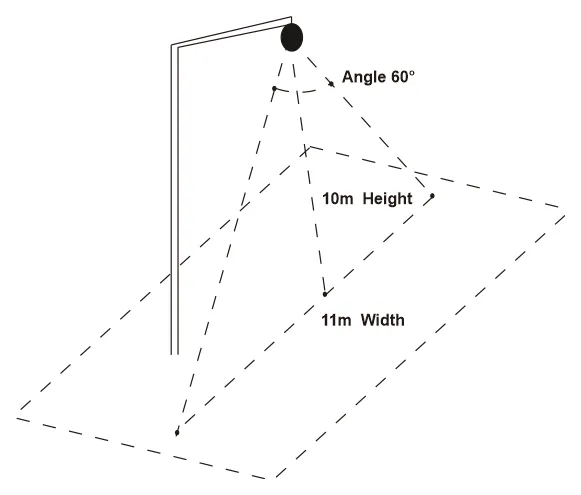

Microwave sensor coverage: 60° at 10 m mounting height, 11 m wide

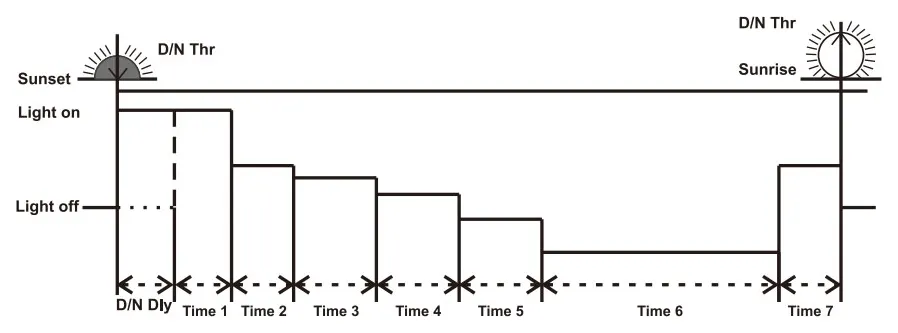

Seven-stage night schedule, dusk to dawn

1 part numberShow

Utilizes LRL5 housing
Part number	Power	Solar panel	Battery	Autonomy
CNX-LRL5-P3-3M-40-050-S	50 W	70 W	153.6 Wh	2.5–3 h at full power; 3 days in intelligent mode

Specifications

Solar & storage · integrated luminaire
Solar panel	Mono-crystalline, 18 V: 30 W (15 W light), 50 W (20 W), 150 W (50 W); rotatable
Battery	Built-in lithium, 12 Ah
Autonomy	2–3 days
Dimming	Built-in, customizable schedules: OP1, OP2, OP3 or custom
Control	7-pin receptacle, photosensor or motion sensor
Listings	ETL (Intertek), CE, RoHS, FCC, ISO 9001 (SGS), DLC

Construction · integrated luminaire
Housing	Single die-cast aluminium housing; tool-less access and locking; self-cleaning heat sink
Ingress rating	IP66
Dimensions	0192 × 67 × 42.3 cm 02Luminaire 53 × ≈28 × 24 cm panel ≈78 × 67 × 3 cm
Weight	0113 kg 0214.5 kg
CRI	> 80
Operating temperature	01−20 to +50 °C 020 to +50 °C

Solar & storage · utilizes LRL5 housing
Solar panel	70 W mono-crystalline
Battery	153.6 Wh LiFePO4
Charge controller	MPPT
Charging time	3 h

Solar & storage · utilizes LRL5 housing
Autonomy	2.5–3 h at full power; 3 days in intelligent mode
Day/night threshold	Array open-circuit voltage, adjustable 3.0–8.0 V for local conditions

Control · utilizes LRL5 housing
Control	Microwave induction motion sensing; 30 s hold before dropping back to the unoccupied level
Dimming	Seven-stage night mode, configurable by remote controller; each stage sets a separate output for motion detected and for no motion, 100 % down to 3 %

Construction & environment · utilizes LRL5 housing
Ingress rating	IP66
Corrosion	Category C3–C5
Operating temperature	01−20 to +50 °C 020 to +50 °C
EPA	5.28 ft²
Rated life	> 100,000 h
Power	0115–50 W 0230–50 W
Output	012,550–8,500 lm 025,400–9,000 lm
Optics	01IES Type II, III, IV 120° × 55°, 60° or 90° 02IES Type I to V short, medium or wide
Energy source	01Built-in 30 / 50 / 150 W panel, 12 Ah battery 02Separate 70 W panel, 153.6 Wh LiFePO4 battery, MPPT

Dimensions & weight

Model	Length	Width	Height	Weight
LSO-15/20/50 (integrated)	92 cm	67 cm	42.3 cm	13 kg
LSO with LRL5 housing, 30–50 W · luminaire	53 cm	28 cm	24 cm	14.5 kg
LSO with LRL5 housing · 70 W solar panel	78 cm	67 cm	3 cm	—

Ordering information

Part number format

CNX-LSOProduct type

T2M1Optic

302Colour temperature

0153Wattage

BLK4Fixture colour

XX75Control

OP16Schedule

Example: CNX-LSO-T2M-30-015-BLK-XX7-OP1 — the integrated luminaire; the light that utilizes the LRL5 housing is ordered as an LRL5 with the P3 solar input (see its series below)

1Optic

2Colour temperature

3Wattage

4Fixture colour

5Control

6Schedule

Applications

RoadwayParkingParks & recreationPaths and perimetersRemote and off-grid sites

Certifications

CERoHSFCCISO 9001 (SGS)DLC

Marks as printed on the current spec sheet.

Downloads

Spec sheet, integrated luminaire (PDF)↓Spec sheet, utilizes LRL5 housing (PDF)↓IES fileson request
