Products / CNX-LST

Linear Strip

High efficacy up to 145 lm/W and up to 75 % energy savings, available in 24 W to 68 W configurations and 4 ft and 8 ft lengths.

145 lm/Wefficacy
1,2 / 2,4 mlengths
IP54dry or damp locations
Request a quoteDownloads
Linear strip

Product range

4 lumen packages

4 or 8 ft · 24–68 W

One fixture in two sizes: 4 ft (24–36 W), 8 ft (42–68 W).

4 or 8 ft · 24–68 W

Beam patterns

  • 120°

Lengths, section and weights

  • 4 ftWeight2.0 kg
  • 8 ftWeight4.0 kg

Colour temperature

  • 3,000 K
  • 4,000 K
  • 5,000 K

Control

  • DALI 1–10 V
  • ZigBee
  • Motion sensor
  • Daylight harvesting
  • ColoursWhite
  • Input voltage120–277 V AC
    347–480 V AC
  • Ingress ratingIP54
  • Operating temperature−20 to +60 °C
Dimensions (mm)

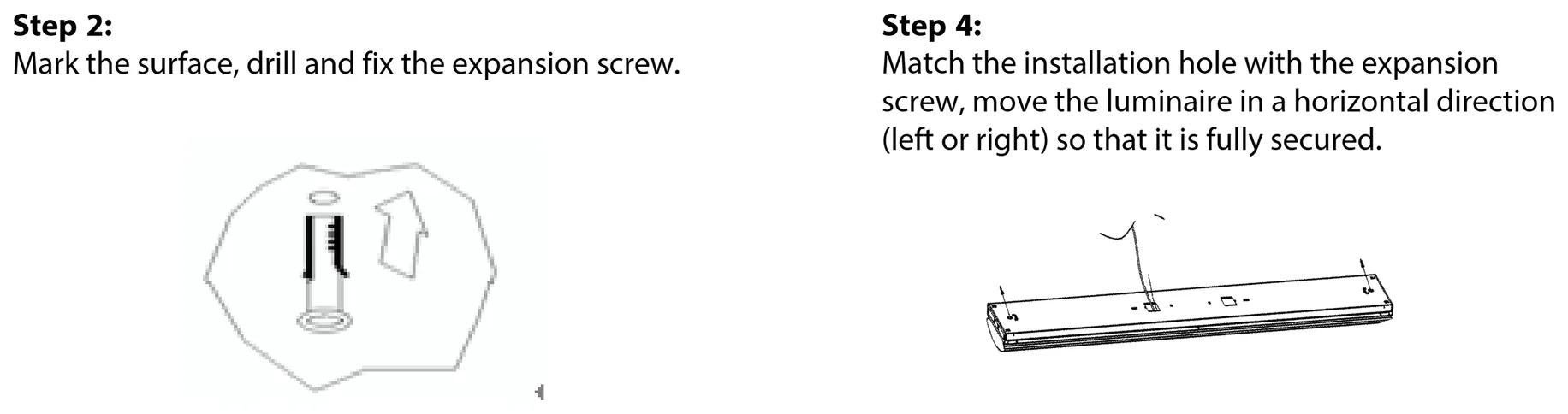

Surface mounting: expansion screw, wiring cover and slide-on fixing

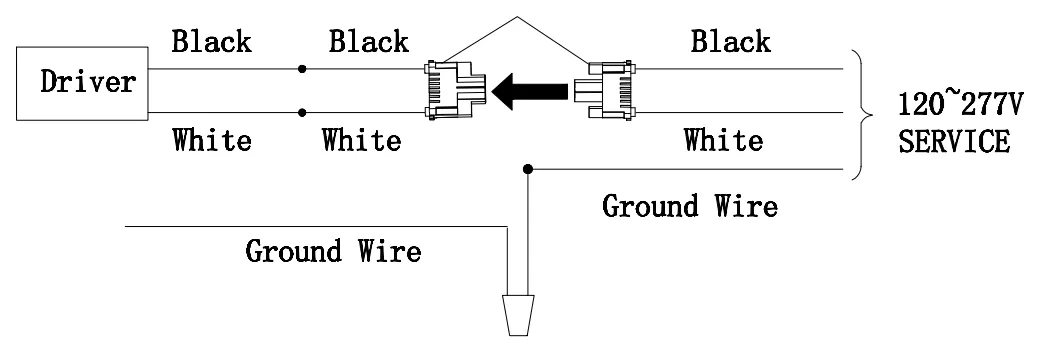

Wiring: push connector to the 120–277 V supply
Wiring: push connector to the 120–277 V supply
4 lumen packages · 145 lm/WShow
24 W3,480 lm4 ft
36 W5,220 lm4 ft
42 W6,090 lm8 ft
68 W9,860 lm8 ft

Specifications

Construction
HousingDie-formed 0.6 mm cold-rolled steel
Lengths4 ft (117.1 cm) and 8 ft (240.1 cm)
LensVandal and UV resistant polycarbonate, white
Thermal managementHigh-grade thermal paste, PCB to housing
Ingress ratingIP54
Location ratingDry or damp locations
FinishCorrosion resistant, white
MountingSurface or suspension
Optical
Beam angle120°
Optical
Colour temperature3000 K, 4000 K or 5000 K
Electrical
Input voltage120–277 VAC or 347–480 VAC, 50/60 Hz
Power factor0.9 at full load
THD< 20%
Operating temperature−20 °C to +60 °C
Surge protection4 kV built in; 10 kV/10 kA optional
Switching cycles100,000
EmergencyOptional battery backup

Dimensions & weight

ModelLengthWidthHeightWeight
LST-024/036 (4 ft)117.1 cm8.2 cm9.35 cm2 kg
LST-042/068 (8 ft)240.1 cm8.2 cm9.35 cm4 kg

Ordering information

Part number format

CNX-LSTProduct type
301Colour temperature
0242Wattage
P13Input voltage
SFC4Mounting
DAL5Control
EMG6Emergency backup

Example: CNX-LST-30-024-P1-SFC-DAL-EMG — the first code in each numbered position; pick one code per position below to build your own

1Colour temperature

2Wattage

3Input voltage

4Mounting

5Control

6Emergency backup

Applications

WarehouseManufacturingParkingEducationCommercialLaboratoriesService centres

Certifications

ETL (Intertek)CERoHSFCCISO 9001 (SGS)DLC

Marks as printed on the current spec sheet.
