Products / CNX-LVL

LED Vapor Proof Light

High efficacy up to 150 lm/W and up to 75 % energy savings, available in 20 W to 100 W configurations.

150 lm/Wefficacy
IP66suitable for outdoor use
IK10impact rated
Request a quoteDownloads

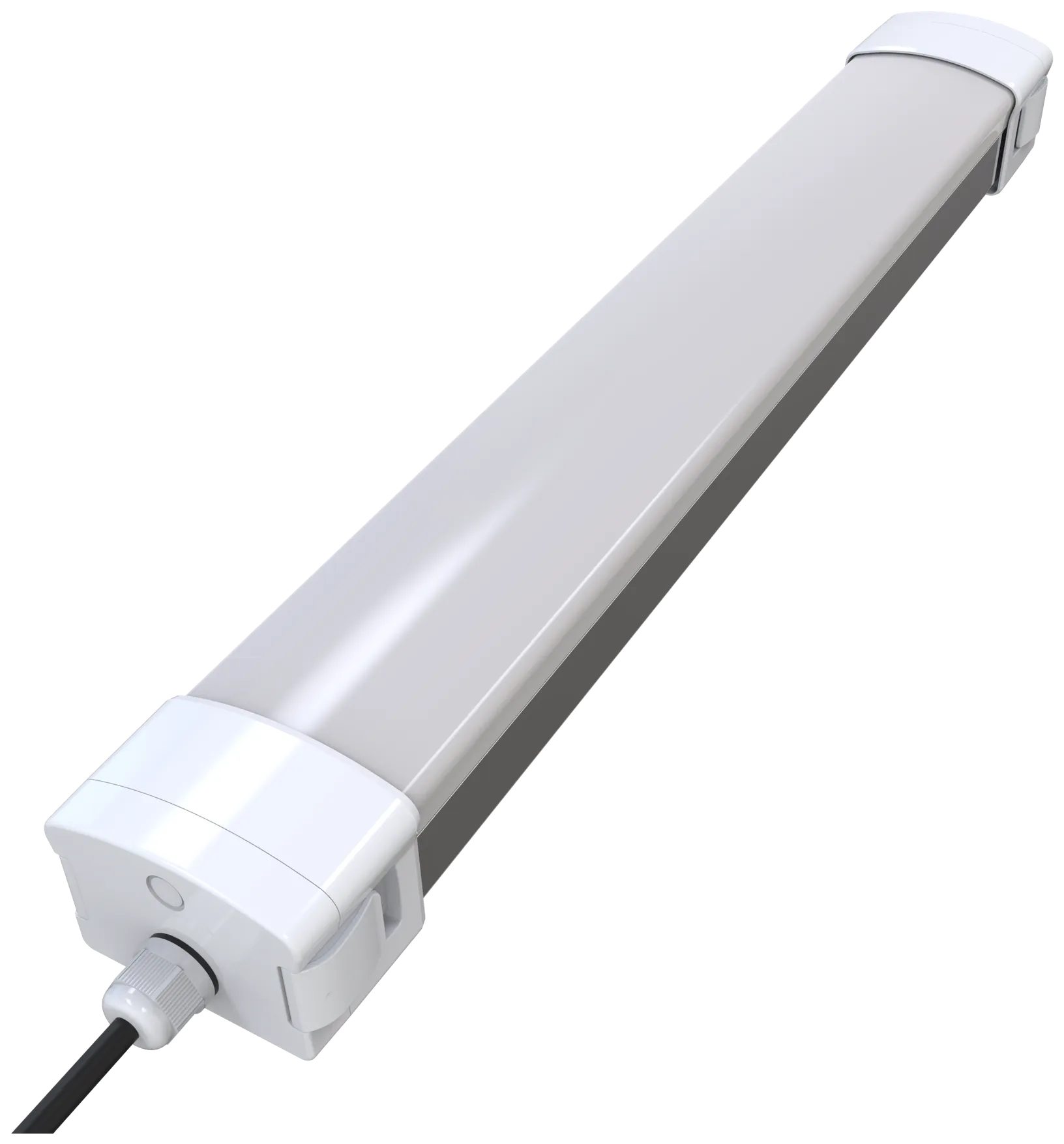

Vapor proof light

Product range

7 lumen packages

Vapor proof · 20–100 W

IP66 and IK10, in 60, 120 and 240 cm, linkable end to end; the standard version.

Vapor proof · 20–100 W

Beam patterns

  • 120°

Lengths and section

Colour temperature

  • 3,000 K
  • 4,000 K
  • 5,000 K

Control

  • DALI 1–10 V
  • Motion sensor
  • Daylight harvesting
  • ColoursWhite
  • Input voltage100–277 V AC
    277–480 V AC
  • Ingress ratingIP66
  • Impact ratingIK10
  • Operating temperature−20 to +40 °C

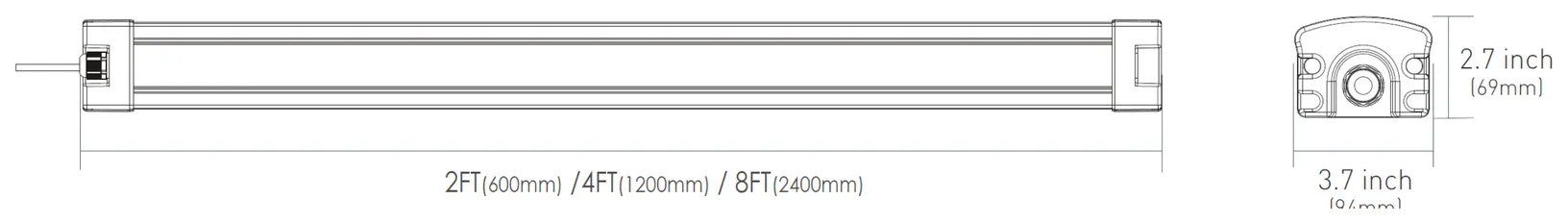

Dimensions (mm)

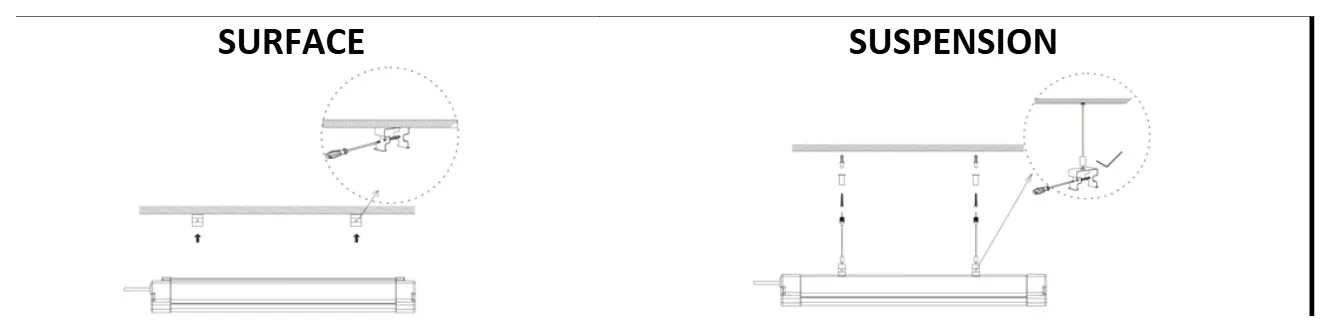

Mounting: surface, suspension or rotatable bracket

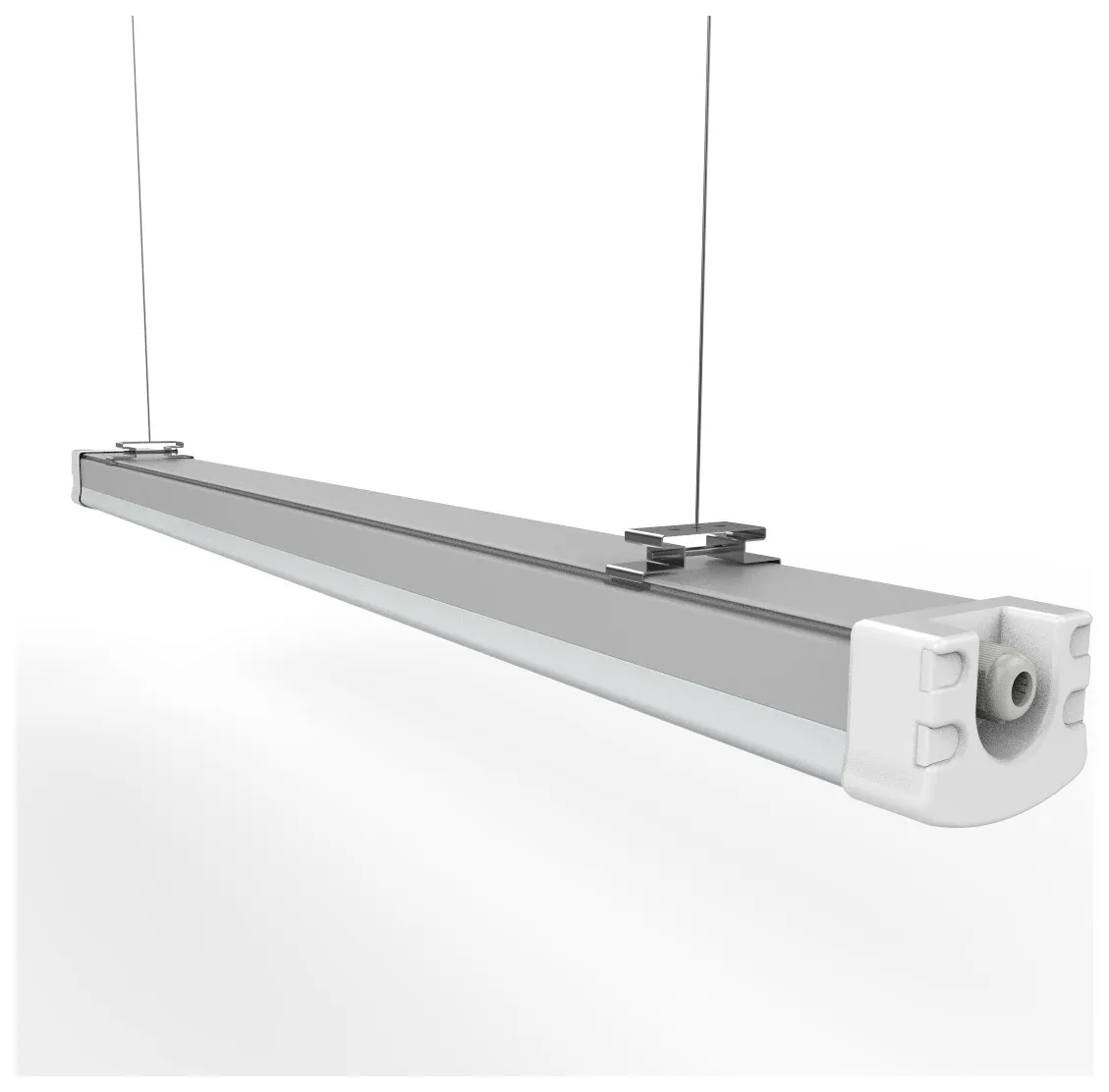

Vapor proof light on suspension wires
Vapor proof light on suspension wires

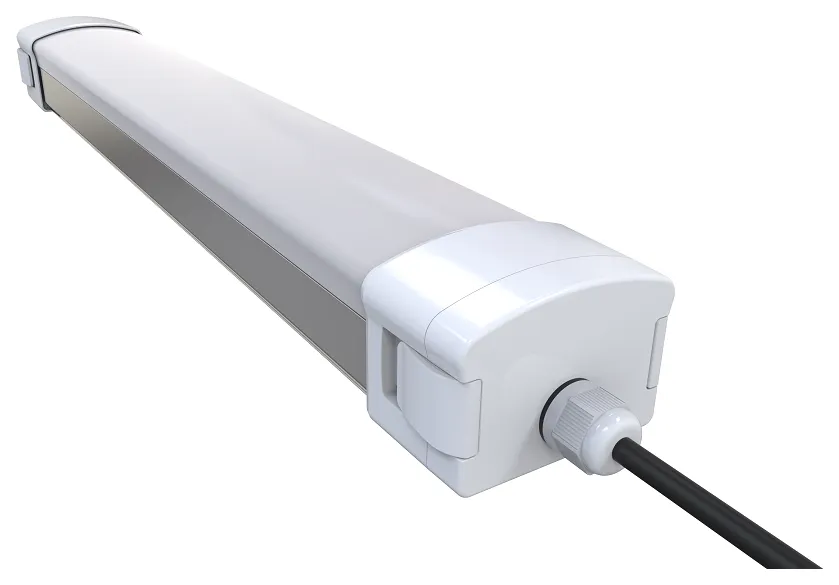

Detachable end cap
Detachable end cap

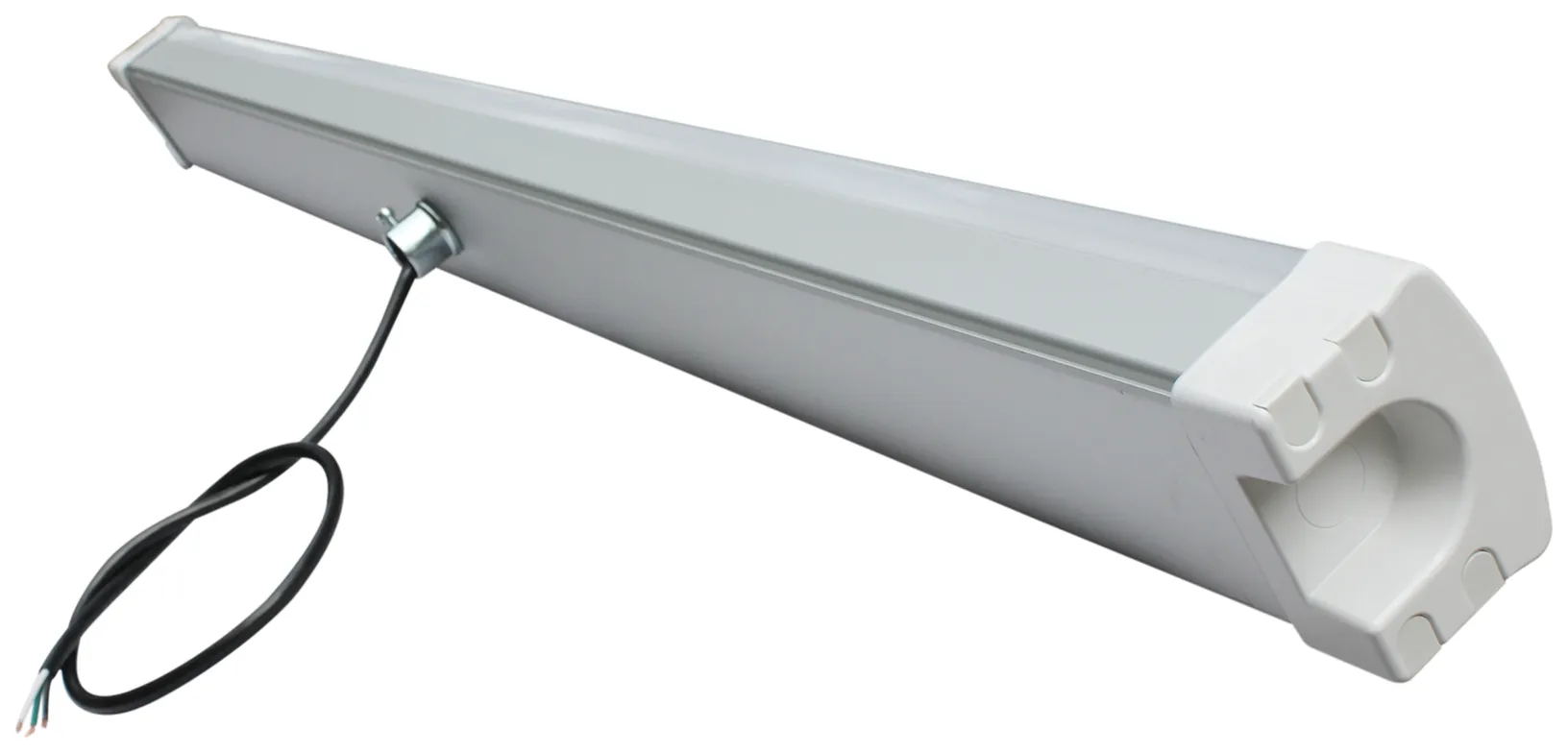

Back-side wiring
Back-side wiring
Striated lens
Striated lens
3-pin quick-connect plug, non-dimming
3-pin quick-connect plug, non-dimming

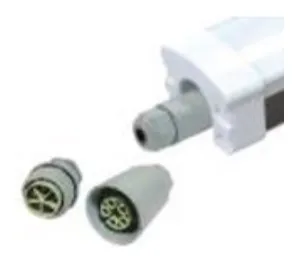

5-pin quick-connect plug, dimming
5-pin quick-connect plug, dimming
7 lumen packages · 150 lm/WShow
20 W3,000 lm
30 W4,500 lm
40 W6,000 lm
50 W7,500 lm
60 W9,000 lm
80 W12,000 lm
100 W15,000 lm

Specifications

Construction
HousingAluminium and polycarbonate, vapor-proof architectural design
LensVandal and UV resistant polycarbonate, white; striated lens option
SafetyFlame-retardant 94V-0 materials
Ingress ratingIP66, suitable for outdoor use
Impact ratingIK10
MountingSurface, suspension or rotatable bracket
RunsLinkable, fixed or tool-less endcaps; single-end, back-side or quick-connect cable entry
Lengths60 cm (20–30 W), 120 cm (40–60 W), 240 cm (80–100 W)
Optical
Beam angle120°
LensFrosted polycarbonate
CRI> 80
Optical
Colour temperature3000 K, 4000 K or 5000 K
Electrical
Input voltage100–277 VAC or 277–480 VAC, 50/60 Hz
Power factor> 0.95 at full load
THD< 15%
Operating temperature−20 °C to +40 °C
Surge protectionBuilt in
WiringSide, back or quick-connect cable; 3-pin (non-dimming) or 5-pin (dimming) linkable connect
Max run per feed20 W: 16 fixtures at 110 V, 41 at 277 V; 30 W: 11 / 27; 40 W: 8 / 20; 50 W: 6 / 16; 60 W: 5 / 13
Control1–10 V / DALI, motion sensor, daylight harvesting
EmergencyOptional battery backup

Dimensions & weight

ModelLengthWidthHeightWeight
LVL-020/03060 cm9.4 cm6.9 cm—
LVL-040/060120 cm9.4 cm6.9 cm—
LVL-080/100240 cm9.4 cm6.9 cm—

Ordering information

Part number format

CNX-LVLProduct type
301Colour temperature
0202Wattage
P13Input voltage
SFC4Mounting
SNG5Cable end
DAL6Control
ST7Connectors
EMG8Emergency backup

Example: CNX-LVL-30-020-P1-SFC-SNG-DAL-ST-EMG — the first code in each numbered position; pick one code per position below to build your own

1Colour temperature

2Wattage

3Input voltage

4Mounting

5Cable end

6Control

7Connectors

8Emergency backup

Applications

ParkingManufacturingWarehouseEducationCommercialAutomotiveLaboratoriesService centresTask lighting

Certifications

cULusCERoHSFCCISO 9001 (SGS)DLC

Marks as printed on the current spec sheet.
