Products / CNX-PPS

Portable Power Stands

Battery masts from 2.2 m to 5.0 m that carry and power equipment: 40 W to 100 W output, 3 h to 450 h of working time.

100 Wmax output, PPS-500
5.0 mmast height, PPS-500
450 hworking time, PPS-500
Request a quote

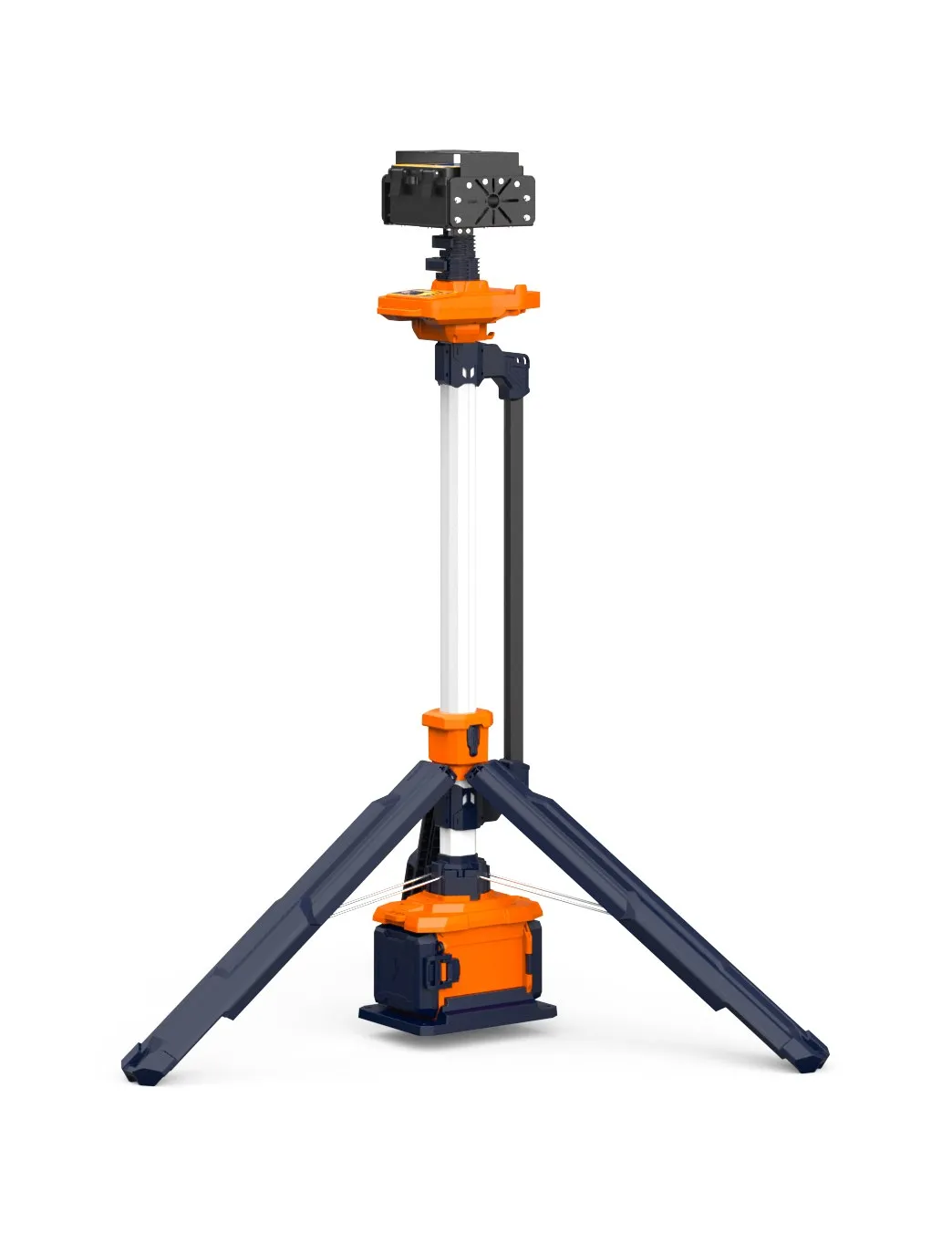

Tripod mounting, with an equipment box

Product range

3 models
3 part numbersShow

Device power stands

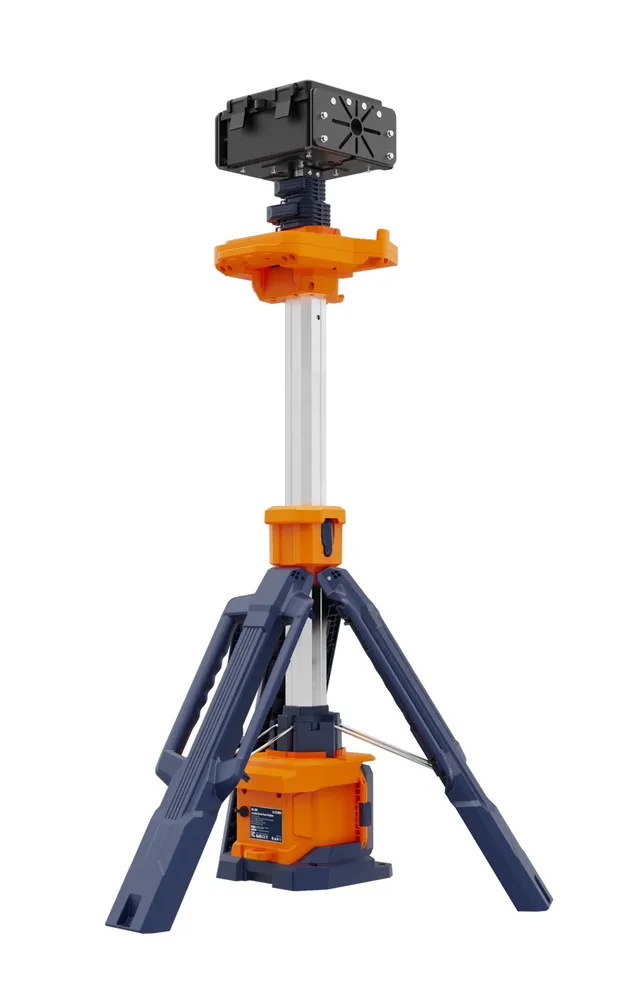

PPS-200

PPS-200

Tripod mast with a detachable bracket (left, right, top or both sides) that carries and powers cameras, sensors, radios and signs.

Mast height
1.1–2.2 m
Max output power
40 W
DC output
12 V 3 A
Outputs
2 × USB 5 V 3 A
Runtime
3–75 h on 1 × BAT-24-100
Battery
1 × BAT-24-100
Payload
5 kg
Weight
6.6 kg without battery
Supplied with
CHG-1 and one BAT-24-100
PPS-300

PPS-300

Taller tripod mast with two batteries that swap one at a time, so the load stays powered.

Mast height
1.3–3.1 m
Max output power
40 W
DC output
12 V ≤ 3.4 A
Outputs
2 × USB 5 V 3 A
Runtime
40–150 h on 2 × BAT-24-100
Battery
2 × BAT-24-100
Payload
5 kg
Wind resistance
Level 8, 61.5–74.5 km/h
Weight
8.4 kg without batteries
Supplied with
CHG-2 and two BAT-24-100

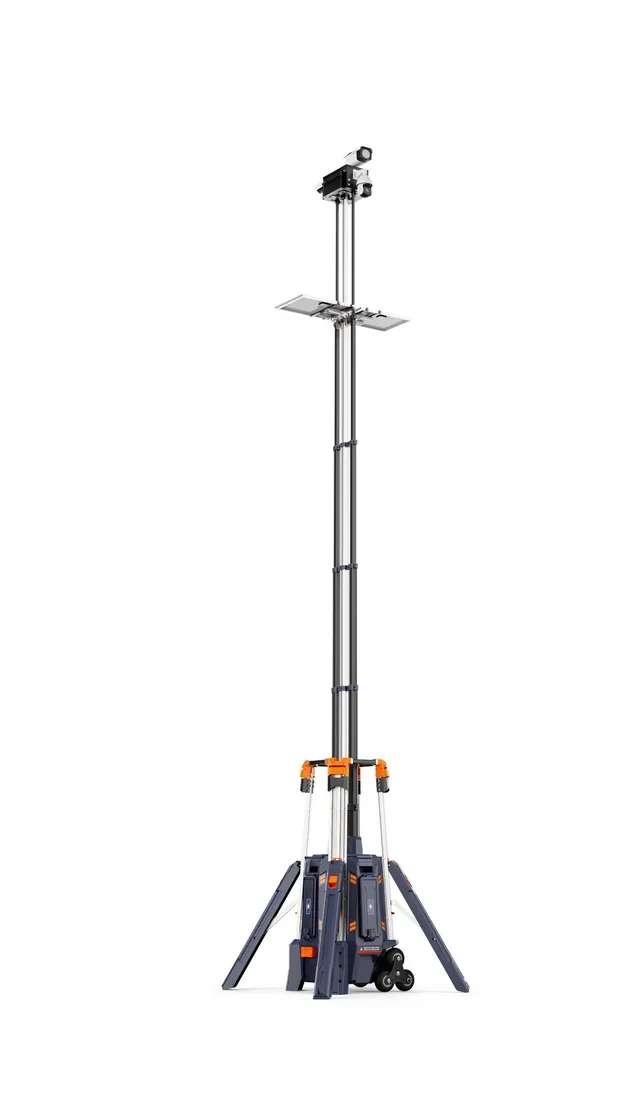

PPS-500

PPS-500

Wheeled electric telescopic mast to 5.0 m with folding solar panels; one person loads, moves and raises it.

Mast height
1.3–5.0 m
Max output power
100 W
DC output
12 V 9 A; 5 V 3 A
Outputs
USB 5 V 3 A, Type-A and Type-C
Runtime
13.5–450 h on 3 × BAT-24-500
Battery
3 × BAT-24-500
Payload
10 kg
Ingress rating
IP65
Wind resistance
Level 8
Weight
57.3 kg without batteries
Supplied with
CHG-2H and three BAT-24-500

Product images

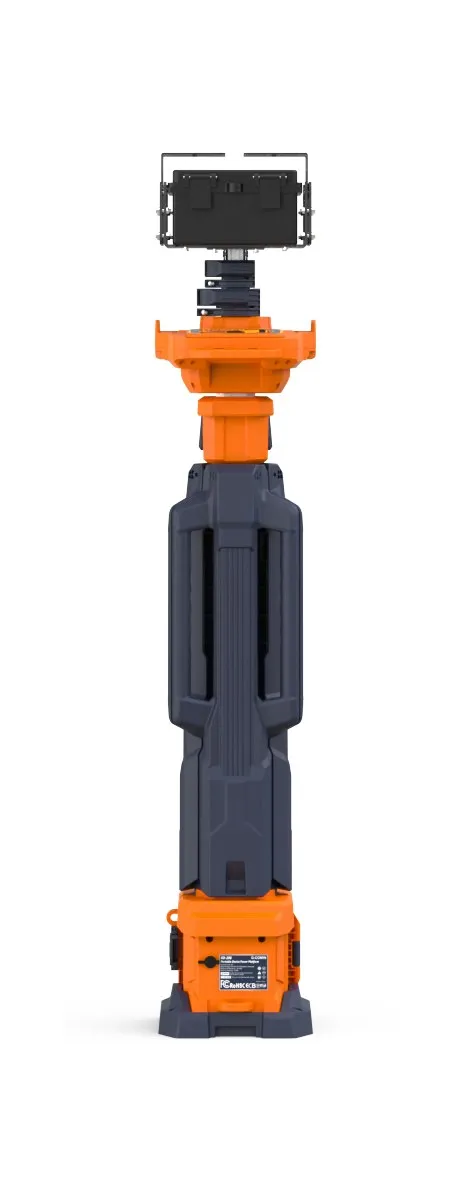

PPS-200 folded
PPS-200 folded

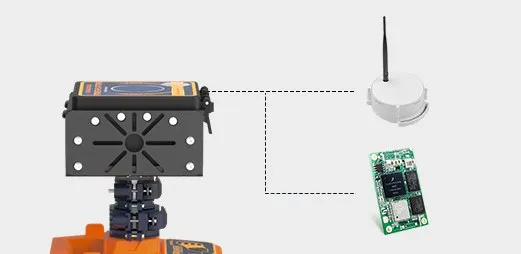

Mounting bracket with an antenna and a circuit board
Mounting bracket with an antenna and a circuit board

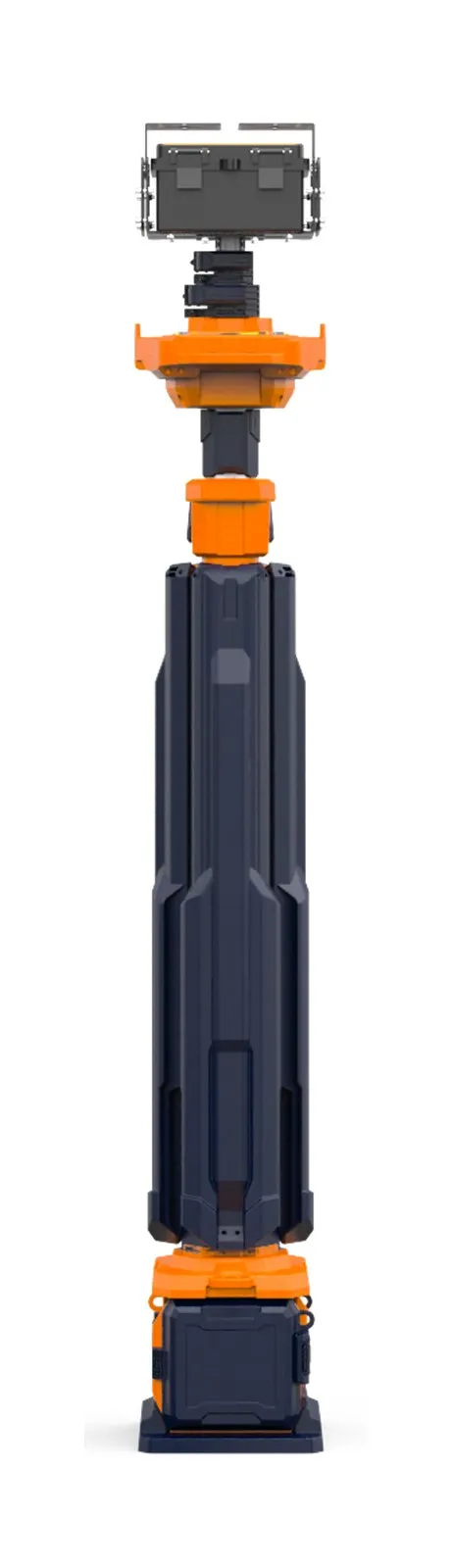

PPS-300 folded
PPS-300 folded

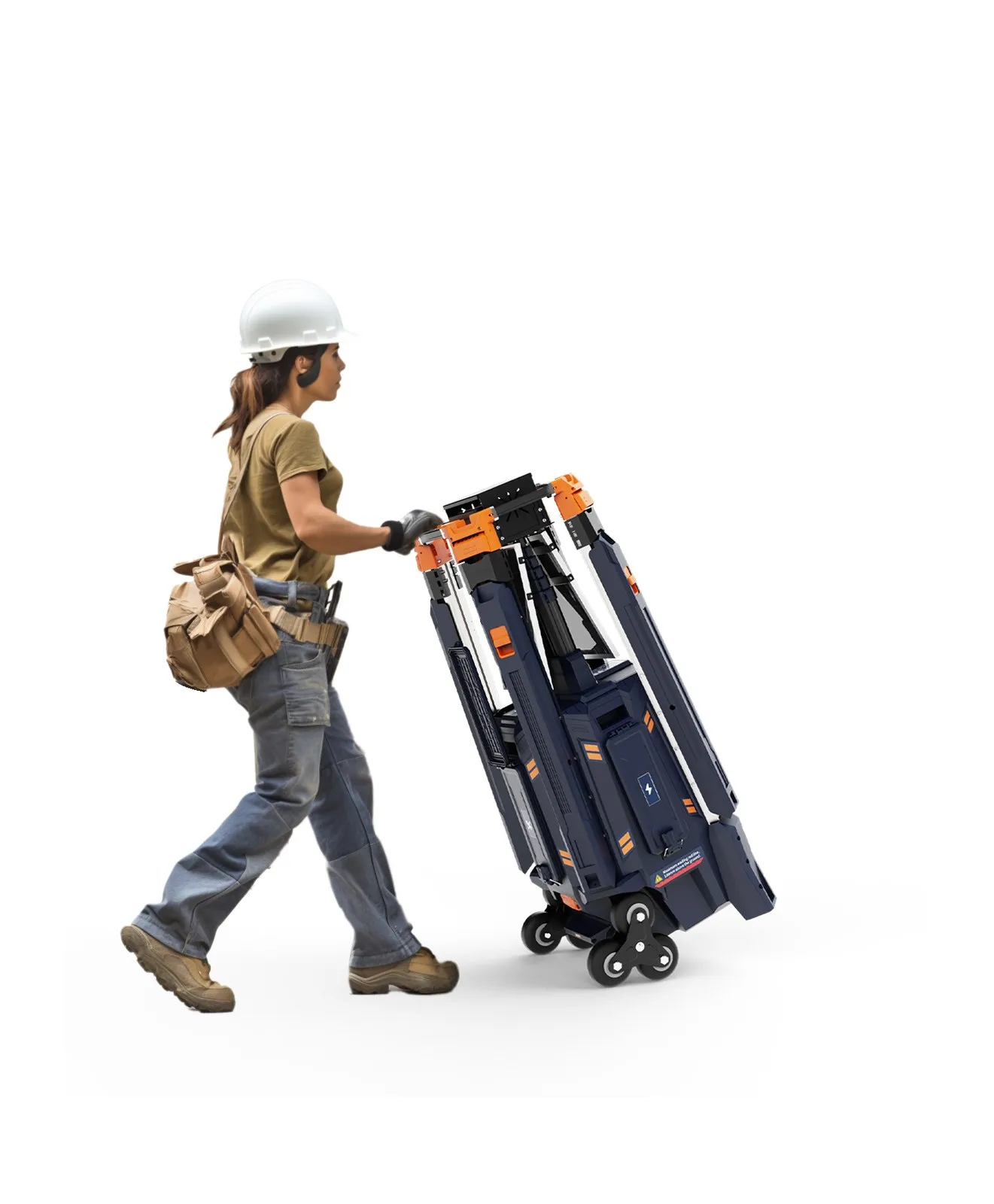

PPS-500 folded and wheeled by one person
PPS-500 folded and wheeled by one person

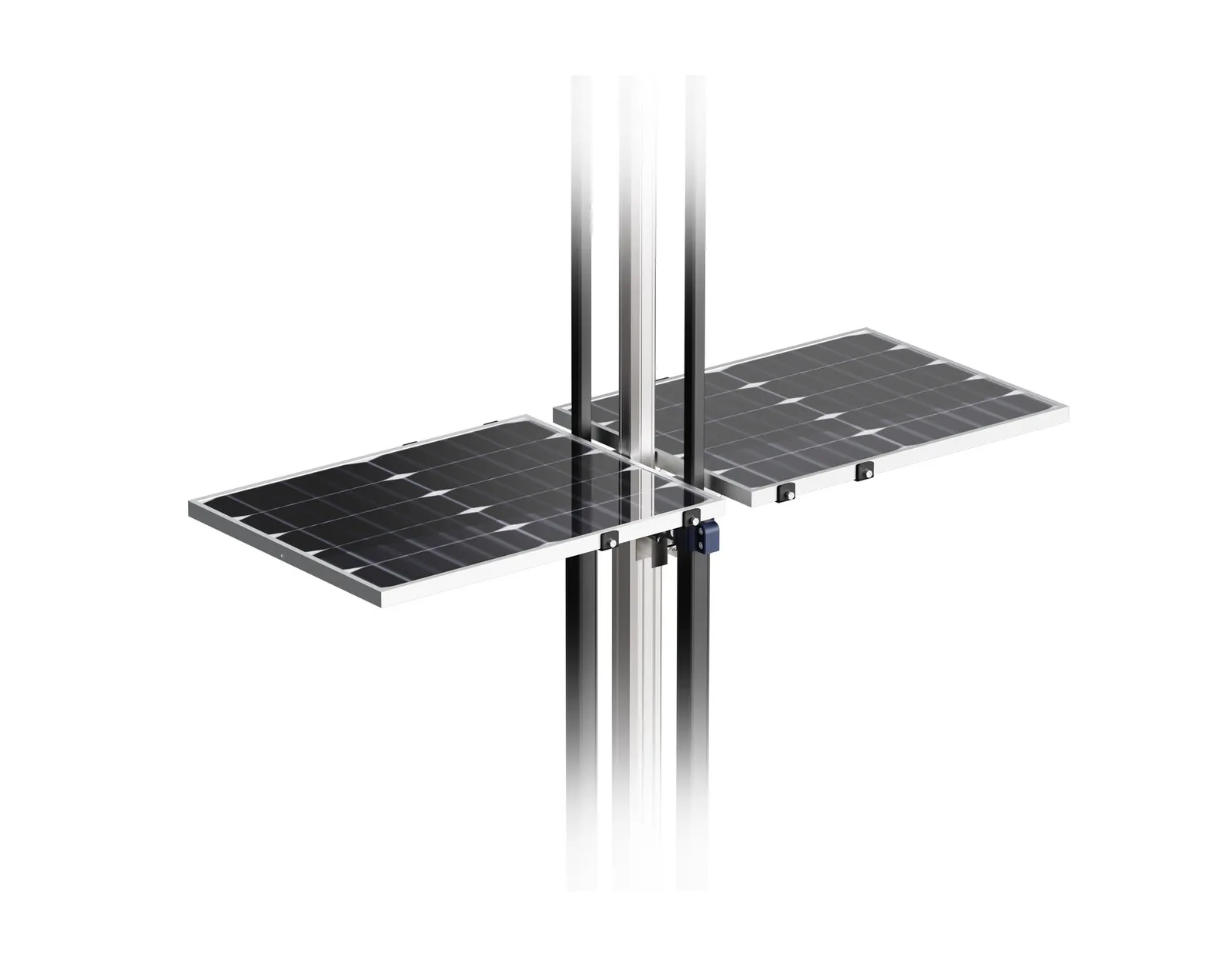

PPS-500 folding solar panels
PPS-500 folding solar panels
PPS-500 bracket with cameras and an equipment box
PPS-500 bracket with cameras and an equipment box

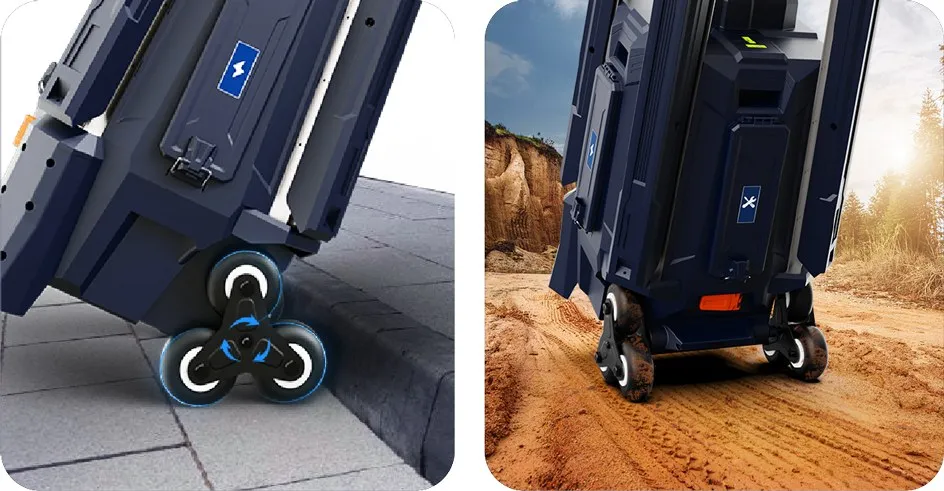

Three-wheel base on a kerb and on loose ground
Three-wheel base on a kerb and on loose ground

Specifications

Construction
Mast heightPPS-200 1.1–2.2 m and PPS-300 1.3–3.1 m on tripods; PPS-500 electric telescopic 1.3–5.0 m on three wheels with self-locking legs
MountingDetachable bracket: left, right, top, or two or three sides at once; padlock hole; rainproof box for control and signal devices
PayloadPPS-200 and PPS-300 5 kg; PPS-500 10 kg
Ingress ratingPPS-500 IP65
Wind resistancePPS-300 and PPS-500 level 8
Construction
Wading depthPPS-500 up to 10 cm, to the water-line mark
Electrical
Input voltagePPS-200 DC 24 V from the battery, DC 29.4 V from CHG-1 or CHG-2; PPS-300 and PPS-500 DC 24 V; DRV-75 (PPS-200, PPS-300) or DRV-320 (PPS-500) for mains
Max output powerPPS-200 and PPS-300 40 W; PPS-500 100 W
SolarPPS-500: folding panels power 6 W, 12 V or 5 V devices around the clock
Operating temperature−10 to 50 °C

Applications

Temporary surveillanceCommunicationsEnvironmental monitoringSurveyingSigns and radarConstruction sites
