Products / CNX-PSL

Portable Site Lights

Up to 17,000 lm on mains and 10,000 lm on battery, IP65 to IP66, on telescopic poles, tripods, petal heads and a 360° lantern.

17,000 lmon mains, PSL-400

3.4 mworking height, PSL-P300

IP66ingress rating, most models

Request a quote

Product range

8 models

5 part numbersShow

Pole and tripod lights

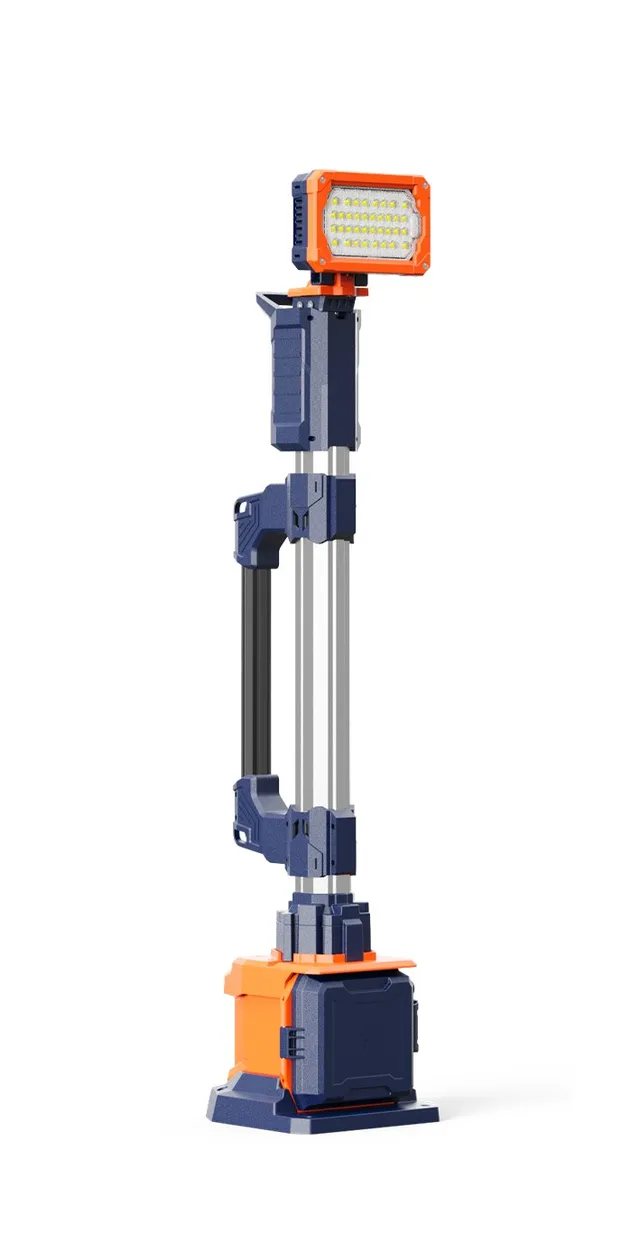

PSL-100

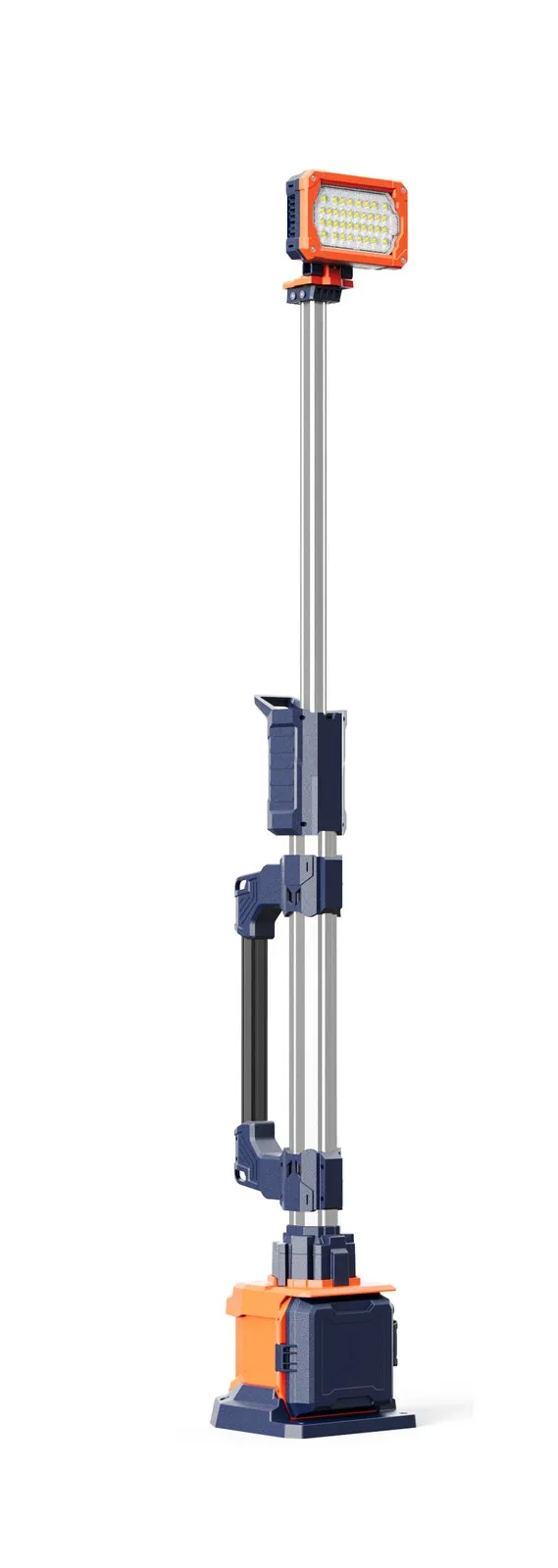

One head on a telescopic pole over the battery base; lifts to 1.4 m and locks in one movement.

Height: 0.9–1.4 m
Output: 0–4,000 lm on battery
Battery modes: Turbo 4,000 lm, standard 2,500 lm, balanced 1,500 lm, eco 450 lm
Runtime: Turbo 4.2 h, standard 8.5 h, balanced 16.8 h, eco 44 h on BAT-24-100; eco 22 h on BAT-24-054
Battery: 1 × BAT-24-054 or BAT-24-100
Mains input: Battery only
Ingress rating: IP66
Weight: 2.9 kg without battery

PSL-200-S

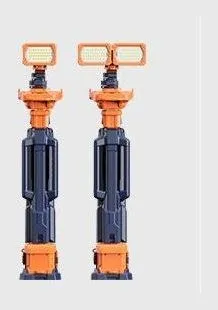

Single head on a folding tripod to 2.3 m, battery only (left in the picture, beside the PSL-200-D).

Height: 1–2.3 m
Output: 0–4,000 lm on battery
Battery modes: Turbo 4,000 lm, standard 2,500 lm, balanced 1,500 lm, eco 450 lm
Runtime: > 8 h standard on BAT-24-100
Battery: 1 × BAT-24-054 or BAT-24-100
Mains input: Battery only
Outputs: 2 × USB 5 V 2 A
Ingress rating: IP66
Weight: 5.9 kg without battery

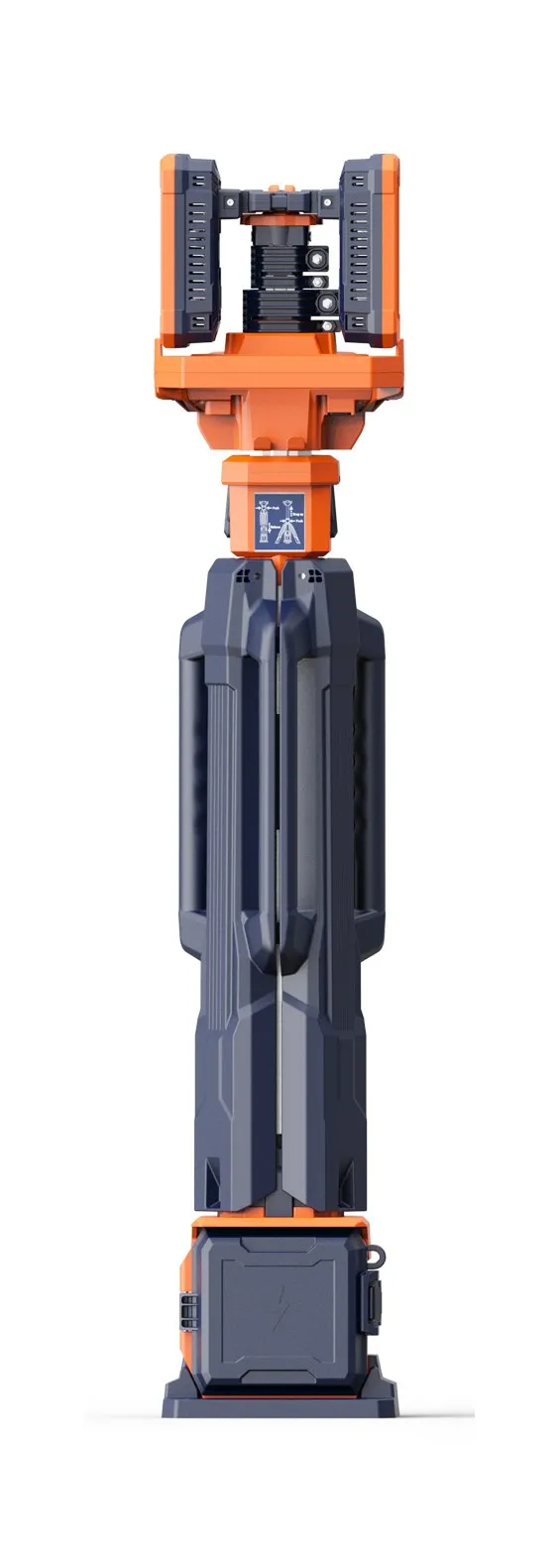

PSL-200-D

Two heads on a folding tripod to 2.3 m, on battery or on mains with stepless dimming.

Height: 1–2.3 m
Output: 0–12,000 lm on mains; up to 6,000 lm on battery
Battery modes: Turbo 6,000 lm, standard 3,500 lm, balanced 2,200 lm, eco 600 lm
Runtime: > 8 h standard on BAT-24-100; eco 22 h on BAT-24-054, 45 h on BAT-24-100
Battery: 1 × BAT-24-054 or BAT-24-100
Mains input: 100–277 V AC through DRV-75, stepless dimming
Outputs: 2 × USB 5 V 2 A
Ingress rating: IP66
Weight: 6.3 kg without battery

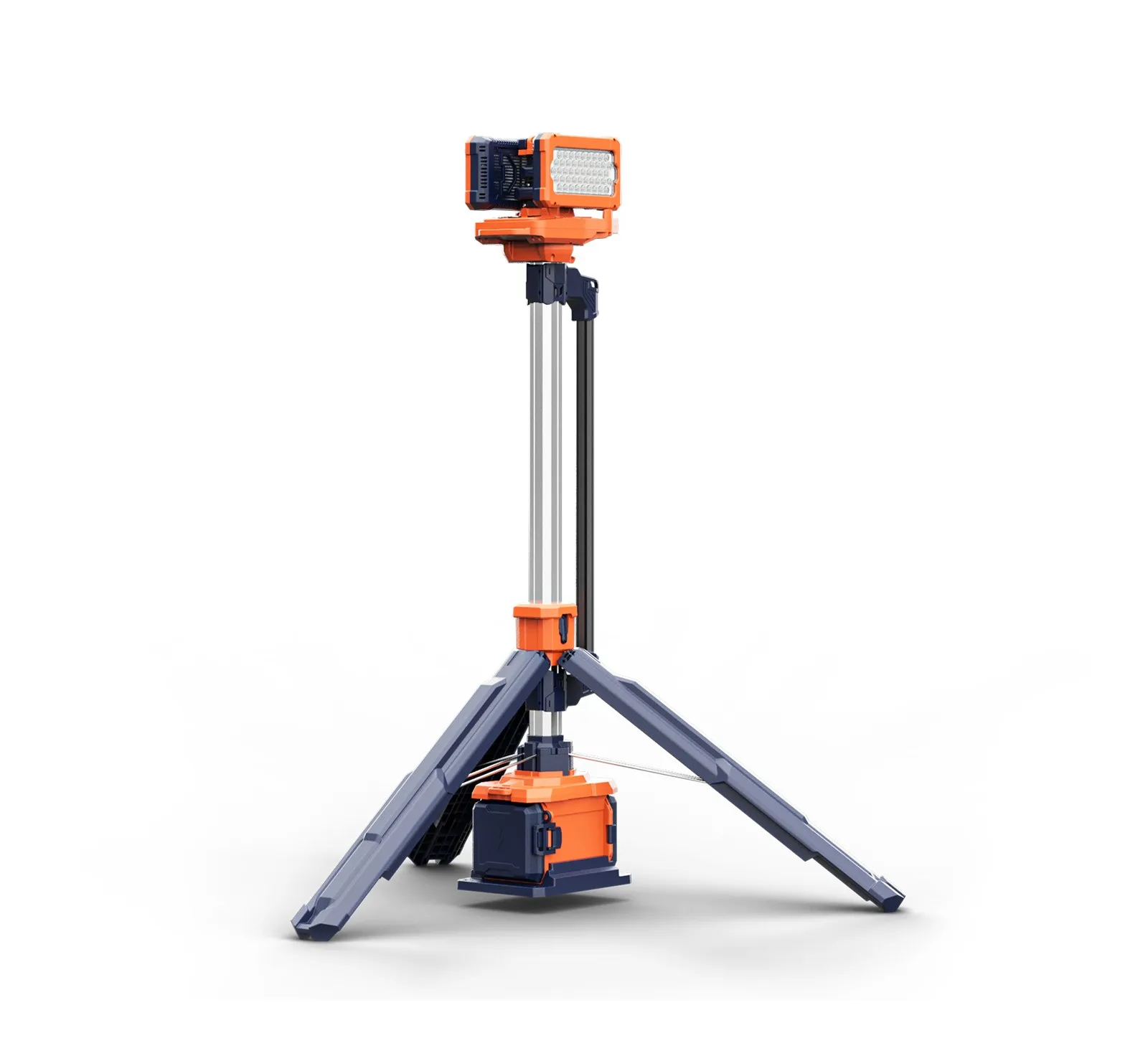

PSL-300

Mast to 3.1 m on a low, wide tripod for wind and slopes; takes two batteries.

Height: 1.25–3.1 m
Output: 0–14,000 lm on mains; up to 8,000 lm on battery
Battery modes: Turbo 8,000 lm, standard 5,000 lm, balanced 3,000 lm, eco 800 lm
Runtime: > 13 h 10 min standard on 2 × BAT-24-100; eco 36+ h on 2 × BAT-24-054, 71+ h on 2 × BAT-24-100
Battery: 2 × BAT-24-054 or BAT-24-100
Mains input: 100–277 V AC through DRV-75, stepless dimming
Outputs: 2 × USB 5 V 2 A
Ingress rating: IP66
Weight: 8.2 kg without batteries

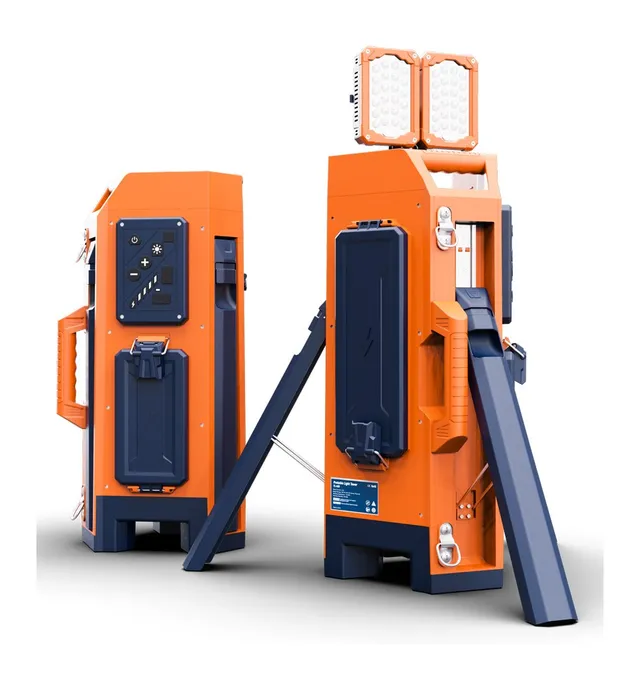

PSL-400

Case-style light: two heads on a telescopic mast, fold-out prop legs, up to three batteries behind a door.

Height: 0.645–2.2 m
Output: 0–17,000 lm on mains; up to 10,000 lm on battery
Battery modes: Turbo 10,000 lm, standard 6,300 lm, balanced 3,800 lm, eco 1,000 lm
Runtime: > 20 h standard on 3 × BAT-24-100
Battery: Up to 3 × BAT-24-100
Mains input: 100–277 V AC through DRV-75, stepless dimming
Outputs: 2 × USB 5 V 2 A
Ingress rating: IP65
Weight: 10 kg without batteries

2 part numbersShow

Petal lights

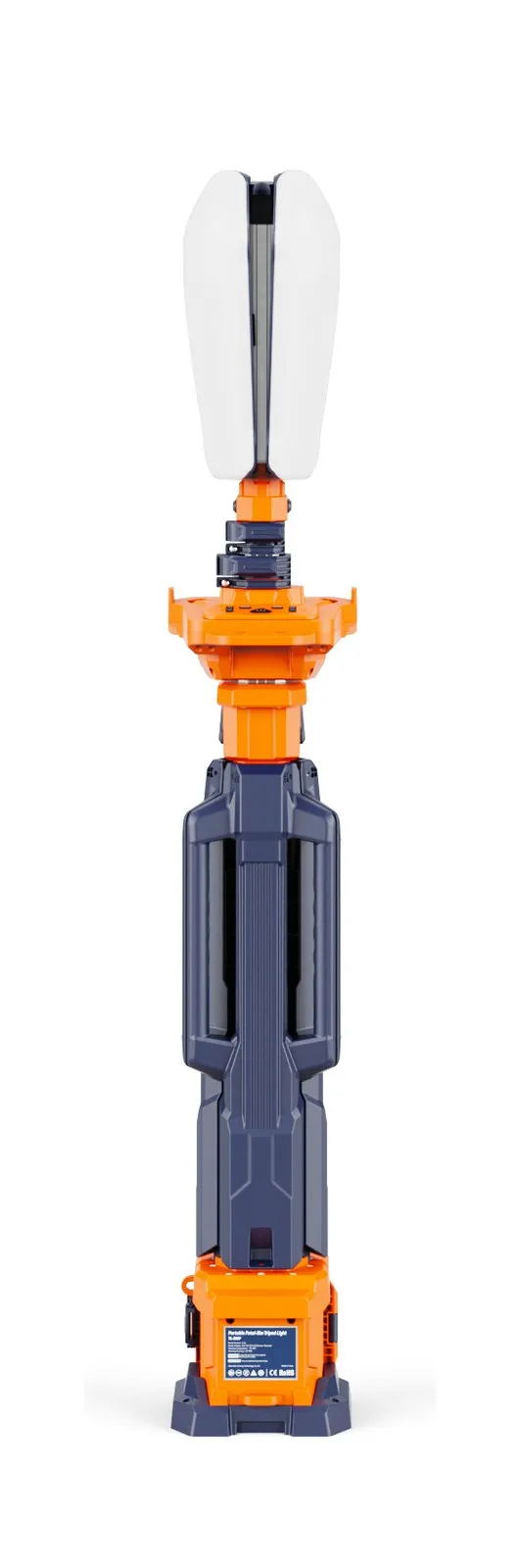

PSL-P200

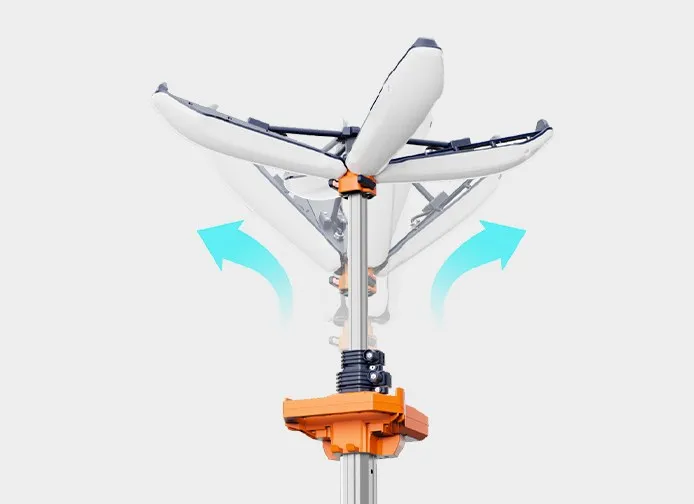

LED petals fold shut for transport and open for 360° light, on a tripod to 2.5 m.

Height: 1.3–2.5 m
Output: 0–12,000 lm on mains; up to 6,000 lm on battery
Battery modes: Turbo 6,000 lm, standard 3,500 lm, balanced 2,200 lm, eco 600 lm
Runtime: > 8 h standard on BAT-24-100; eco 22 h on BAT-24-054, 45 h on BAT-24-100
Battery: 1 × BAT-24-054 or BAT-24-100
Mains input: 100–277 V AC through DRV-75, stepless dimming
Lighting area: 1,100 m²
Outputs: 2 × USB 5 V 2 A
Ingress rating: IP66
Weight: 6.5 kg without battery

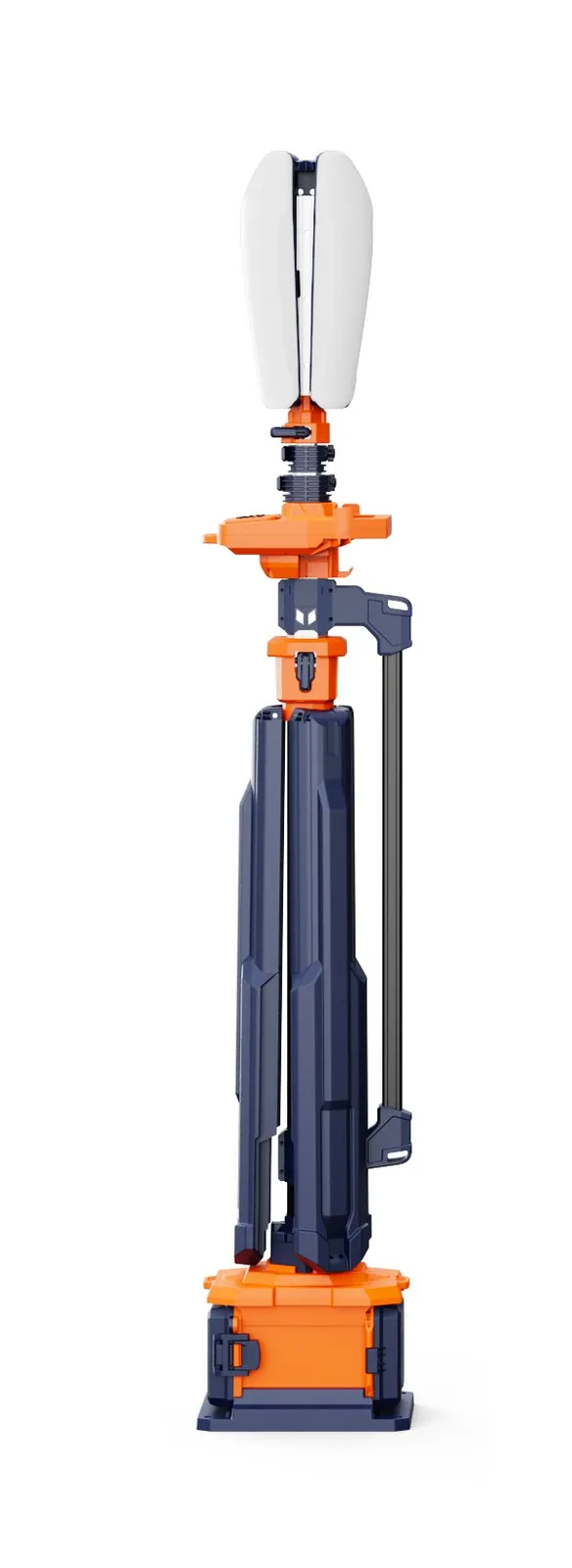

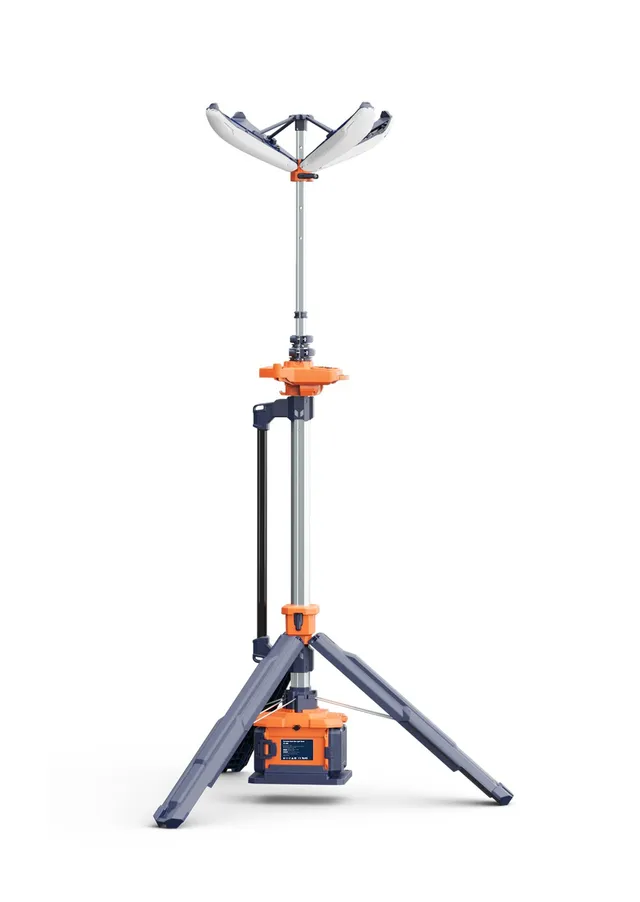

PSL-P300

Four petals with diffusers light from all sides down to the foot of the mast; tripod to 3.4 m, two batteries.

Height: 1.58–3.4 m
Output: 0–14,000 lm on mains; up to 8,000 lm on battery
Battery modes: Turbo 8,000 lm, standard 5,000 lm, balanced 3,000 lm, eco 800 lm
Runtime: > 13 h standard on 2 × BAT-24-100; eco 36+ h on 2 × BAT-24-054, 71+ h on 2 × BAT-24-100
Battery: 2 × BAT-24-054 or BAT-24-100
Mains input: 100–277 V AC through DRV-75, stepless dimming
Lighting area: 2,200 m²
Outputs: 2 × USB 5 V 2 A
Ingress rating: IP66
Weight: 8.8 kg without batteries

1 part numberShow

Area light

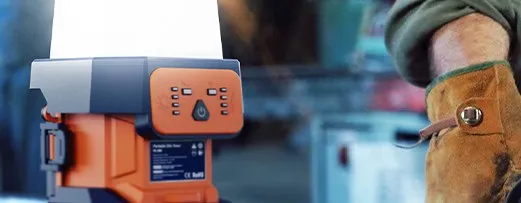

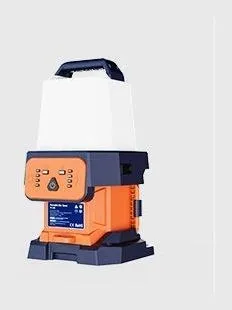

PSL-S200

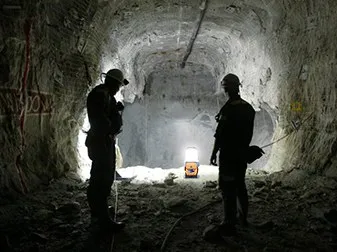

360° diffused lantern on a battery base with a carry handle; stands on any surface or hangs.

Output: 0–6,000 lm on battery, dimmable
Battery modes: Turbo 6,000 lm, standard 3,500 lm, balanced 2,200 lm, eco 600 lm
Runtime: Turbo 4 h, standard 8 h, balanced 16 h, eco 45 h on BAT-24-100
Battery: 1 × BAT-24-100
Ingress rating: IP66
Impact rating: IK10
Operating temperature: −10 to 50 °C
Dimensions: 347 mm high, 185 × 205 mm
Weight: 2.0 kg without battery

Product images

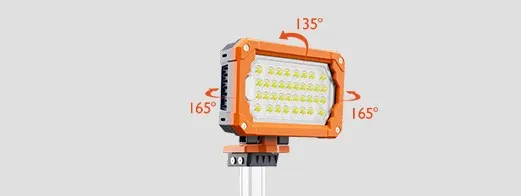

PSL-100 head: 135° and two 165° adjustments

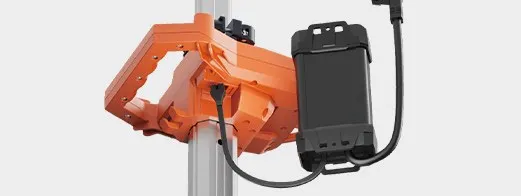

USB lead and phone hook at the head bracket

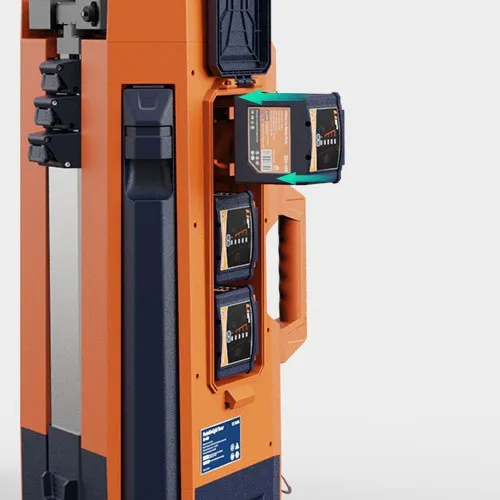

PSL-400 battery bay: packs slide in behind the door

In use

Application examples

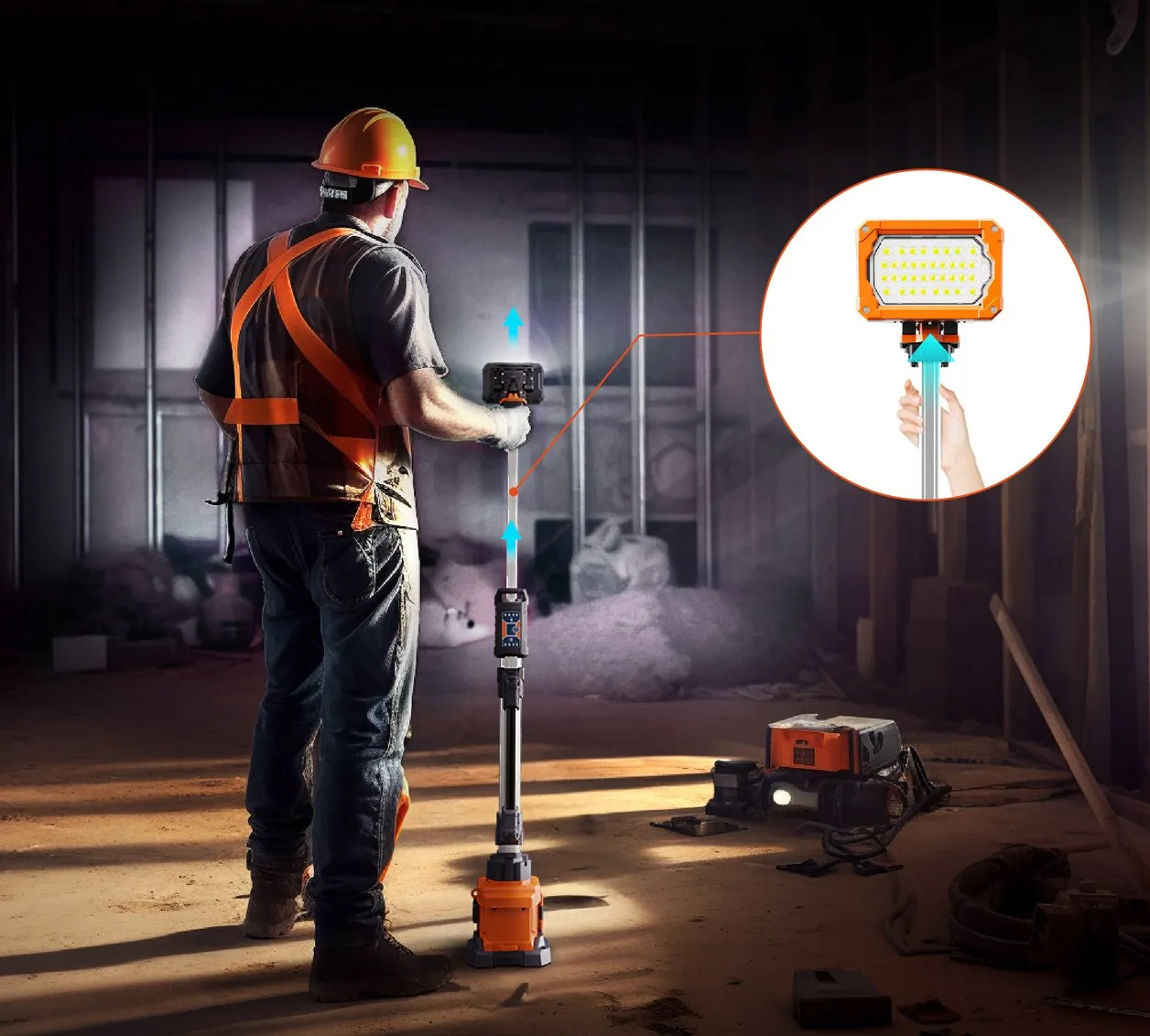

PSL-100 raised on an indoor building site

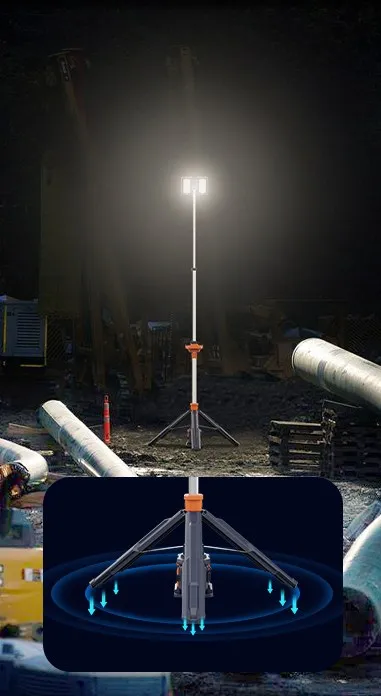

PSL-300 lighting a pipeline site at night

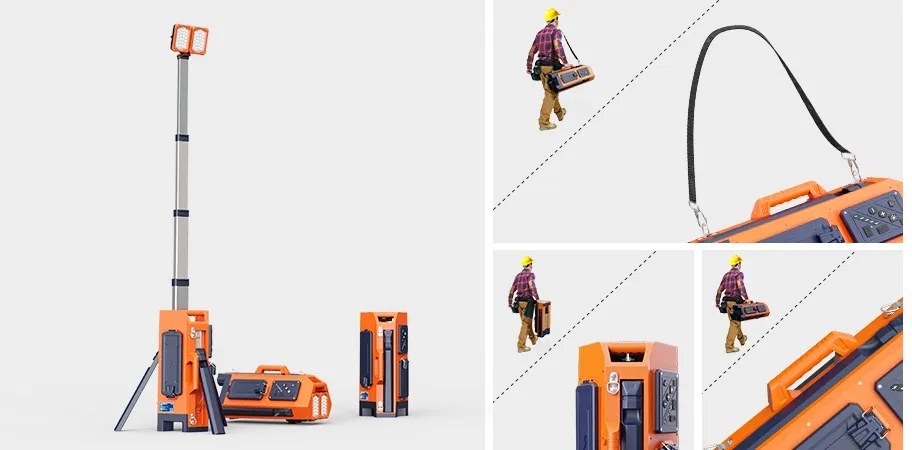

PSL-400 carried by handle and shoulder strap

Specifications

Optical
Output	Up to 17,000 lm on mains and 10,000 lm on battery, by model; four battery modes (turbo, standard, balanced, eco)
Dimming	Stepless on mains through DRV-75

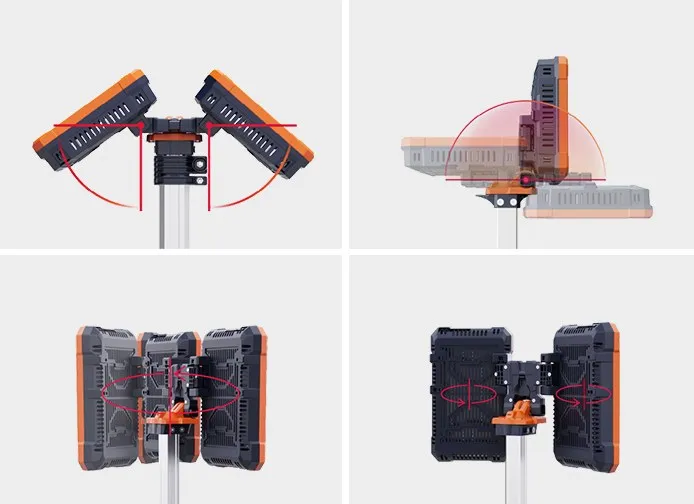

Head adjustment	PSL-100 135° / 165° / 165°; PSL-400 180° / 180° / 330° / 360°+; twin heads fold and turn independently; petal angle in four steps on PSL-P200
Lighting area	PSL-400 and PSL-P200 1,100 m²; PSL-P300 2,200 m²

Construction
Height	PSL-100 to 1.4 m; PSL-200 and PSL-400 to 2.2–2.3 m; PSL-P200 to 2.5 m; PSL-300 to 3.1 m; PSL-P300 to 3.4 m
Ingress rating	IP66; PSL-400 IP65

Construction
Impact rating	IK10 (PSL-S200)
Weight	2.0 kg to 10 kg without batteries, by model
Options	Ground pegs for the tripod models

Electrical
Battery	BAT-24-054 or BAT-24-100, one to three by model
Input voltage	Battery; 100–277 V AC through DRV-75 on PSL-200-D, PSL-300, PSL-400, PSL-P200 and PSL-P300
Outputs	2 × USB 5 V 2 A on the tripod and mast models
Operating temperature	PSL-300 and PSL-S200: −10 to 50 °C

Dimensions & weight

Model	Length	Width	Height	Weight
PSL-100	21.2 cm	18.5 cm	88.2 cm	2.9 kg
PSL-200-D	26.1 cm	19.8 cm	99.5 cm	6.3 kg
PSL-300	26.1 cm	19.8 cm	125 cm	8.2 kg
PSL-400	31 cm	33.3 cm	64.5 cm	10 kg
PSL-P200	23 cm	19.7 cm	131 cm	6.5 kg
PSL-P300	26.1 cm	19.8 cm	158 cm	8.8 kg
PSL-S200	18.5 cm	20.5 cm	34.7 cm	2 kg

Applications

ConstructionRoad and rail worksTunnels and minesEmergency responseWarehouses and factoriesEvents and outdoor work
