Products / CNX-PXM
LED Pixel Modules
Addressable pixel points in RGB and RGBW, IP66 to IP68, from 1 W to 3 W per point, as single points or in strings of 60 or 72 lights.
IP68pixel points
36 mlongest string run
DMX · SPIaddressable
Compare the series
2 series01
Pixel pointsAddressable points, fully potted, that clip together.Power1–3 W per pointOutput40–60 lm per pointColoursRGB, RGBWSizesØ 30, 45 or 60 mmOptics—Input voltage12
24 V DCIngress ratingIP68Impact rating—Operating temperature−20 to +40 °CRated life—See models 02

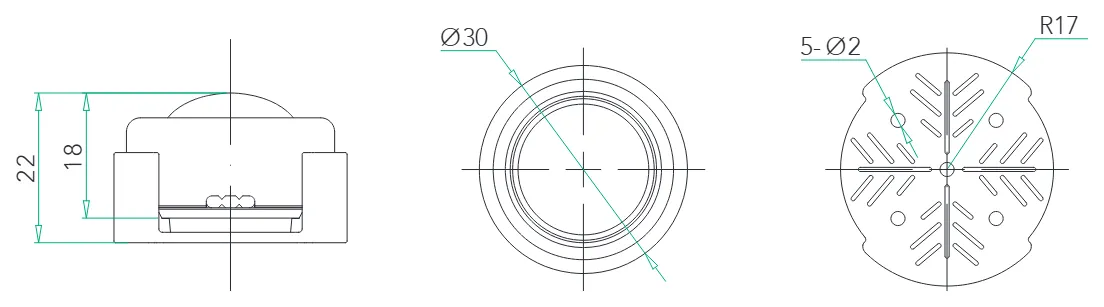

Pixel stringsReady-made strings for eaves and rooflines, run from an app.Power1 W per light, 60 or 72 lightsOutput25–35 lm per lightColoursRGBSizesØ 30 × 18 mm per light, up to 36 m per stringOptics90°Input voltage24
36 V DC, from a 100–240 V AC adapterIngress ratingIP66Impact rating—Operating temperature−20 to +40 °CRated life50,000 hSee models
Pixel pointsAddressable points, fully potted, that clip together.Power1–3 W per pointOutput40–60 lm per pointColoursRGB, RGBWSizesØ 30, 45 or 60 mmOptics—Input voltage1224 V DCIngress ratingIP68Impact rating—Operating temperature−20 to +40 °CRated life—See models 02
Pixel stringsReady-made strings for eaves and rooflines, run from an app.Power1 W per light, 60 or 72 lightsOutput25–35 lm per lightColoursRGBSizesØ 30 × 18 mm per light, up to 36 m per stringOptics90°Input voltage2436 V DC, from a 100–240 V AC adapterIngress ratingIP66Impact rating—Operating temperature−20 to +40 °CRated life50,000 hSee models
Product range
10 models01
Pixel points
Addressable points, fully potted, that clip together.

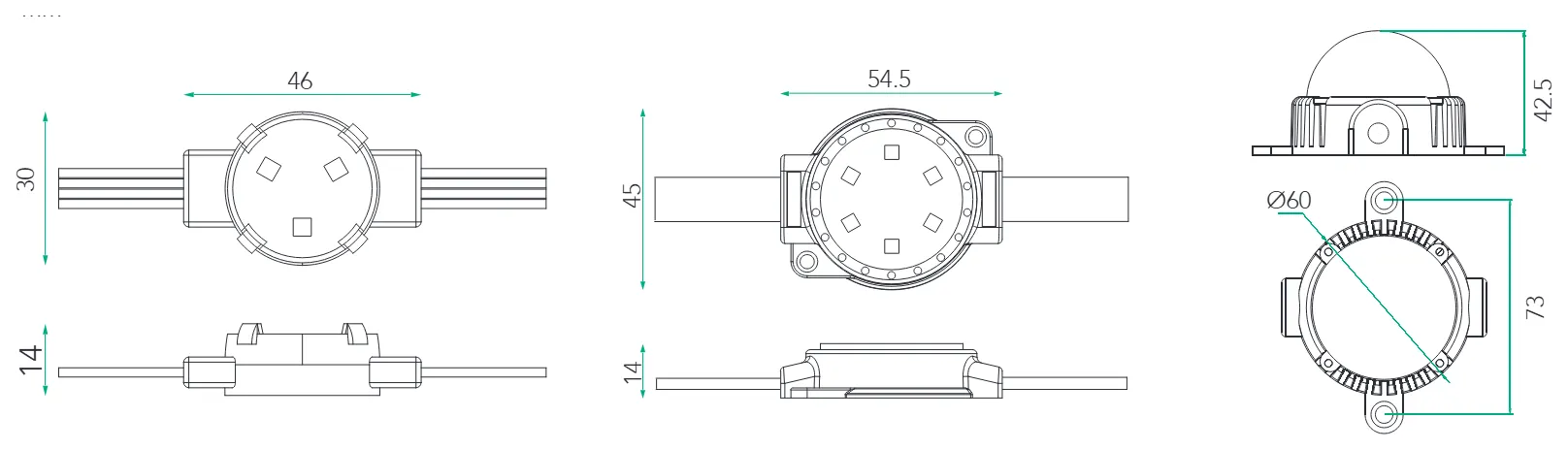

Sizes and weights
- R30Dimensions Ø × H30 × 14Weight0.03 kg

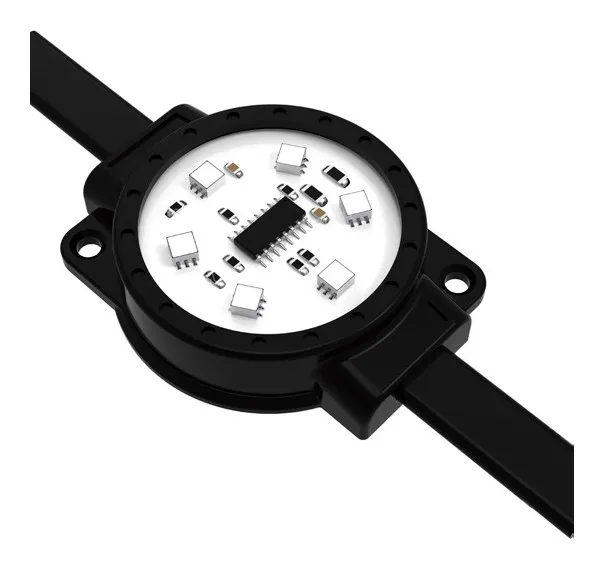

- R45Dimensions Ø × H45 × 14Weight0.04 kg

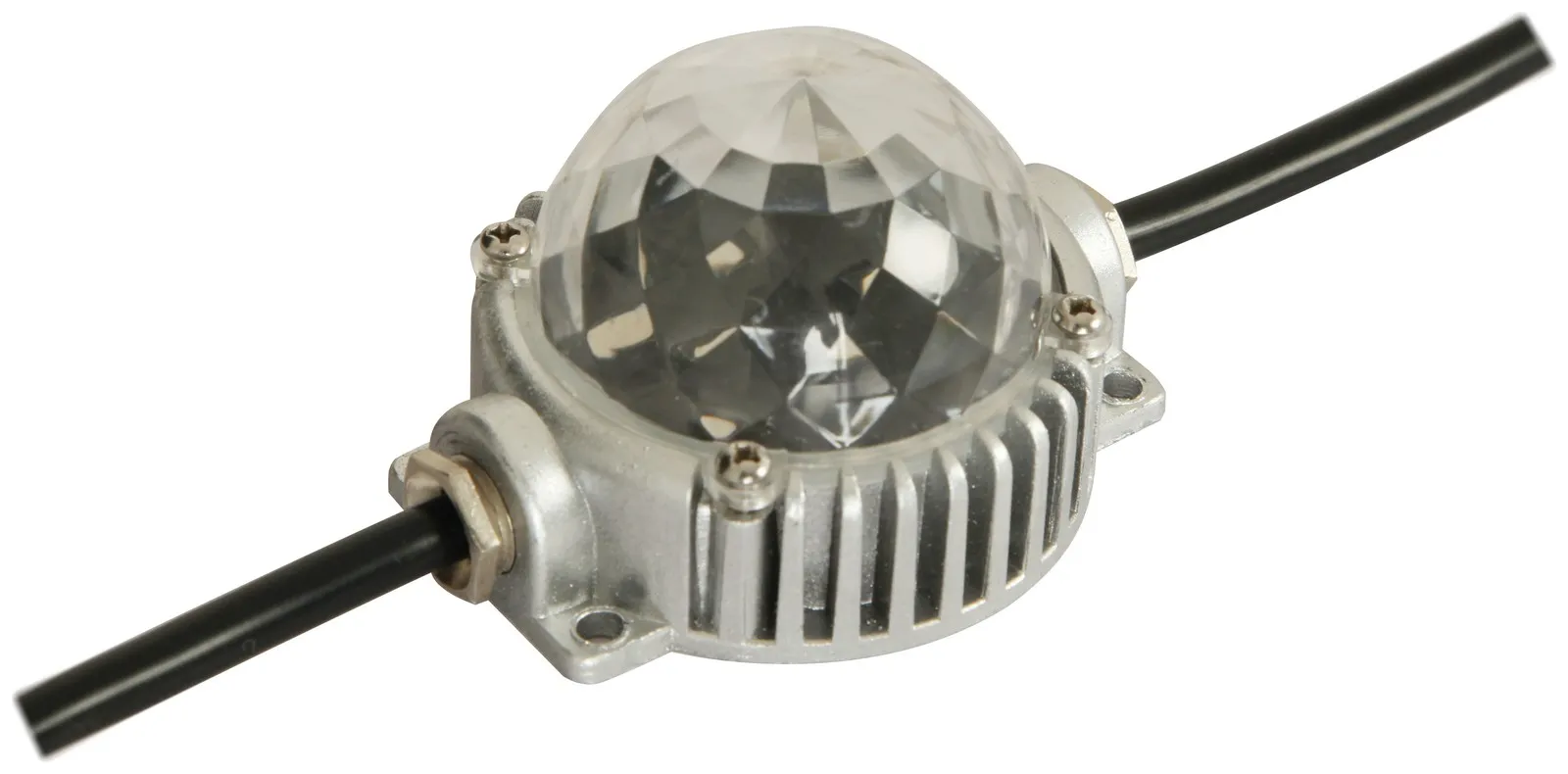

- R60Dimensions Ø × H60 × 42.5Weight0.15 kg
Colour temperature
- 2,200 K
- 3,000 K
- 4,000 K
- 6,000 K
Control
- DMX512 / RDM
- SPI
- ColoursRGB, RGBW
- Input voltage12
24 V DC - Ingress ratingIP68
- Operating temperature−20 to +40 °C
6 part numbersShow
| Part number | Colour | Power | Output (lm) | Ø × H (mm) | Weight (kg) |
|---|---|---|---|---|---|
| CNX-PXM-R30-RGB | RGB | 1 W | 40 | 30 × 14 | 0.03 |
| CNX-PXM-R30-RGBW | RGBW | 1 W | 55 | 30 × 14 | 0.03 |
| CNX-PXM-R45-RGB | RGB | 1.5 W | 60 | 45 × 14 | 0.04 |
| CNX-PXM-R45-RGBW | RGBW | 1.5 W | 60 | 45 × 14 | 0.04 |
| CNX-PXM-R60-RGB | RGB | 3 W | 60 | 60 × 42.5 | 0.15 |
| CNX-PXM-R60-RGBW | RGBW | 3 W | 60 | 60 × 42.5 | 0.15 |
02

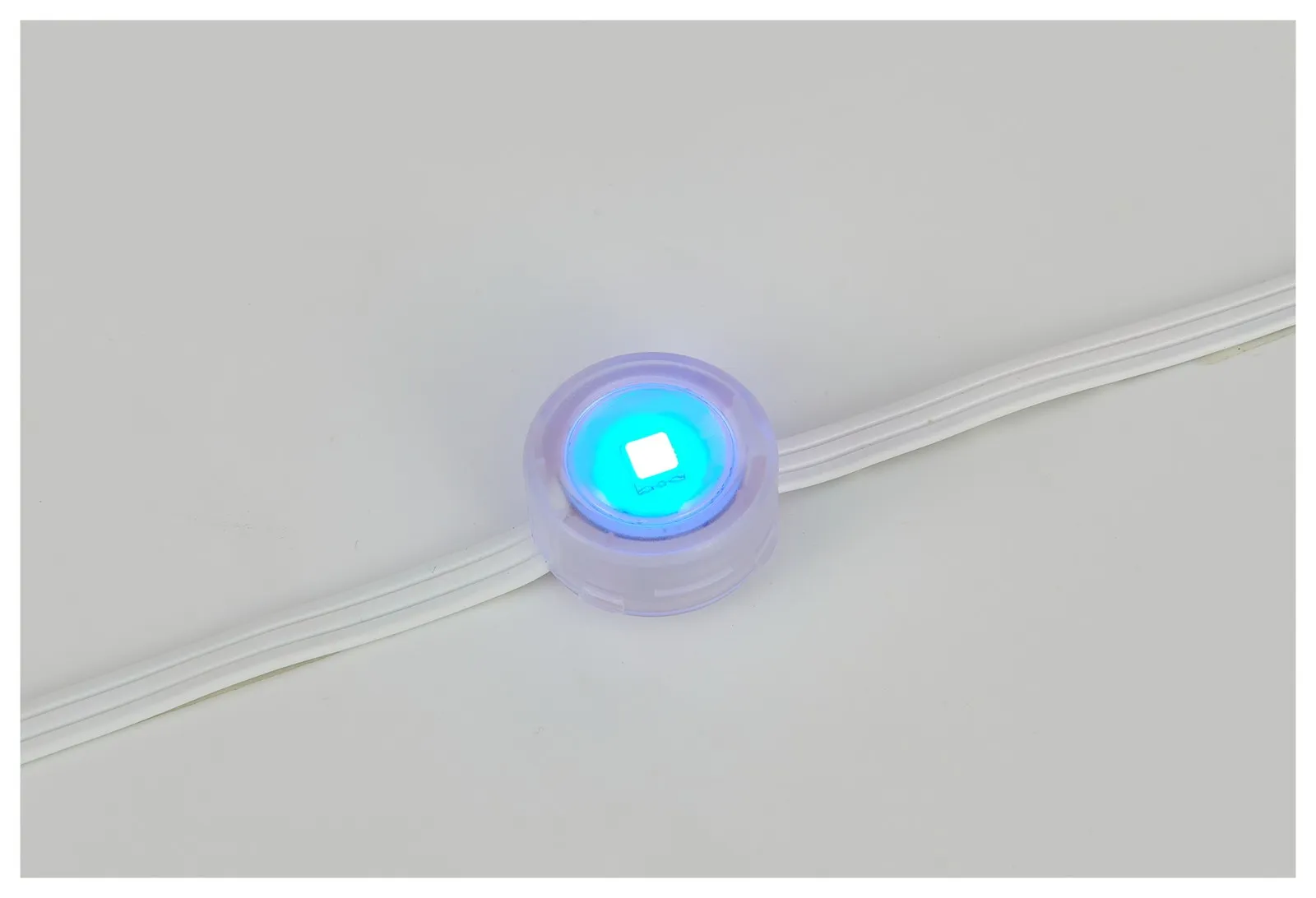

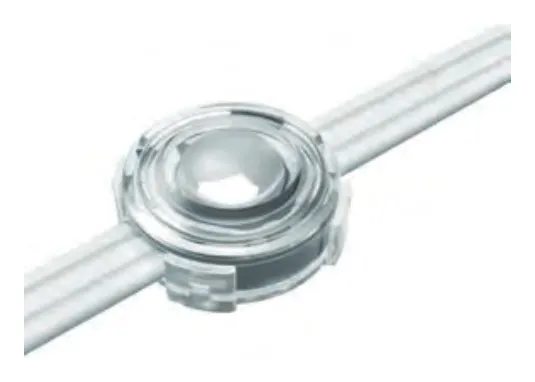

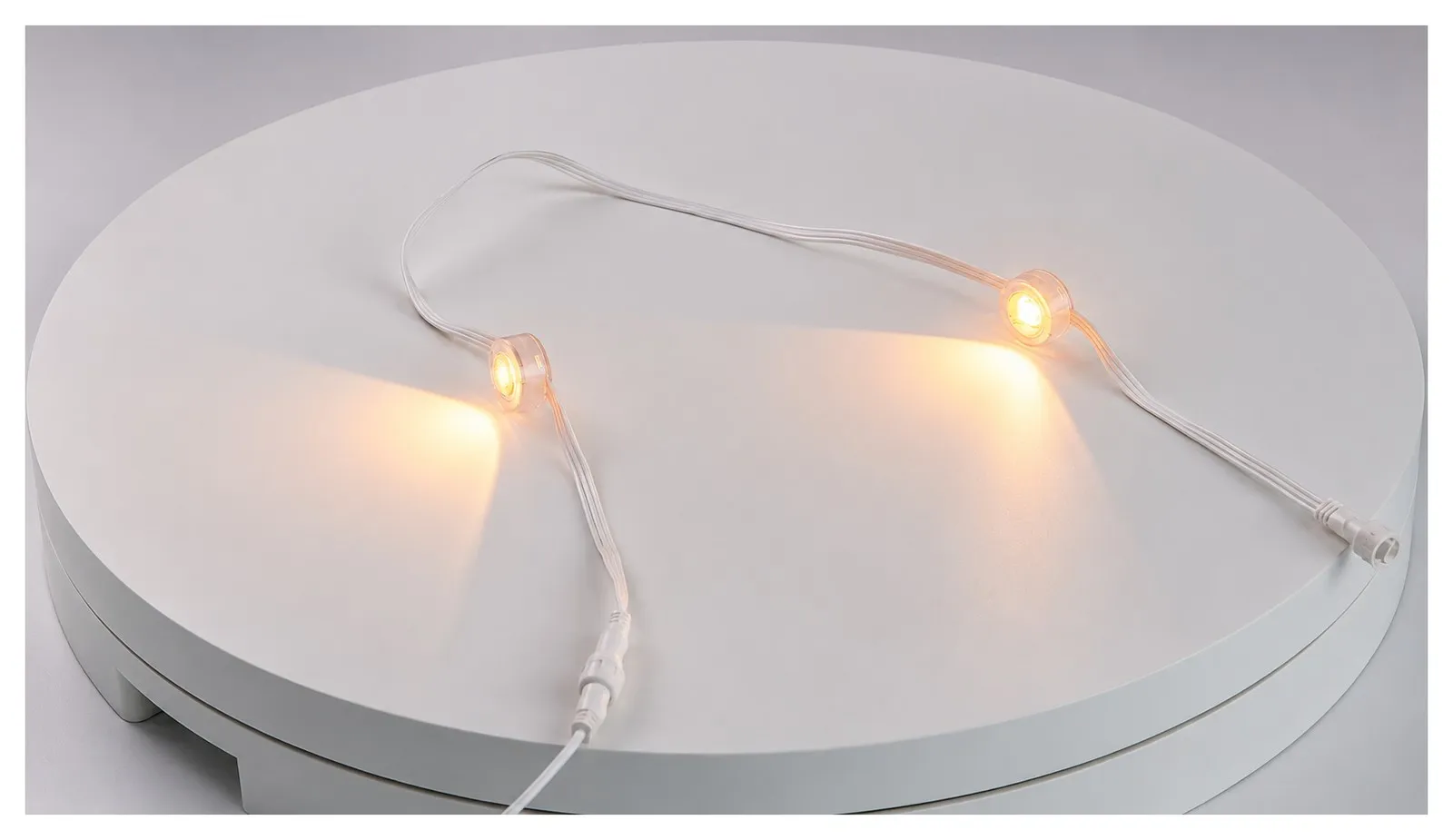

Pixel strings
Ready-made strings for eaves and rooflines, run from an app.
Control
- App
- RF remote
- Voice
- SPI
- ColoursRGB
- Input voltage24
36 V DC, from a 100–240 V AC adapter - Ingress ratingIP66
- Operating temperature−20 to +40 °C
- Rated life50,000 h
4 part numbersShow
| Part number | Colour | Input | Lights | Power | Output per light | Weight (kg) |
|---|---|---|---|---|---|---|
| CNX-PXM-S30-24-RGB-060 | RGB | 24 V DC | 60 | 60 W | 25 lm | 1.61 |
| CNX-PXM-S30-24-RGB-072 | RGB | 24 V DC | 72 | 72 W | 25 lm | 1.69 |
| CNX-PXM-S30-36-RGB-060 | RGB | 36 V DC | 60 | 60 W | 35 lm | 1.61 |
| CNX-PXM-S30-36-RGB-072 | RGB | 36 V DC | 72 | 72 W | 35 lm | 1.69 |
In use

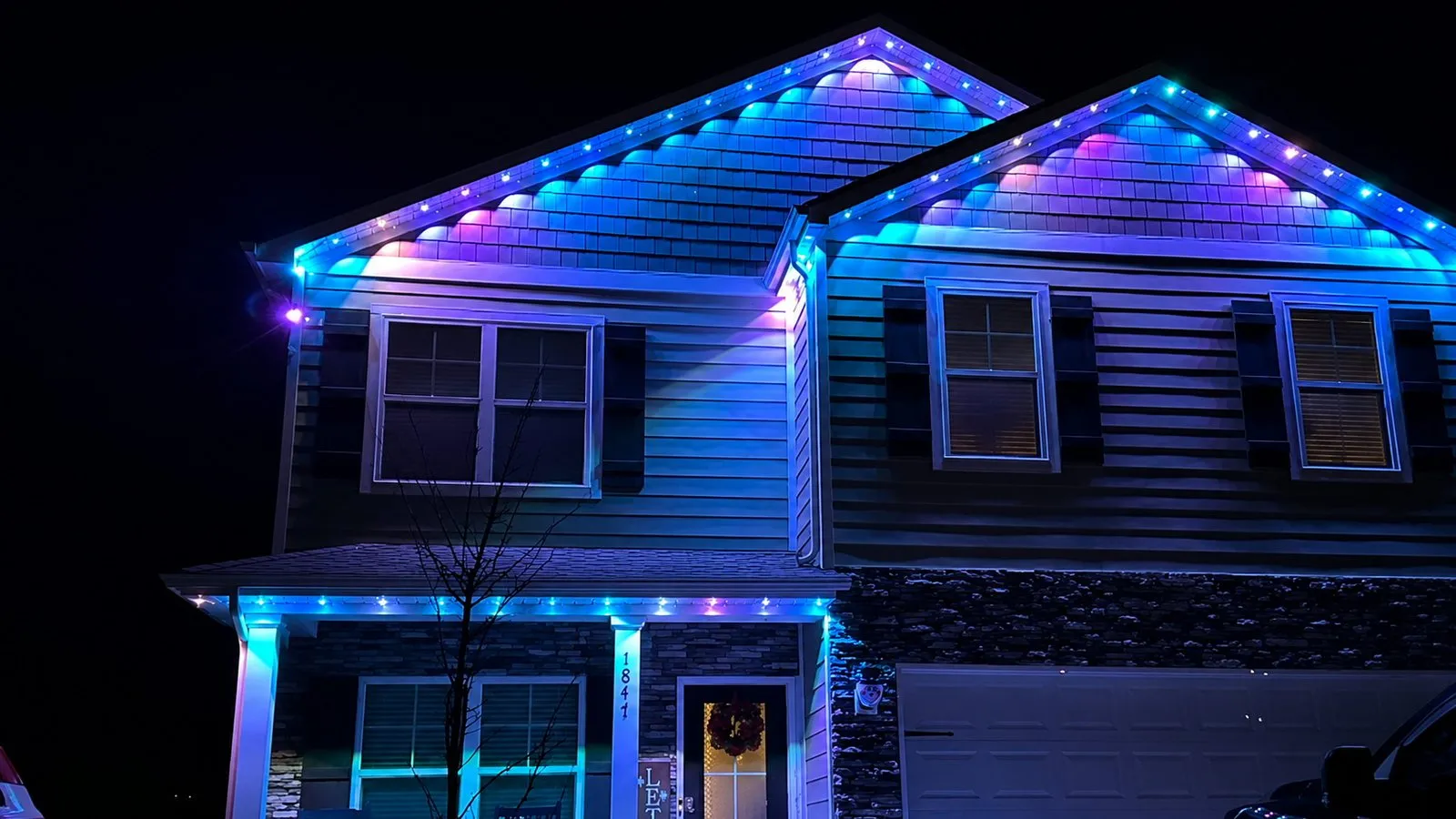

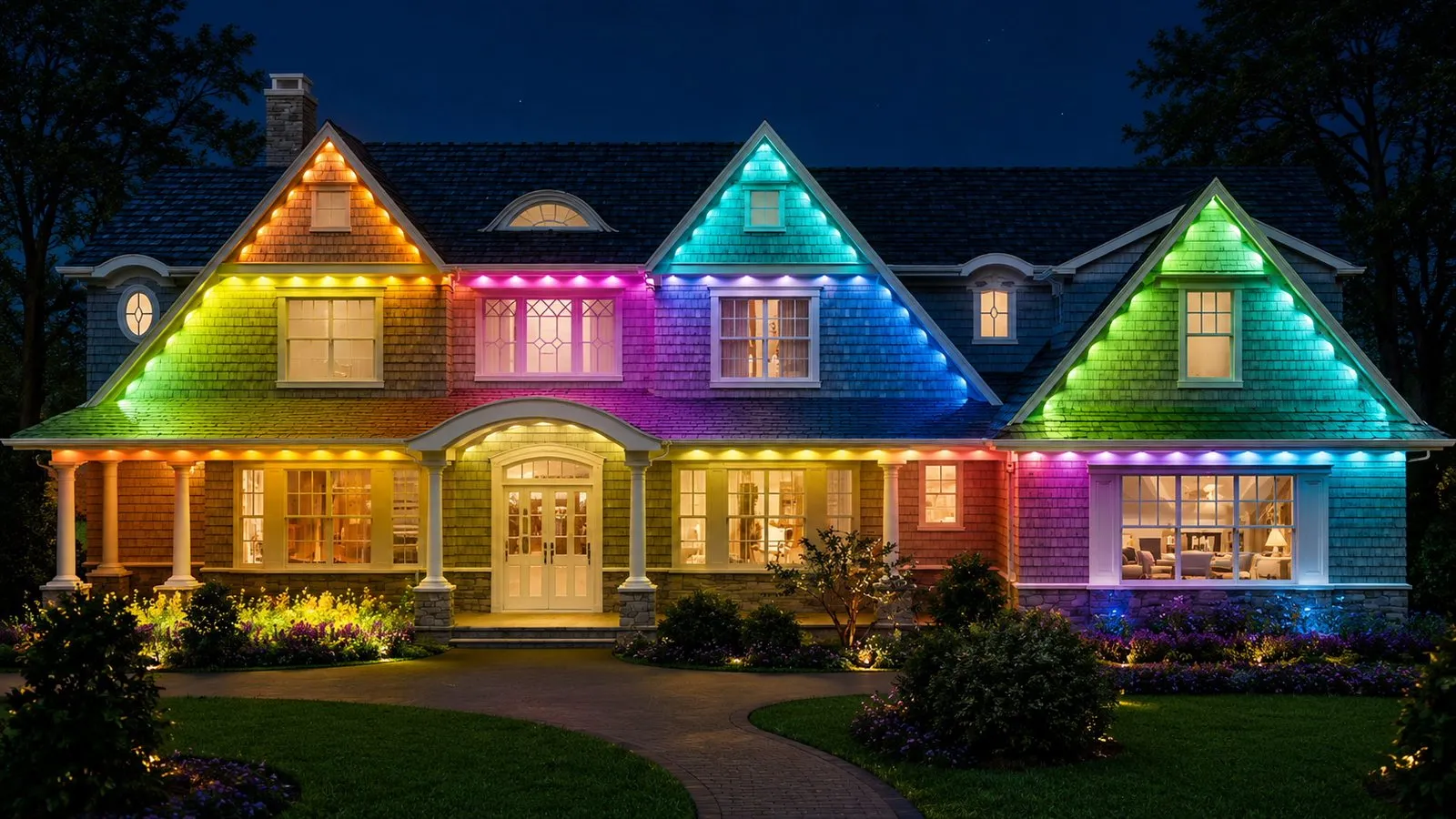

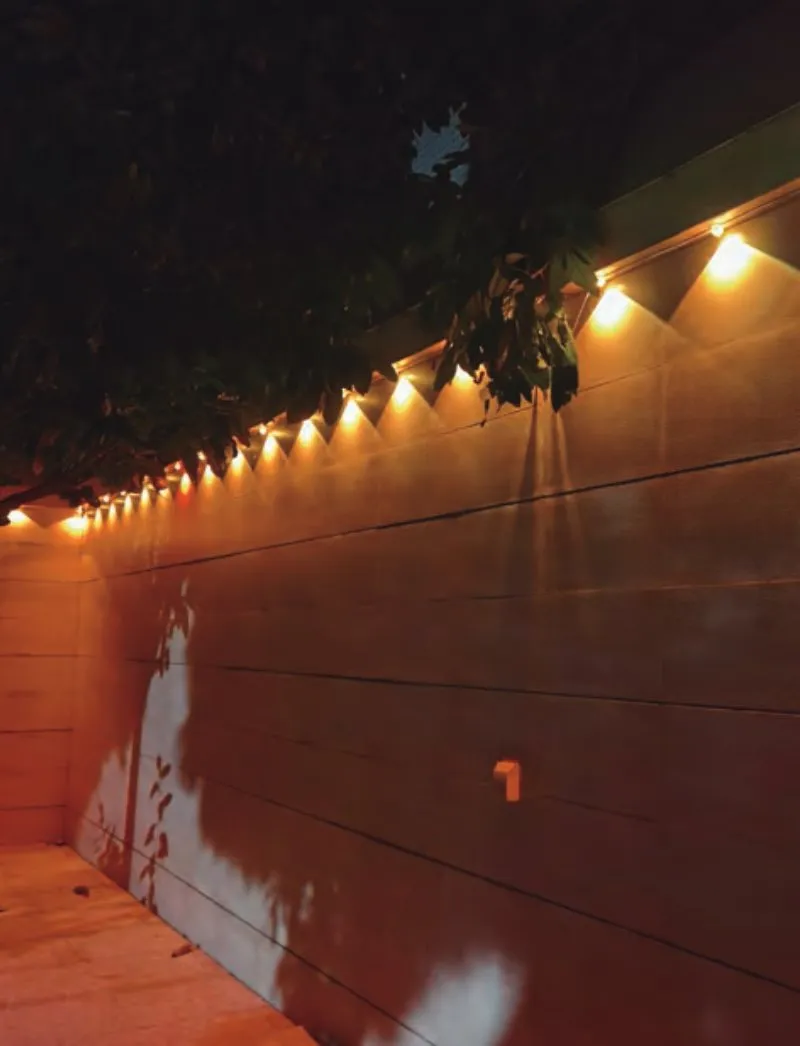

Application examples
Specifications
| Ingress rating |
|
|---|---|
| Mounting | Pixel points clip together; string lights fix by adhesive tape or in a housing fastened with stainless-steel nails |
| Runs | Strings are modular, so a single light can be replaced; up to 36 m per string |
| Colours |
|
| Sizes |
|
| Output |
|
|---|---|
| Colour temperature | 2200 K, 3000 K, 4000 K or 6000 K white channel (pixel points) |
| Beam angle | 90° (pixel strings) |
| Rated life |
|
|---|---|
| Optics |
|
| Input voltage |
|
|---|---|
| Control | DMX512 or SPI, each pixel addressed on its own (pixel points); app, RF remote and voice control, with playlists, music and microphone modes (pixel strings) |
| Operating temperature | −20 to +40 °C |
| Listings | cETLus and CE |
| Power |
|
Connection accessories
Ordered separately, by their own part number| Picture | Part number | Item | Description |
|---|---|---|---|
 | CNX-ACC-IC-2P | Input cable, 2-pin | Power; female connector to flying leads. |
 | CNX-ACC-IC-5P | Input cable, 5-pin | Power and signal; female connector to flying leads. |
 | CNX-ACC-IC-5PY | Input cable, 5-pin Y | Power Y-piece: one feed, two fixtures. |
 | CNX-ACC-EC-5PA | Extension cable, 5-pin, type A | Power and signal, male to female, as pictured. |
 | CNX-ACC-WC-A | Waterproof connector A | 3 ports, IP68, for 5 to 12 mm cable. |
 | CNX-ACC-WC-B | Waterproof connector B | 2 ports, IP68, for 5 to 12 mm cable. |
 | CNX-ACC-WC-C | Waterproof junction box | 2 or 3 ports, IP65, for 5 to 12 mm cable. |
 | CNX-ACC-CAP | Connector caps | Tethered protective caps for open cable connectors. |
Applications
Media façadesEaves and rooflinesBridges and structuresLandscape featuresFestive lighting
Certifications
cETLusCE
Marks as printed on the current spec sheet.
