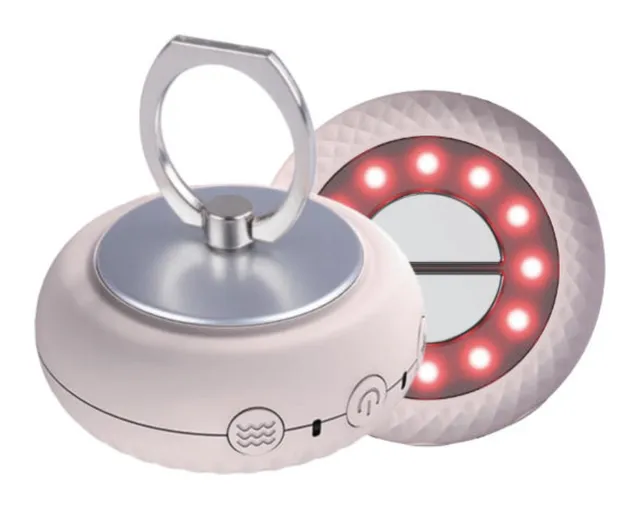

RLT-SPOT-1
Palm-sized device with a ring handle: light, EMS and vibration.
- LEDs
- 12 triple-chip (36 chips)
- Wavelength
- 460 nm blue, 660 nm red, 850 nm infrared
- Battery
- 800 mAh
- Functions
- Light, EMS, vibration, timer
- Warranty
- 1 year
Products / CNX-RLC
Specialised and Animal Care
Dedicated red and infrared devices: spot devices, a face-and-body arch, scalp devices, and wraps and mats made for horses and pets, 415–850 nm.
415–850 nmwavelength range
2,430LED chips, largest wrap
10–90 mintimer
Product range
13 models3 part numbersShow
Spot and arch devices
RLT-SPOT-2
Wireless shaped patch with a built-in battery; off after three minutes.
- LEDs
- 12 triple-chip (36 chips)
- Wavelength
- 460 nm blue, 633 nm red, 830 nm infrared
- Irradiance
- ≥ 10 mW/cm²
- Battery
- 50 mAh
- Functions
- Auto-off after 3 minutes
- Warranty
- 1 year
RLT-HALO
Flexible arch for the face or the body, with a memory function and a Bluetooth controller.
- LEDs
- 240 four-chip (960 chips)
- Wavelength
- 415 nm blue, 590 nm yellow, 660 nm red, 850 nm infrared
- Irradiance
- ≥ 75 mW/cm²
- Input
- 12 V 4 A
- Functions
- Memory, Bluetooth controller
- Warranty
- 1 year
4 part numbersShow
Scalp devices
RLT-CAP
Cap with the LEDs set into its lining.
- LEDs
- 120 dual-chip (240 chips)
- Wavelength
- 660 nm red, 830 nm infrared
- Weight
- 0.4 kg
- Timer
- 20 min
- Warranty
- 1 year

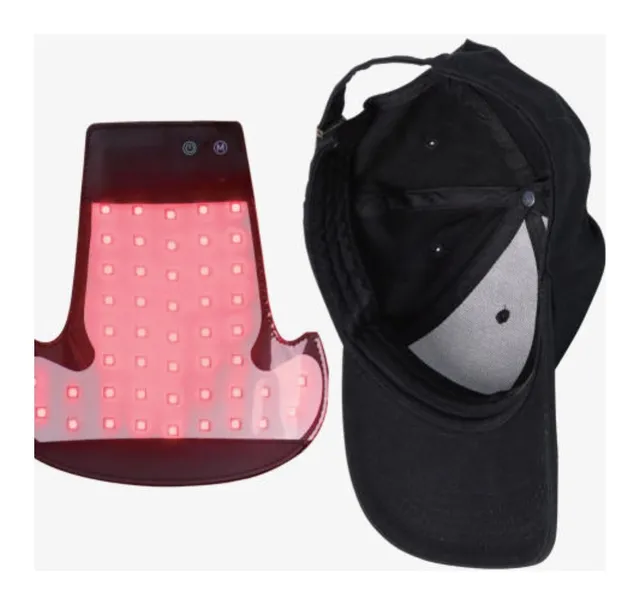

RLT-CAP-INSERT
Battery-powered insert that fits inside your own cap.
- LEDs
- 48 dual-chip (96 chips)
- Wavelength
- 470 nm blue, 660 nm red
- Battery
- 650 mAh
- Timer
- 10 min
- Warranty
- 1 year

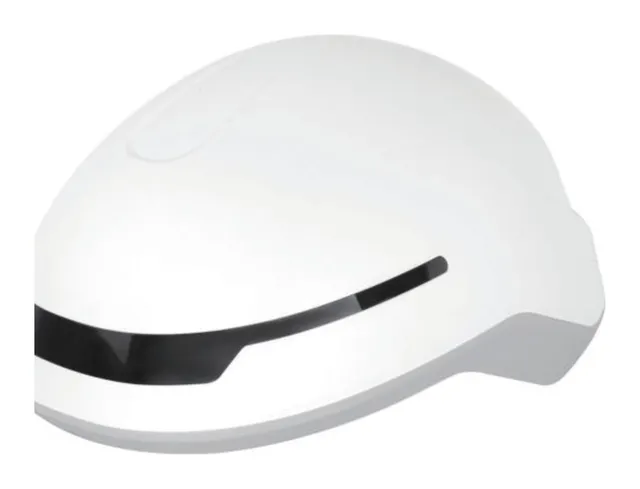

RLT-HAIR
Helmet with 200 laser diodes and a 5,000 mAh battery.
- LEDs
- 200 laser diodes
- Wavelength
- 650 nm red
- Battery
- 5,000 mAh
- Timer
- 10 min
- Warranty
- 1 year

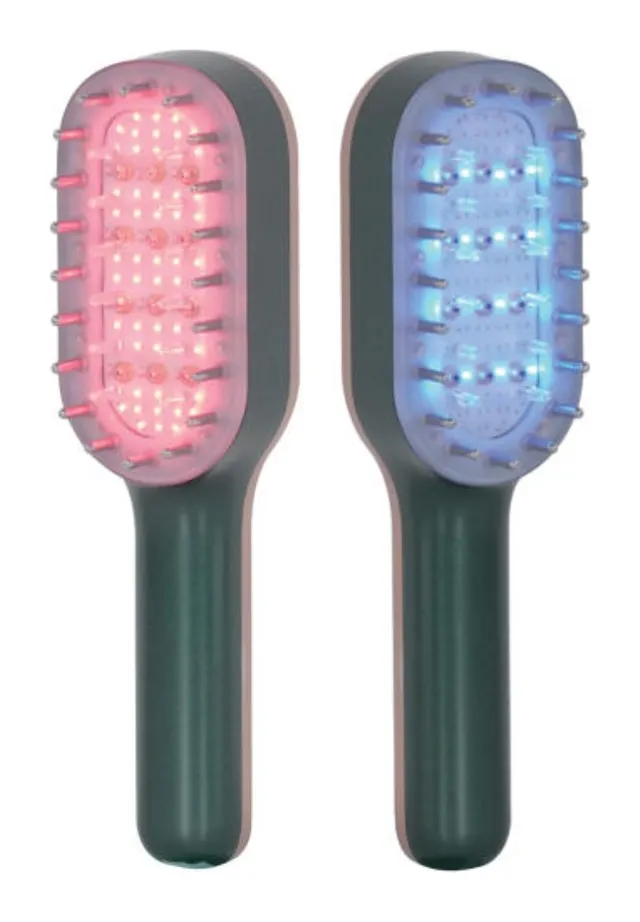

RLT-BRUSH
Brush with laser and LED light, RF, EMS and vibration.
- LEDs
- 15 laser diodes + 15 LEDs
- Wavelength
- 650 nm red (laser), 460 nm blue (LED)
- Battery
- 500 mAh
- Timer
- 10 min
- Functions
- Light, RF, EMS, vibration
- Warranty
- 1 year
4 part numbersShow

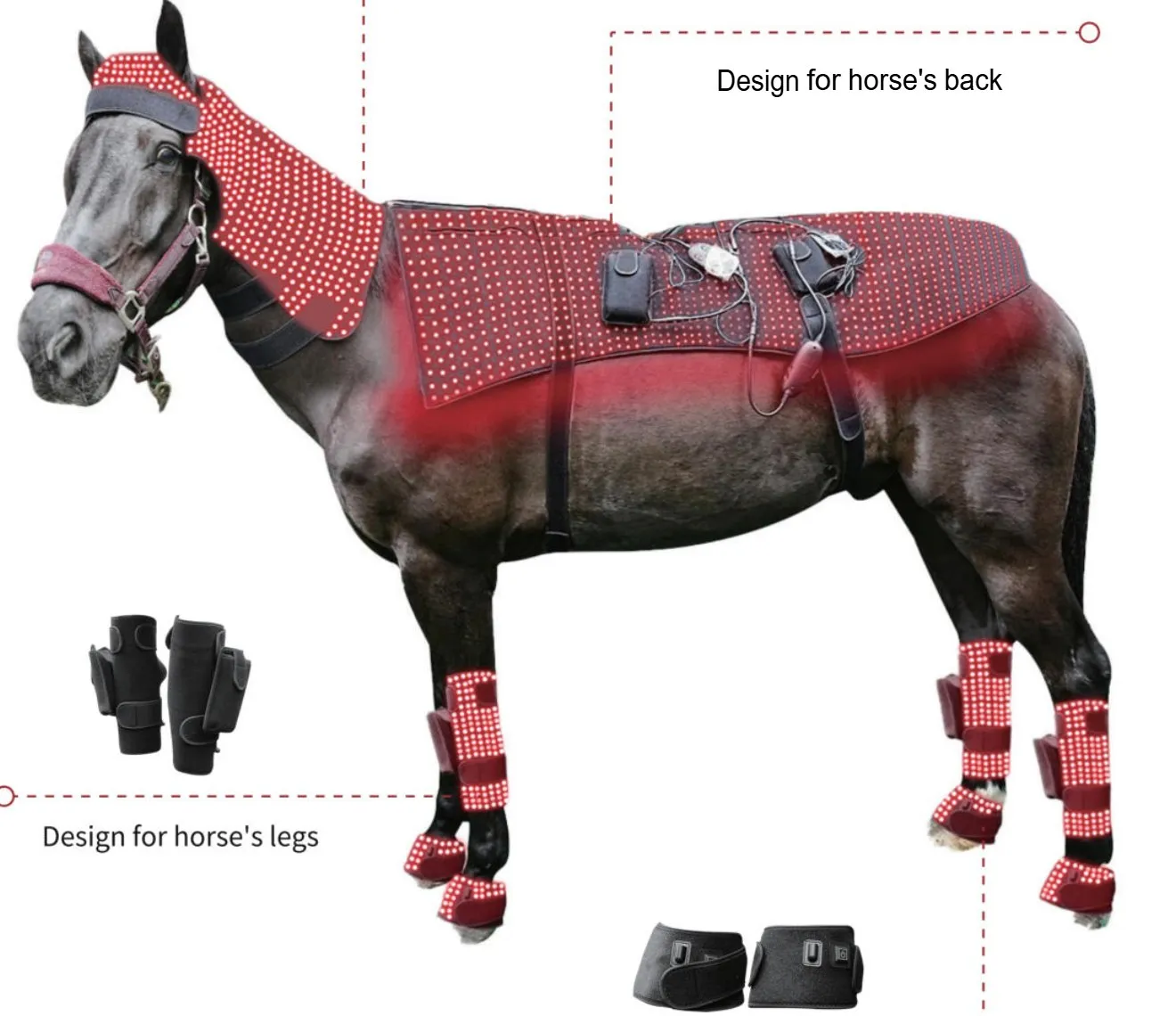

Horses

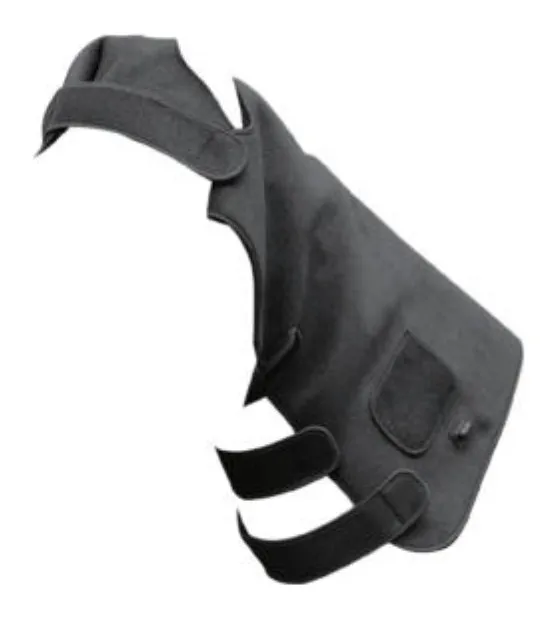

RLT-PA-06
Neck wrap.
- LEDs
- 210 triple-chip (630 chips)
- Wavelength
- 660 nm red, 850 nm infrared
- Timer
- 10 to 90 min in 10-min steps
- Warranty
- 1 year
RLT-PA-05
Back blanket, the largest wrap.
- LEDs
- 810 triple-chip (2,430 chips)
- Wavelength
- 660 nm red, 850 nm infrared
- Timer
- 10 to 90 min in 10-min steps
- Warranty
- 1 year

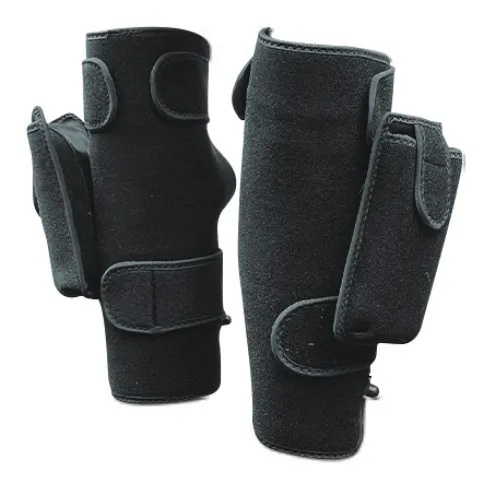

RLT-PA-07
Leg boots.
- LEDs
- 48 dual-chip (96 chips)
- Wavelength
- 660 nm red, 850 nm infrared
- Timer
- 10 to 90 min in 10-min steps
- Warranty
- 1 year
RLT-PA-03
Hoof wraps, sold as a pair.
- LEDs
- 60 triple-chip per pair (180 chips)
- Wavelength
- 660 nm red, 850 nm infrared
- Pulsing
- 10 / 40 Hz
- Warranty
- 1 year
2 part numbersShow
Pets

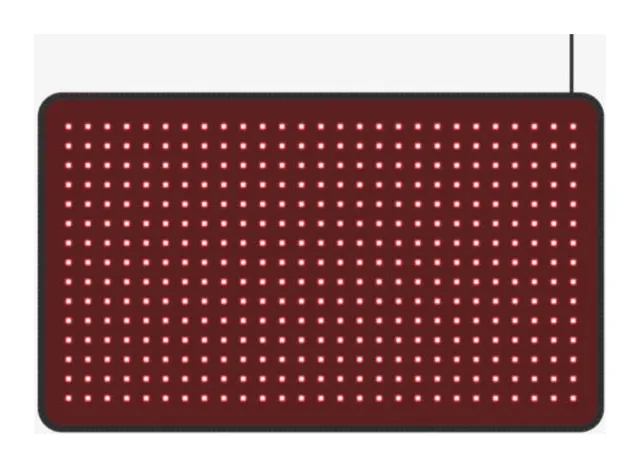

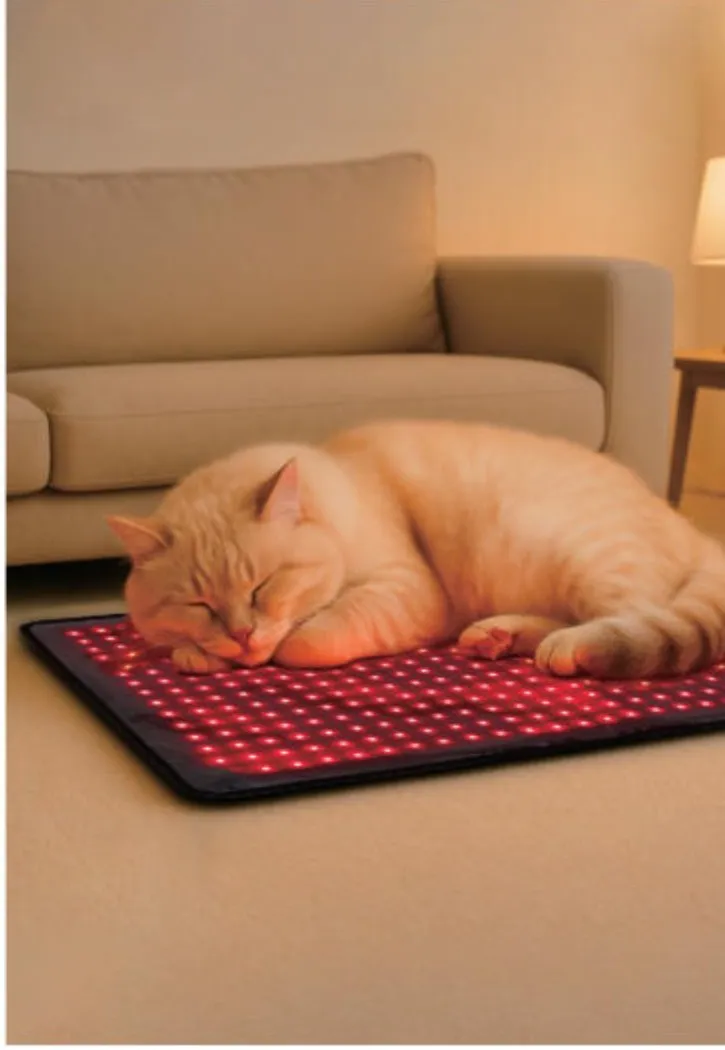

RLT-PET-MAT-1
Pet mat with timer, colour control and dimming.
- LEDs
- 405 triple-chip (1,215 chips)
- Wavelength
- 660 nm red, 850 nm infrared
- Dimensions
- 700 × 420 × 6 mm
- Weight
- 0.8 kg
- Functions
- Timer, LED colour, dimming
- Warranty
- 1 year
RLT-PET-MAT-2
The larger pet mat.
- LEDs
- 700 triple-chip (2,100 chips)
- Wavelength
- 660 nm red, 850 nm infrared
- Dimensions
- 920 × 520 × 6 mm
- Weight
- 1.3 kg
- Functions
- Timer, LED colour, dimming
- Warranty
- 1 year
In use
Application examples
Specifications
| Wavelength | Blue 415 nm, 460 nm and 470 nm; yellow 590 nm; red 633 nm, 650 nm and 660 nm; infrared 830 nm and 850 nm, by model |
|---|---|
| LEDs | Two-, three- and four-chip diodes; laser diodes on RLT-HAIR and RLT-BRUSH |
| Control | Timer, LED colour and dimming on the pet mats; timer in 10-minute steps on the horse wraps; memory and Bluetooth controller on RLT-HALO |
|---|
| Battery | 50 mAh to 5,000 mAh, by model; RLT-HALO takes 12 V 4 A |
|---|---|
| Listings | Health Canada approved (medical device licence); FDA 510(k); TGA; UKCA; EU MDR; UL; ETL; CE; FCC; RoHS |
| Factory certifications | MDSAP; ISO 13485; ISO 9001; ISO 14001; ISO 45001; amfori BSCI |
| Warranty | 1 year |
Applications
Spas and salonsStablesPet careHome use
Certifications
Health CanadaFDA 510(k)TGAUKCAEU MDRULETLCEFCCRoHS
Marks as printed on the current spec sheet.
