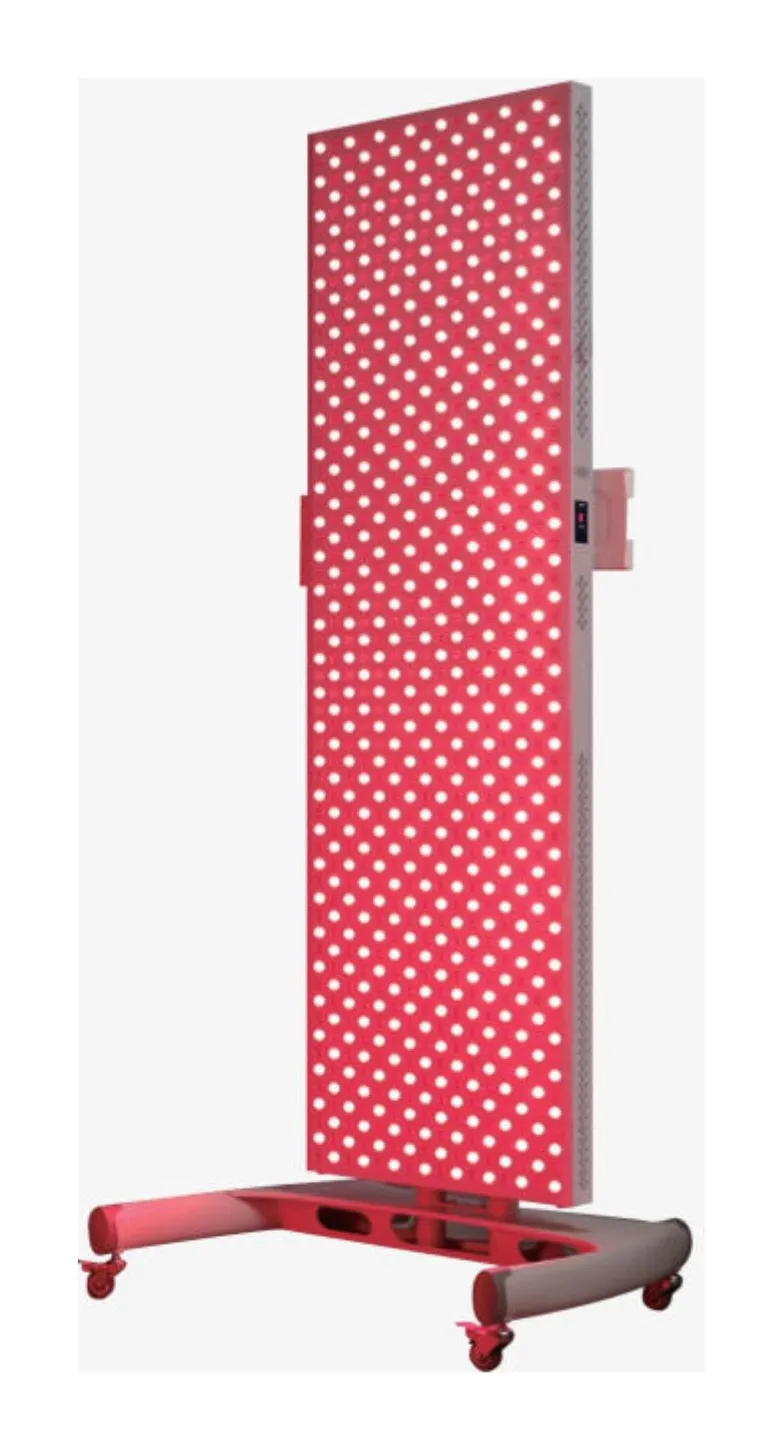

Floor stand
A low rolling base; the panel stands upright on it.
- Weight
- 3 kg
- Fits
- RLT-750, RLT-1500
Products / CNX-RLT
Wall and Stand Panels

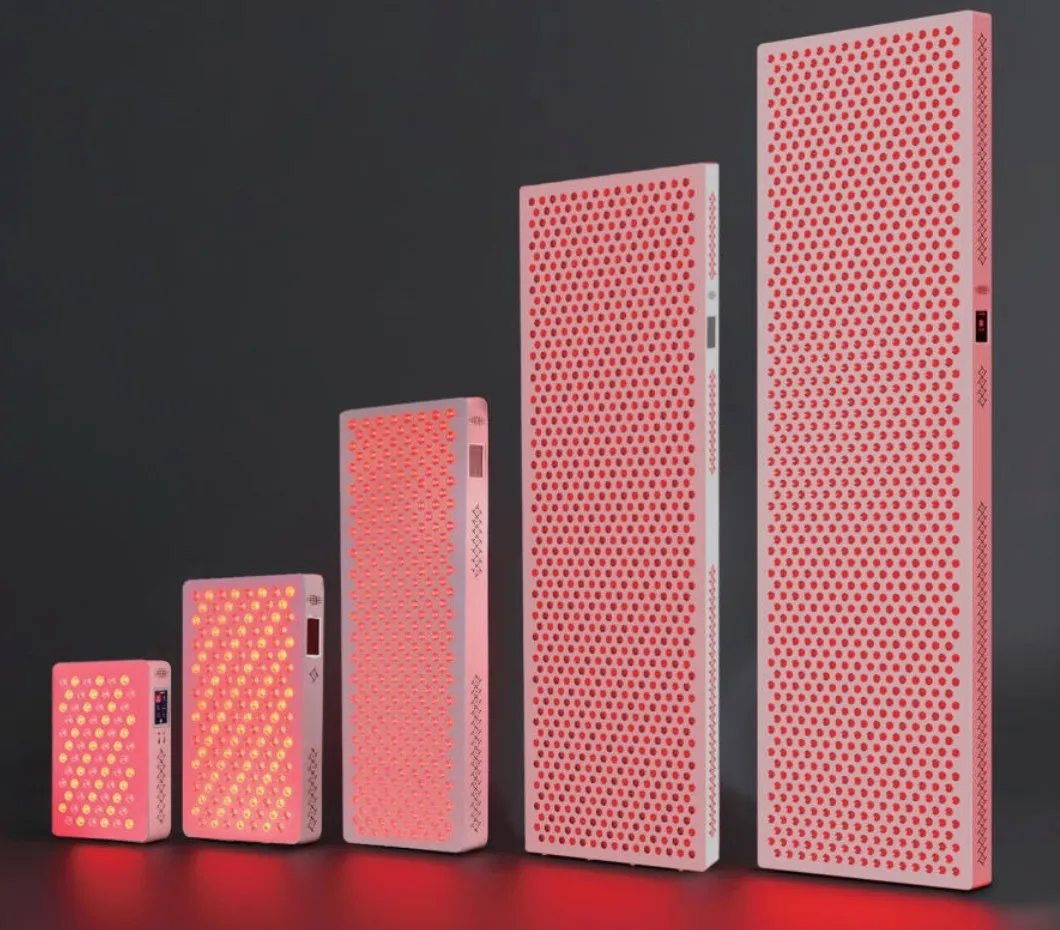

Red 630/660 nm and infrared 810–1060 nm at 130 to 220 mW/cm², in five panel sizes from 72 to 1,080 LEDs, wall-mounted or on a stand.
630–1060 nmred and infrared
130–220 mW/cm²irradiance
72–1,080LEDs per panel
Product range
9 models5 part numbersShow
All five panels: 630 nm and 660 nm red with 810, 830, 850 and 1060 nm infrared, dual-core dual-wave LEDs of 5 W each, 30° beam, 100–240 V AC input.
| Model | LEDs | Irradiance | Dimensions |
|---|---|---|---|
| RLT-360 | 72 | ≥ 130 mW/cm² | 350 × 230 × 66 mm |
| RLT-750 | 150 | ≥ 145 mW/cm² | 480 × 300 × 66 mm |
| RLT-1500 | 300 | ≥ 170 mW/cm² | 920 × 300 × 66 mm |
| RLT-4500 | 900 | ≥ 200 mW/cm² | 1,550 × 540 × 66 mm |
| RLT-5400 | 1,080 | ≥ 220 mW/cm² | 1,850 × 540 × 66 mm |
4 part numbersShow
Stands

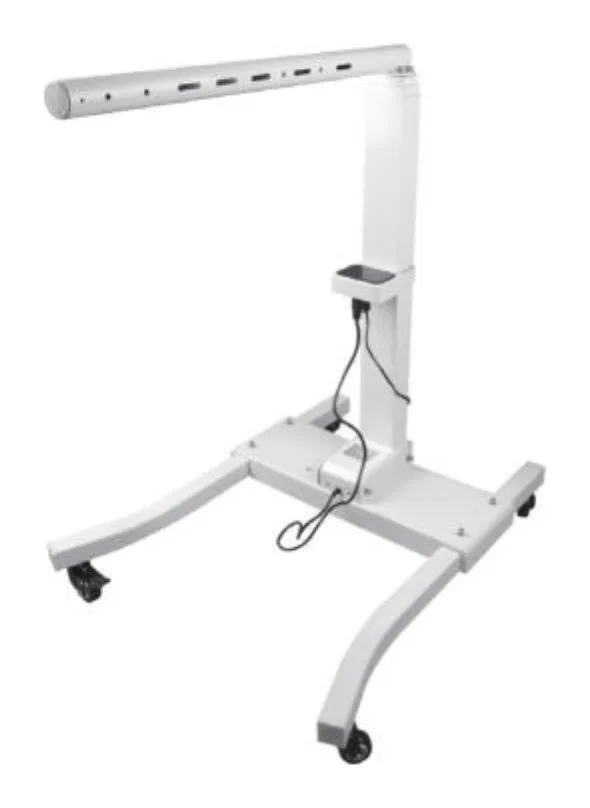

Electric stand
Motorised height, the panel held horizontal over a bed or bench.
- Weight
- 20 kg
- Height
- 97–130 cm
- Load capacity
- 35 kg max.
- Input
- 100–240 V AC
- Fits
- RLT-1500, RLT-4500, RLT-5400

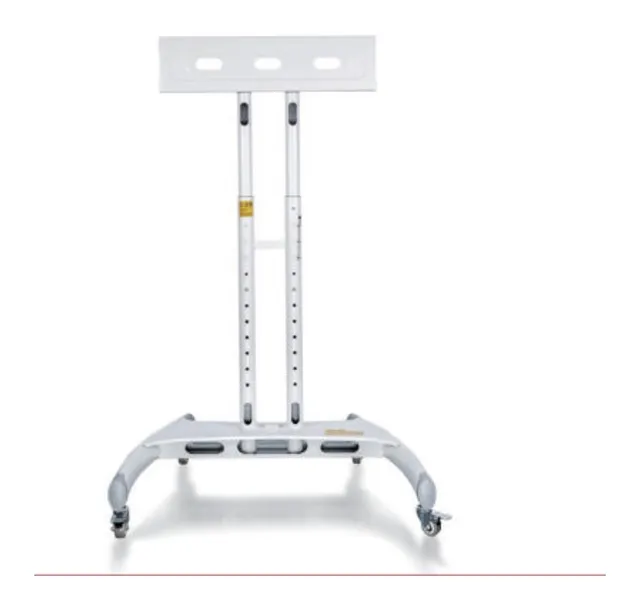

Vertical stand
Height-adjustable upright stand on castors.
- Weight
- 21 kg
- Height
- 78–150 cm
- Load capacity
- 40 kg max.
- Fits
- RLT-1500, RLT-4500, RLT-5400

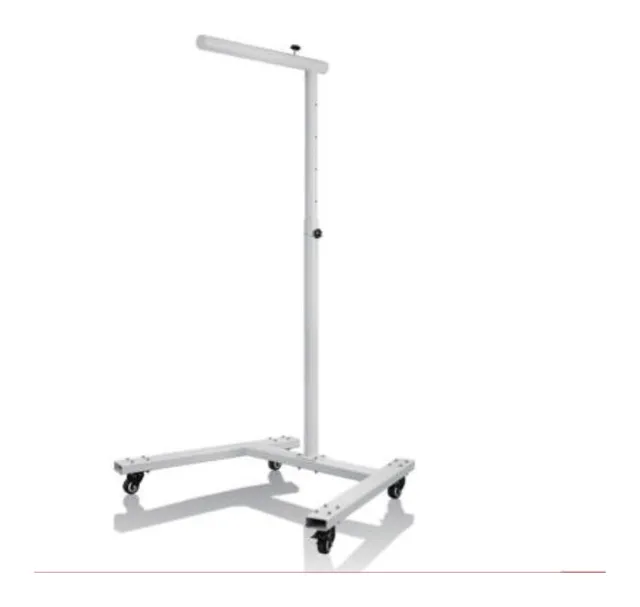

Horizontal stand
Height-adjustable arm that holds the panel flat.
- Weight
- 15 kg
- Height
- 92–132 cm
- Load capacity
- 25 kg max.
- Fits
- RLT-1500
In use
Application examples
Specifications
| Wavelength | Red 630 nm and 660 nm; infrared 810 nm, 830 nm, 850 nm and 1060 nm |
|---|---|
| LEDs | Dual-core dual-wave diodes, 5 W each |
| Beam angle | 30° |
| Irradiance | 130–220 mW/cm², by panel size |
| Mounting | Wall, or floor, electric, vertical or horizontal stand |
|---|---|
| Sizes | Five panels, 35 cm to 185 cm long |
| Control | Touch screen; app; four preset modes; five dimming channels for the six wavelengths |
|---|
| Input voltage | 100–240 V AC, panels and electric stand |
|---|---|
| Listings | Health Canada approved (medical device licence); FDA 510(k); TGA; UKCA; EU MDR; UL; ETL; CE; FCC; RoHS |
| Factory certifications | MDSAP; ISO 13485; ISO 9001; ISO 14001; ISO 45001; amfori BSCI |
Applications
Spas and salonsStudios and gymsHealthcare facilitiesHospitality and saunasHome use
Certifications
Health CanadaFDA 510(k)TGAUKCAEU MDRULETLCEFCCRoHS
Marks as printed on the current spec sheet.
