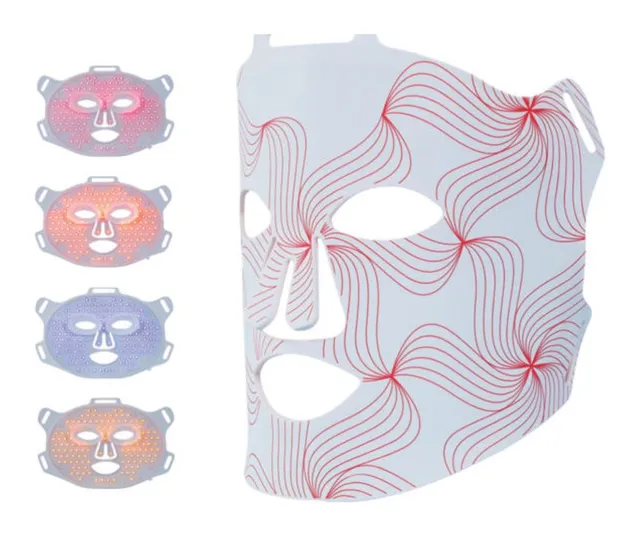

RLT-MASK
Ultra-thin flexible mask, 3 mm at its thinnest, frosted lens over every LED.
- LEDs
- 122 four-chip (488 chips)
- Wavelength
- 415 nm blue, 590 nm yellow, 660 nm red, 850 nm infrared
- Irradiance
- ≥ 35 mW/cm²
- Battery
- 3,000 mAh
- Warranty
- 1 year
Products / CNX-RLW
Belts and Masks
Wearable red and infrared devices: face masks, eye masks, belts, pads and mats, 415–850 nm, up to 35 mW/cm².
415–1072 nmwavelength range
≥ 35 mW/cm²irradiance, masks
7,560LED chips, largest mat
Product range
14 models4 part numbersShow
Face masks

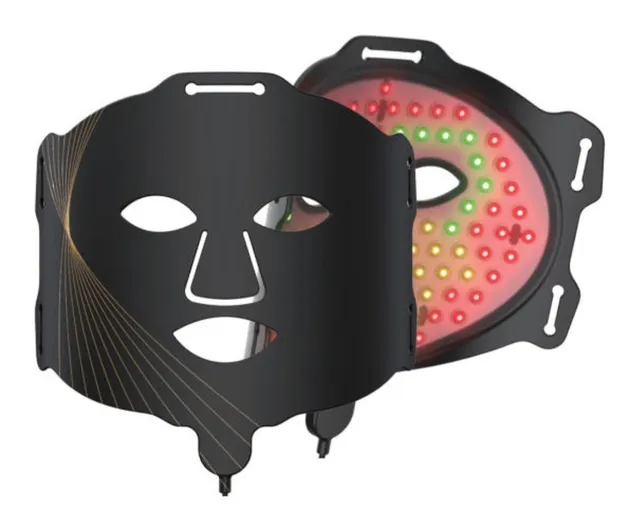

RLT-MASK-2
Zoned mask: different wavelengths for different parts of the face.
- LEDs
- 90 four-chip (360 chips)
- Wavelength
- 530 nm green, 590 nm yellow, 660 nm red, 830 nm infrared
- Irradiance
- ≥ 30 mW/cm²
- Battery
- 5,000 mAh
- Warranty
- 1 year

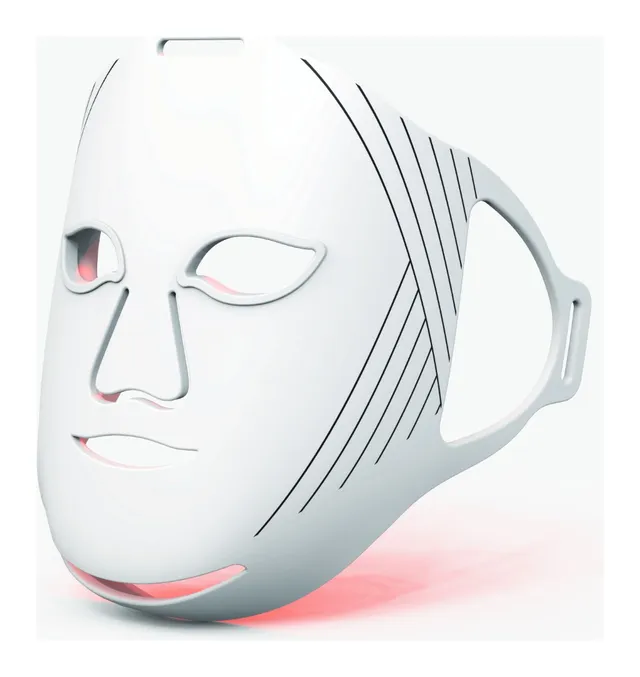

RLT-MASK-3
One-piece liquid-silicone mask that covers the chin too, with deep infrared at 1072 nm.
- LEDs
- 93 triple-chip (279 chips)
- Wavelength
- 415 nm blue, 630 nm red, 850 nm infrared, 1072 nm infrared
- Irradiance
- ≥ 35 mW/cm²
- Battery
- 4,000 mAh
- Material
- Liquid silicone
- Warranty
- 1 year

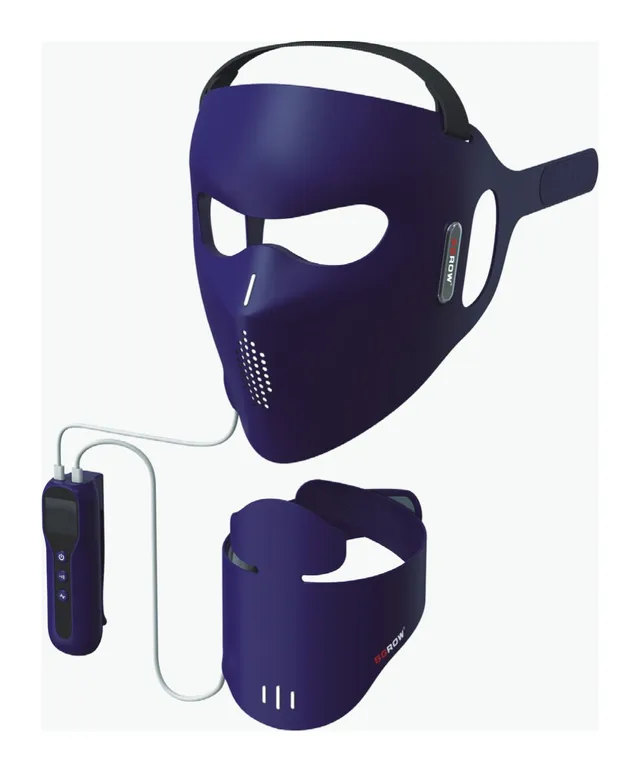

RLT-MASK-4P
3D face mask with a matching neck piece and a corded controller.
- LEDs
- Face 90, neck 57
- Wavelength
- 415 nm blue, 590 nm yellow, 630 nm red, 850 nm infrared, 1072 nm infrared
- Irradiance
- ≥ 35 mW/cm²
- Battery
- 5,000 mAh
- Warranty
- 1 year
2 part numbersShow
Eye masks
RLT-BEAUTY
One-piece liquid-silicone eye mask; switches off after three minutes.
- LEDs
- 40 dual-chip (80 chips)
- Wavelength
- 630 nm red, 850 nm infrared
- Battery
- 330 mAh
- Material
- Liquid silicone
- Functions
- Auto-off after 3 minutes
- Warranty
- 1 year
RLT-BEAUTY-2
Strap-on eye mask with triple-chip LEDs.
- LEDs
- 36 triple-chip (108 chips)
- Wavelength
- 630 nm red, 660 nm red, 850 nm infrared
- Irradiance
- ≥ 35 mW/cm²
- Battery
- 1,000 mAh
- Warranty
- 1 year
6 part numbersShow
Belts and pads

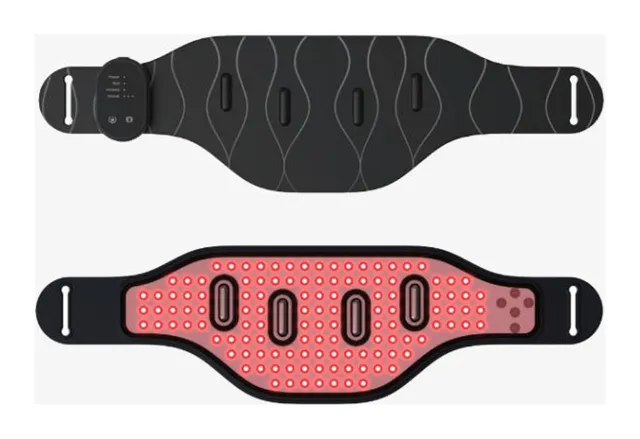

RLT-BELT-122
Food-grade silicone belt with a magnetic controller.
- LEDs
- 122 triple-chip (366 chips)
- Wavelength
- 630 nm red, 850 nm infrared
- Material
- Food-grade silicone
- Battery
- 2,000 mAh
- Warranty
- 1 year

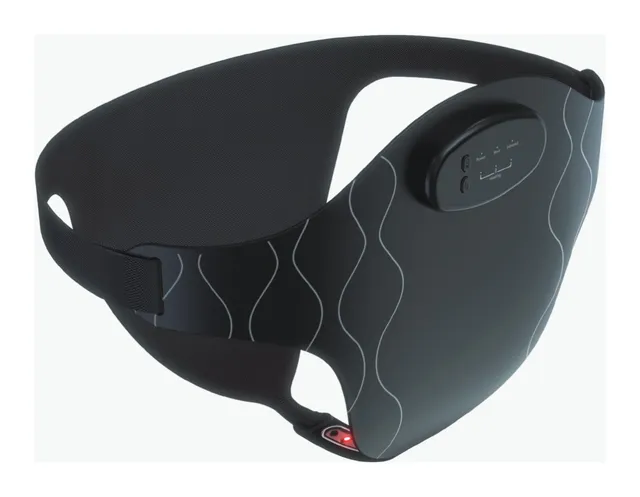

RLT-PELVIC-56
Shaped silicone wrap for the pelvis, with light and heat.
- LEDs
- 56 triple-chip (168 chips)
- Wavelength
- 630 nm red, 850 nm infrared
- Material
- Food-grade silicone
- Battery
- 1,500 mAh
- Functions
- Light and heating
- Warranty
- 1 year

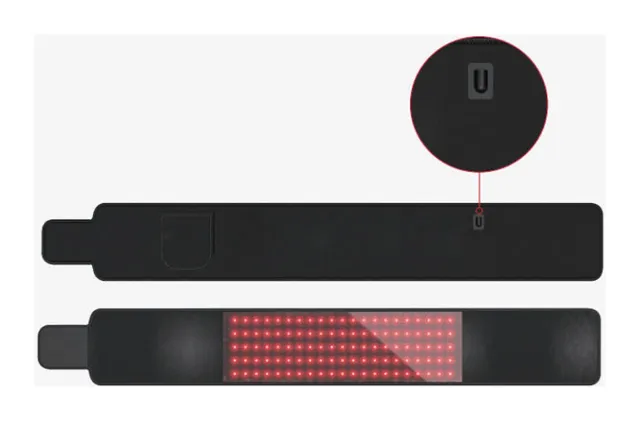

RLT-BELT-105
Cloth-and-TPU belt with vibration, mains powered.
- LEDs
- 105 triple-chip (315 chips)
- Wavelength
- 660 nm red, 850 nm infrared
- Material
- Cloth and TPU
- Input
- 12 V 2 A
- Functions
- Light and vibration
- Warranty
- 1 year

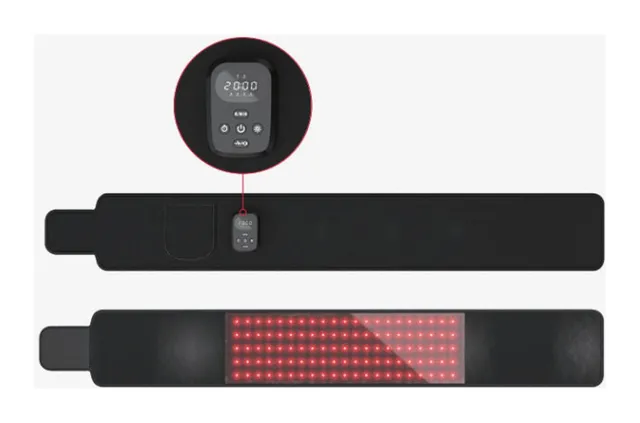

RLT-BELT-105P
The same belt with a battery pack and a display controller.
- LEDs
- 105 triple-chip (315 chips)
- Wavelength
- 660 nm red, 850 nm infrared
- Material
- Cloth and TPU
- Battery
- 5,000 mAh
- Functions
- Light and vibration
- Warranty
- 1 year

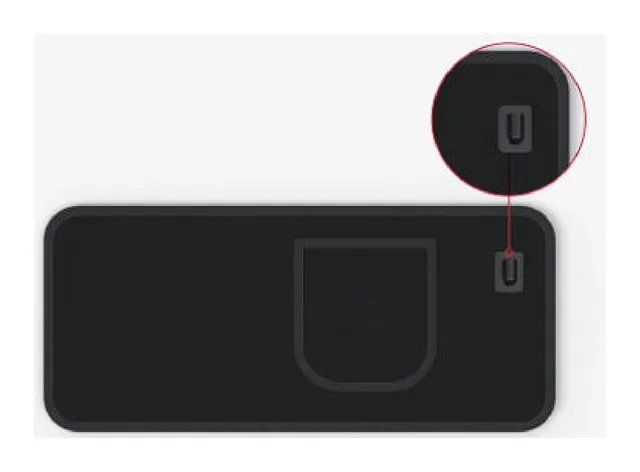

RLT-PAD-120
Flat cloth pad with vibration, mains powered.
- LEDs
- 120 triple-chip (360 chips)
- Wavelength
- 660 nm red, 850 nm infrared
- Material
- Cloth
- Input
- 12 V 2 A
- Functions
- Light and vibration
- Warranty
- 1 year

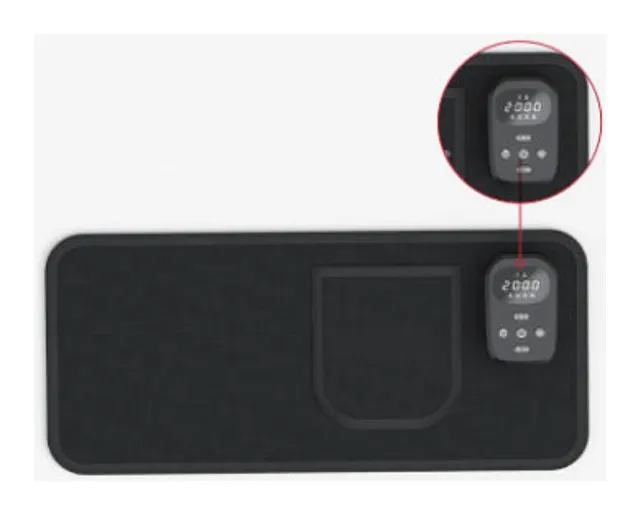

RLT-PAD-120P
The same pad with a battery pack and a display controller.
- LEDs
- 120 triple-chip (360 chips)
- Wavelength
- 660 nm red, 850 nm infrared
- Material
- Cloth
- Battery
- 5,000 mAh
- Functions
- Light and vibration
- Warranty
- 1 year
2 part numbersShow
Mats
RLT-MAT
Full-length mat in cloth and TPU, with vibration.
- LEDs
- 1260 triple-chip (3,780 chips)
- Wavelength
- 660 nm red, 850 nm infrared
- Material
- Cloth and TPU
- Input
- 24 V 3 A
- Functions
- Light and vibration
- Warranty
- 1 year

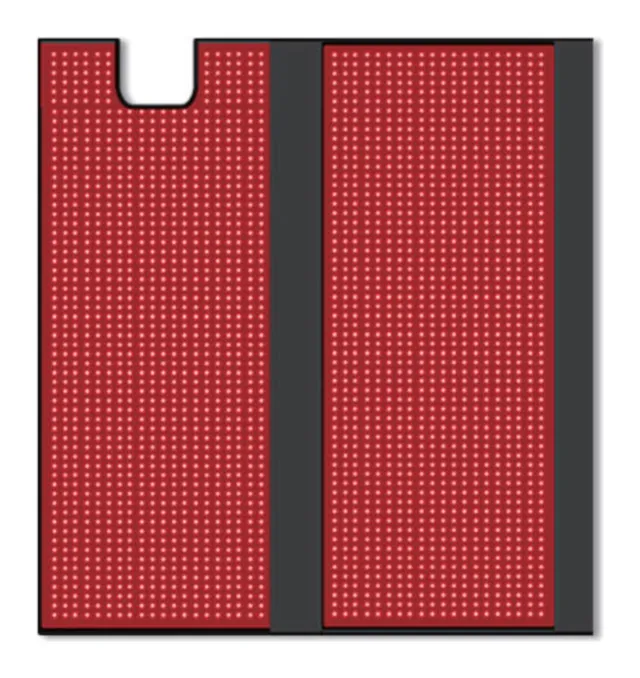

RLT-MAT-2
Wrap-around mat with twice the LEDs, with vibration.
- LEDs
- 2520 triple-chip (7,560 chips)
- Wavelength
- 660 nm red, 850 nm infrared
- Material
- Cloth and TPU
- Input
- 24 V 3 A
- Functions
- Light and vibration
- Warranty
- 1 year
In use
Application examples
Specifications
| Wavelength | Blue 415 nm; green 530 nm; yellow 590 nm; red 630 nm and 660 nm; infrared 830 nm, 850 nm and 1072 nm, by model |
|---|---|
| LEDs | Multi-chip diodes: two, three or four chips per LED |
| Irradiance | ≥ 30–35 mW/cm² on the masks |
| Housing | Masks 3 mm at the thinnest point with a frosted lens, or one-piece liquid silicone; belts in food-grade silicone or cloth and TPU; mats in cloth and TPU |
|---|
| Battery | 330 mAh to 5,000 mAh, by model; the mains-powered belt, pads and mats take 12 V 2 A or 24 V 3 A |
|---|---|
| Control | RLT-BEAUTY switches off after 3 minutes; vibration on the cloth belts, pads and mats; heating on the pelvic wrap |
| Listings | Health Canada approved (medical device licence); FDA 510(k); TGA; UKCA; EU MDR; UL; ETL; CE; FCC; RoHS |
| Factory certifications | MDSAP; ISO 13485; ISO 9001; ISO 14001; ISO 45001; amfori BSCI |
| Warranty | 1 year |
Applications
Home useSpas and salonsStudios and gymsHealthcare facilities
Certifications
Health CanadaFDA 510(k)TGAUKCAEU MDRULETLCEFCCRoHS
Marks as printed on the current spec sheet.
