Products / CNX-RNL
Ring Linear
Seamless ring luminaire up to 120 lm/W and 15,100 lm, available in 2, 3 and 4 ft diameters and 60 W to 126 W configurations.
61 / 91 / 122 cmring diameters
15,100 lmmaximum output, 4 ft ring
0–100 %up/down split, switch-selectable
Product range
6 lumen packages01

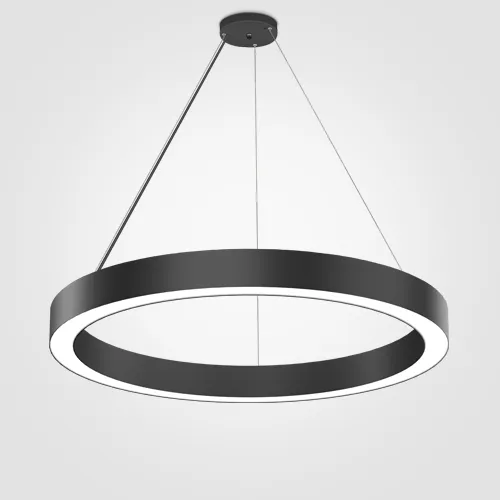

2, 3 or 4 ft ring · 60–126 W
One fixture in three sizes: 2 ft ring, 3 ft ring, 4 ft ring.
Sizes
Colour temperature
- 3,000 K
- 3,500 K
- 4,000 K
Control
- 0–10 V
- ColoursWhite, black, custom
- Input voltage110–277 V AC
6 lumen packagesShow
60 W7,200 lm120 lm/W2 ft ring · 50 % up / 50 % down · 4000 K
60 W6,600 lm110 lm/W2 ft ring · 100 % down · 4000 K
94 W11,600 lm120 lm/W3 ft ring · 50 % up / 50 % down · 4000 K
94 W10,300 lm110 lm/W3 ft ring · 100 % down · 4000 K
126 W15,100 lm120 lm/W4 ft ring · 50 % up / 50 % down · 4000 K
126 W13,800 lm110 lm/W4 ft ring · 100 % down · 4000 K
Specifications
| Sizes | 2, 3 or 4 ft ring diameter (61, 91 or 122 cm) |
|---|---|
| Dimensions | Profile 2.3 in wide × 3.5 in high (5.8 × 8.9 cm); ring diameters inner / outer: 61.0 / 66.9 cm (2 ft), 91.4 / 97.3 cm (3 ft), 114.5 / 120.4 cm (4 ft) |
| Lens | One-piece seamless diffuser, no visible joints |
| Finish | White, black or custom |
| Mounting | Pendant with three separate anchor points (vertical cables) or a single central canopy (angled, converging cables); surface and wall mounting kit; hard ceilings via junction box, or T-grid ceilings (9/16 in flat, 9/16 in slot, 15/16 in flat) with a grid hanger kit; surface or wall mounting with integral RGBW requires two junction boxes |
| Suspension | Canopies 1.6 in round (non-power feed) and 4.5 in round (power feed) for the separate-anchor pendant, 5.8 in round for the central-canopy pendant, white or black; power cord and aircraft cable kits 4, 8 or 12 ft (1.2, 2.4 or 3.7 m), white or black, cord and canopy match the finish unless specified; central-canopy pendant hangs less than the cable length because the cables converge, maximum drop 3.33 / 3.08 / 2.86 ft with 4 ft cables, 6.67 / 6.15 / 5.71 ft with 8 ft, 10.00 / 9.23 / 8.57 ft with 12 ft (2 / 3 / 4 ft rings) |
| Distribution | 100 % direct, or direct/indirect adjustable by DIP switch |
|---|---|
| Up/down split | 100 % up, 30 % down / 70 % up, 50/50, 70 % down / 30 % up, 100 % down |
| Output | At 4000 K: 50/50 split 7,200 / 11,600 / 15,100 lm at 120 lm/W, 100 % down 6,600 / 10,300 / 13,800 lm at 110 lm/W (2 / 3 / 4 ft rings); rated at maximum wattage, 4000 K, white finish; ±5 % with CCT and wattage |
| Colour temperature | 3000 K, 3500 K or 4000 K, adjustable at the fixture (default 4000 K) |
| CRI | 90+ |
| Input voltage | 110–277 VAC |
|---|---|
| Dimming | 0–10 V, to 1 % |
| Wattage | Selectable at the fixture, 100 / 75 / 50 %: 60/45/30 W (2 ft), 94/70/47 W (3 ft), 126/94/63 W (4 ft); default maximum; actual wattage ±5 % |
| Control | Optional integral RGBW, 3 ft and 4 ft rings only (make to order); optional external occupancy sensor, pendant only. The 3 ft and 4 ft rings use three drivers, each with its own DIP switches for wattage, CCT and distribution: set all three |
| Emergency | Optional external 16 W or 25 W driver, field-installed |
Dimensions & weight
| Model | Length | Width | Height | Weight |
|---|---|---|---|---|
| 2 ft ring · outer Ø | 66.9 cm | 66.9 cm | 8.9 cm | — |
| 3 ft ring · outer Ø | 97.3 cm | 97.3 cm | 8.9 cm | — |
| 4 ft ring · outer Ø | 120.4 cm | 120.4 cm | 8.9 cm | — |
Ordering information
Part number format
CNX-RNLProduct typeC02B1DiameterWH2FinishD013Dimming904CRITW+Colour temperatureD5DistributionDF6LensPDS7MountingExample: CNX-RNL-C02B-WH-D01-90TW-D-DF-PDS — the first code in each numbered position; pick one code per position below to build your own
1Diameter
2Finish
3Dimming
4CRI + Colour temperature
CRI
Colour temperature
Written as one code: 90 + TW → 90TW
5Distribution
6Lens
7Mounting
Product options
Applications
Shopping mallsCorporate officesHotel lobbiesConvention centres
Certifications
UL Certified
Marks as printed on the current spec sheet.
