Products / CNX-SCW
Sconce Wing
Light-guide sconce up to 100 lm/W and 90+ CRI, only 2 in deep, available in 12, 18 and 24 in wall-mount and 48 in pendant lengths and 10 W to 40 W configurations.
5,1 cmfixture depth
Ra 90+colour rendering
30 · 46 · 61 · 120 cmlengths: three wall-mount, one pendant
Compare the series
2 series01Wall-mount12, 18 or 24 in wings on the wall, horizontal or vertical, 20 / 15 / 10 W.Power20 WOutput1,800–2,000 lmSize30.5, 45.7 or 61 cm long × 25 cm high × 5.1 cmInput voltage120–277 V ACOpticsLight guide, onto vertical and horizontal planesColoursWhite, customLocation ratingDamp location, indoorOperating temperature−20 to +40 °CRated life50,000 h min.CRI90+See models 02
PendantThe 48 in wing on cables, for corridors and open offices.Power40 WOutput3,800 lmSize120.1 cm long × 25 cm high × 5.1 cmInput voltage110–277 V ACOpticsLight guide, onto vertical and horizontal planesColoursWhite, customLocation ratingDamp location, indoorOperating temperature−20 to +40 °CRated life50,000 h min.CRI90+See models
Wall-mount12, 18 or 24 in wings on the wall, horizontal or vertical, 20 / 15 / 10 W.Power20 WOutput1,800–2,000 lmSize30.5, 45.7 or 61 cm long × 25 cm high × 5.1 cmInput voltage120–277 V ACOpticsLight guide, onto vertical and horizontal planesColoursWhite, customLocation ratingDamp location, indoorOperating temperature−20 to +40 °CRated life50,000 h min.CRI90+See models 02PendantThe 48 in wing on cables, for corridors and open offices.Power40 WOutput3,800 lmSize120.1 cm long × 25 cm high × 5.1 cmInput voltage110–277 V ACOpticsLight guide, onto vertical and horizontal planesColoursWhite, customLocation ratingDamp location, indoorOperating temperature−20 to +40 °CRated life50,000 h min.CRI90+See models Product range
4 lumen packages01

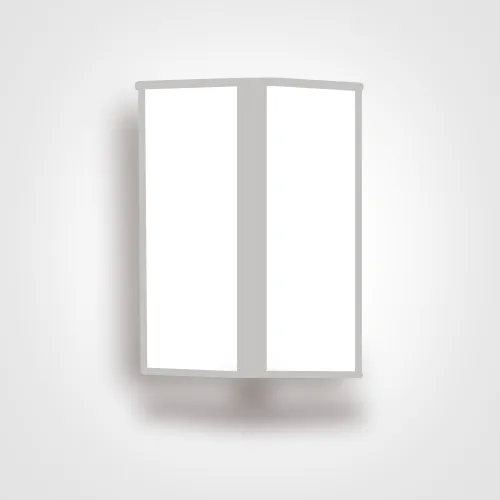

Wall-mount
12, 18 or 24 in wings on the wall, horizontal or vertical, 20 / 15 / 10 W.

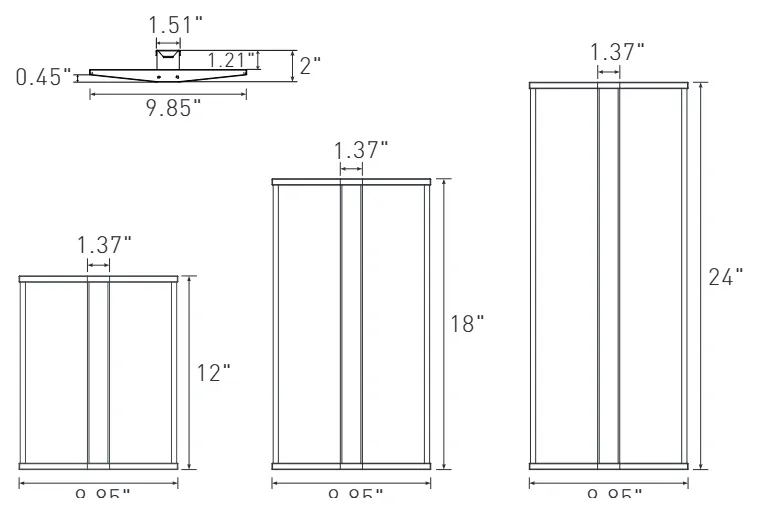

Lengths and section
Colour temperature
- 3,000 K
- 3,500 K
- 4,000 K
Control
- 0–10 V
- Input voltage120–277 V AC
- ColoursWhite, custom
- Operating temperature−20 to +40 °C
- Rated life50,000 h min.
3 lumen packagesShow
20 W1,800 lm90 lm/WWall-mount 12 in · 4000 K
20 W1,900 lm95 lm/WWall-mount 18 in · 4000 K
20 W2,000 lm100 lm/WWall-mount 24 in · 4000 K
02

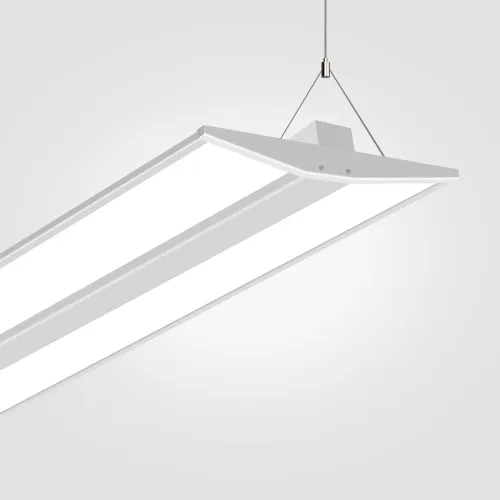

Pendant
The 48 in wing on cables, for corridors and open offices.

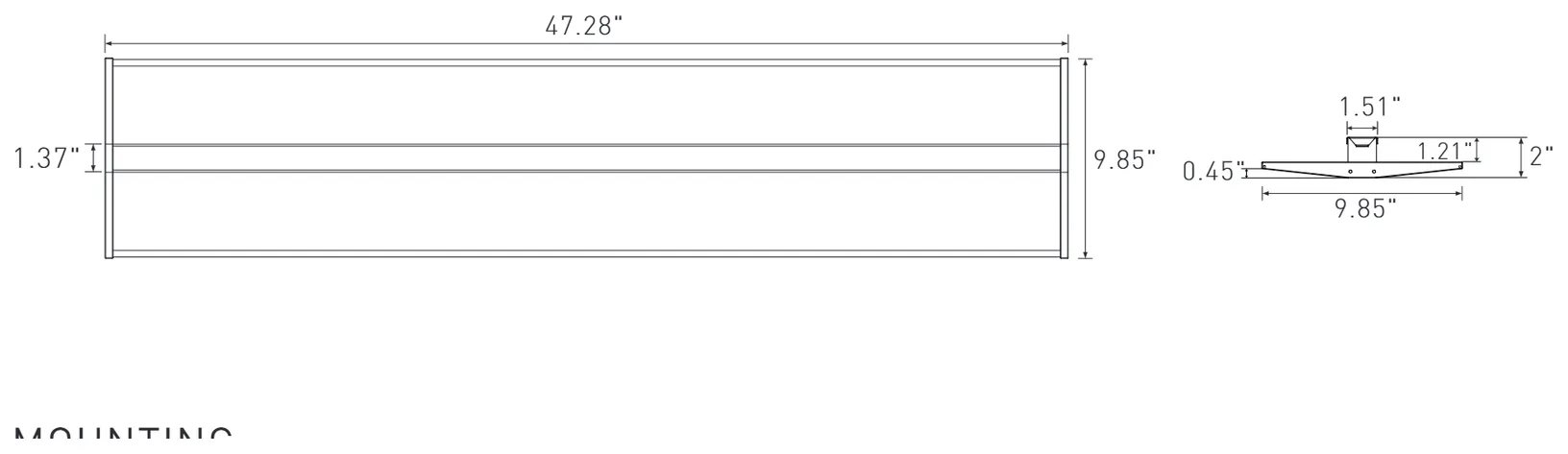

Lengths and section
Colour temperature
- 3,000 K
- 3,500 K
- 4,000 K
Control
- 0–10 V
- Input voltage110–277 V AC
- ColoursWhite, custom
- Operating temperature−20 to +40 °C
- Rated life50,000 h min.
1 lumen packageShow
40 W3,800 lm95 lm/WPendant 48 in · 4000 K
Specifications
| Housing | Extruded aluminium, die-cast aluminium end caps |
|---|---|
| Thermal management | Housing acts as heat sink |
| Lens | Ultra-thin semi-transparent PMMA light guide, uniform acrylic lens |
| Finish | Powder coat, white; custom colours on request |
| Lengths | Wall-mount 12, 18 and 24 in (30.5, 45.7 and 61 cm); pendant 48 in (120 cm) |
| Dimensions |
|

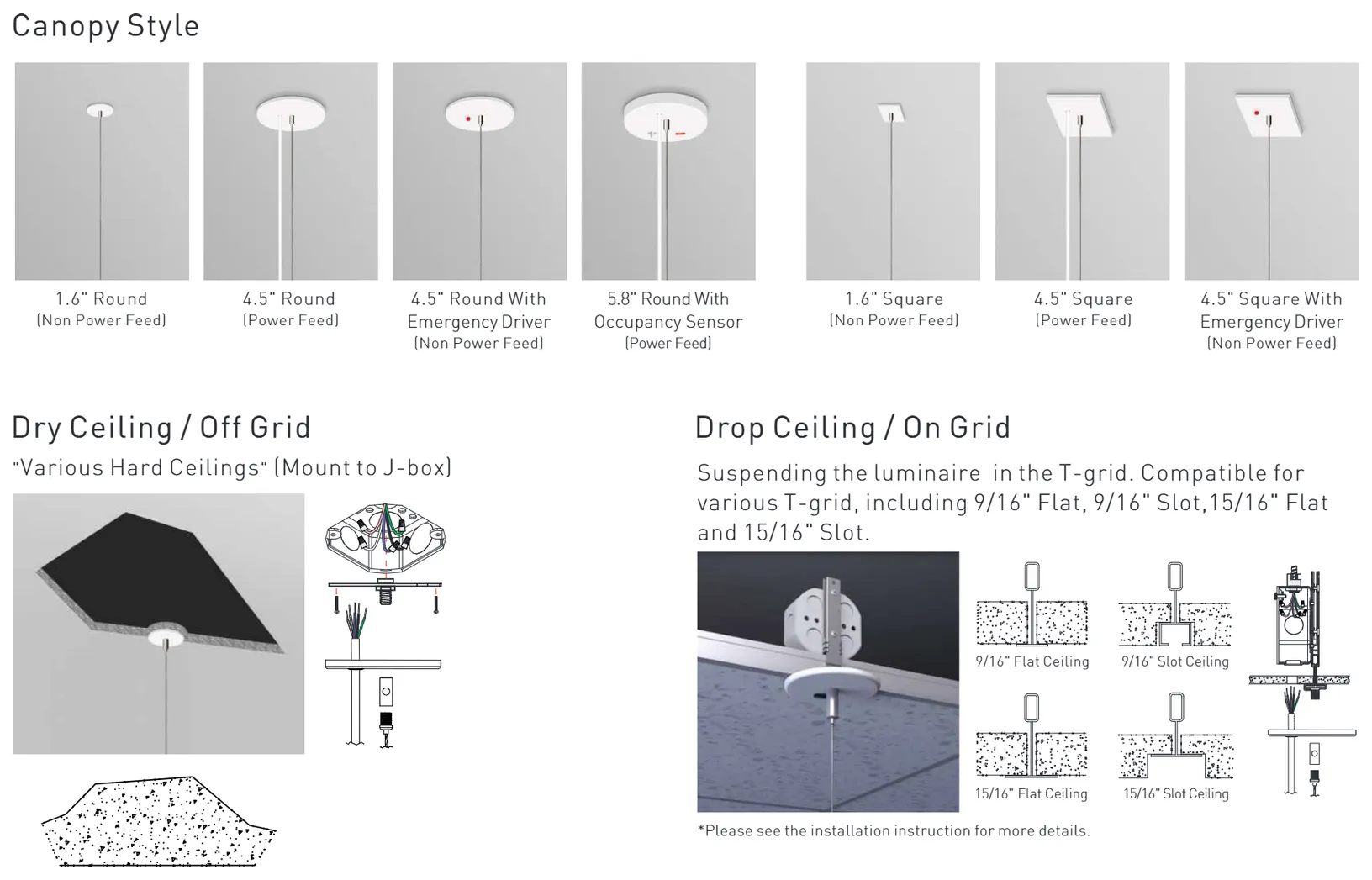

| Mounting | Wall-mount: horizontal or vertical, on the wall or on a surface; pendant: junction box on hard ceilings, or clips to 9/16 in and 15/16 in flat or slot T-grids |
| Suspension | Pendant: 5 ft (1.5 m) aircraft cable standard, 12 ft (3.7 m) available; round or square white canopies, 1.6 or 4.5 in, including canopy variants with emergency driver or occupancy sensor |
| Max run per feed | Pendant continuous runs: 10 units at 120 V, 20 units at 277 V or 347 V |
| Location rating | Damp location; indoor use only |
| Distribution | Controlled, three-dimensional, onto both vertical and horizontal planes, from the light guide |
|---|
| Wattage |
|
|---|---|
| Output |
|
| Colour temperature | Switchable at the fixture, 3000 / 3500 / 4000 K |
| CRI | 90 minimum |
| Rated life | Minimum 50,000 h, per IES LM-80 |
| Lumen maintenance | 87.8 % at 50,000 h, 25 °C |
| Input voltage |
|
|---|---|
| Driver | Class 2, UL recognized |
| Dimming | 0–10 V, to 10 % standard, to 1 % made to order |
| Power factor | > 0.9 |
| THD | < 20 % |
| Operating temperature | −20 °C to +40 °C |
| Emergency | Optional external 16 W or 25 W LED driver with indicator, field-installed |
| Listings | cULus listing pending (as printed on both sheets) |
| Warranty | 5 years, limited, on parts and components (labour not included) |
Dimensions & weight
| Model | Length | Width | Height | Weight |
|---|---|---|---|---|
| Wall-mount 12 in | 30.5 cm | 5.1 cm | 25 cm | — |
| Wall-mount 18 in | 45.7 cm | 5.1 cm | 25 cm | — |
| Wall-mount 24 in | 61 cm | 5.1 cm | 25 cm | — |
| Pendant 48 in (47.28 in) | 120.1 cm | 5.1 cm | 25 cm | — |
Ordering information
Part number format
CNX-SCWProduct typeW1MountingTW+Colour temperature12+LengthExample: CNX-SCW-WTW12 — the first code in each numbered position; pick one code per position below to build your own
1Mounting + Colour temperature + Length
Mounting
Colour temperature
Length
Written as one code: W + TW + 12 → WTW12
Product options
Applications
CorridorsOpen officesHospitalsFeature and accent walls
