Products / CNX-SLM

Slim Linear

Slim architectural linear up to 100 lm/W, available in 4 in and 6 in widths, 2 ft to 8 ft lengths and 10 W to 80 W configurations.

100 lm/Wmaximum efficacy
24 mmslim profile, driver inside
3000 / 3500 / 4000 KCCT selectable at the fixture
Request a quoteDownloads

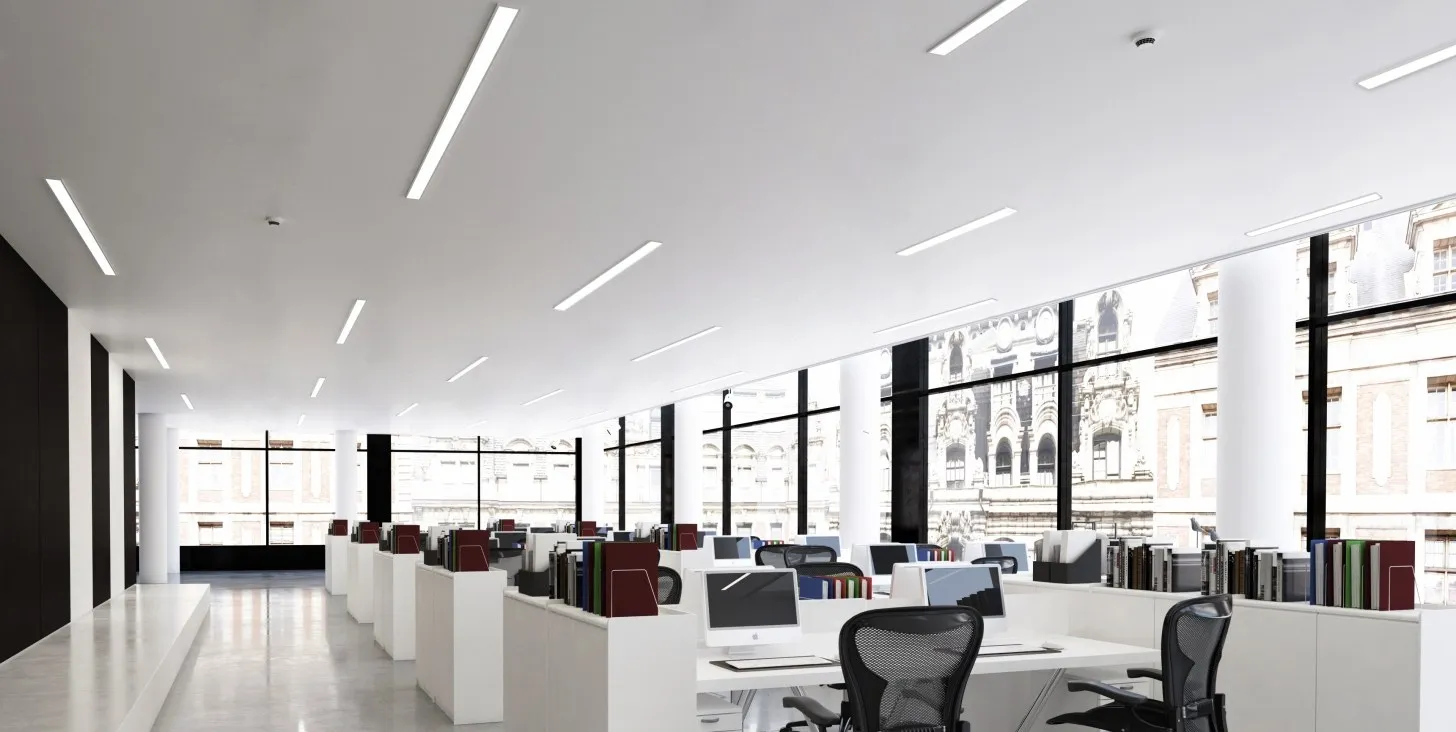

Slim surface profiles in an open office (application example)

Product range

10 lumen packages

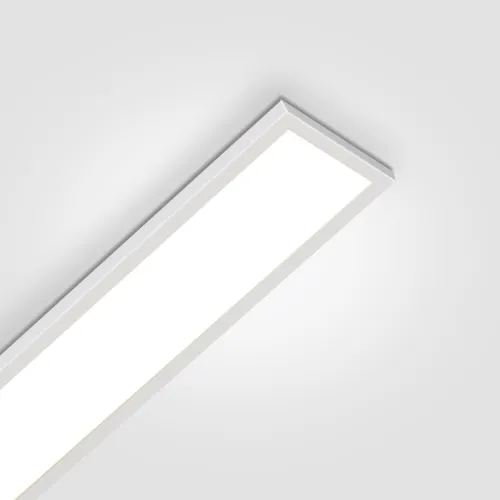

24 mm slim profile

Integral driver, surface or recessed, 2 and 4 ft, 80–95 lm/W.

24 mm slim profile

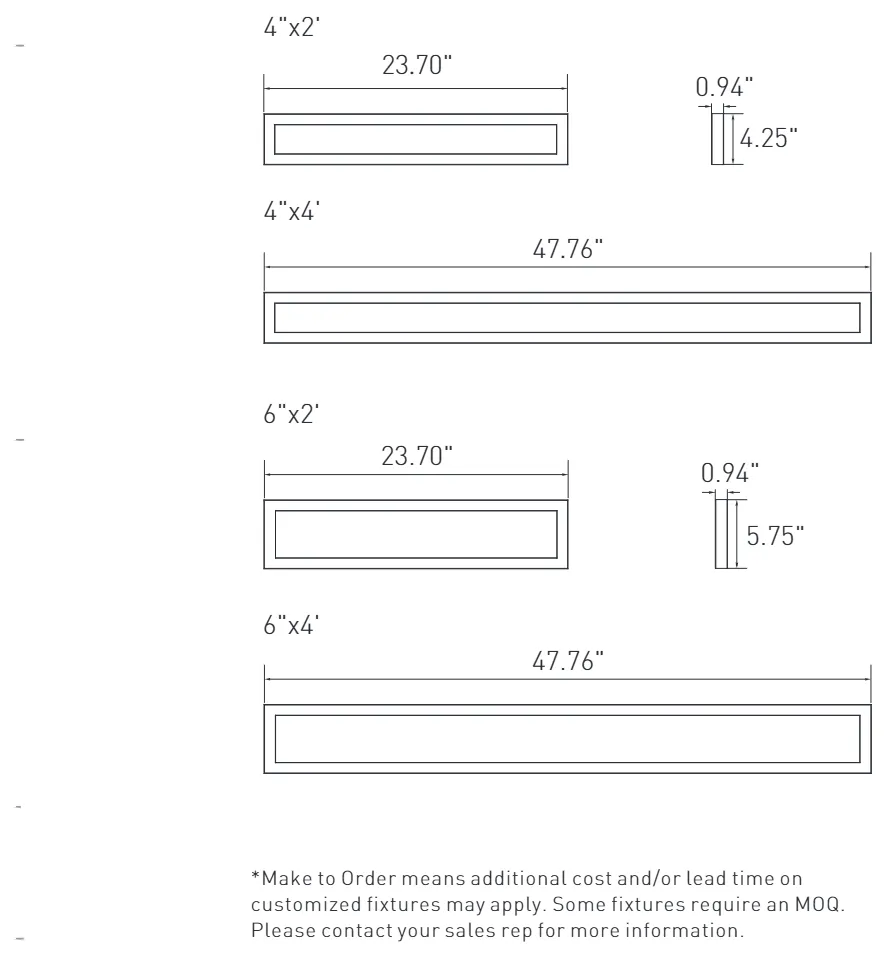

Lengths and section

Dimensions (mm)

Colour temperature

  • 3,000 K
  • 3,500 K
  • 4,000 K

Control

  • 0–10 V
  • Input voltage110–277 V AC; 110–347 V AC available
4 lumen packagesShow
20 W1,600 lm80 lm/W4 in × 2 ft · 24 mm profile
20 W1,700 lm85 lm/W6 in × 2 ft · 24 mm profile
40 W3,200 lm80 lm/W4 in × 4 ft · 24 mm profile
40 W3,800 lm95 lm/W6 in × 4 ft · 24 mm profile

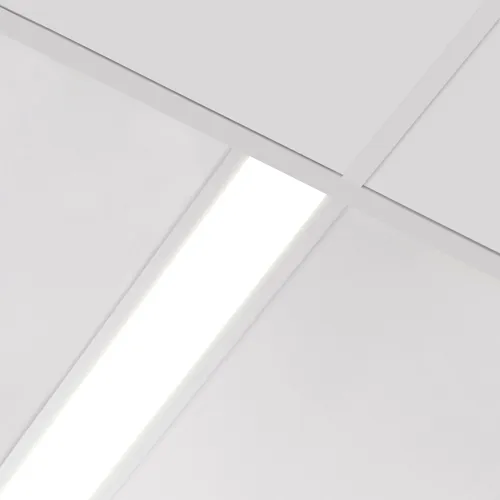

55 mm recessed housing

Remote driver, recessed only, adds 8 ft and dim-to-1 %, 100 lm/W.

55 mm recessed housing

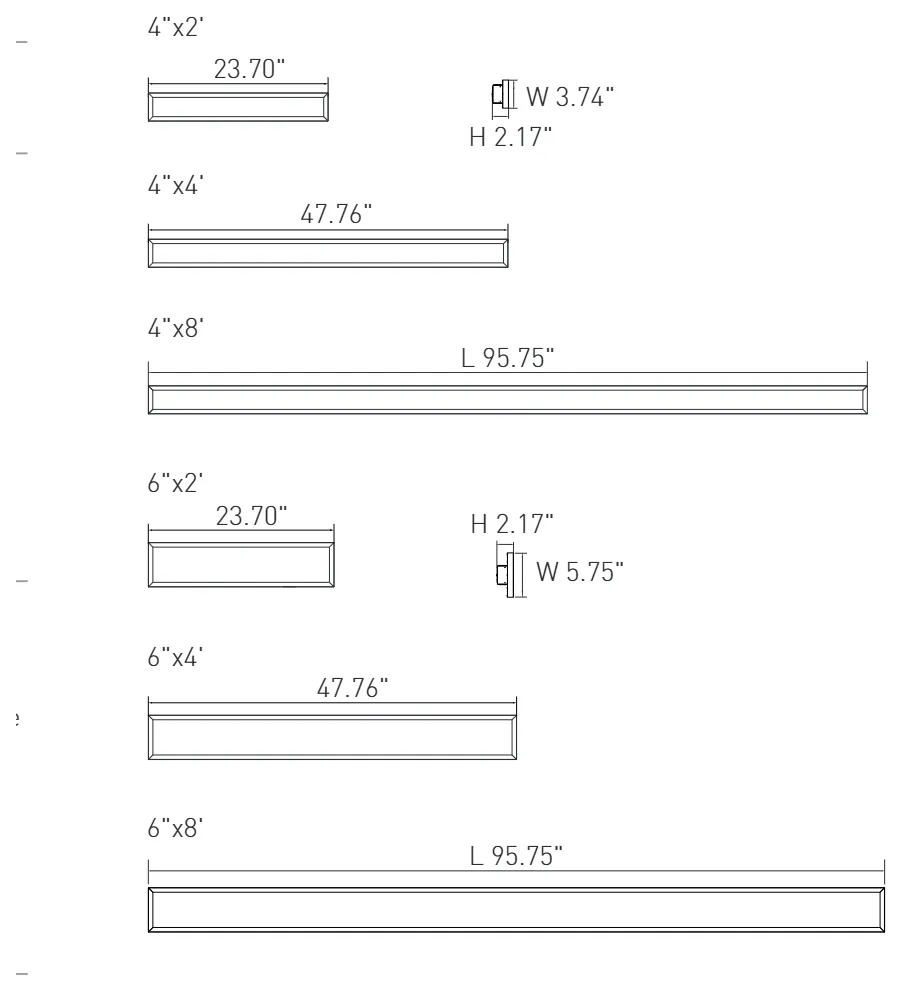

Lengths and section

Dimensions (mm)

Colour temperature

  • 3,000 K
  • 3,500 K
  • 4,000 K

Control

  • 0–10 V
  • Input voltage110–277 V AC
6 lumen packagesShow
20 W1,700 lm85 lm/W4 in × 2 ft · recessed
20 W2,000 lm100 lm/W6 in × 2 ft · recessed
40 W3,600 lm90 lm/W4 in × 4 ft · recessed
40 W4,000 lm100 lm/W6 in × 4 ft · recessed
80 W7,200 lm90 lm/W4 in × 8 ft · recessed
80 W8,000 lm100 lm/W6 in × 8 ft · recessed

Specifications

Construction
HousingExtruded aluminium
Thermal managementHousing acts as the heat sink
ProfileSlim profile: 2.4 cm (0.94 in) deep, integral driver, 10.8 cm (4.25 in) or 14.6 cm (5.75 in) wide; recessed housing: 5.5 cm (2.17 in) deep, remote driver, 9.5 cm (3.74 in) or 14.6 cm (5.75 in) wide
LengthsSlim profile: 2 ft and 4 ft; recessed housing: 2 ft, 4 ft and 8 ft
MountingSlim profile: surface or recessed; surface-mount kit standard (plate with screw holes and four corner hooks); recessed driver box ordered separately, protects the wiring above the ceiling
Location ratingDamp location
Size
  • 014 or 6 in wide × 2.4 cm
    2 or 4 ft
  • 024 or 6 in wide × 5.5 cm
    2, 4 or 8 ft
Optical
CRI80 minimum
Colour temperature3000 K, 3500 K or 4000 K, selectable at the fixture
Optical
Output
  • 011,600–3,800 lm
  • 021,700–8,000 lm
DistributionWide symmetric
Beam angleAbout 110° average in the published photometric reports
Rated life50,000 h minimum, 87.8 % lumen maintenance at 25 °C ambient, per IES LM-80 data
Electrical
Wattage
  • 0120–40 W
  • 0220–80 W
Dimming0–10 V to 10 % standard; dim-to-1 % option on the recessed housing
Input voltage
  • 01110–277 V AC; 110–347 V AC available
  • 02110–277 V AC
THD< 20 %
Power factor> 0.9
DriverElectronic, UL-recognised
EmergencyOptional external 16 W or 25 W LED emergency driver with indicator, field-installed
Warranty5-year limited

Dimensions & weight

ModelLengthWidthHeightWeight
4 in × 2 ft, 24 mm profile60.2 cm10.8 cm2.4 cm—
4 in × 4 ft, 24 mm profile121.3 cm10.8 cm2.4 cm—
6 in × 2 ft, 24 mm profile60.2 cm14.6 cm2.4 cm—
6 in × 4 ft, 24 mm profile121.3 cm14.6 cm2.4 cm—
4 in × 2 ft, recessed60.2 cm9.5 cm5.5 cm—
4 in × 4 ft, recessed121.3 cm9.5 cm5.5 cm—
4 in × 8 ft, recessed243.2 cm9.5 cm5.5 cm—
6 in × 2 ft, recessed60.2 cm14.6 cm5.5 cm—
6 in × 4 ft, recessed121.3 cm14.6 cm5.5 cm—
6 in × 8 ft, recessed243.2 cm14.6 cm5.5 cm—

Ordering information

Part number format

CNX-SLMProduct type
LS1Housing
22Length4+Width
TWT3Colour temperature

Example: CNX-SLM-LS-24-TWT — the first code in each numbered position; pick one code per position below to build your own

1Housing

2Length + Width

Length

Width

Written as one code: 2 + 4 → 24

3Colour temperature

Product options

Mounting (slim profile)

Dimming

Options

Applications

OfficesSchoolsHospitalsCorridorsLight industrial spaces

Certifications

cULus

Marks as printed on the current spec sheet.
