Solar Post Top Light

Solar post-top luminaire up to 200 lm/W, with the solar tube built into the pole and up to 60 h autonomy, available in 15 W and 25 W configurations.

200 lm/Wefficacy

3,000–5,000 lmoutput

30–60 hautonomy

Lumen packages

2 packages · 200 lm/W

15 W3,000 lm1 solar tube, 100 W

25 W5,000 lm2 solar tubes, 2 × 100 W

Generation

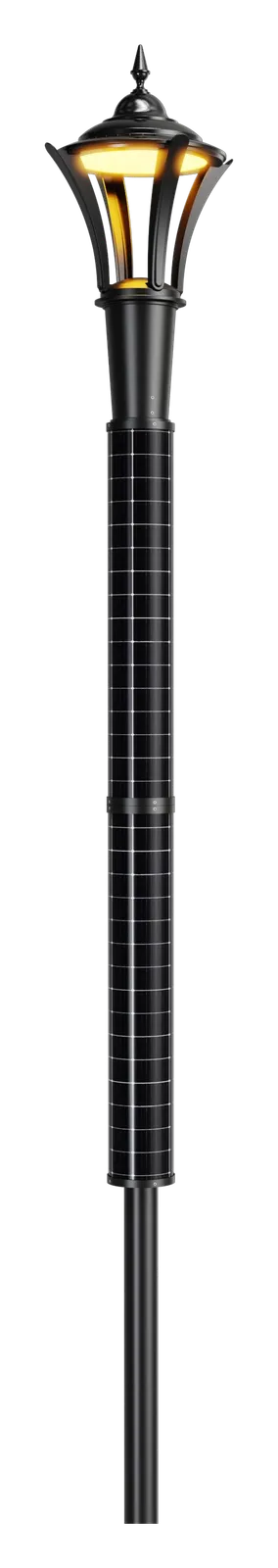

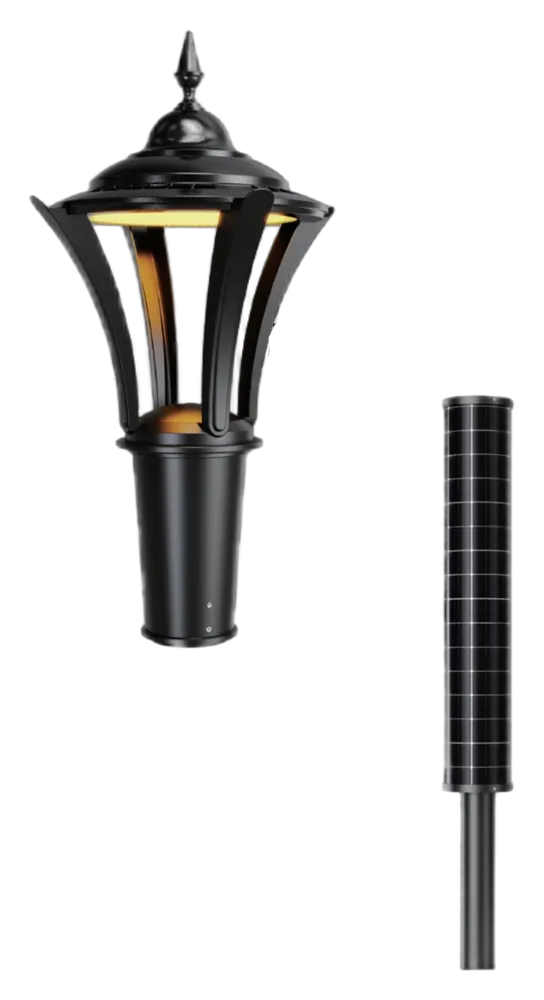

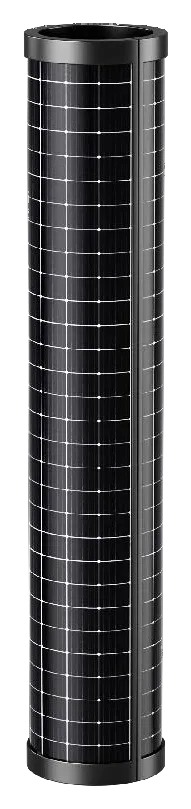

Solar panel	Mono-crystalline solar tube built into the pole, 1,000 mm, 100 W each: 1 tube (15 W model) or 2 tubes (25 W model); cell efficiency above 23 %; panel life over 20 years
Charging time	8–10 h
Energy sources	Solar; optional grid-hybrid input

Storage & control
Battery	LiFePO4, 12.8 V: 24 Ah / 307.2 Wh (15 W model) or 48 Ah / 614.4 Wh (25 W model); replaceable; over 2,000 cycles
Autonomy	30 h (15 W model) or 60 h (25 W model)
Control	Dusk to dawn automatically; output adjusts itself to extend autonomy

Optical
Output	3,000 lm (15 W) or 5,000 lm (25 W)
Efficacy	200 lm/W

Construction

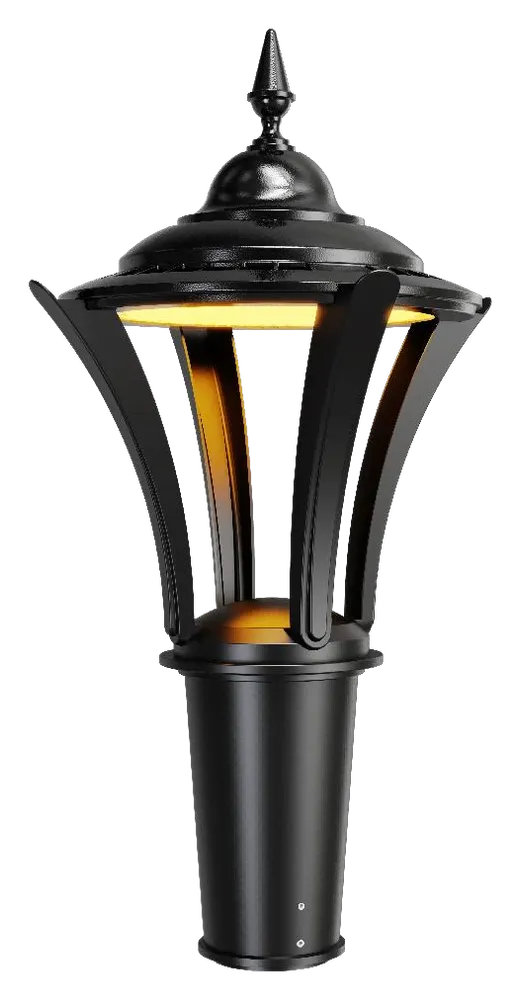

Housing	Die-cast aluminium, powder-coated with an anti-UV finish
Ingress rating	IP65 luminaire; battery IP66; controller IP68
Impact rating	IK08
Operating temperature	−20 to +65 °C
Dimensions	Head 530.7 mm wide × 994.8 mm high; top Ø 451 mm
Warranty	3 years

Part number format

CNX-SPTProduct type

0151Wattage

30402Colour temperature

Example: CNX-SPT-015-3040 — the first code in each numbered position; pick one code per position below to build your own

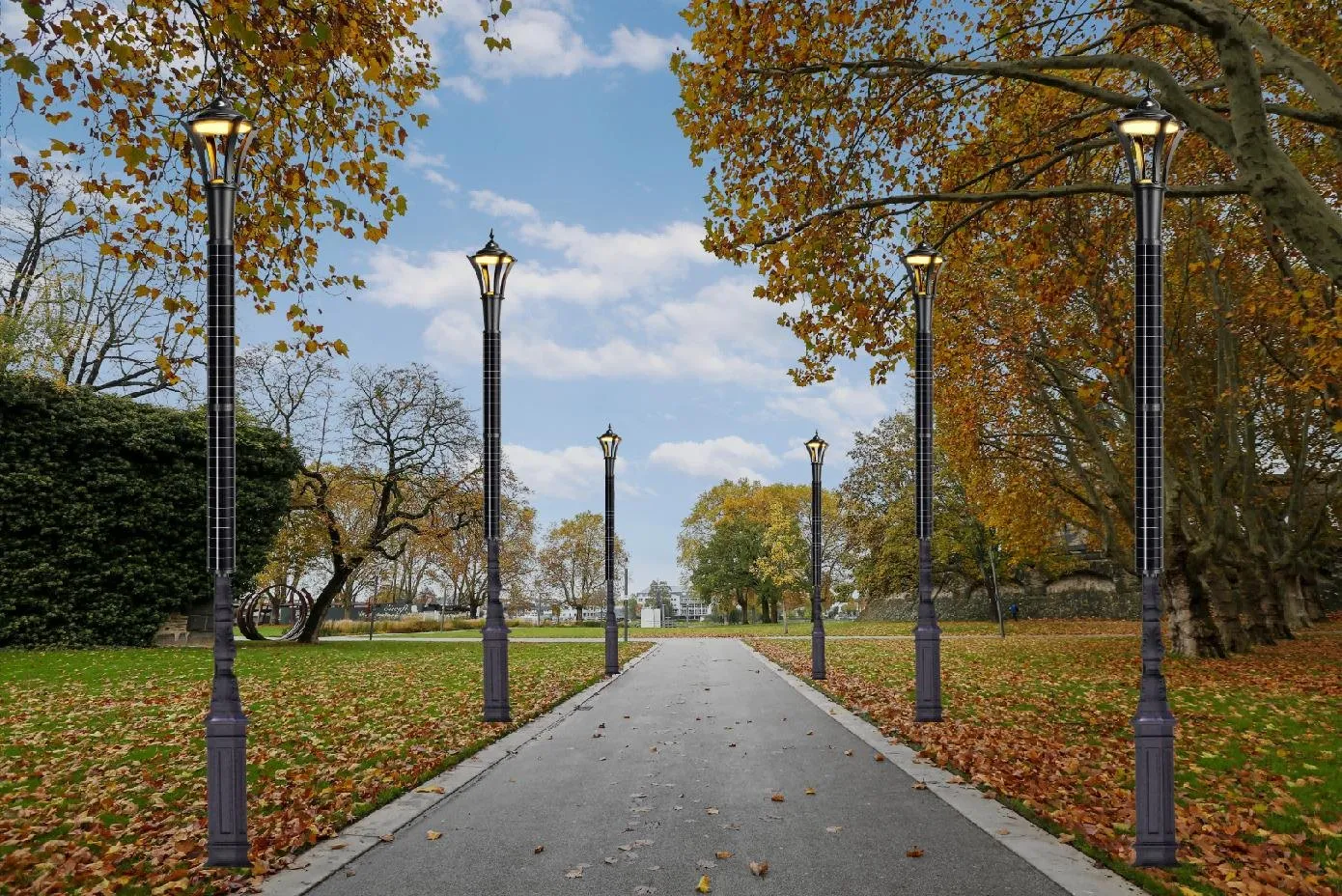

Pedestrian paths and walkwaysParks and gardensPlazas and heritage streetsCampuses and residential groundsOff-grid and remote sites
