T-Grid Linear
T-grid linear module up to 130 lm/W that replaces a cross tee, available in 2 ft and 4 ft modules and 10 W to 20 W configurations.
130 lm/Wmaximum efficacy, 15/16 in grid
120°beam, direct and indirect
61 / 122 cmmodule lengths
Product range
4 lumen packages01
2 or 4 ft module · 10–20 W
One fixture in two sizes: 2 ft module, 4 ft module.
Lengths and section
Colour temperature
- 3,000 K
- 3,500 K
- 4,000 K
Control
- 0–10 V
- ColoursWhite
- Input voltage110–277 V AC
4 lumen packagesShow
10 W1,100 lm110 lm/W2 ft · 9/16 in grid · 3500 K
20 W2,400 lm120 lm/W4 ft · 9/16 in grid · 3500 K
10 W1,300 lm130 lm/W2 ft · 15/16 in grid · 3500 K
20 W2,600 lm130 lm/W4 ft · 15/16 in grid · 3500 K
In use

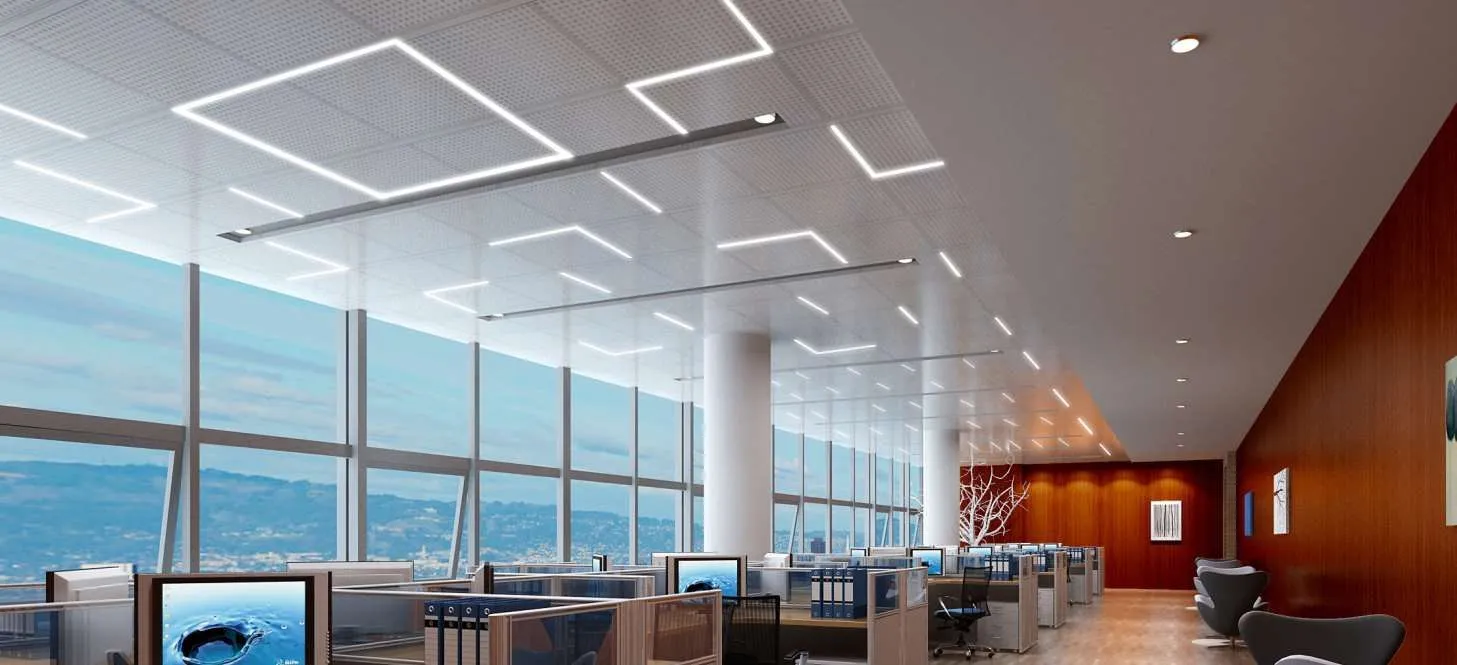

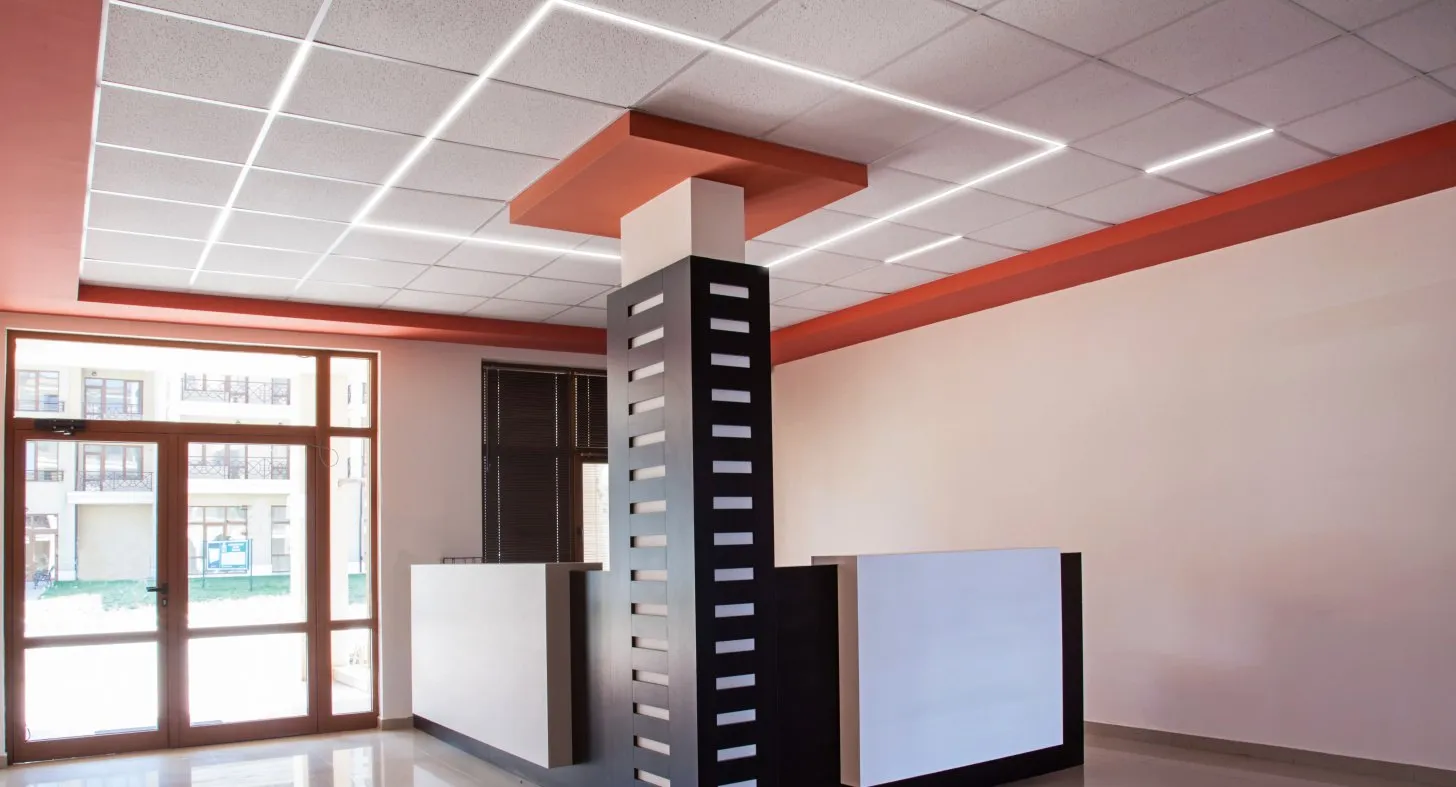

Application examples
Specifications
| Mounting | Replaces a removable 9/16 in or 15/16 in cross tee between the main runners of a suspended grid (one-piece main runners cannot be replaced); separable LED module and T-grid bracket, tool-free; several modules, including different CCTs, on one bracket |
|---|---|
| Lengths | 2 ft and 4 ft modules; bracket length 60.8 and 121.7 cm (23.92 and 47.92 in) |
| Dimensions | Visible face 1.4 cm (0.56 in) wide in 9/16 in grids, 2.4 cm (0.95 in) in 15/16 in grids; remote driver 35.1 × 8.2 × 6.0 cm (13.80 × 3.23 × 2.35 in) |
| Grid types | 9/16 in flat, 9/16 in slot and 15/16 in flat (quick ship); 9/16 in interlude (make to order); clean-room grids |
| Runs | Continuous runs and custom patterns (L, T and others) by replacing any cross tee; one power-feed end per joined run |
| Housing | Aluminium |
| Thermal management | Housing acts as the heat sink |
| Insulation contact | IC rated |
| Location rating | Damp location, cULus listed |
| Optics | Three-sided diffusing optic |
|---|---|
| Distribution | Direct and indirect |
| Beam angle | 120° |
| Output | 550 lm/ft (2 ft) and 600 lm/ft (4 ft) in 9/16 in grids; 650 lm/ft in 15/16 in grids |
| Efficacy | Rated at 3500 K; ±5 % by CCT; refer to IES files for exact data |
| Colour temperature | 3000 K, 3500 K or 4000 K, fixed at order; 5000 K announced for September 2026 |
|---|---|
| CRI | 80 minimum |
| Lumen maintenance | 87.8 % at 50,000 h minimum, 25 °C ambient, per IES LM-80; tested to IES LM-79 and LM-80 |
| Driver | Remote constant-current, cULus recognised: 30 W driver for up to three 2 ft modules, 60 W driver for up to three 4 ft modules; each length only works with its own driver |
|---|---|
| Max run per feed | 8 ft (2.4 m) from module to driver |
| Wiring | 24 AWG with RJ45 terminals; plenum-rated (FT6) cable option; 12 ft (3.7 m) extension cable option |
| Input voltage | 110–277 V AC |
| Dimming | 0–10 V to 10 % (D10, standard) or to 1 % (D01) |
| THD | < 20 % |
| Power factor | > 0.9 |
| Safety | Thermal overload protection shuts the luminaire down above design temperature |
| Emergency | Optional external driver, 16 W or 25 W, field-installed |
| Listings | DLC standard; optional CCEA listing (make to order) |
| Warranty | 5-year limited |

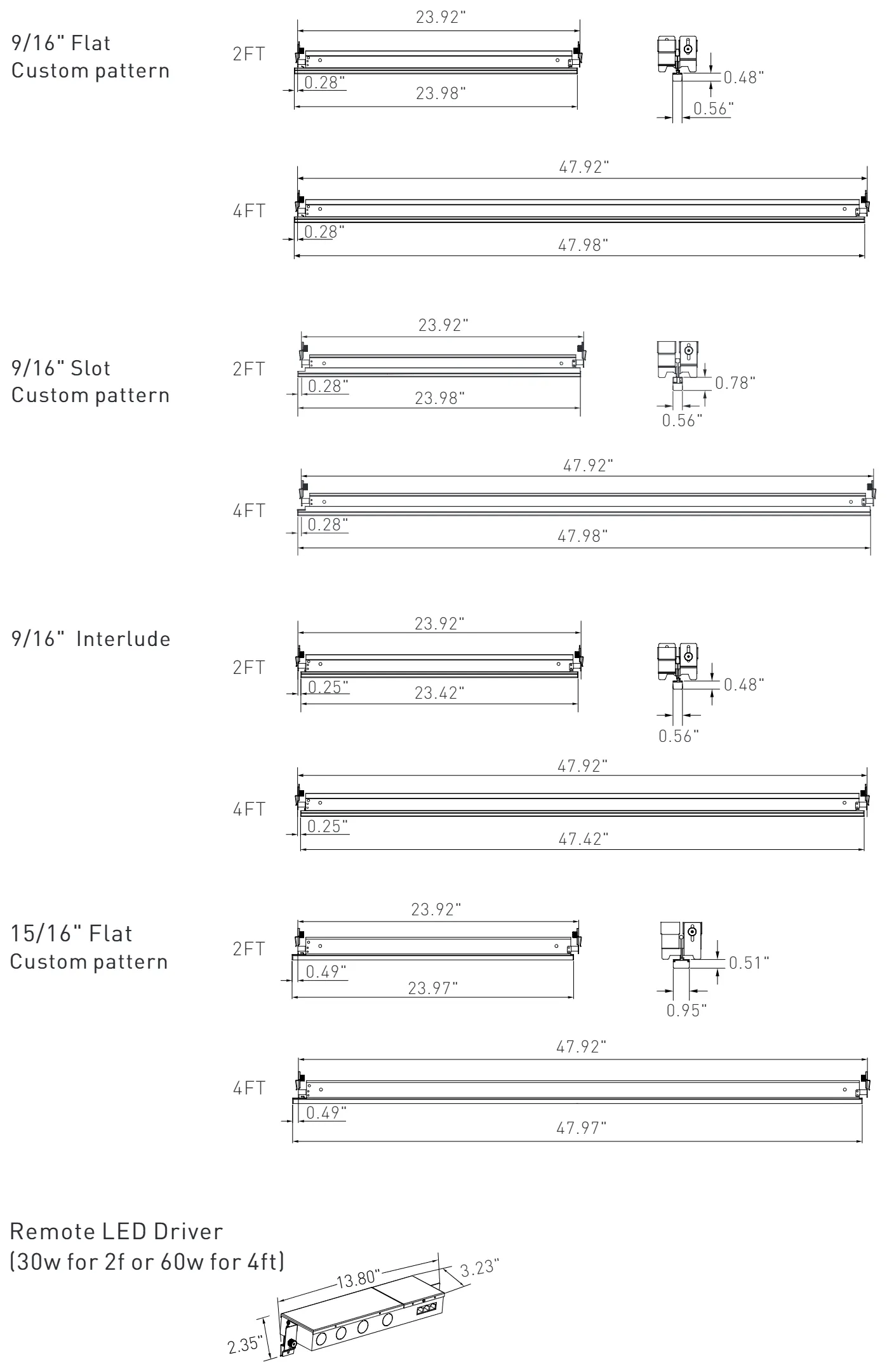

Dimensions & weight
| Model | Length | Width | Height | Weight |
|---|---|---|---|---|
| 2 ft module · 9/16 in grid | 60.8 cm | 1.4 cm | 1.4 cm | — |
| 4 ft module · 9/16 in grid | 121.7 cm | 1.4 cm | 1.4 cm | — |
| 2 ft module · 15/16 in grid | 60.8 cm | 2.4 cm | 2.4 cm | — |
| 4 ft module · 15/16 in grid | 121.7 cm | 2.4 cm | 2.4 cm | — |
Ordering information
Part number format
CNX-TGLProduct type21Length and wattageDM2Dimming303Colour temperatureF+Grid typeExample: CNX-TGL-2-DM-30F — the first code in each numbered position; pick one code per position below to build your own
1Length and wattage
2Dimming
3Colour temperature + Grid type
Colour temperature
Grid type
Written as one code: 30 + F → 30F
Product options
Certifications
cULusDLCCCEA
