Products / CNX-TKL
Trunking Linear
Continuous-run trunking linear up to 170 lm/W with one feed serving up to 290 ft, available in 4 ft and 8 ft modules and 50 W to 140 W configurations.
170 lm/Wmaximum efficacy
10 % / 90 %uplight / downlight, trunking system
UGR < 19low glare, trunking system
Compare the series
2 series01
Trunking systemA 5-wire rail with 4 and 8 ft modules, joiners and end caps, fed up to 290 ft per run; 0–10 V dimming.Power70–140 WOutput10,500–21,000 lmOptics120° flat beam, 10 % up / 90 % downSize4 ft (120.2 cm) and 8 ft (240.3 cm) modulesColoursWhiteInput voltage100–347 V ACOperating temperature−25 to +40 °CRated life50,000 hSee models 02Track-mount linearA 4 ft luminaire that clips onto standard 3-wire single-phase track; no dimming.Power50 WOutput8,500 lmOptics120°Size119.5 × 5.8 × 6.1 cmColoursWhiteInput voltage100–277 V ACOperating temperature−25 to +50 °CRated life50,000 hSee models
Trunking systemA 5-wire rail with 4 and 8 ft modules, joiners and end caps, fed up to 290 ft per run; 0–10 V dimming.Power70–140 WOutput10,500–21,000 lmOptics120° flat beam, 10 % up / 90 % downSize4 ft (120.2 cm) and 8 ft (240.3 cm) modulesColoursWhiteInput voltage100–347 V ACOperating temperature−25 to +40 °CRated life50,000 hSee models 02Track-mount linearA 4 ft luminaire that clips onto standard 3-wire single-phase track; no dimming.Power50 WOutput8,500 lmOptics120°Size119.5 × 5.8 × 6.1 cmColoursWhiteInput voltage100–277 V ACOperating temperature−25 to +50 °CRated life50,000 hSee models Product range
3 lumen packages01
Trunking system
A 5-wire rail with 4 and 8 ft modules, joiners and end caps, fed up to 290 ft per run; 0–10 V dimming.
Lengths and section
Colour temperature
- 3,500 K
- 4,000 K
Control
- 0–10 V
- ColoursWhite
- Input voltage100–347 V AC
- Operating temperature−25 to +40 °C
- Rated life50,000 h
2 lumen packagesShow
70 W10,500 lm150 lm/WTrunking module · 4 ft
140 W21,000 lm150 lm/WTrunking module · 8 ft
02
Track-mount linear
A 4 ft luminaire that clips onto standard 3-wire single-phase track; no dimming.
Lengths and section
Colour temperature
- 3,000 K
- 4,000 K
- 5,000 K
Control
- On/Off
- ColoursWhite
- Input voltage100–277 V AC
- Operating temperature−25 to +50 °C
- Rated life50,000 h
1 lumen packageShow
50 W8,500 lm170 lm/WTrack-mount linear · 4 ft
In use

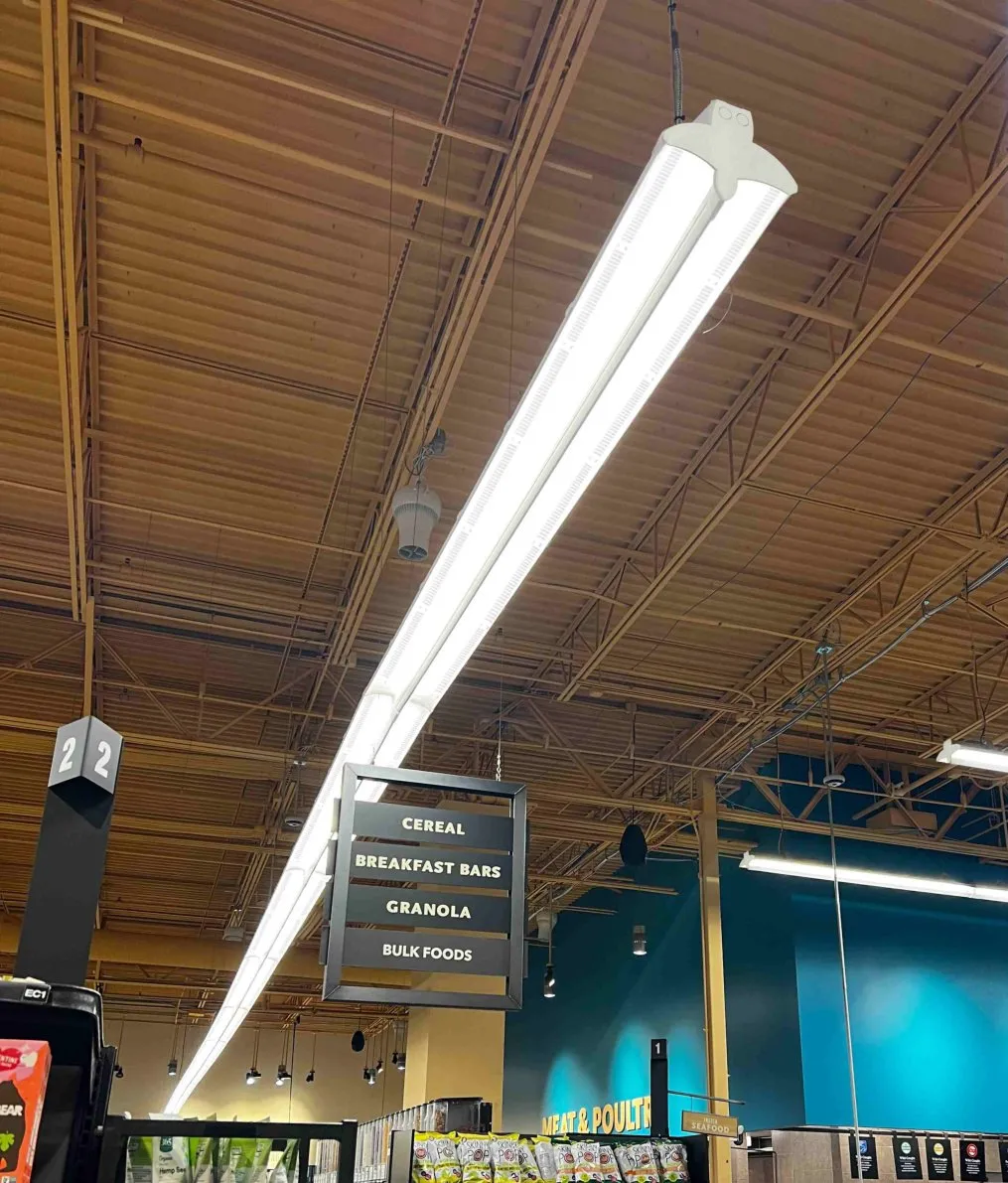

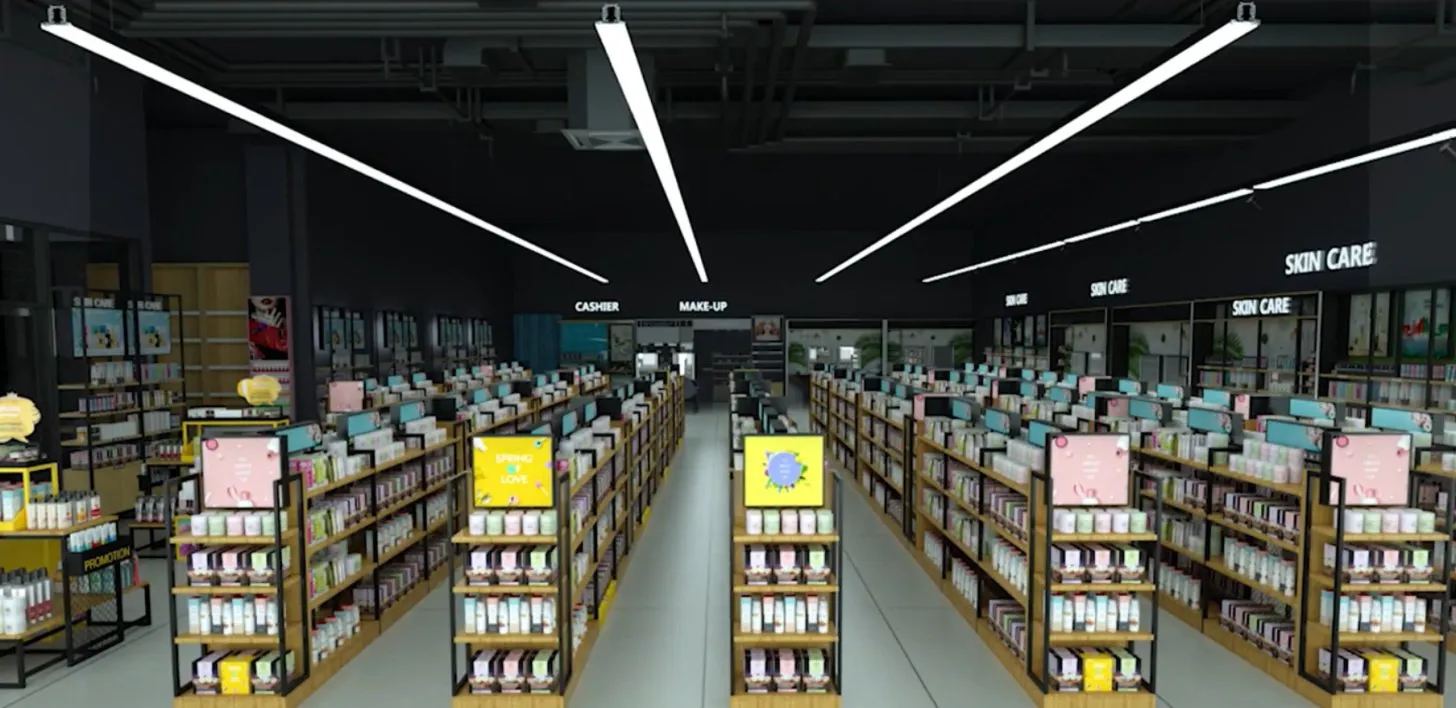

Application examples
Specifications

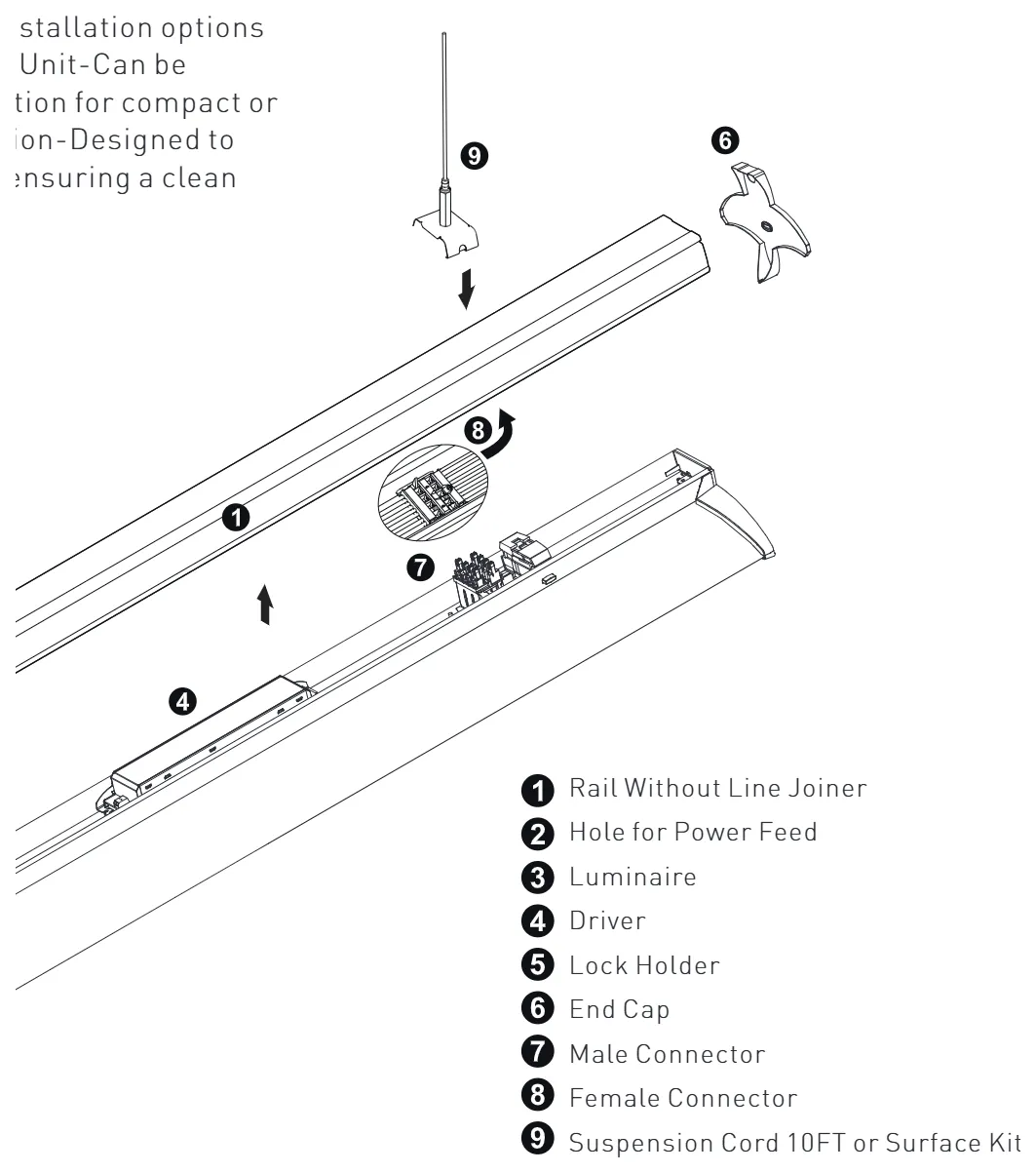

| Rail | Trunking: 5-wire rail with integrated line joiner (first and middle sections) or without (single or end sections), end caps, male/female connectors, power-feed opening, lock holders |
|---|---|

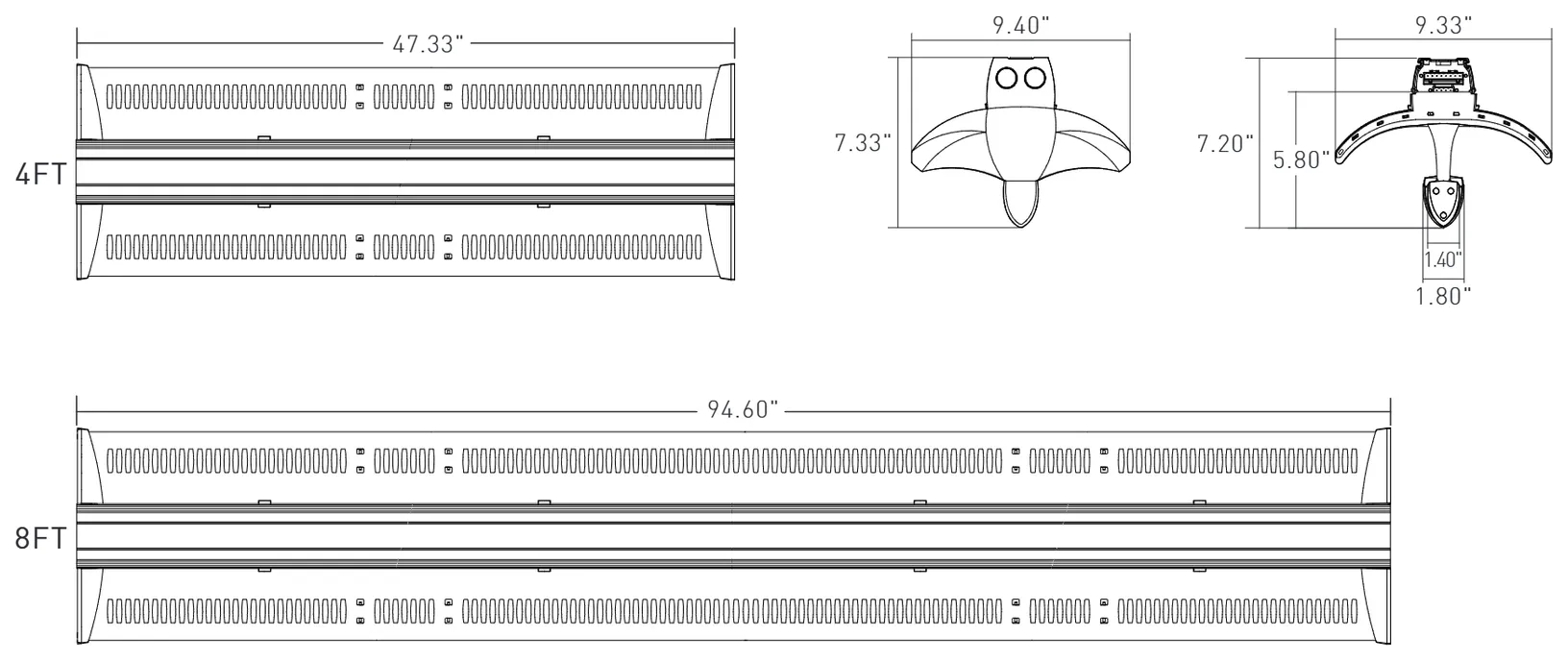

| Lengths | Trunking: 4 ft (120.2 cm) and 8 ft (240.3 cm) luminaire modules, rail with line joiner 135.1 cm and 255.3 cm; Track-mount: 4 ft (119.5 cm) |

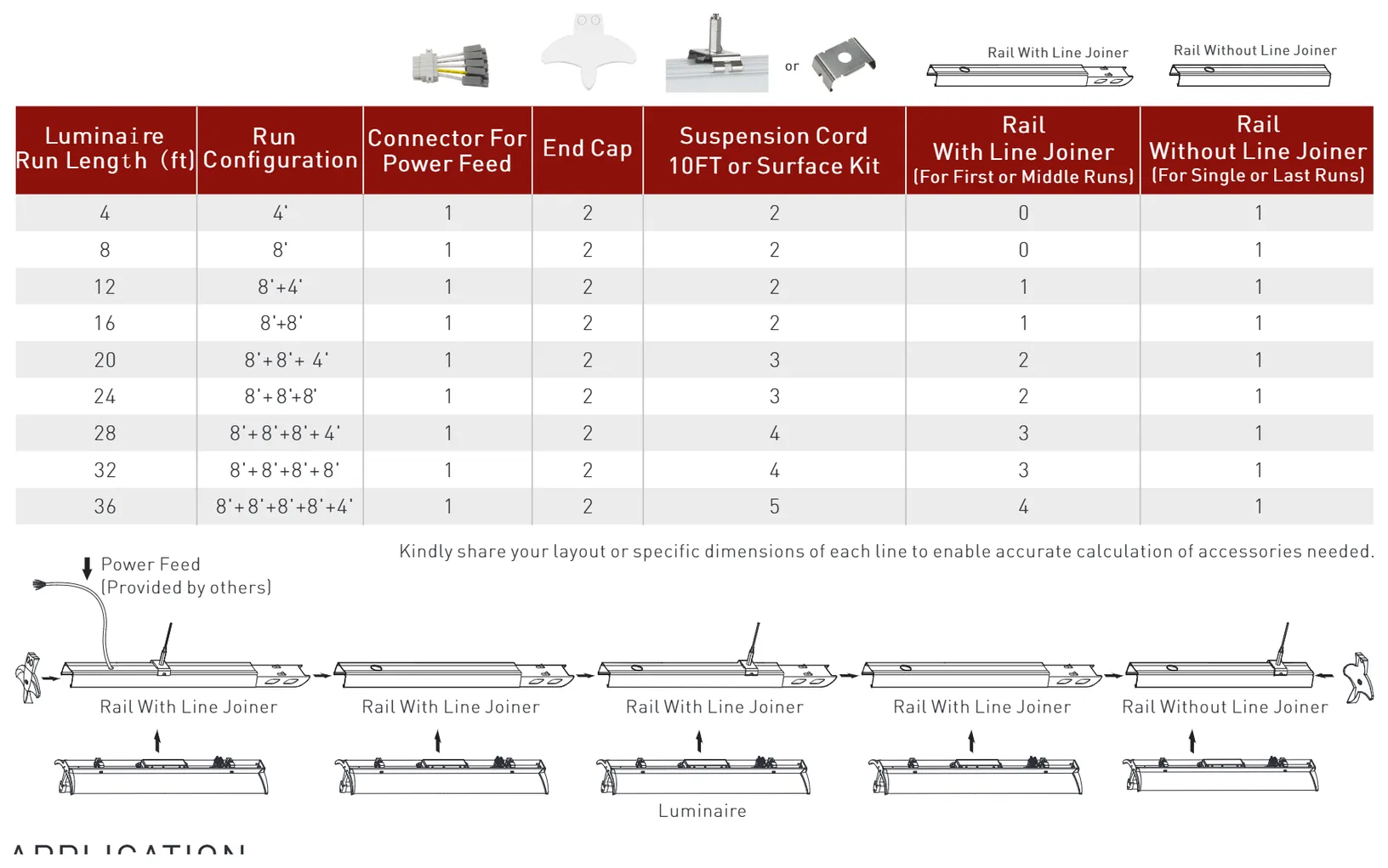

| Runs | Trunking: continuous runs of 4 ft to 36 ft and beyond, built from 8 ft and 4 ft modules; blank rail cover with integral stopper for sections that carry no luminaire |
| Mounting | Trunking: 10 ft suspension cord or surface kit; Track-mount: knob-and-lock fitting without tools onto standard 3-wire single-phase track rail, rail and suspension supplied by others, no reverse mounting |
| Finish | White |
| Size |
|
| Up/down split | Trunking: 10 % uplight to the ceiling / 90 % downlight through a reflective profile |
|---|---|
| Beam angle | Trunking: 120° flat beam; Track-mount: 120° |
| Glare | Trunking: UGR < 19 |
| CRI | 80+, R9 > 0 |
| Colour consistency | SDCM < 3 |
| Colour temperature | Trunking: 3500 K or 4000 K fixed; Track-mount: 3000 K, 4000 K or 5000 K selectable |
| Output |
|
|---|---|
| Efficacy | Trunking: up to 150 lm/W; Track-mount: up to 170 lm/W |
| Rated life | 50,000 h at rated ambient |
| Optics |
|
| Wattage |
|
|---|---|
| Input voltage |
|
| Power factor | Trunking: 0.9; Track-mount: 0.90 |
| THD | Trunking: 15 %; Track-mount: 20 % |
| Dimming | Trunking: 0–10 V, 5–100 %; Track-mount: non-dimming |
| Max run per feed | Trunking: 100 ft at 120 V, 230 ft at 277 V or 290 ft at 347 V; maximum 16 A per feed |
| Flicker | Trunking: Pst LM 1.0, SVM 0.4, flicker percent 5 % |
| Inrush | Track-mount: 30 A at 150 µs |
| Driver | Track-mount: over-voltage, overload and short-circuit protection with automatic restart; 86 % efficiency |
| Surge protection | 2.5 kV line to neutral, 2 kV line/neutral to earth (both formats) |
| Operating temperature |
|
| Warranty | 5-year limited |

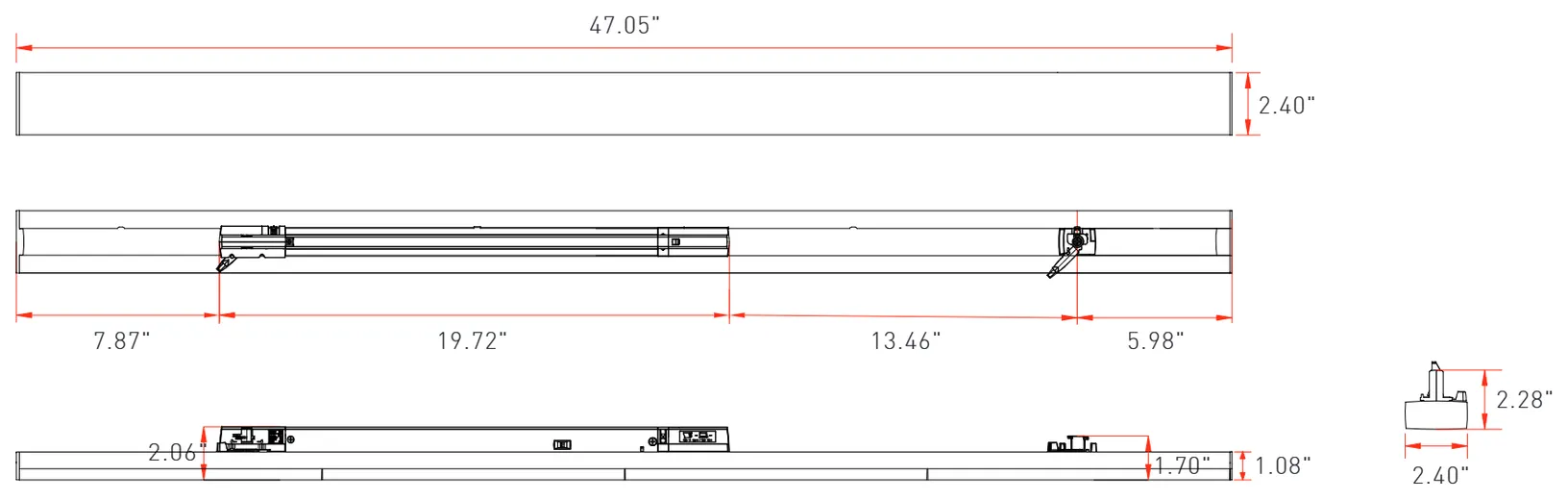

Dimensions & weight
| Model | Length | Width | Height | Weight |
|---|---|---|---|---|
| Track-mount linear, 4 ft | 119.5 cm | 5.8 cm | 6.1 cm | — |
Ordering information
Part number format
CNX-TKLProduct type121Length (trunking)70+Wattage (trunking)352Colour temperature (trunking)FU+Beam (trunking)053Wiring (trunking)WH+Finish104Dimming (trunking)Example: CNX-TKL-1270-35FU-05WH-10 — the first code in each numbered position; pick one code per position below to build your own
1Length (trunking) + Wattage (trunking)
Length (trunking)
Wattage (trunking)
Written as one code: 12 + 70 → 1270
2Colour temperature (trunking) + Beam (trunking)
Colour temperature (trunking)
Beam (trunking)
Written as one code: 35 + FU → 35FU
3Wiring (trunking) + Finish
Wiring (trunking)
Finish
Written as one code: 05 + WH → 05WH
4Dimming (trunking)
Product options
Applications
WarehousesRetailOfficesIndustrialShops and supermarketsCommercial spaces
Certifications
ETL
Marks as printed on the current spec sheet.
