Center Basket Troffer

Center-basket troffer up to 130 lm/W (DLC Premium) with five selectable CCTs, available in 2 × 2 and 2 × 4 ft sizes and 15 W to 50 W configurations.

130 lm/Wmaximum efficacy at 4000 K

5 × 5wattage steps × CCTs selectable at the fixture

3500–6500 Kcolour temperature range

Request a quote Downloads

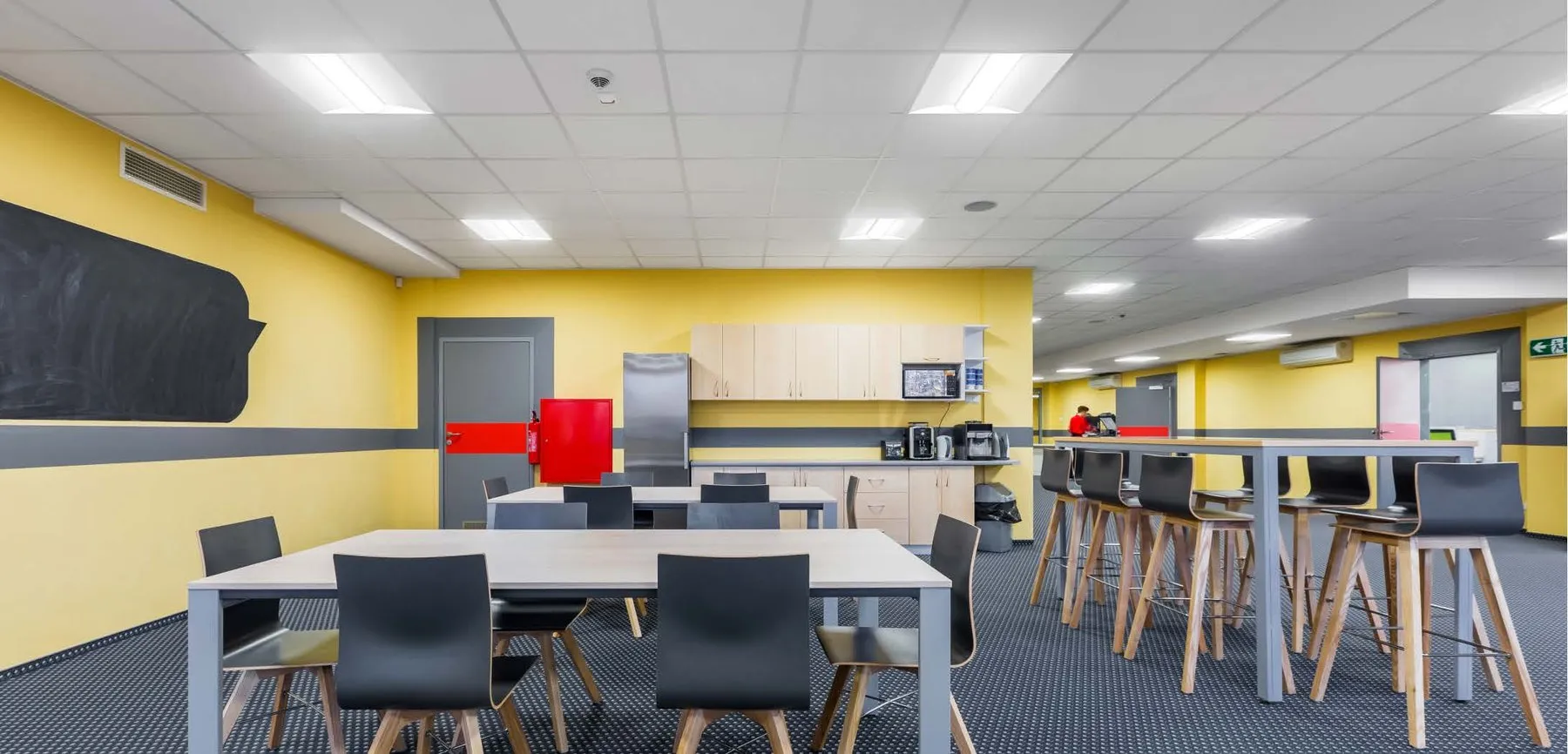

Application example: troffers in a staff room

Product range

10 lumen packages

2 × 2 or 2 × 4 ft · 15–50 W

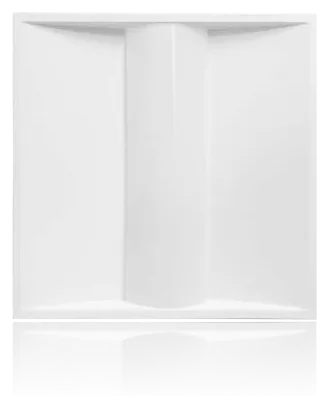

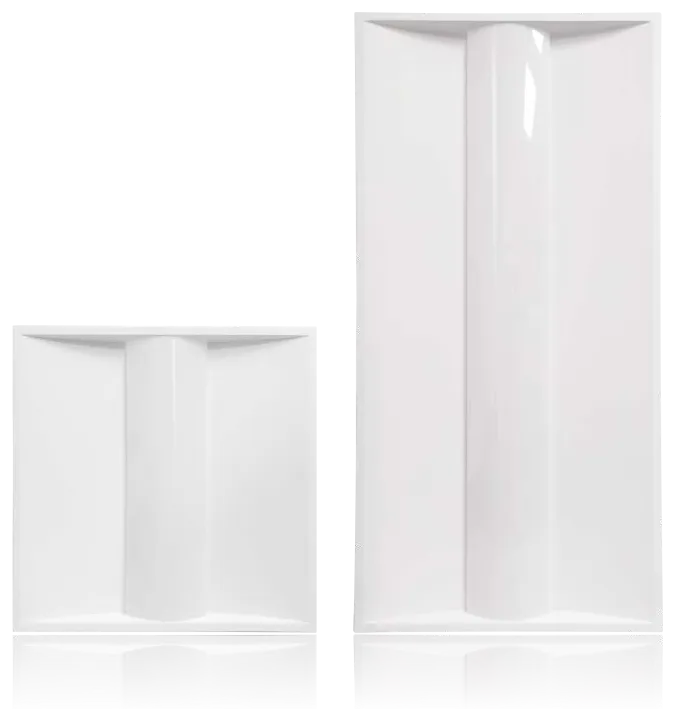

One fixture in two sizes: 2 × 2 ft, 2 × 4 ft.

Sizes

Colour temperature

3,500 K
4,000 K
5,000 K
5,700 K
6,500 K

Control

0–10 V

ColoursWhite
Input voltage120–277 V AC
Operating temperature−20 to +40 °C
Rated life50,000 h min.

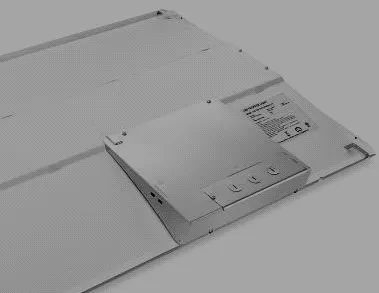

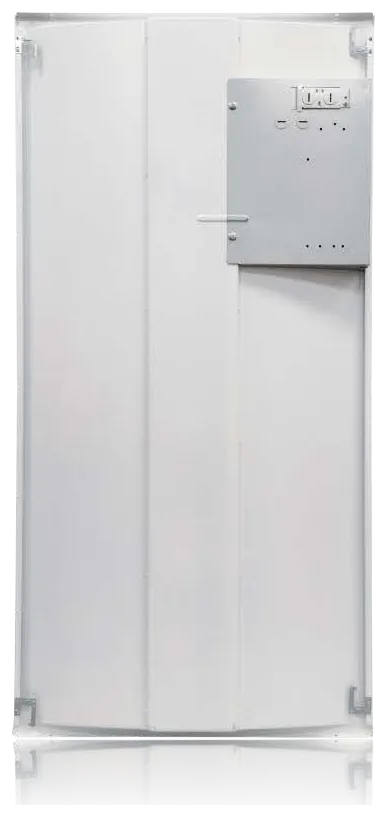

Field-adjustable CCT and lumen package switches

10 lumen packagesShow

15 W1,950 lm130 lm/W2 ft × 2 ft · 4000 K

20 W2,600 lm130 lm/W2 ft × 2 ft · 4000 K

25 W3,250 lm130 lm/W2 ft × 2 ft · 4000 K

30 W3,750 lm125 lm/W2 ft × 2 ft · 4000 K

40 W5,000 lm125 lm/W2 ft × 2 ft · 4000 K

25 W3,250 lm130 lm/W2 ft × 4 ft · 4000 K

30 W3,900 lm130 lm/W2 ft × 4 ft · 4000 K

35 W4,550 lm130 lm/W2 ft × 4 ft · 4000 K

40 W5,000 lm125 lm/W2 ft × 4 ft · 4000 K

50 W6,250 lm125 lm/W2 ft × 4 ft · 4000 K

Specifications

Construction
Sizes	2 × 2 ft and 2 × 4 ft (61 × 61 and 61 × 122 cm nominal)
Housing	One-piece ribbed unitized aluminium, interlocking corners; all edges turned in and hemmed for safe handling
Thermal management	Housing acts as heat sink

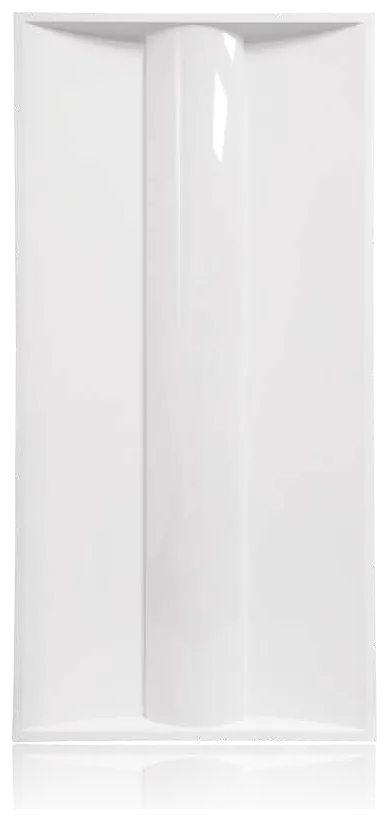

Lens	Centre-basket, back-lit frosted polycarbonate, formulated not to yellow or crack
Mounting	Recessed in inverted T-grid ceilings (most 15/16 in and 9/16 in systems) with standard earthquake clips; verify grid compatibility with the factory
Location rating	Damp location

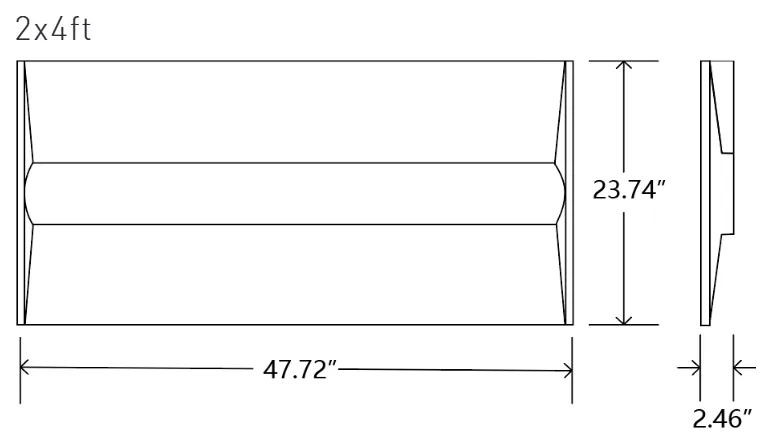

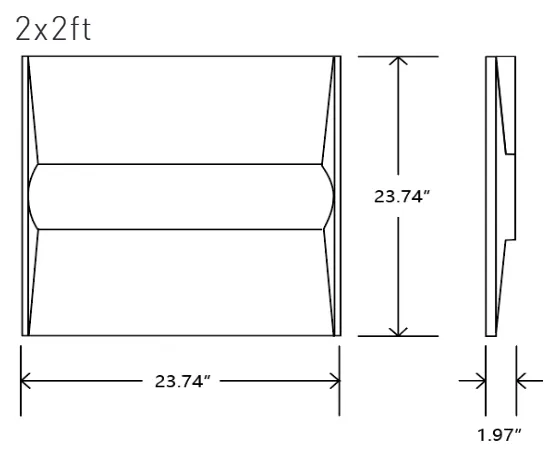

Dimensions	2 × 2 ft 60.3 × 60.3 × 5.0 cm (23.74 × 23.74 × 1.97 in); 2 × 4 ft 121.2 × 60.3 × 6.2 cm (47.72 × 23.74 × 2.46 in)

Optical
Distribution	Volumetric, for wide spacing and uniform illumination of work surfaces
Wattage	Selectable at the fixture: 2 × 2 ft 40 / 30 / 25 / 20 / 15 W; 2 × 4 ft 50 / 40 / 35 / 30 / 25 W

Optical
Output	2 × 2 ft: 5,000 / 3,750 / 3,250 / 2,600 / 1,950 lm (first five rows of the electrical table); 2 × 4 ft: 6,250 / 5,000 / 4,550 / 3,900 / 3,250 lm (last five rows); figures at 4000 K, 80 CRI; efficacy varies ±5 % with CCT and wattage setting, refer to IES files
Colour temperature	Selectable at the fixture, 3500 / 4000 / 5000 / 5700 / 6500 K
CRI	80 minimum
Rated life	Minimum 50,000 h, per IES LM-80
Lumen maintenance	87.8 % at 50,000 h, 25 °C

Electrical
Input voltage	120–277 VAC
Driver	UL recognized
Dimming	0–10 V, to 10 %
Power factor	> 0.9
THD	< 20 %
Operating temperature	−20 °C to +40 °C
Warranty	5 years, limited

Dimensions & weight

Model	Length	Width	Height	Weight
2 × 2 ft	60.3 cm	60.3 cm	5 cm	—
2 × 4 ft	121.2 cm	60.3 cm	6.2 cm	—

Ordering information

Part number format

CNX-TRCProduct type

221Size

M50W2Wattage

CCT3Colour temperature

Example: CNX-TRC-22-M50W-CCT — the first code in each numbered position; pick one code per position below to build your own
