Products / CNX-WPD

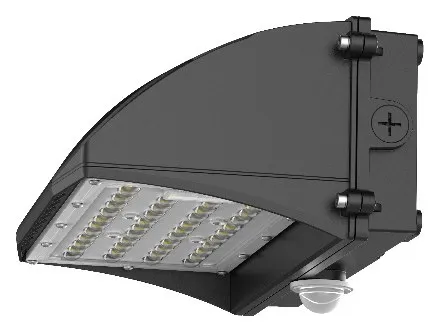

LED Wall Pack
High efficacy up to 140 lm/W and up to 85 % energy savings, available in 30 W to 100 W configurations.
140 lm/Wefficacy
130° × 60°wall-pack distribution
IP65 · IK10sealed and impact rated
Product range
5 lumen packages01
30–50 or 70–100 W housing
One fixture in two sizes: 30–50 W housing, 70–100 W housing.
Beam patterns
- 130°×60°
Sizes and weights
- 30–50 WDimensions L × W × H23.5 × 16.45 × 10.8Weight1.85 kg
- 70–100 WDimensions L × W × H32.35 × 19.35 × 12.8Weight4.5 kg
Colour temperature
- 3,000 K
- 4,000 K
- 5,000 K
Control
- DALI 1–10 V
- ZigBee
- Motion sensor
- Photosensor
- ColoursGrey, black, bronze, silver, custom
- Input voltage120–277 V AC
200–480 V AC - Ingress ratingIP65
- Impact ratingIK10
- Operating temperature−40 to +50 °C
5 lumen packages · 140 lm/WShow
30 W4,200 lm
50 W7,000 lm
70 W9,800 lm
80 W11,200 lm
100 W14,000 lm
Specifications
| Housing | High-grade aluminium |
|---|---|
| Thermal management | High-grade thermal paste between the LED board and the housing |
| Finish | Powder coat; grey, black, bronze, silver or custom |
| Ingress rating | IP65, suitable for outdoor use |
| Impact rating | IK10 |

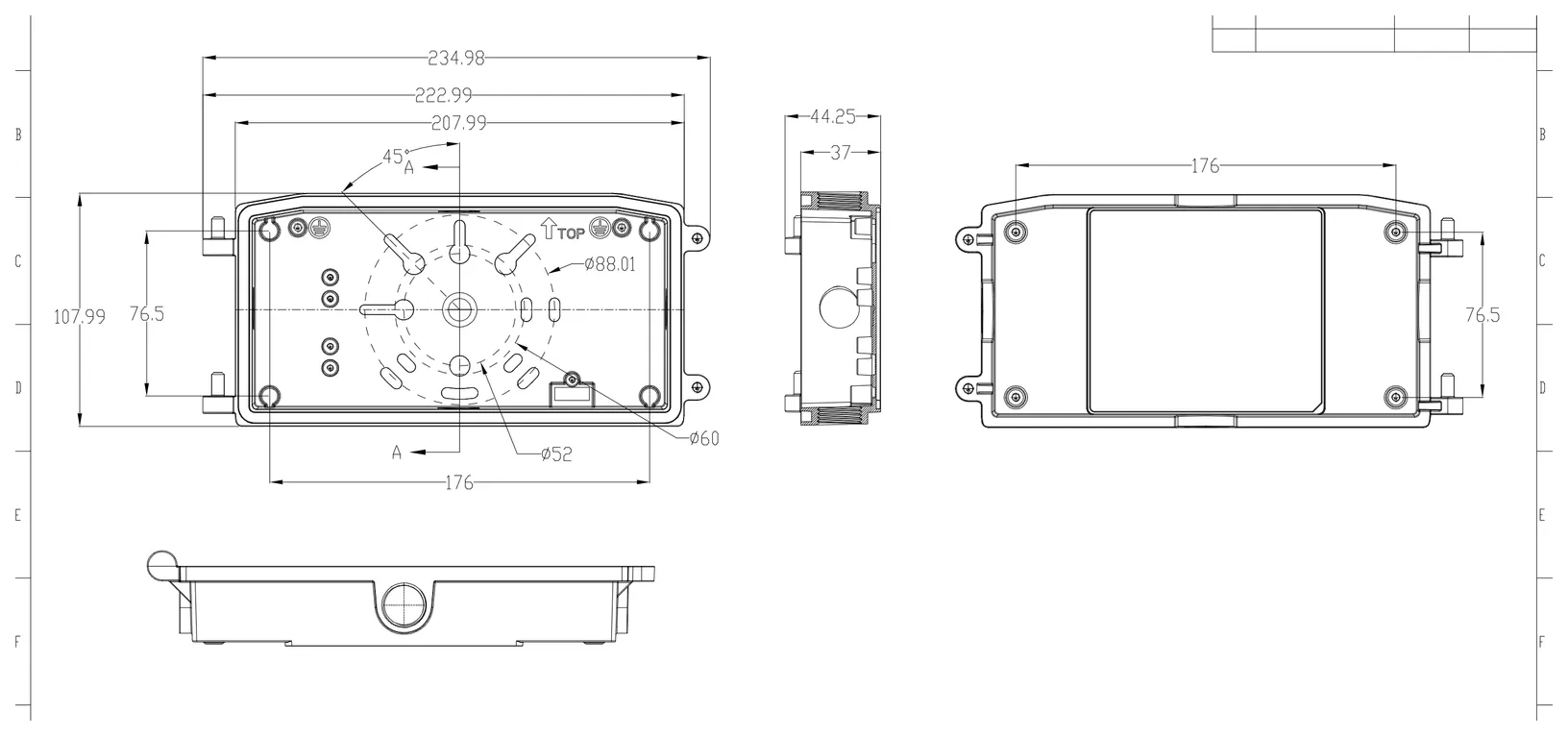

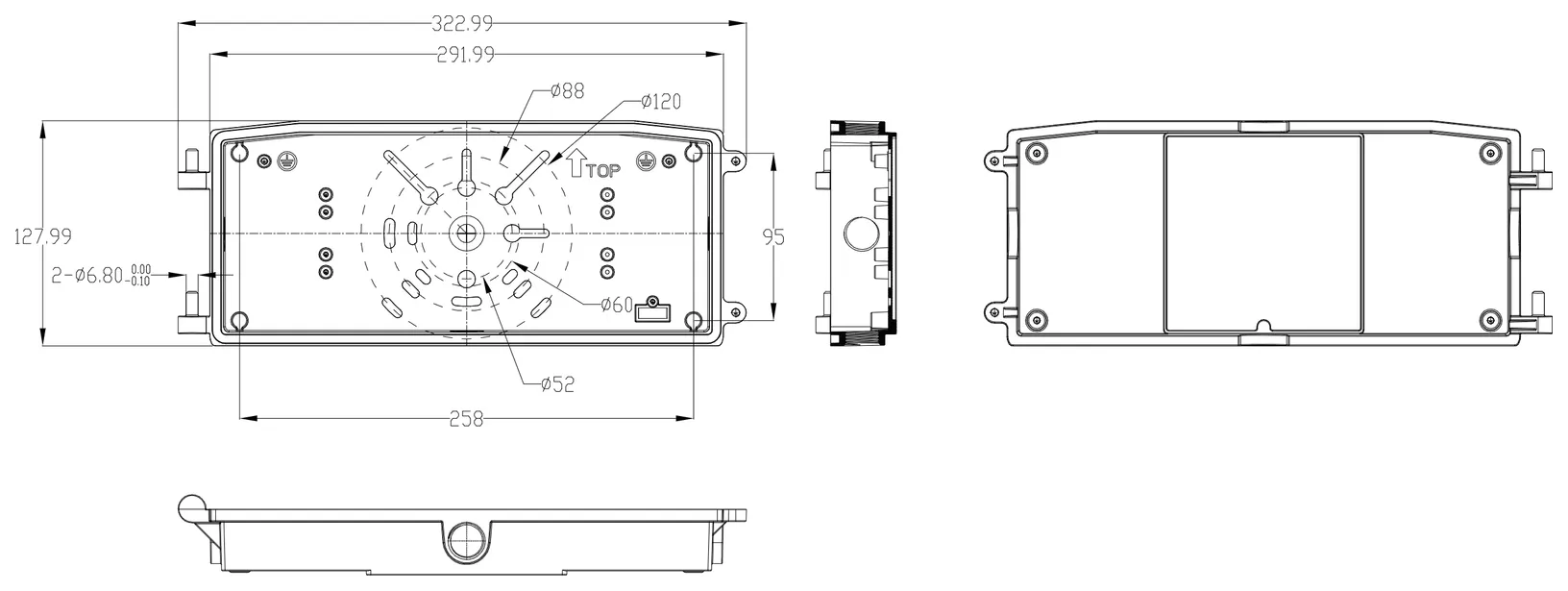

| Dimensions | 23.5 × 16.45 × 10.8 cm (30–50 W); 32.35 × 19.35 × 12.8 cm (70–100 W) |
| Weight | 1.85 kg (30–50 W); 4.5 kg (70–100 W) |

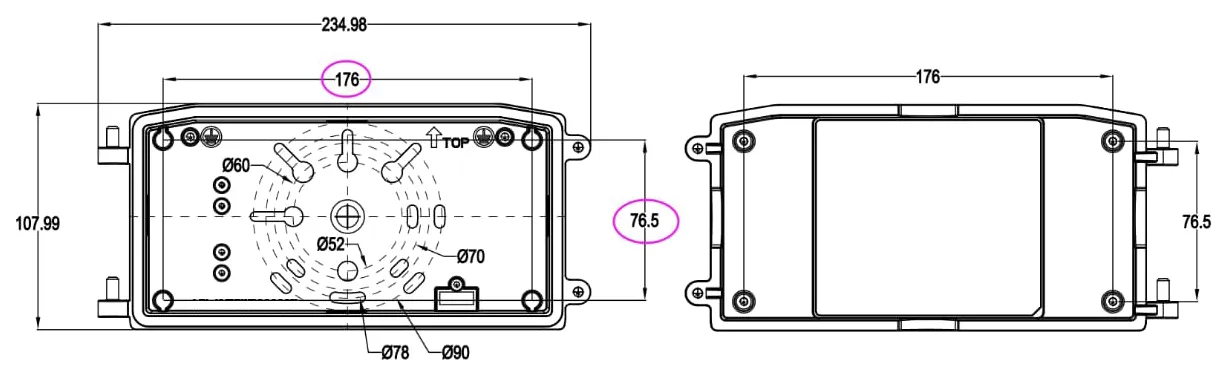

| Mounting | Wall, on the mounting plate: J-box or ½ in conduit; optional external 7-pin receptacle |
| Distribution | 130° × 60° |
|---|
| CRI | > 80 |
|---|---|
| Colour temperature | 3000 K, 4000 K or 5000 K |
| Options | Button or swivel photosensor |
| Input voltage | 120–277 V AC or 200–480 V AC, 50/60 Hz |
|---|---|
| Power factor | 0.9 at full load |
| THD | < 20 % |
| Operating temperature | −40 to +50 °C |
| Surge protection | 6 kV built in; 10 kV/10 kA or 20 kV/20 kA optional (20 kV on 200–480 V only) |
| Switching cycles | 100,000 |
| Control | 1–10 V DALI, ZigBee, motion sensor, photosensor |

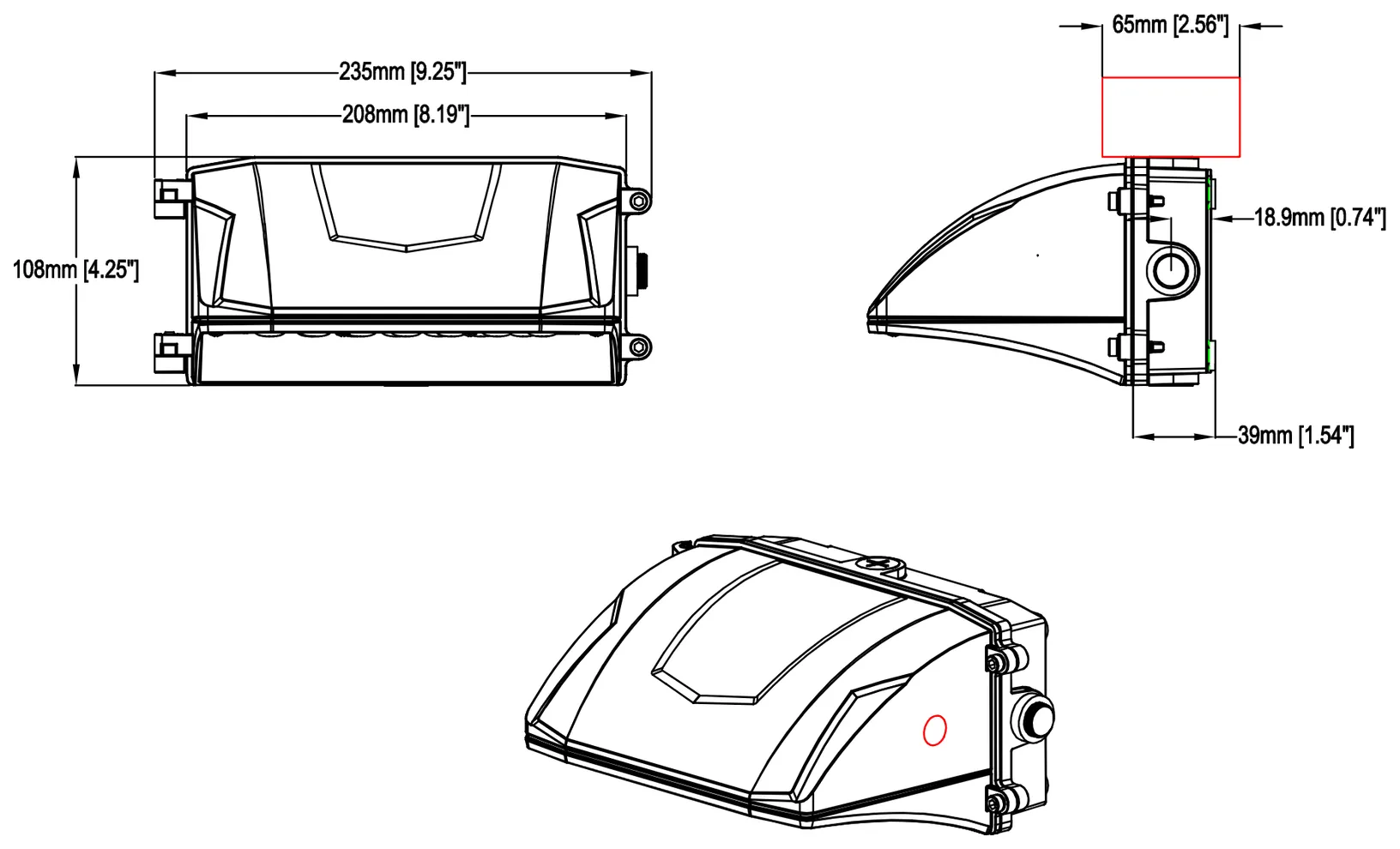

Dimensions & weight
| Model | Length | Width | Height | Weight |
|---|---|---|---|---|
| WPD-030-050 | 23.5 cm | 16.45 cm | 10.8 cm | 1.85 kg |
| WPD-070-100 | 32.35 cm | 19.35 cm | 12.8 cm | 4.5 kg |
Ordering information
Part number format
CNX-WPDProduct type301Colour temperature130602Optic0303WattageGRY4Fixture colourP15Input voltageDAL6Control10K7Surge protectionExample: CNX-WPD-30-13060-030-GRY-P1-DAL-10K — the first code in each numbered position; pick one code per position below to build your own
1Colour temperature
2Optic
3Wattage
4Fixture colour
5Input voltage
6Control
7Surge protection
Applications
ParkingEducationHealth careCommercialAutomotivePortsSports facilitiesService centres
Certifications
ETL (Intertek)CERoHSFCCISO 9001 (SGS)DLC
Marks as printed on the current spec sheet.
