LED Exterior Linear Lights

Slim exterior linear luminaires in white and RGBW, diffused or lensed, IP66, in 20 mm to 50 mm profiles, available in 6 W to 36 W configurations.

20–50 mmprofile widths
15°–150°lensed or diffused
IP66every series
Request a quoteDownloads

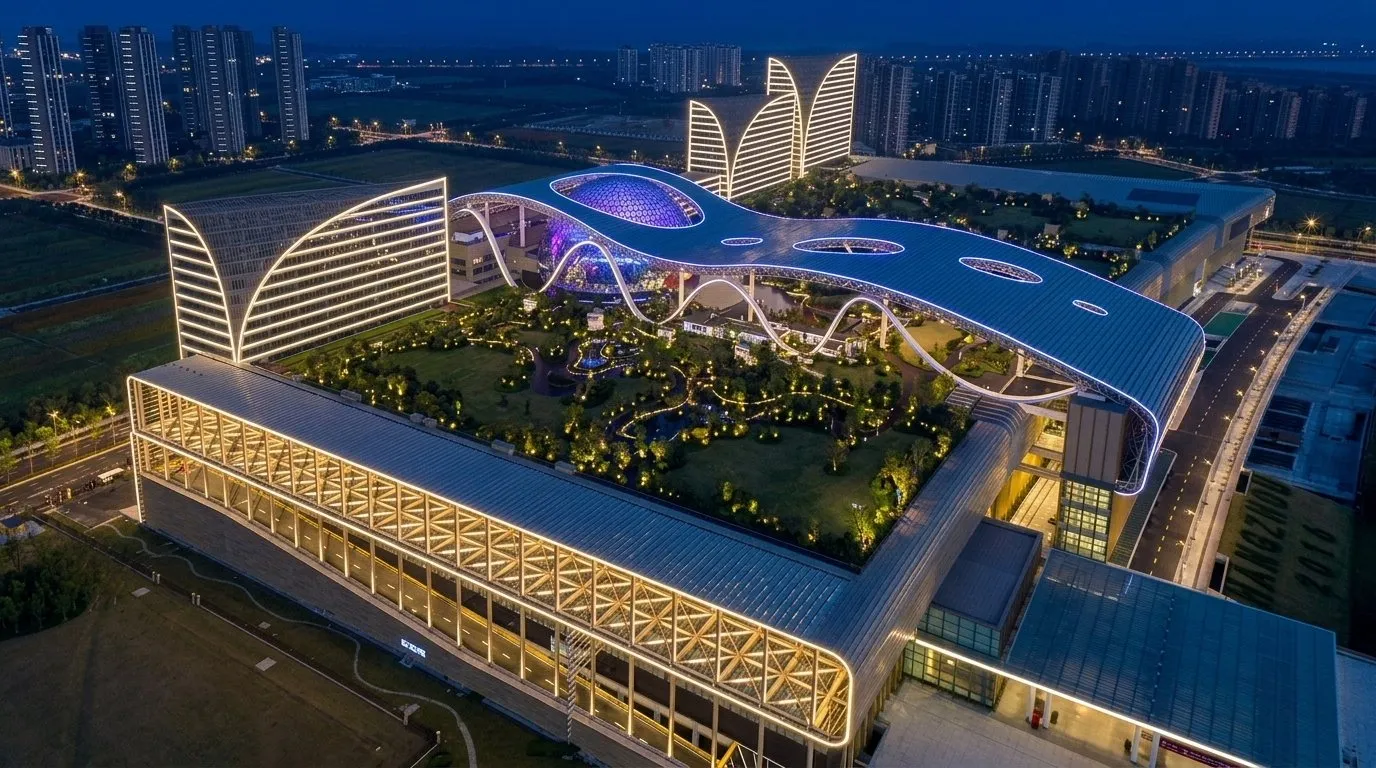

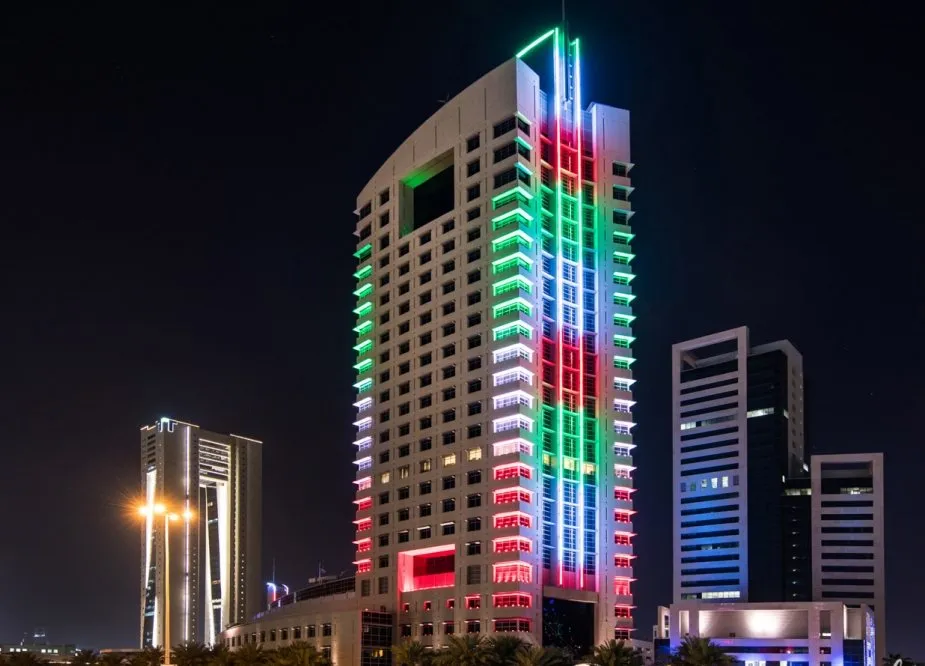

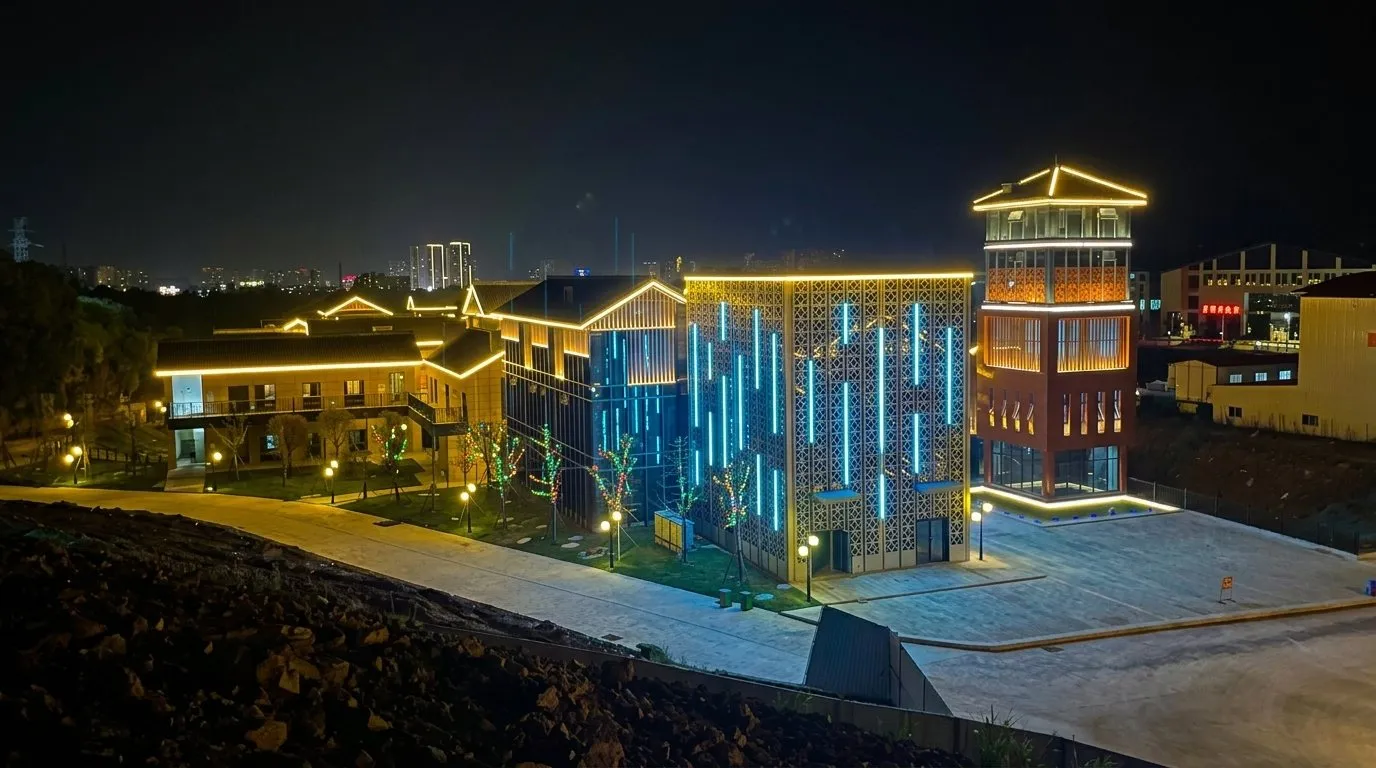

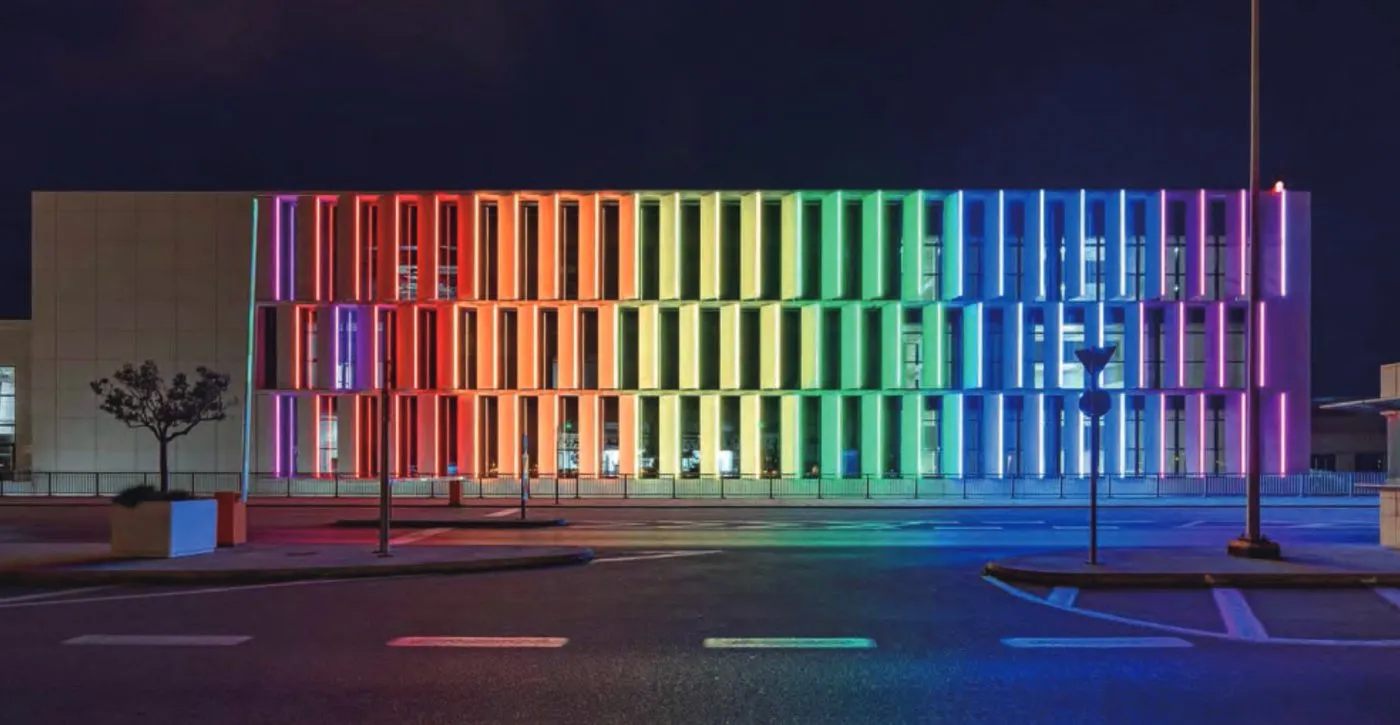

Application example: façade lines in colour

Compare the series

7 series
20 mm profile, diffusedThe thinnest: a 20 mm diffused line for slots and edges.Power6–16 WWhite output320–865 lmColoursWhite, RGBWLengths502–1,220 mm, four lengthsOptics150°Input voltage24
48 V DCIngress ratingIP66Impact ratingIK10Operating temperature−20 to +45 °CRated life50,000 hSee models 20 mm profile, lensedThe 20 mm profile with lenses, for grazing from a slot.Power6–16 WWhite output365–975 lmColoursWhite, RGBWLengths502–1,220 mm, four lengthsOptics30°, 60°, 120°Input voltage24
48 V DCIngress ratingIP66Impact ratingIK10Operating temperature−20 to +45 °CRated life50,000 hSee models 30 mm profile, diffusedAn even 150° line of light, snap-fit mounting.Power6–28 WWhite output150–700 lmColoursWhite, RGBWLengths313–1,220 mm, three lengthsOptics150°Input voltage24 V DC
100–277 V ACIngress ratingIP66Impact ratingIK06Operating temperature−20 to +45 °CRated life50,000 hSee models 30 mm profile, lensedLensed, tempered glass: for grazing and accent lines.Power6–24 WWhite output270–1,080 lmColoursWhite, RGBWLengths313–1,220 mm, three lengthsOptics15°, 30°, 45°, 60°, 20° × 40°, 30° × 40°Input voltage24 V DC
100–277 V ACIngress ratingIP66Impact ratingIK06Operating temperature−20 to +45 °CRated life50,000 hSee models 30 mm profile, lensed, concealed cableThe lensed 30 mm profile with its cable hidden in the body.Power6–21 WWhite output270–945 lmColoursWhite, RGBWLengths313–1,220 mm, three lengthsOptics15°, 30°, 45°, 60°, 20° × 40°, 30° × 40°Input voltage24 V DCIngress ratingIP66Impact ratingIK06Operating temperature−20 to +45 °CRated life50,000 hSee models 40 mm profile, high outputThe most output: a lensed line for façades and tall surfaces.Power8–30 WWhite output700–2,600 lmColoursWhite, RGBWLengths320–1,220 mm, three lengthsOptics15°, 25°, 35°, 20° × 40°Input voltage24 V DC
100–277 V ACIngress ratingIP66Impact ratingIK06Operating temperature−20 to +45 °CRated life50,000 hSee models Round diffuser, Ø 50 mmA round diffuser: a glowing tube, seamless end to end.Power7–36 WWhite output350–1,600 lmColoursWhite, RGBWLengths315–1,222 mm, three lengthsOptics150°Input voltage24 V DC
100–277 V ACIngress ratingIP66Impact ratingIK08Operating temperature−20 to +45 °CRated life50,000 hSee models

Product range

64 models

20 mm profile, diffused

The thinnest: a 20 mm diffused line for slots and edges.

20 mm profile, diffused

Beam patterns

  • 150°

Lengths, section and weights

  • L5Weight0.55 kg
  • L6Weight0.63 kg
  • L10Weight0.93 kg
  • L12Weight1.05 kg

Colour temperature

  • 2,200 K
  • 3,000 K
  • 4,000 K
  • 6,000 K
  • Tunable white

Control

  • DMX512 / RDM
  • SPI
  • Tunable white
  • DALI 2.0
  • ColoursWhite, RGBW
  • Input voltage24
    48 V DC
  • Ingress ratingIP66
  • Impact ratingIK10
  • Operating temperature−20 to +45 °C
  • Rated life50,000 h
Dimensions (mm)

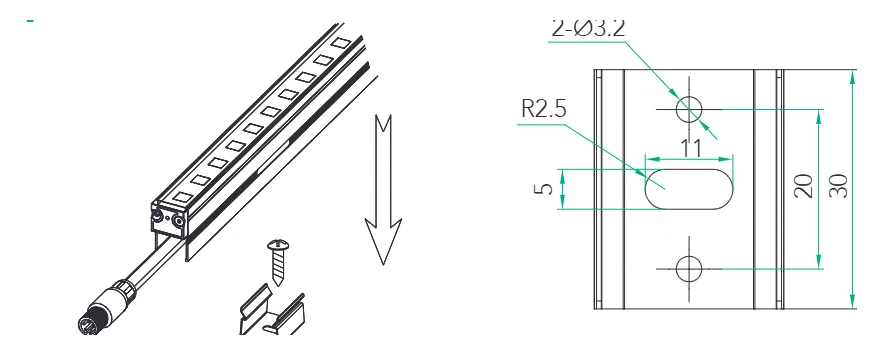

Mounting

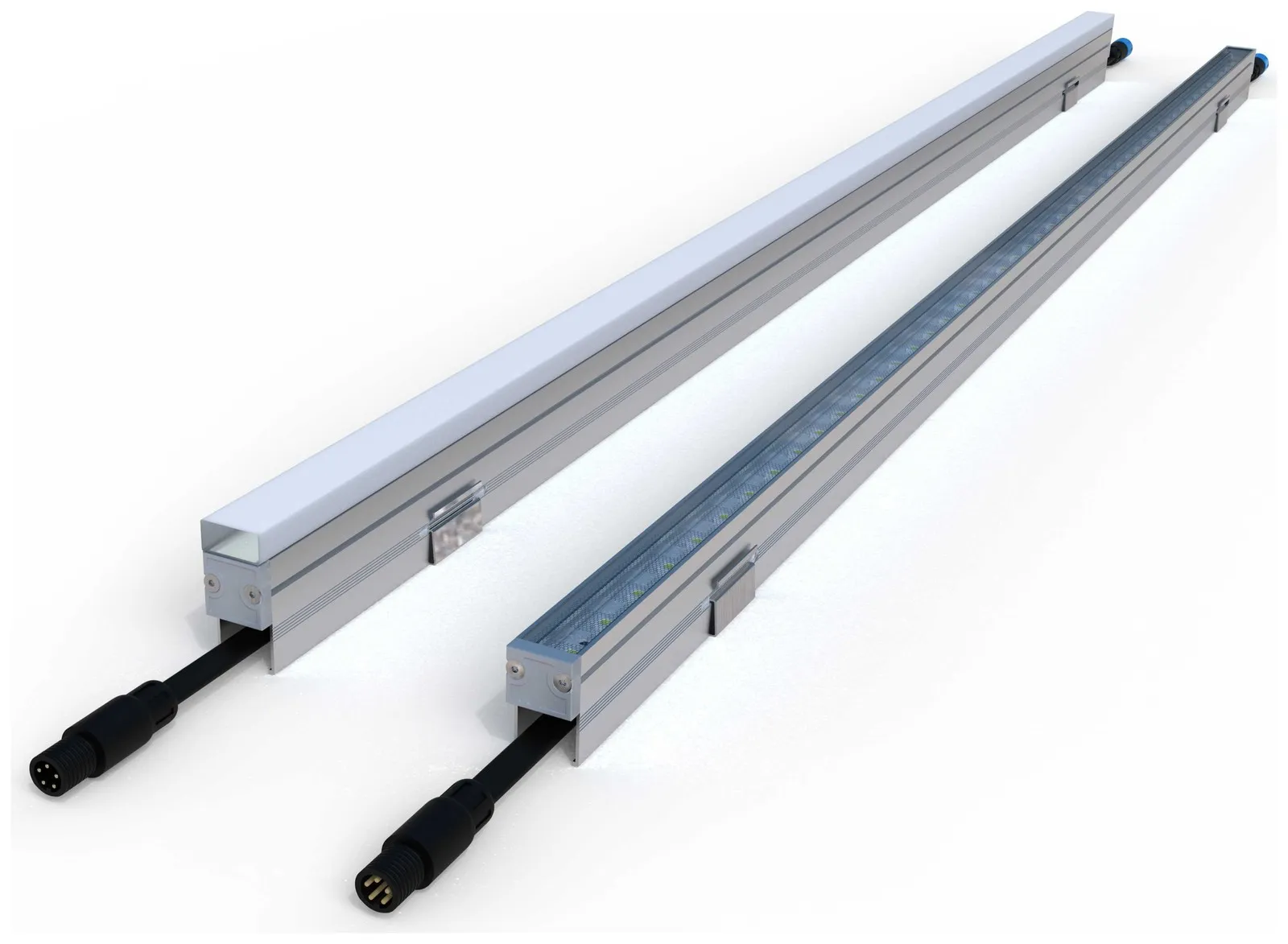

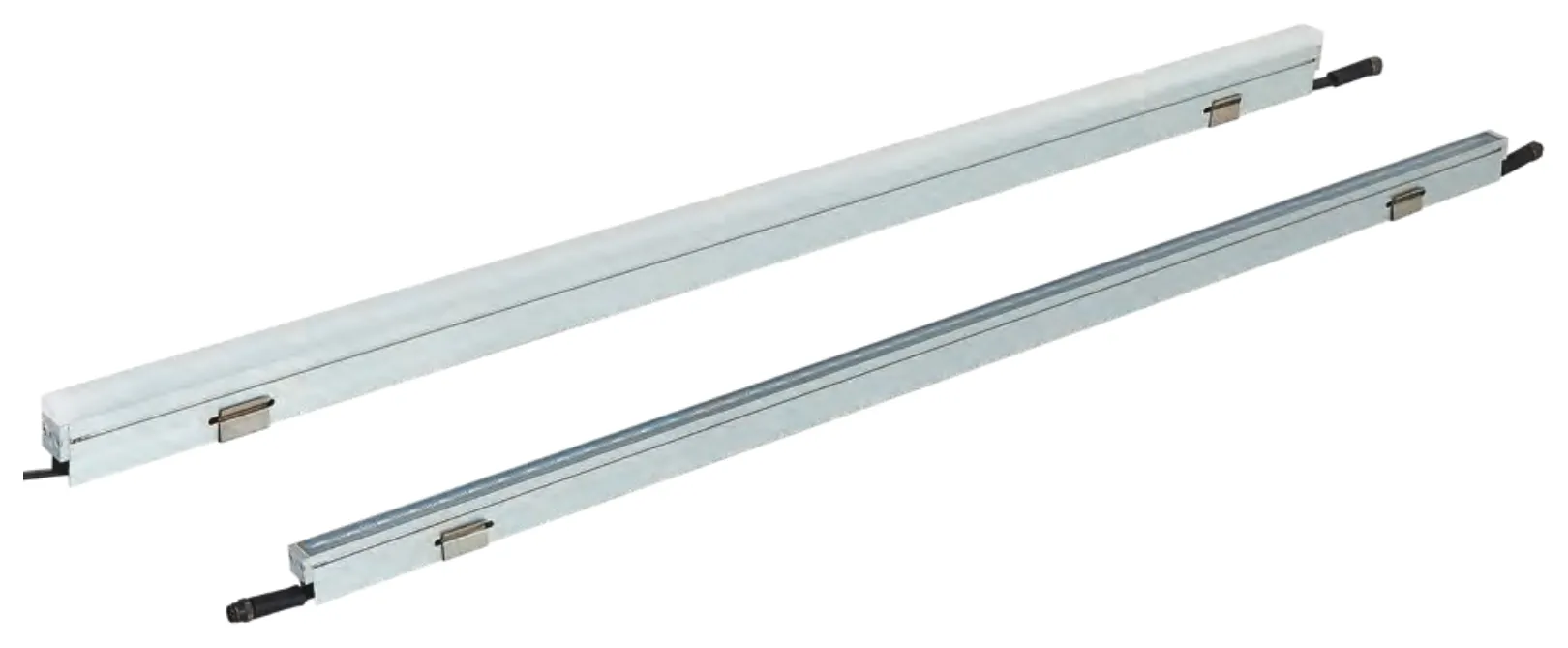

20 mm profile, diffused and lensed
20 mm profile, diffused and lensed

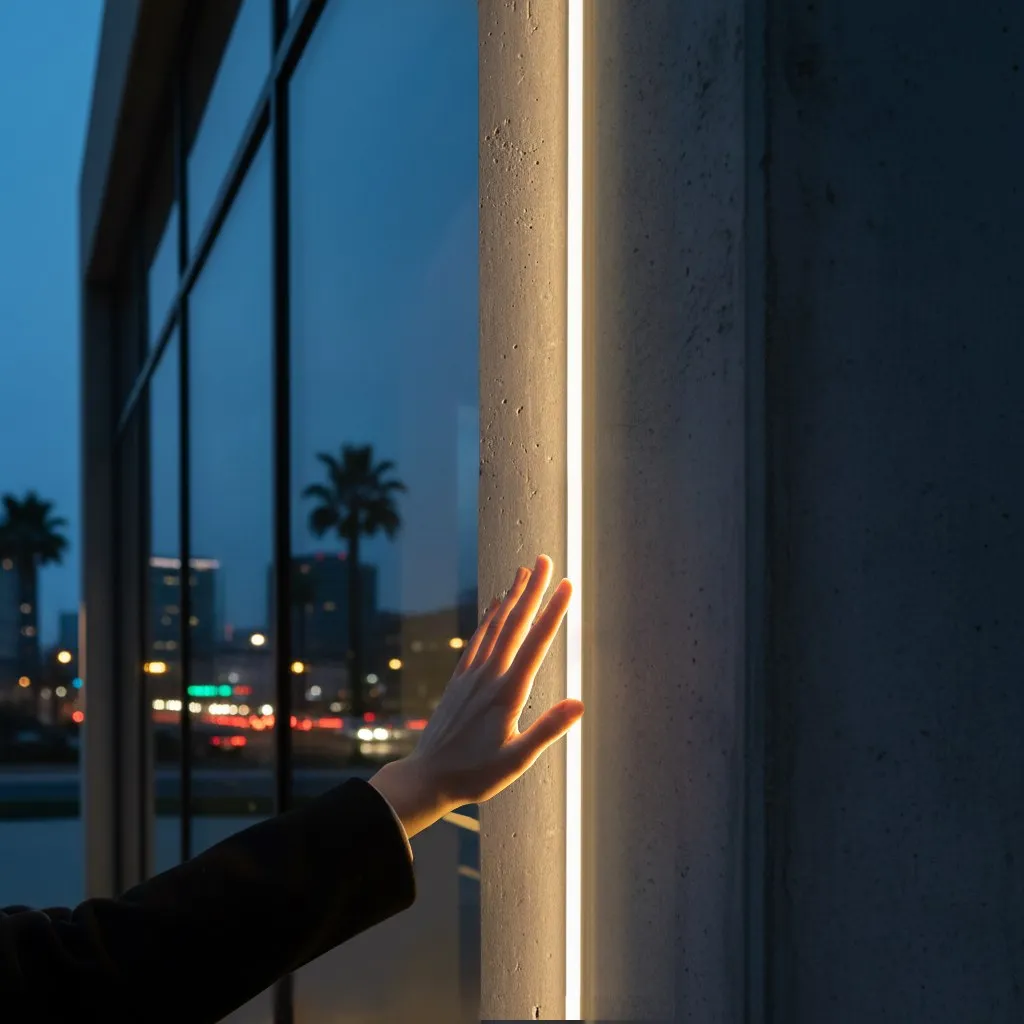

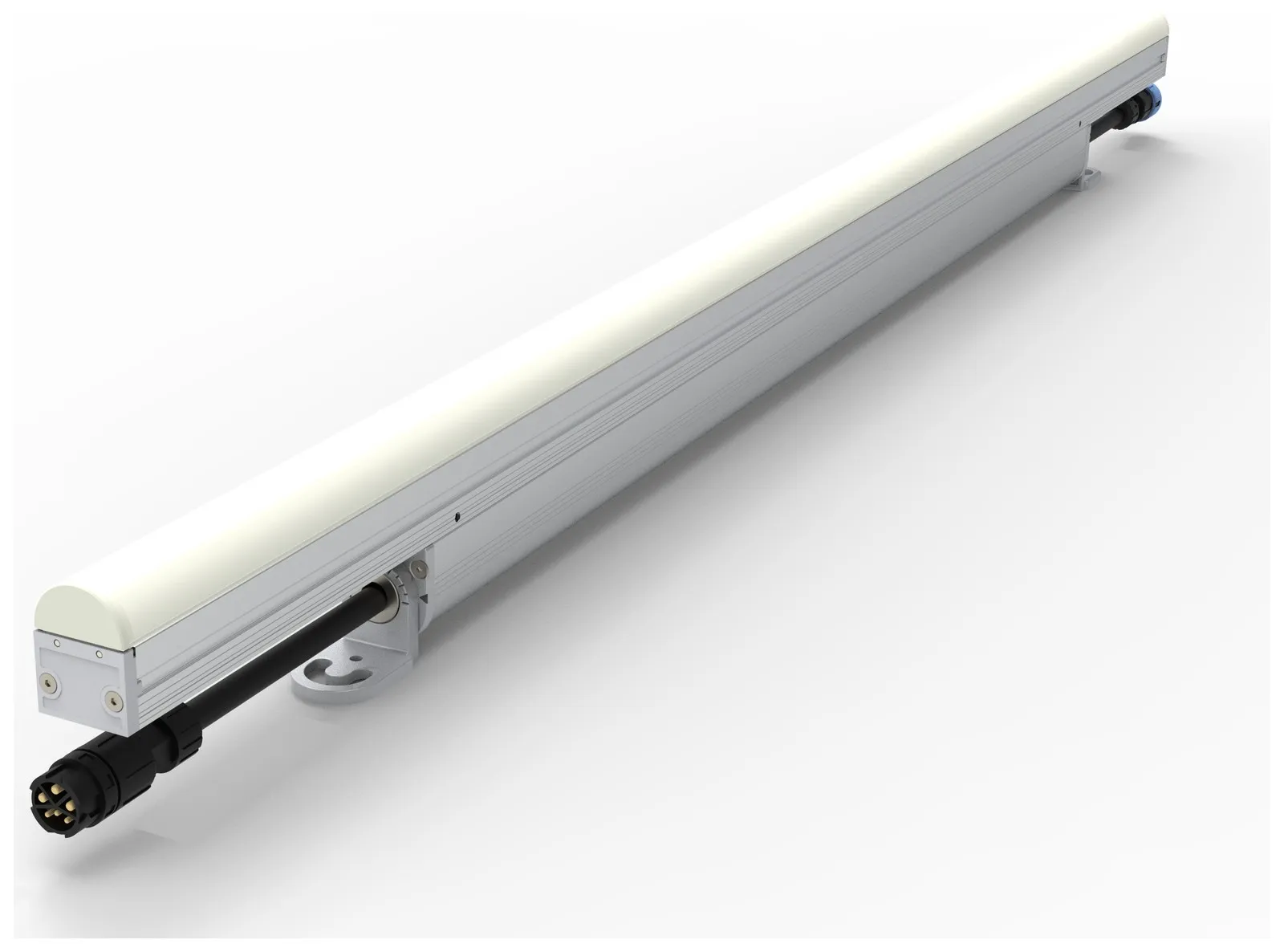

20 mm diffused profile, close up
20 mm diffused profile, close up
8 part numbersShow
20 mm profile, diffused
Part numberColourPowerOutput (lm)L × W × H (mm)Weight (kg)
CNX-ELN-20A-L5-WHT-006White6 W320502 × 20 × 470.55
CNX-ELN-20A-L5-RGB-006RGB6 W105502 × 20 × 470.55
CNX-ELN-20A-L6-WHT-008White8 W430610 × 20 × 470.63
CNX-ELN-20A-L6-RGBW-008RGBW8 W135610 × 20 × 470.63
CNX-ELN-20A-L10-WHT-012White12 W6501000 × 20 × 470.93
CNX-ELN-20A-L10-RGBW-012RGBW12 W2051000 × 20 × 470.93
CNX-ELN-20A-L12-WHT-016White16 W8651220 × 20 × 471.05
CNX-ELN-20A-L12-RGBW-016RGBW16 W2701220 × 20 × 471.05

20 mm profile, lensed

The 20 mm profile with lenses, for grazing from a slot.

20 mm profile, lensed

Beam patterns

  • 30°
  • 60°
  • 120°

Lengths, section and weights

  • L5Weight0.55 kg
  • L6Weight0.63 kg
  • L10Weight0.93 kg
  • L12Weight1.05 kg

Colour temperature

  • 2,200 K
  • 3,000 K
  • 4,000 K
  • 6,000 K
  • Tunable white

Control

  • DMX512 / RDM
  • SPI
  • Tunable white
  • DALI 2.0
  • ColoursWhite, RGBW
  • Input voltage24
    48 V DC
  • Ingress ratingIP66
  • Impact ratingIK10
  • Operating temperature−20 to +45 °C
  • Rated life50,000 h

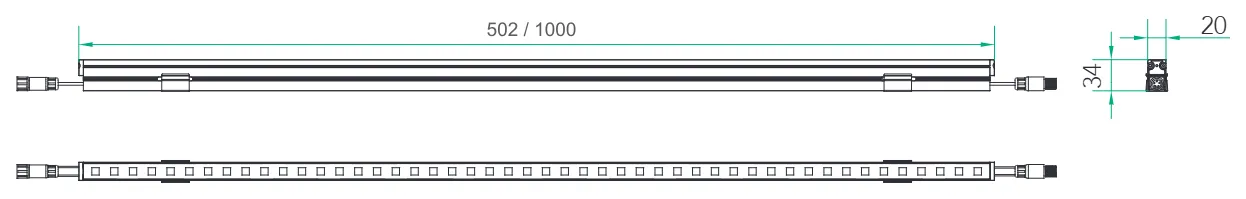

Dimensions (mm)
Mounting

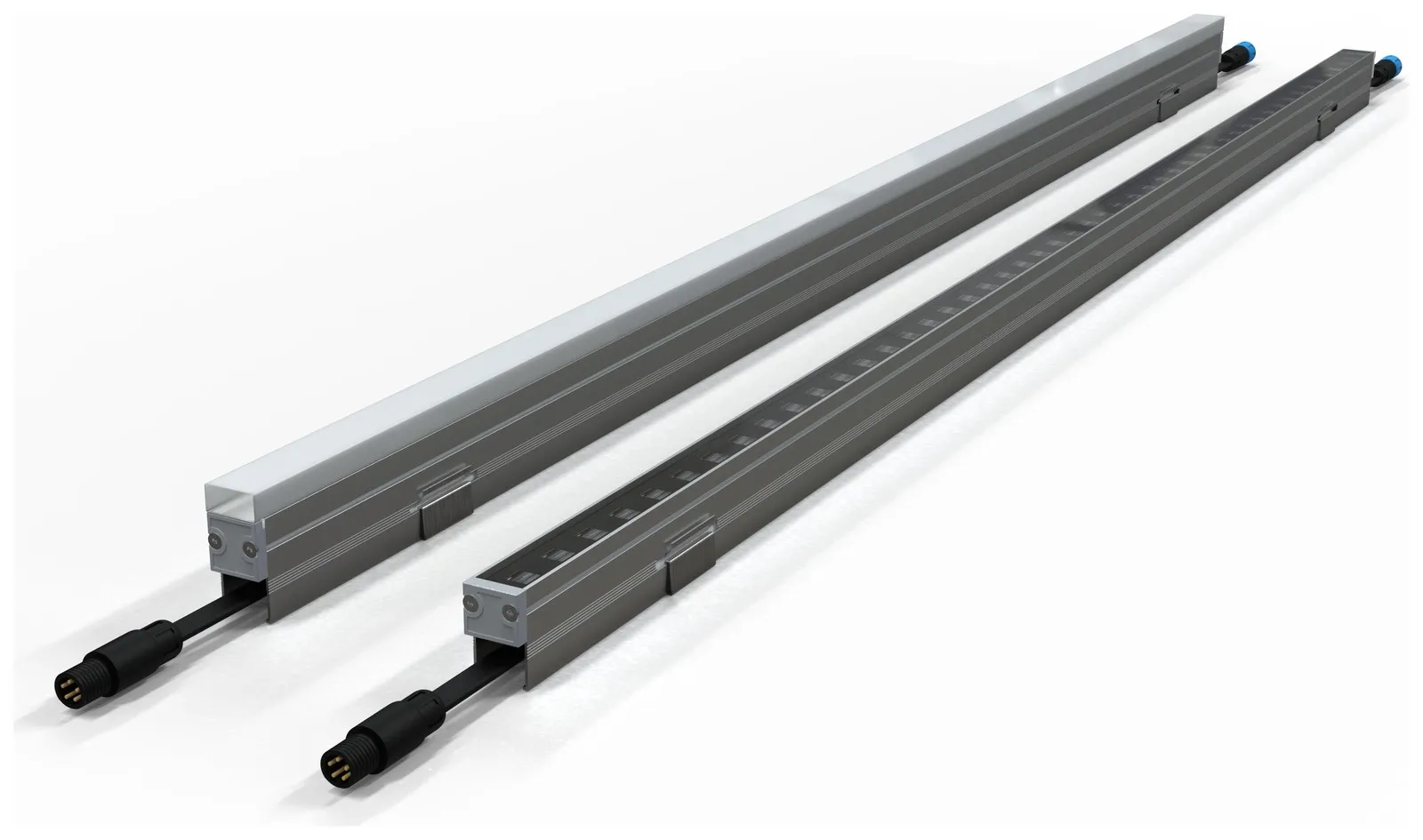

20 mm lensed profile, two lengths
20 mm lensed profile, two lengths

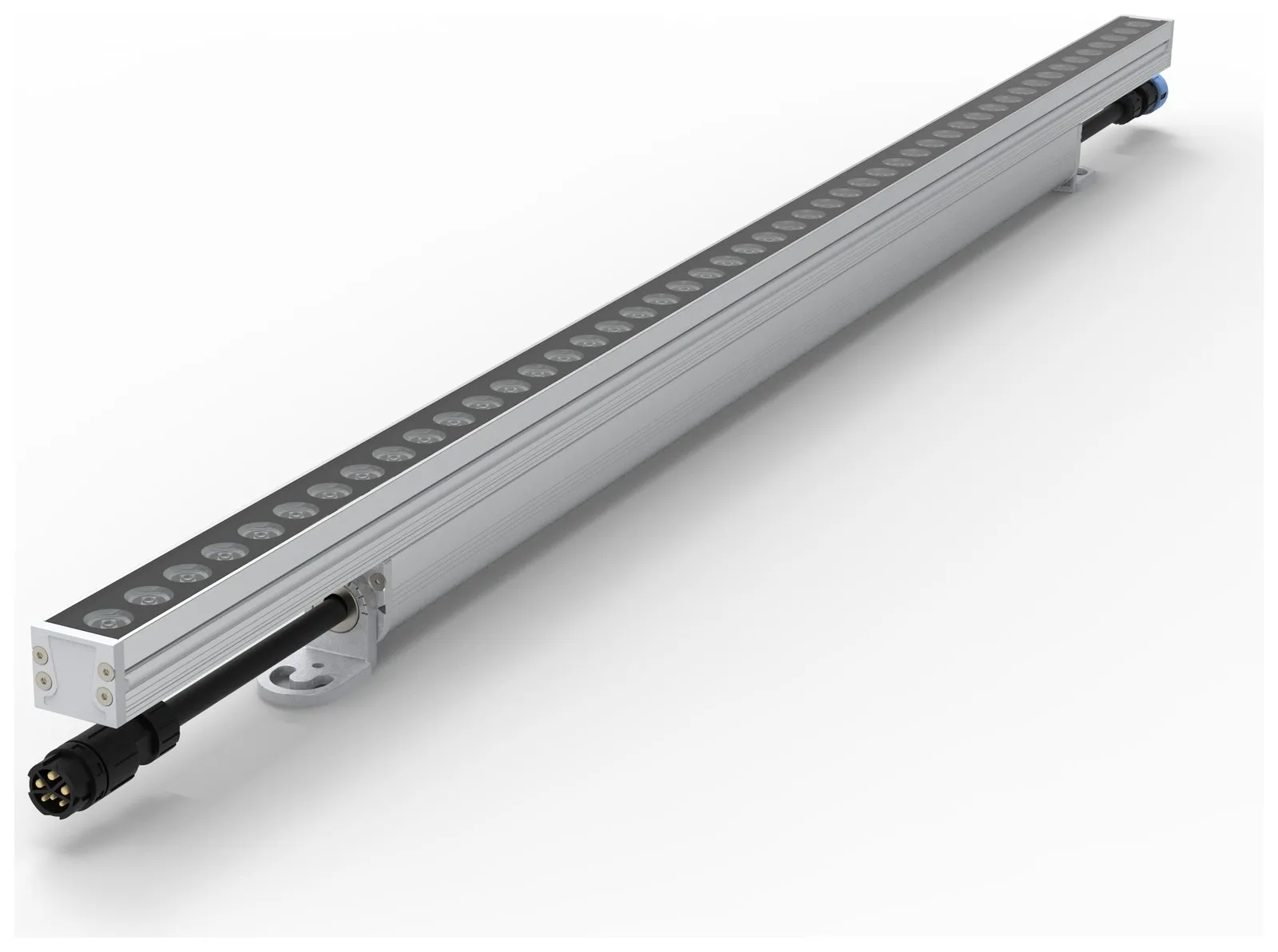

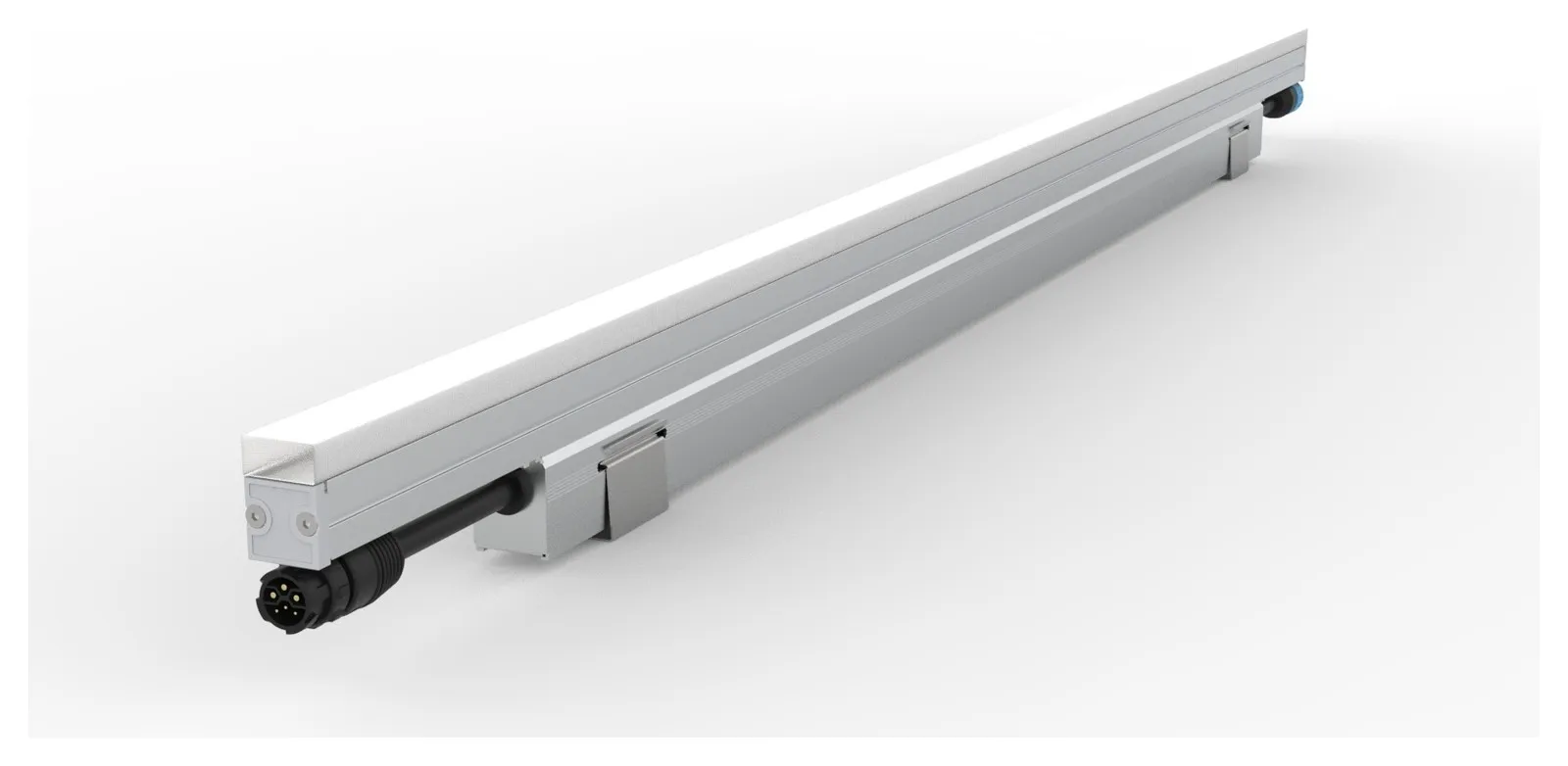

20 mm lensed profile
20 mm lensed profile
8 part numbersShow
20 mm profile, lensed
Part numberColourPowerOutput (lm)L × W × H (mm)Weight (kg)
CNX-ELN-20B-L5-WHT-006White6 W365502 × 20 × 340.55
CNX-ELN-20B-L5-RGBW-006RGBW6 W115502 × 20 × 340.55
CNX-ELN-20B-L6-WHT-008White8 W490610 × 20 × 340.63
CNX-ELN-20B-L6-RGBW-008RGBW8 W150610 × 20 × 340.63
CNX-ELN-20B-L10-WHT-012White12 W7301000 × 20 × 340.93
CNX-ELN-20B-L10-RGBW-012RGBW12 W2301000 × 20 × 340.93
CNX-ELN-20B-L12-WHT-016White16 W9751220 × 20 × 341.05
CNX-ELN-20B-L12-RGBW-016RGBW16 W3051220 × 20 × 341.05

30 mm profile, diffused

An even 150° line of light, snap-fit mounting.

30 mm profile, diffused

Beam patterns

  • 150°

Lengths, section and weights

  • L3Weight0.29 / 0.85 kg
  • L6Weight0.58 / 1.15 kg
  • L12Weight1.16 / 1.75 kg

Colour temperature

  • 2,200 K
  • 3,000 K
  • 4,000 K
  • 6,000 K
  • Tunable white

Control

  • DMX512 / RDM
  • On/Off
  • Tunable white
  • DALI 2.0
  • 0–10 V
  • ColoursWhite, RGBW
  • Input voltage24 V DC
    100–277 V AC
  • Ingress ratingIP66
  • Impact ratingIK06
  • Operating temperature−20 to +45 °C
  • Rated life50,000 h

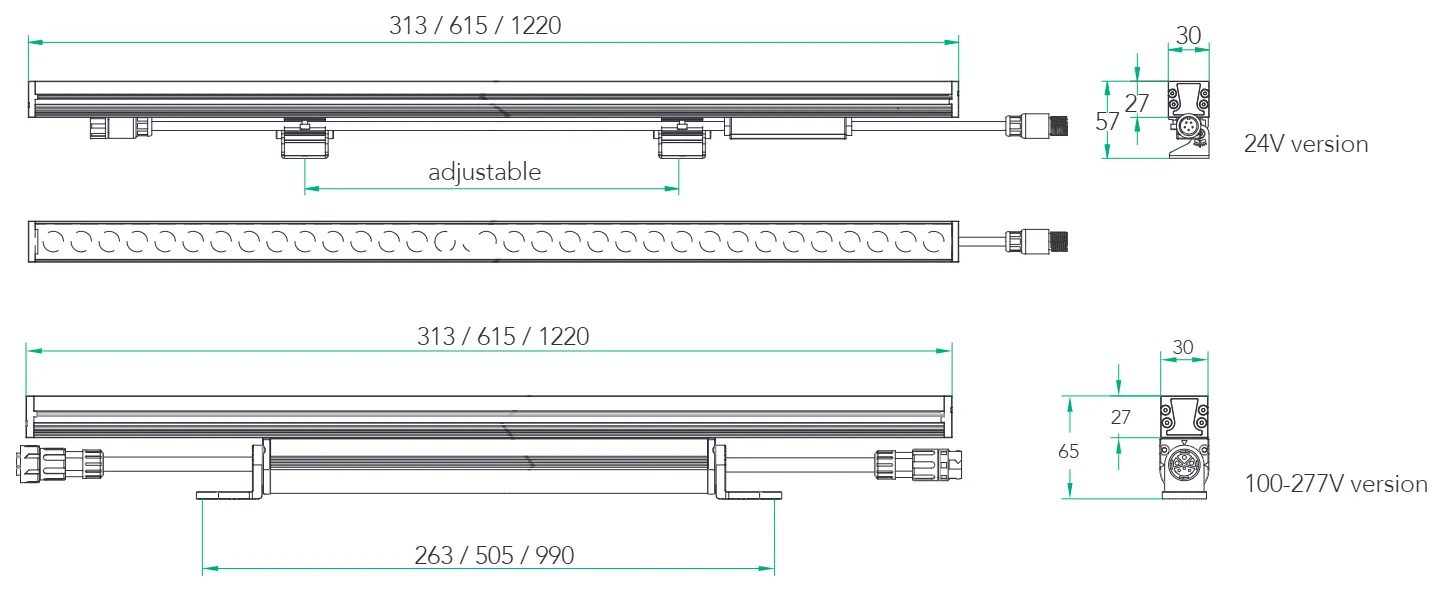

Dimensions (mm)

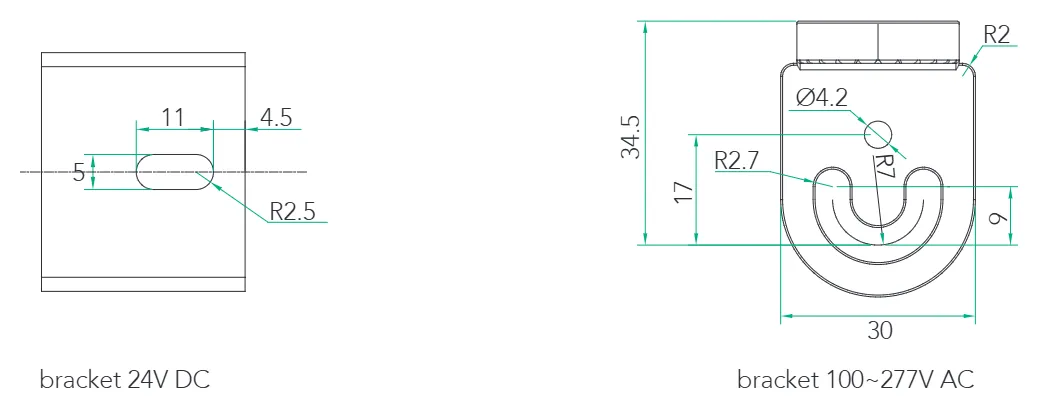

Mounting
30 mm diffused profile
30 mm diffused profile

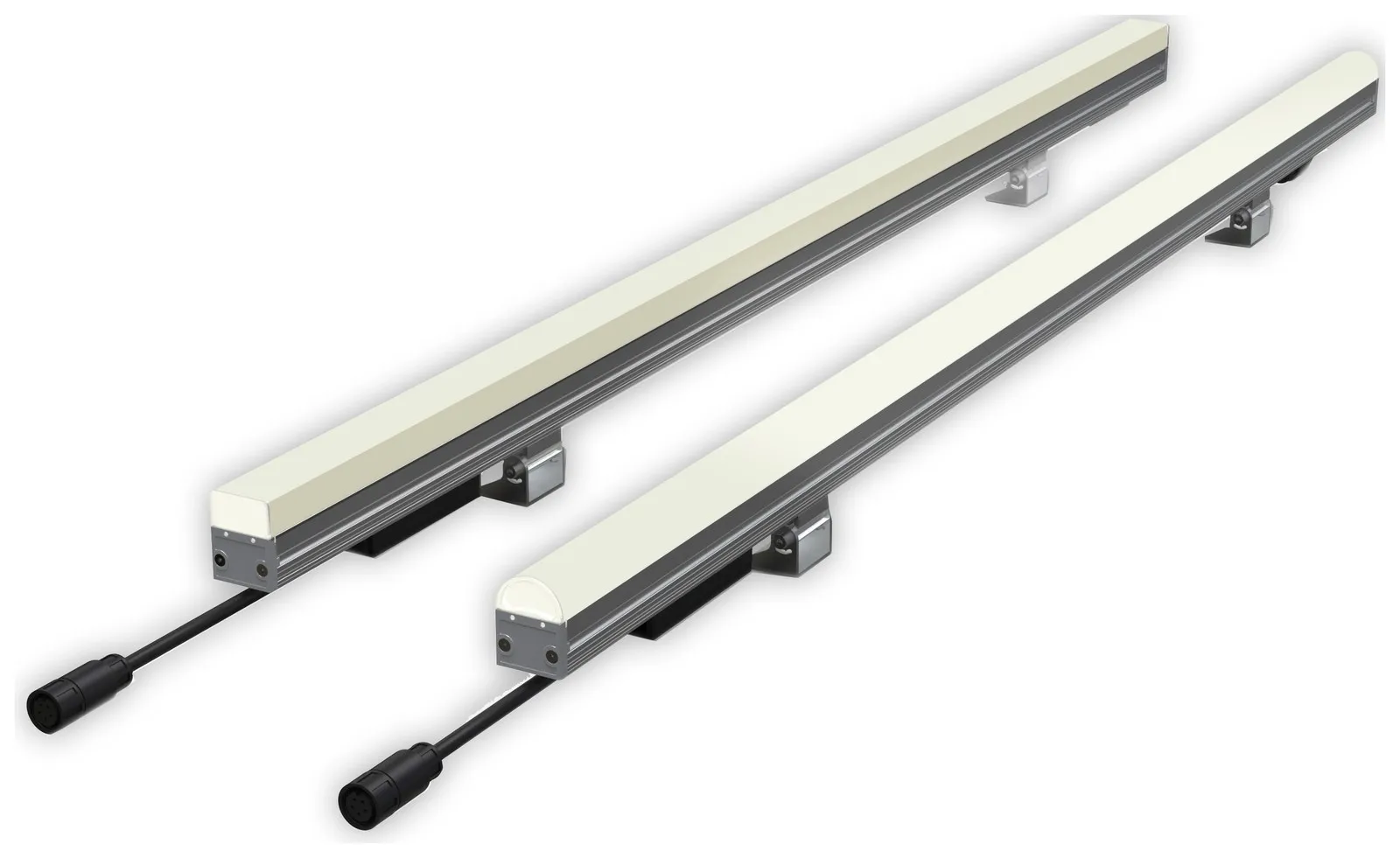

30 mm diffused profile, two lengths
30 mm diffused profile, two lengths

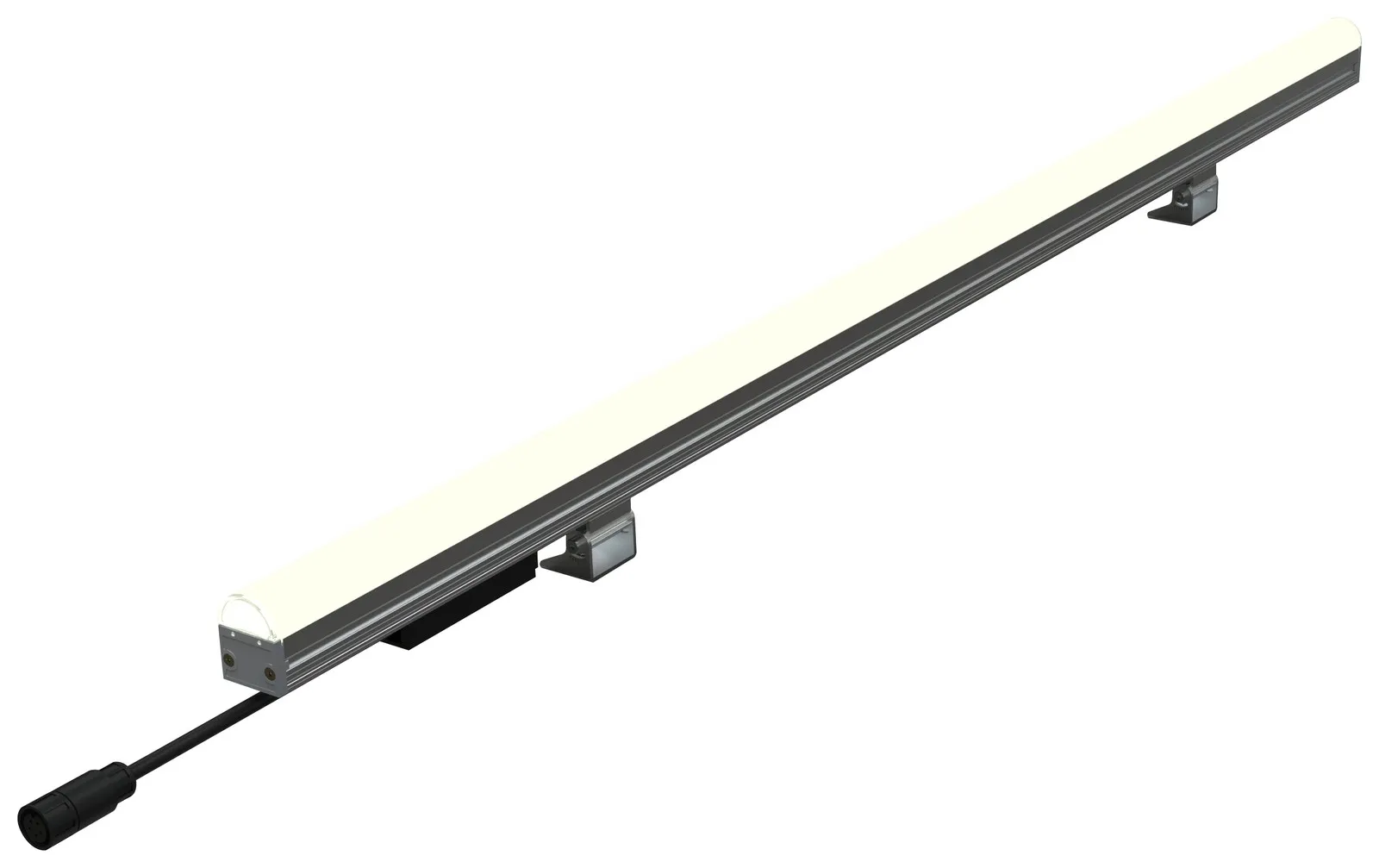

30 mm diffused profile, lit
30 mm diffused profile, lit
12 part numbersShow
30 mm profile, diffused
Part numberColourInputPowerOutput (lm)L × W × H (mm)Weight (kg)
CNX-ELN-30A-L3-WHT-006White24 V DC6 W150313 × 30 × 700.29
CNX-ELN-30A-L3-RGBW-006RGBW24 V DC6 W108313 × 30 × 700.29
CNX-ELN-30A-L6-WHT-012White24 V DC12 W300615 × 30 × 700.58
CNX-ELN-30A-L6-RGBW-012RGBW24 V DC12 W216615 × 30 × 700.58
CNX-ELN-30A-L12-WHT-024White24 V DC24 W6001220 × 30 × 701.16
CNX-ELN-30A-L12-RGBW-024RGBW24 V DC24 W4321220 × 30 × 701.16
CNX-ELN-30A-L3-WHT-007White100–277 V AC7 W175313 × 30 × 790.85
CNX-ELN-30A-L3-RGBW-007RGBW100–277 V AC7 W126313 × 30 × 790.85
CNX-ELN-30A-L6-WHT-014White100–277 V AC14 W350615 × 30 × 791.15
CNX-ELN-30A-L6-RGBW-014RGBW100–277 V AC14 W252615 × 30 × 791.15
CNX-ELN-30A-L12-WHT-028White100–277 V AC28 W7001220 × 30 × 791.75
CNX-ELN-30A-L12-RGBW-028RGBW100–277 V AC28 W5041220 × 30 × 791.75

30 mm profile, lensed

Lensed, tempered glass: for grazing and accent lines.

30 mm profile, lensed

Beam patterns

  • 15°
  • 30°
  • 45°
  • 60°
  • 20°×40°
  • 30°×40°

Lengths, section and weights

  • L3Weight0.32 kg
  • L6Weight0.64 kg
  • L12Weight1.28 kg

Colour temperature

  • 2,200 K
  • 3,000 K
  • 4,000 K
  • 6,000 K
  • Tunable white

Control

  • DMX512 / RDM
  • On/Off
  • Tunable white
  • DALI 2.0
  • 0–10 V
  • ColoursWhite, RGBW
  • Input voltage24 V DC
    100–277 V AC
  • Ingress ratingIP66
  • Impact ratingIK06
  • Operating temperature−20 to +45 °C
  • Rated life50,000 h
Dimensions (mm)
Mounting

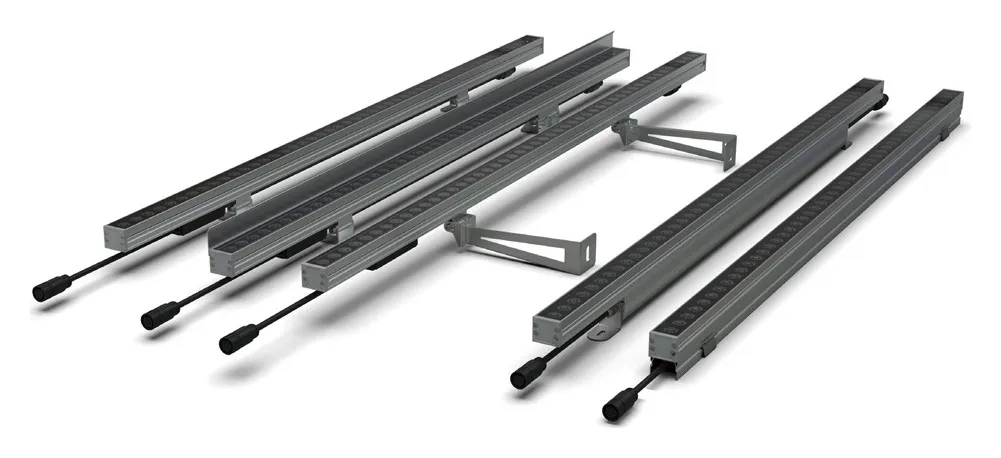

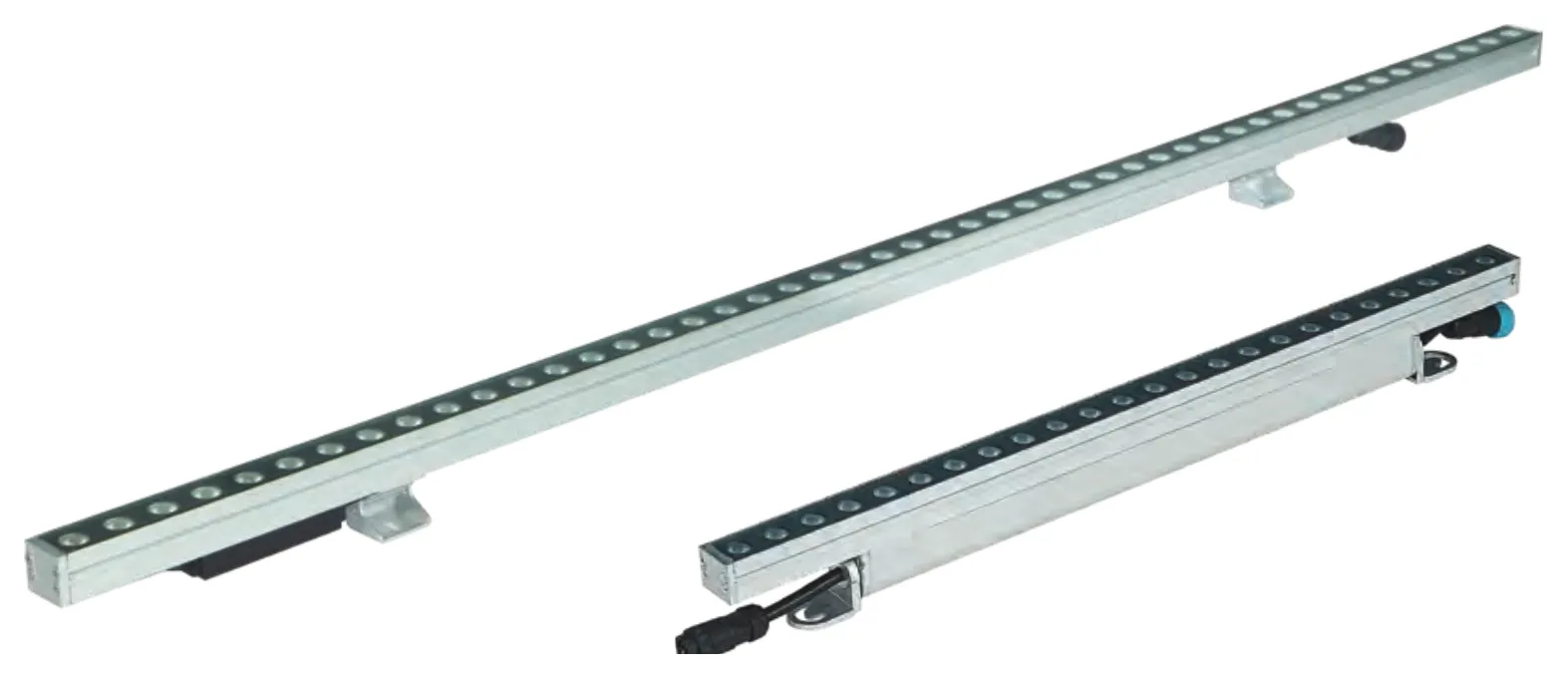

30 mm lensed profile in its lengths
30 mm lensed profile in its lengths

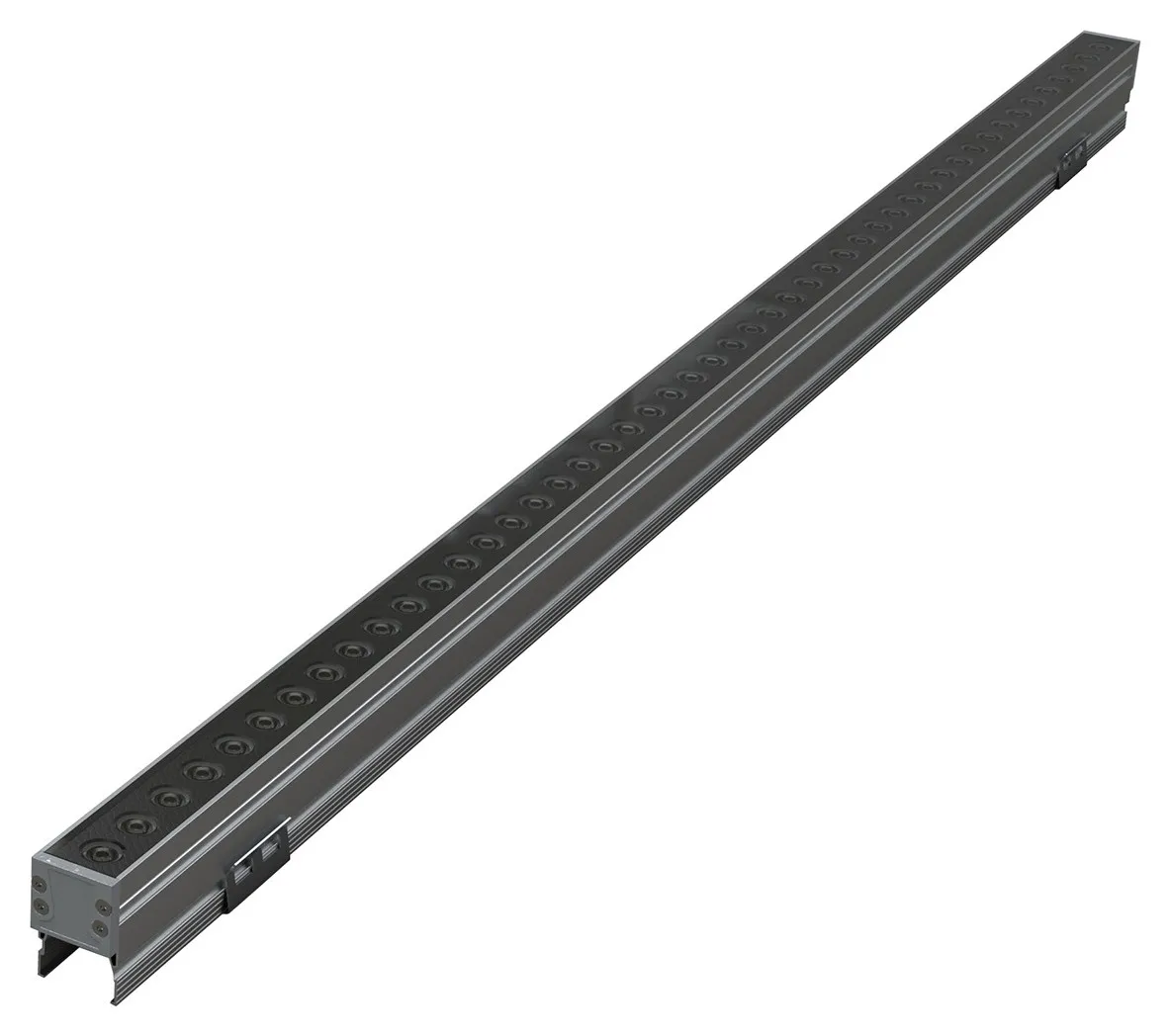

30 mm lensed profile, black
30 mm lensed profile, black
12 part numbersShow
30 mm profile, lensed
Part numberColourInputPowerOutput (lm)L × W × H (mm)Weight (kg)
CNX-ELN-30B-L3-WHT-006White24 V DC6 W270313 × 30 × 570.32
CNX-ELN-30B-L3-RGBW-006RGBW24 V DC6 W168313 × 30 × 570.32
CNX-ELN-30B-L6-WHT-011White24 V DC11 W495615 × 30 × 570.64
CNX-ELN-30B-L6-RGBW-011RGBW24 V DC11 W308615 × 30 × 570.64
CNX-ELN-30B-L12-WHT-021White24 V DC21 W9451220 × 30 × 571.28
CNX-ELN-30B-L12-RGBW-021RGBW24 V DC21 W5881220 × 30 × 571.28
CNX-ELN-30B-L3-WHT-007White100–277 V AC7 W315313 × 30 × 570.89
CNX-ELN-30B-L3-RGBW-007RGBW100–277 V AC7 W196313 × 30 × 570.89
CNX-ELN-30B-L6-WHT-012White100–277 V AC12 W540615 × 30 × 571.23
CNX-ELN-30B-L6-RGBW-012RGBW100–277 V AC12 W336615 × 30 × 571.23
CNX-ELN-30B-L12-WHT-024White100–277 V AC24 W1,0801220 × 30 × 571.91
CNX-ELN-30B-L12-RGBW-024RGBW100–277 V AC24 W6721220 × 30 × 571.91

30 mm profile, lensed, concealed cable

The lensed 30 mm profile with its cable hidden in the body.

30 mm profile, lensed, concealed cable

Beam patterns

  • 15°
  • 30°
  • 45°
  • 60°
  • 20°×40°
  • 30°×40°

Lengths, section and weights

  • L3Weight0.40 kg
  • L6Weight0.70 kg
  • L12Weight1.30 kg

Colour temperature

  • 2,200 K
  • 3,000 K
  • 4,000 K
  • 6,000 K
  • Tunable white

Control

  • DMX512 / RDM
  • On/Off
  • Tunable white
  • DALI 2.0
  • 0–10 V
  • ColoursWhite, RGBW
  • Input voltage24 V DC
  • Ingress ratingIP66
  • Impact ratingIK06
  • Operating temperature−20 to +45 °C
  • Rated life50,000 h

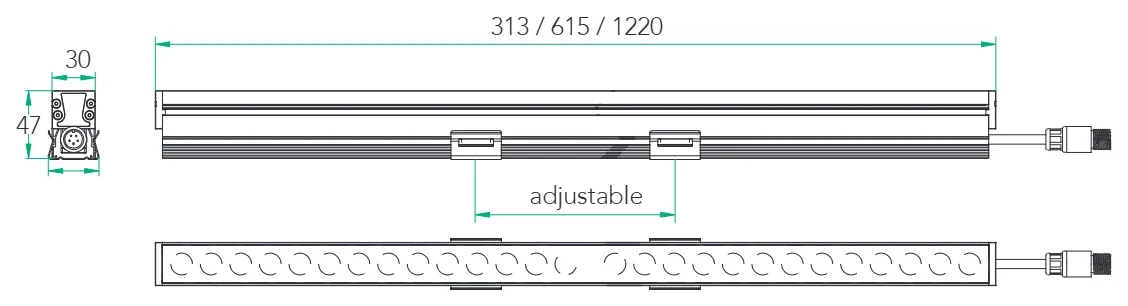

Dimensions (mm)
Mounting
30 mm lensed profile
30 mm lensed profile

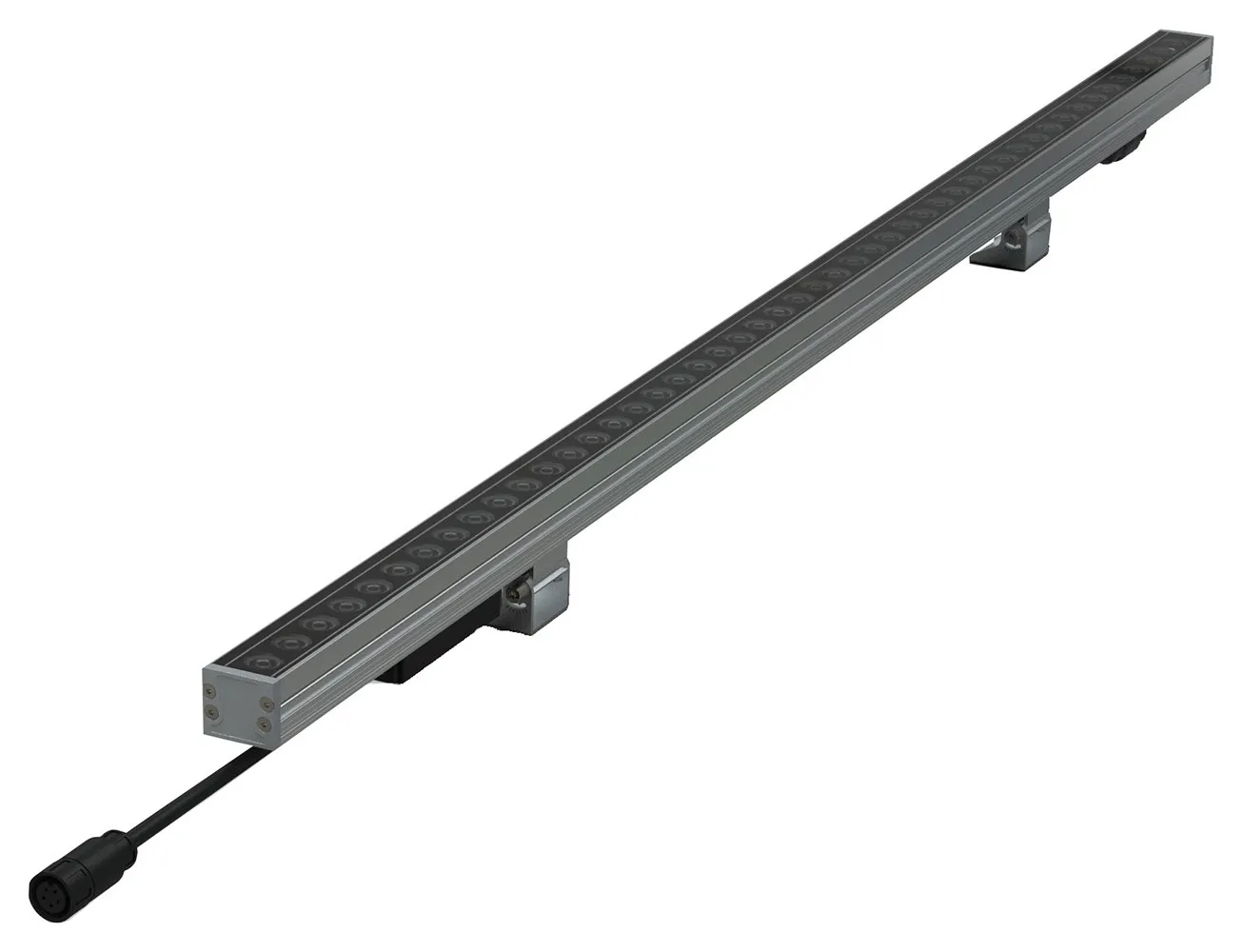

30 mm profile with concealed cable
30 mm profile with concealed cable
6 part numbersShow
30 mm profile, lensed, concealed cable
Part numberColourInputPowerOutput (lm)L × W × H (mm)Weight (kg)
CNX-ELN-30C-L3-WHT-006White24 V DC6 W270313 × 30 × 470.40
CNX-ELN-30C-L3-RGBW-006RGBW24 V DC6 W168313 × 30 × 470.40
CNX-ELN-30C-L6-WHT-011White24 V DC11 W495615 × 30 × 470.70
CNX-ELN-30C-L6-RGBW-011RGBW24 V DC11 W308615 × 30 × 470.70
CNX-ELN-30C-L12-WHT-021White24 V DC21 W9451220 × 30 × 471.30
CNX-ELN-30C-L12-RGBW-021RGBW24 V DC21 W5881220 × 30 × 471.30

40 mm profile, high output

The most output: a lensed line for façades and tall surfaces.

40 mm profile, high output

Beam patterns

  • 15°
  • 25°
  • 35°
  • 20°×40°

Lengths, section and weights

  • L3Weight0.55 kg
  • L6Weight0.9 kg
  • L12Weight1.65 kg

Colour temperature

  • 2,200 K
  • 3,000 K
  • 4,000 K
  • 6,000 K
  • Tunable white

Control

  • DMX512 / RDM
  • On/Off
  • Tunable white
  • DALI 2.0
  • 0–10 V
  • ColoursWhite, RGBW
  • Input voltage24 V DC
    100–277 V AC
  • Ingress ratingIP66
  • Impact ratingIK06
  • Operating temperature−20 to +45 °C
  • Rated life50,000 h

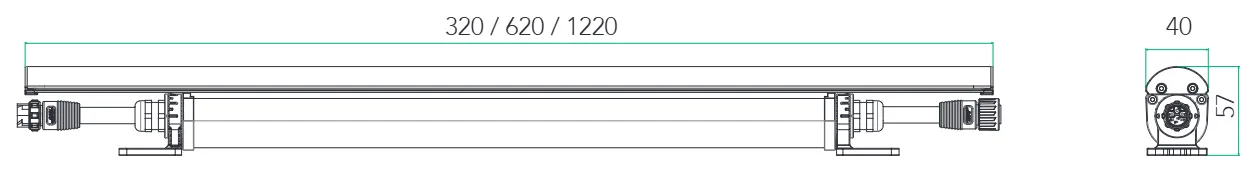

Dimensions (mm)

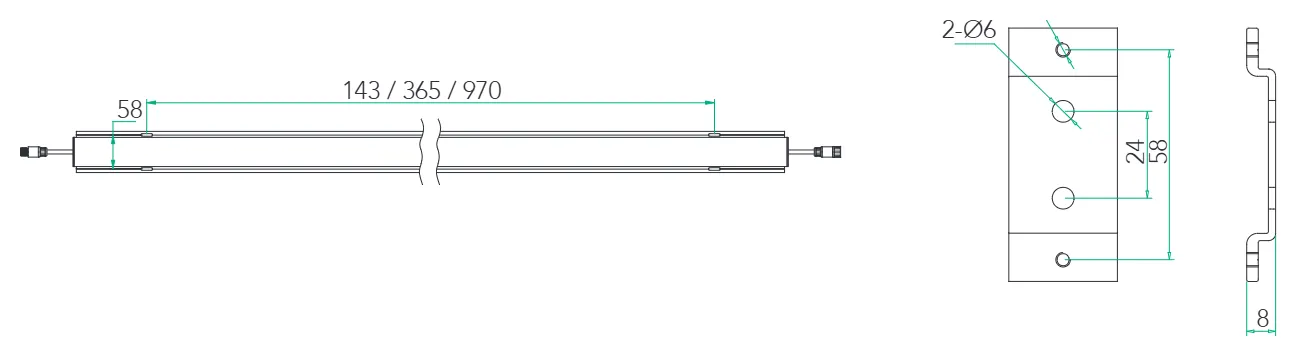

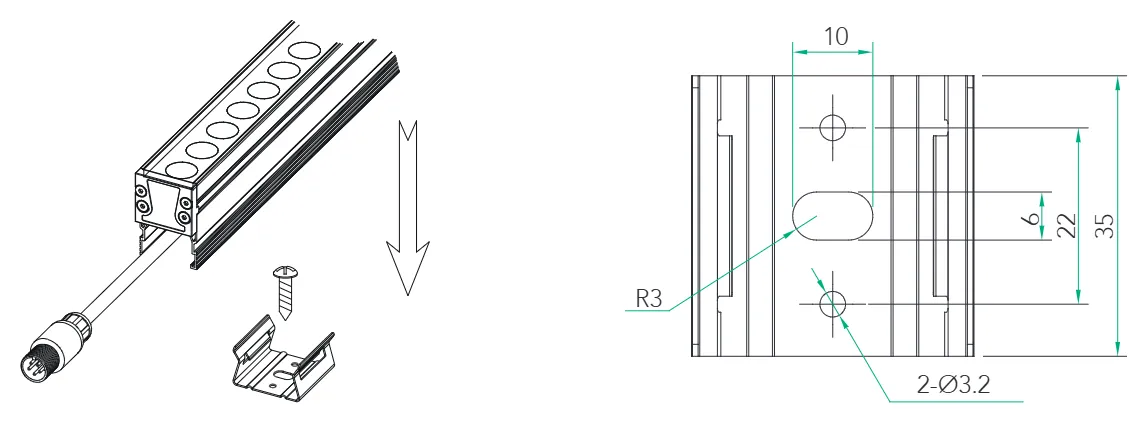

Mounting and adjustment
40 mm high-output profile
40 mm high-output profile

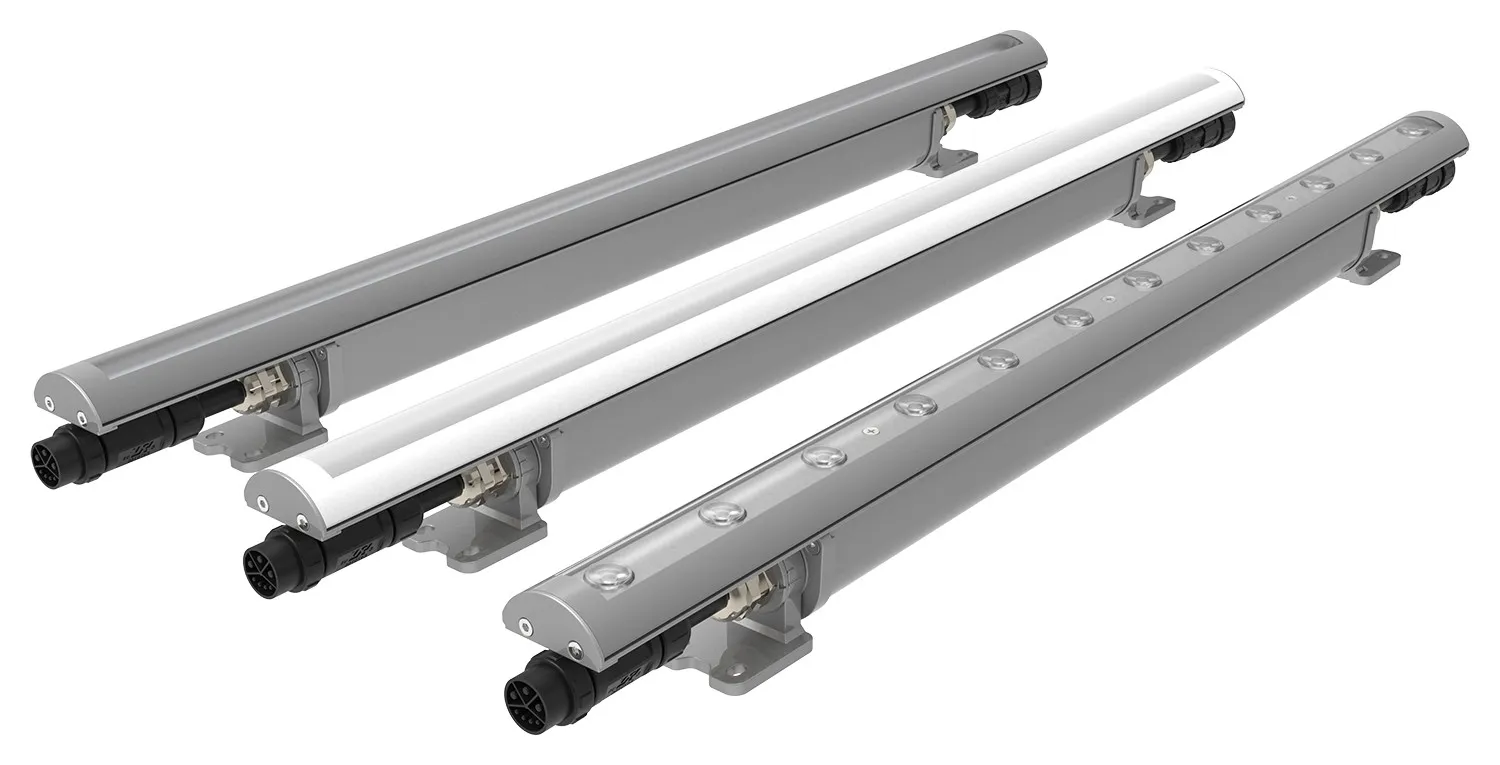

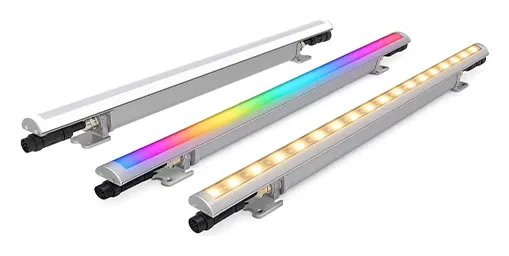

40 mm profile in its lengths
40 mm profile in its lengths

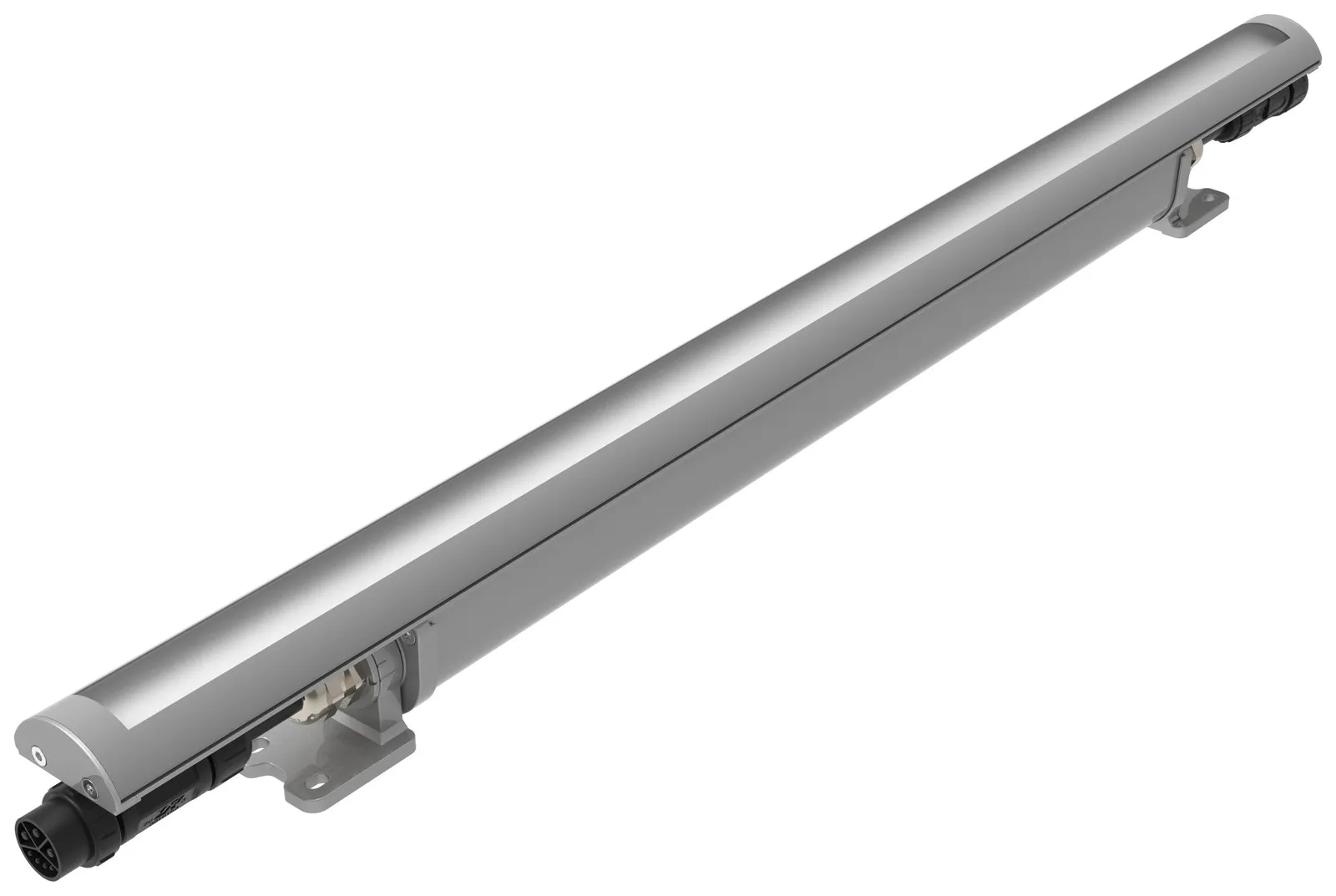

40 mm profile, silver
40 mm profile, silver
6 part numbersShow
40 mm profile, high output
Part numberColourPowerOutput (lm)L × W × H (mm)Weight (kg)
CNX-ELN-40-L3-WHT-008White8 W700320 × 40 × 570.55
CNX-ELN-40-L3-RGBW-008RGBW8 W420320 × 40 × 570.55
CNX-ELN-40-L6-WHT-015White15 W1,300620 × 40 × 570.9
CNX-ELN-40-L6-RGBW-015RGBW15 W790620 × 40 × 570.9
CNX-ELN-40-L12-WHT-030White30 W2,6001220 × 40 × 571.65
CNX-ELN-40-L12-RGBW-030RGBW30 W1,5751220 × 40 × 571.65

Round diffuser, Ø 50 mm

A round diffuser: a glowing tube, seamless end to end.

Round diffuser, Ø 50 mm

Beam patterns

  • 150°

Lengths, section and weights

  • L3Weight0.55 kg
  • L6Weight0.95 kg
  • L12Weight1.90 kg

Colour temperature

  • 2,200 K
  • 3,000 K
  • 4,000 K
  • 6,000 K
  • Tunable white

Control

  • DMX512 / RDM
  • On/Off
  • Tunable white
  • DALI 2.0
  • 0–10 V
  • ColoursWhite, RGBW
  • Input voltage24 V DC
    100–277 V AC
  • Ingress ratingIP66
  • Impact ratingIK08
  • Operating temperature−20 to +45 °C
  • Rated life50,000 h

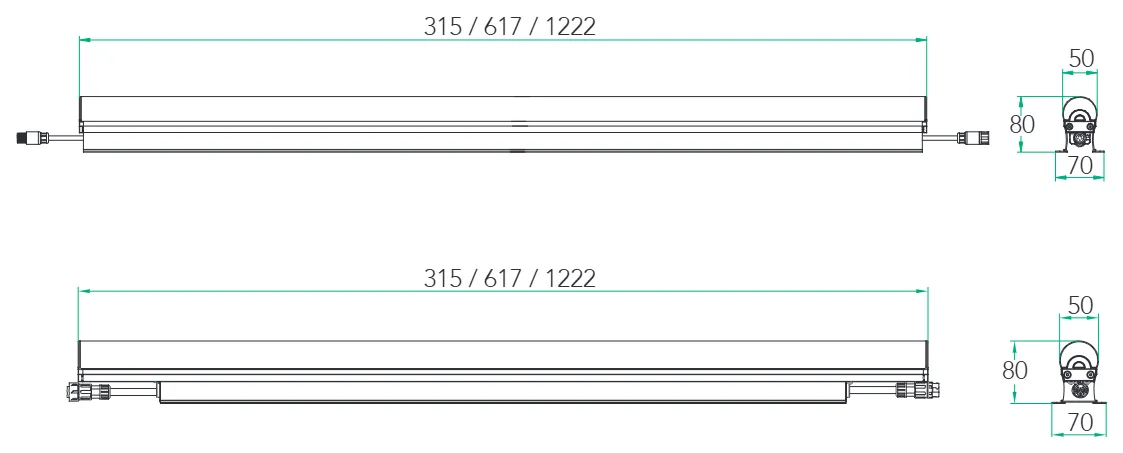

Dimensions (mm)
Mounting

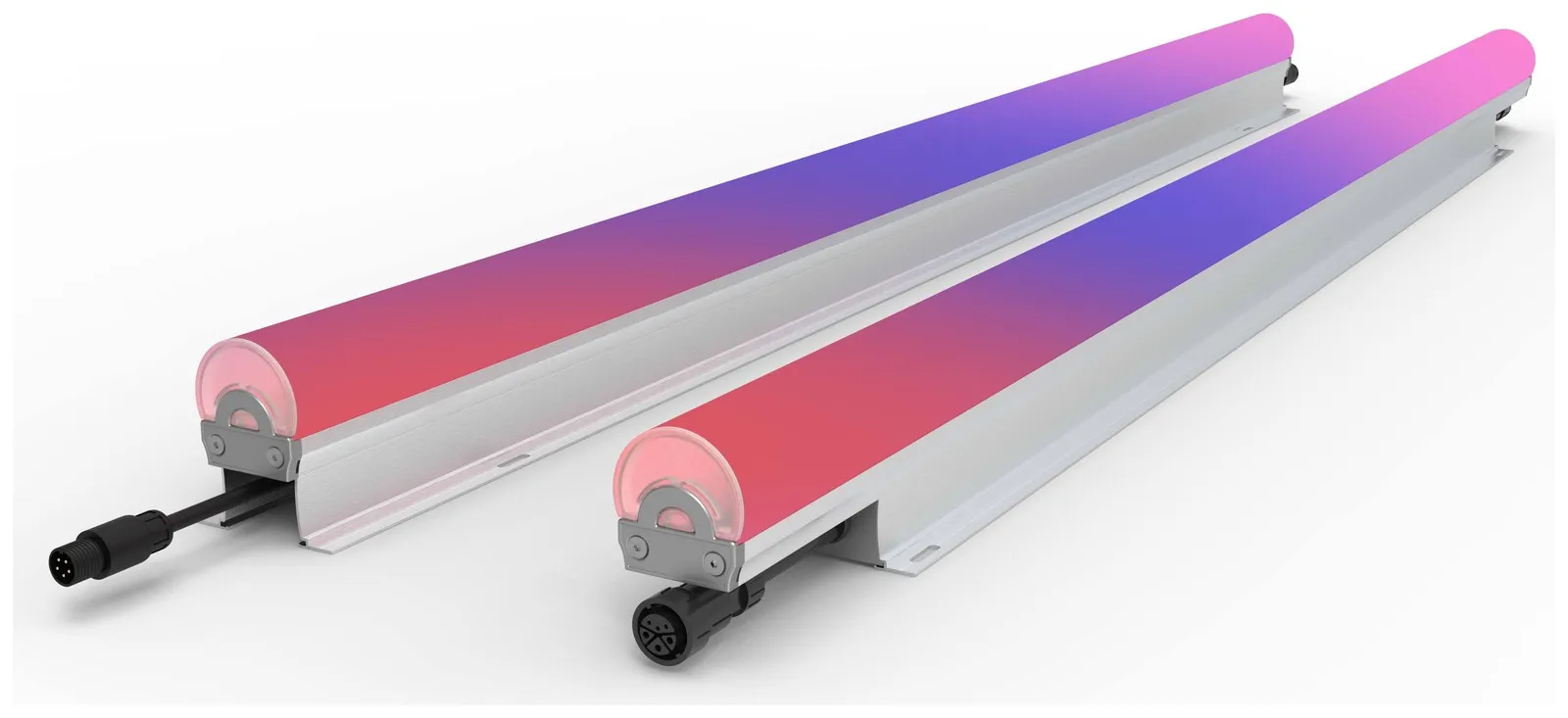

Round diffuser in colour
Round diffuser in colour
Round diffuser, two lengths
Round diffuser, two lengths
Round diffuser, 1,222 mm
Round diffuser, 1,222 mm
Round diffusers on their mounting brackets
Round diffusers on their mounting brackets
12 part numbersShow
Round diffuser, Ø 50 mm
Part numberColourInputPowerOutput (lm)L × W × H (mm)Weight (kg)
CNX-ELN-50-L3-WHT-007White24 V DC7 W350315 × 50 × 800.55
CNX-ELN-50-L3-RGBW-008RGBW24 V DC8 W285315 × 50 × 800.55
CNX-ELN-50-L6-WHT-014White24 V DC14 W700617 × 50 × 800.95
CNX-ELN-50-L6-RGBW-016RGBW24 V DC16 W560617 × 50 × 800.95
CNX-ELN-50-L12-WHT-028White24 V DC28 W1,4001222 × 50 × 801.90
CNX-ELN-50-L12-RGBW-032RGBW24 V DC32 W1,1201222 × 50 × 801.90
CNX-ELN-50-L3-WHT-008White100–277 V AC8 W400315 × 50 × 800.60
CNX-ELN-50-L3-RGBW-009RGBW100–277 V AC9 W315315 × 50 × 800.60
CNX-ELN-50-L6-WHT-016White100–277 V AC16 W800617 × 50 × 801.10
CNX-ELN-50-L6-RGBW-018RGBW100–277 V AC18 W630617 × 50 × 801.10
CNX-ELN-50-L12-WHT-032White100–277 V AC32 W1,6001222 × 50 × 802.10
CNX-ELN-50-L12-RGBW-036RGBW100–277 V AC36 W1,1601222 × 50 × 802.10

Specifications

Construction
Housing6063 aluminium, anodised
LensUV-stable diffuser on the diffused series; tempered glass on the lensed series; polycarbonate over glass on the round diffuser
Ingress ratingIP66
Impact rating
  • 0102IK10
  • 03040506IK06
  • 07IK08
RunsEnd-to-end joining with no dark gap between luminaires
MountingSurface, bracket or spring clip, by series
Lengths
  • 0102502–1,220 mm, four lengths
  • 030405313–1,220 mm, three lengths
  • 06320–1,220 mm, three lengths
  • 07315–1,222 mm, three lengths
Optical
Output
  • 01320–865 lm
  • 02365–975 lm
  • 03150–700 lm
  • 04270–1,080 lm
  • 05270–945 lm
  • 06700–2,600 lm
  • 07350–1,600 lm
Colour temperature2200 K, 3000 K, 4000 K or 6000 K; tunable white
ColoursWhite, RGBW
Optical
Beam angle150° diffused; lensed 15°, 25°, 30°, 35°, 45°, 60°, 120°; elliptical 20° × 40°, 30° × 40°; by series
Rated life50,000 h
Optics
  • 010307150°
  • 0230°, 60°, 120°
  • 040515°, 30°, 45°, 60°, 20° × 40°, 30° × 40°
  • 0615°, 25°, 35°, 20° × 40°
Electrical and control
Input voltage
  • 010224
    48 V DC
  • 0304060724 V DC
    100–277 V AC
  • 0524 V DC
ControlDMX512 / RDM with pixel addressing, SPI on the 20 mm profiles, steady colour, on/off
Dimming0–10 V or DALI 2.0
Operating temperature−20 to +45 °C
ListingscETLus and CE; the 20 mm profiles carry CE only
Power
  • 01026–16 W
  • 036–28 W
  • 046–24 W
  • 056–21 W
  • 068–30 W
  • 077–36 W

Optional accessories

AGS

Anti-glare shield

Supplied on request.

Fits: 30 mm lensed profile

SPR

Spring clips

Clip the fixture into a slot or channel with no visible bracket.

Fits: 30 mm diffused profile and round diffuser

Connection accessories

Ordered separately, by their own part number
PicturePart numberItemDescription
CNX-ACC-IC-6PInput cable, 6-pinPower and signal; female connector to flying leads.
CNX-ACC-IC-3PInput cable, 3-pinPower; female connector to flying leads.
CNX-ACC-IC-2PInput cable, 2-pinPower; female connector to flying leads.
CNX-ACC-IC-5PInput cable, 5-pinPower and signal; female connector to flying leads.
CNX-ACC-IC-36PInput cable, 3-pin signal + 6-pinSeparate signal lead and a 6-pin power and signal connector.
CNX-ACC-IC-6PTInput cable, 6-pin TPower T-piece: one feed, two fixtures.
CNX-ACC-IC-5PYInput cable, 5-pin YPower Y-piece: one feed, two fixtures.
CNX-ACC-EC-5PAExtension cable, 5-pin, type APower and signal, male to female, as pictured.
CNX-ACC-EC-5PBExtension cable, 5-pin, type BPower and signal, male to female, as pictured.
CNX-ACC-CC-XLR6Conversion cable, XLR to 6-pinSignal: XLR 3-pin male to 6-pin fixture connector, female.
CNX-ACC-CC-3P6PConversion cable, 3-pin to 6-pinSignal: 3-pin male to 6-pin fixture connector, female.
CNX-ACC-WC-AWaterproof connector A3 ports, IP68, for 5 to 12 mm cable.
CNX-ACC-WC-BWaterproof connector B2 ports, IP68, for 5 to 12 mm cable.
CNX-ACC-WC-CWaterproof junction box2 or 3 ports, IP65, for 5 to 12 mm cable.
CNX-ACC-CAPConnector capsTethered protective caps for open cable connectors.

Ordering information

Part number format

CNX-ELNProduct type
20A1Series
L52Length
WHT3Colour
0064Wattage
1505Optic
XXX6Glare control
BRK7Mounting

Example: CNX-ELN-20A-L5-WHT-006-150-XXX-BRK — the first part number in the tables above, with its first optic and no accessories; pick one code per position below to build your own

1Series

2Length

3Colour

4Wattage

5Optic

6Glare control

7Mounting

Applications

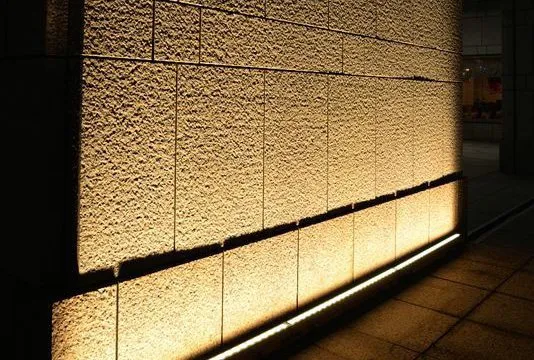

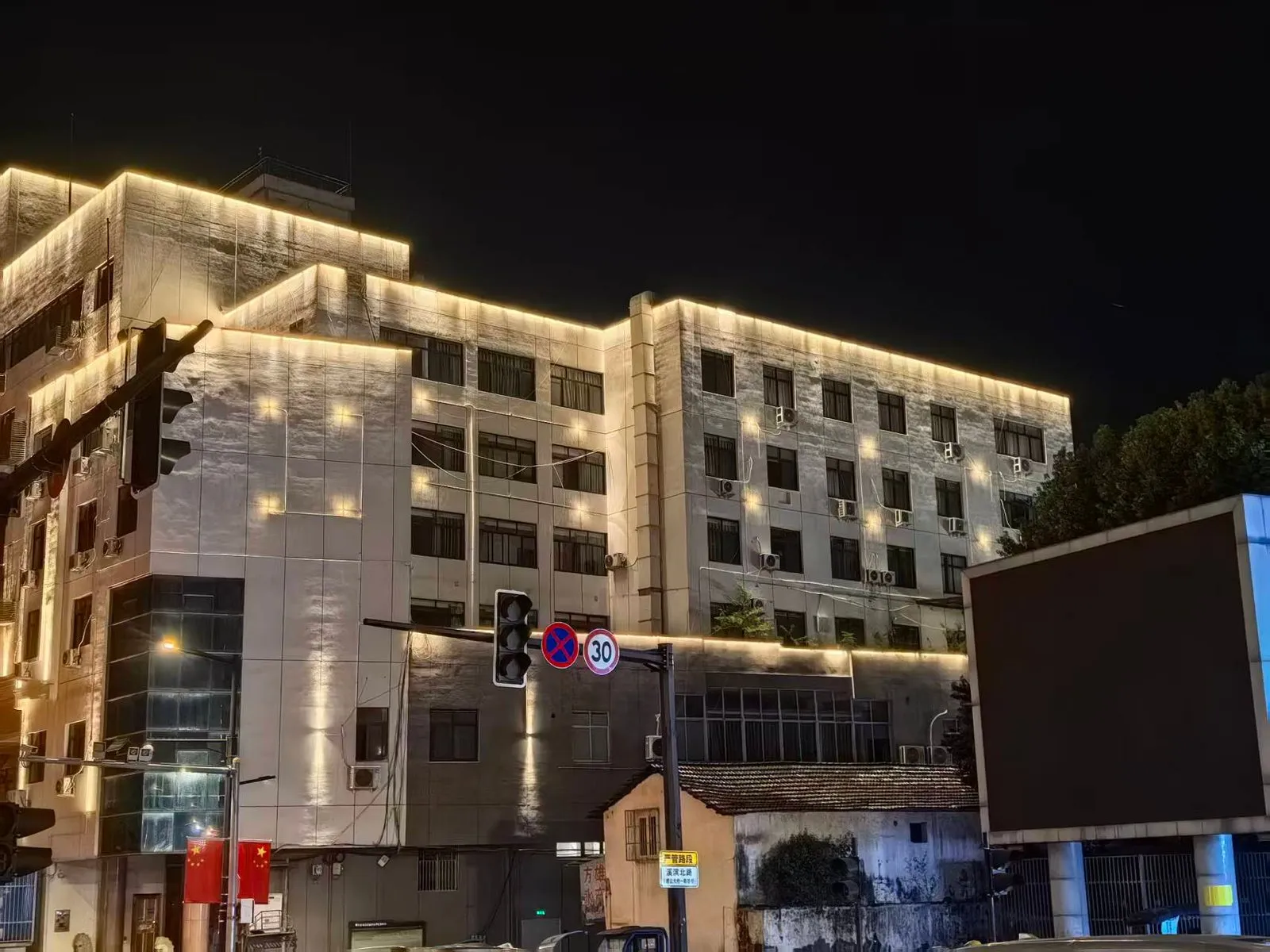

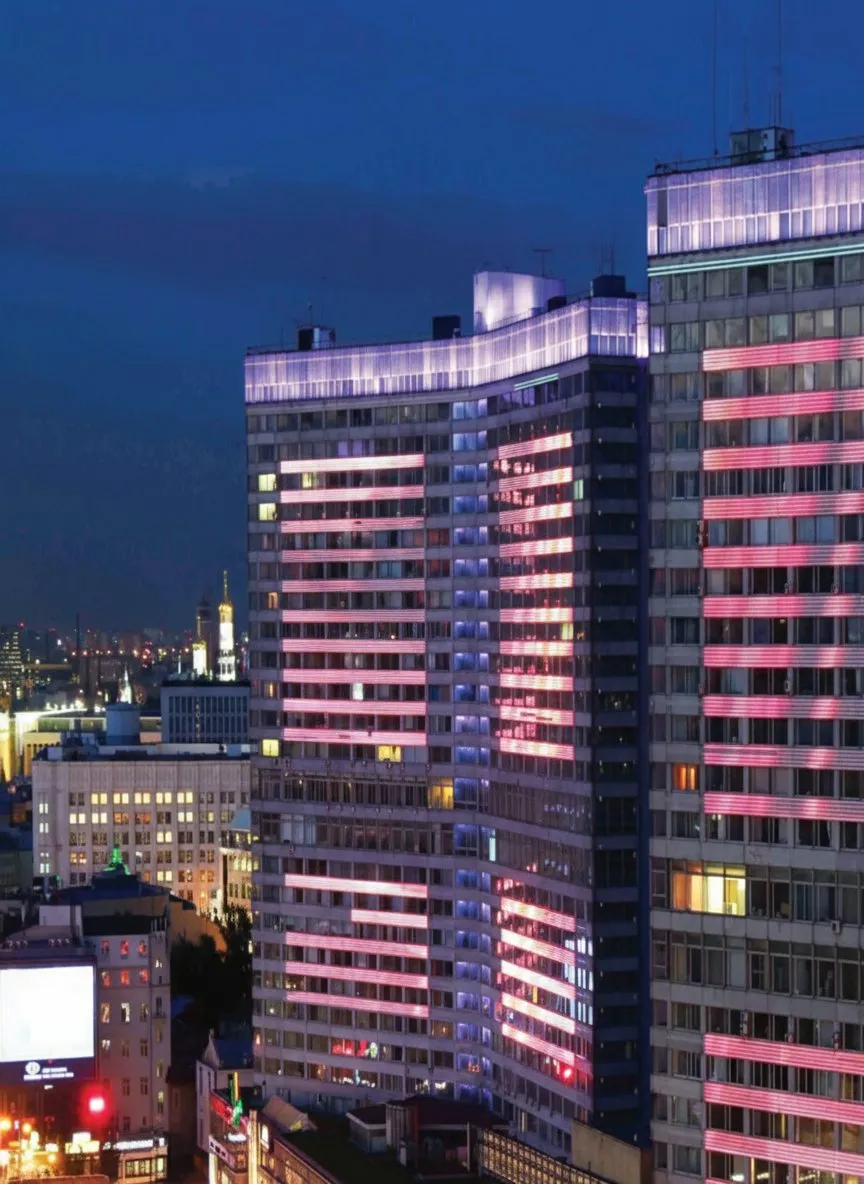

Building outlinesFaçade linesBridgesCanopies and soffitsNarrow slots and revealsLandscape

Certifications

cETLusCE

Marks as printed on the current spec sheet.
