Products / CNX-EXL

Explosion-proof Linear Lights

Three linear series with high efficacy up to 140 lm/W and up to 85 % energy savings in classified hazardous locations, available in 15 W to 216 W configurations.

140 lm/Wefficacy

3linear series

IK10impact resistant

Request a quote Downloads

Compare the series

3 series

H seriesFor Zone 2 and Division 2 areas: surface or pendant linear, 20 W to 80 W in two housings.Power20–80 WOutput2,800–11,200 lmEfficacy140 lm/WColour temperature2200–7000 KCRI80Input voltage100–277 V AC
IC, 200–480 V AC
12–48 V DCHazardous locationZone 2 / 21 gas and dust · Class I Division 2, Class II Division 1Ingress ratingIP66Impact ratingIK10Operating temperature−40 to +60 °CRated life> 50,000 hEmergencyOptionalSee models

I seriesFor Zone 1 and Division 1 areas: a linear in two housings, 20 W to 120 W.Power20–120 WOutput2,800–16,800 lmEfficacy140 lm/WColour temperature2700–7000 KCRI> 70Input voltage100–277 V AC, 200–480 V AC
12–36 V DCHazardous locationZone 1 / 21 · Class I Division 1Ingress ratingIP66Impact ratingIK10Operating temperature−40 to +60 °CRated life> 50,000 hEmergencyOptional, 3 hSee models

FLB seriesFor Zone 1 areas: Ø 100 mm tubes in three lengths, one, two or three to a bracket; pole, ceiling or pendant.Power15–216 WOutput2,100–30,240 lmEfficacy140 lm/WColour temperature3000–6500 KCRI> 70Input voltage100–277 V AC
12–48 V DCHazardous locationZone 1 / 21 (ATEX, IECEx)Ingress ratingIP66 / IP67 / IP68Impact ratingIK10Operating temperature−40 to +45 °C (T6)
−40 to +60 °C (T5)Rated life> 50,000 hEmergencyOptionalSee models

Product range

46 models

XX in each part number is the colour temperature code (30 / 40 / 50 / 57, or CST for a custom value within the published range), chosen at order; the options follow the wattage.

H series

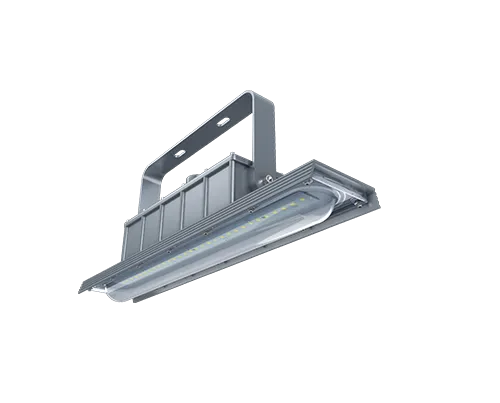

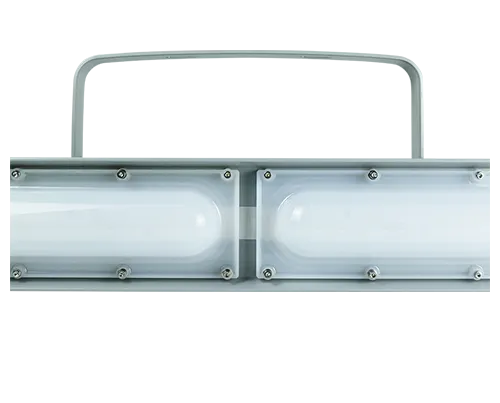

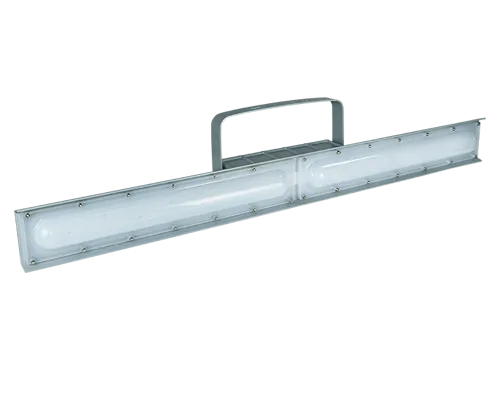

For Zone 2 and Division 2 areas: surface or pendant linear, 20 W to 80 W in two housings.

Sizes and weights

20–40 WDimensions L × W × H73.3 × 20.6 × 11.7 cmWeight4.0 kg
60–80 WDimensions L × W × H133.3 × 20.6 × 11.7 cmWeight8.0 kg

Colour temperature

3,000 K
4,000 K
5,000 K

Control

0–10 V
On/Off

Input voltage100–277 V AC
IC, 200–480 V AC
12–48 V DC
Ingress ratingIP66
Impact ratingIK10
Operating temperature−40 to +60 °C
Rated life> 50,000 h

4 part numbersShow

H series
Part number	Housing	Power	Output	Efficacy	Input voltage	CRI
CNX-EXL-H-XX-020	Housing 1	20 W	2,800 lm	140 lm/W	100–277 V AC or IC, 200–480 V AC or 12–48 V DC	80
CNX-EXL-H-XX-040	Housing 1	40 W	5,600 lm	140 lm/W	100–277 V AC or IC, 200–480 V AC or 12–48 V DC	80
CNX-EXL-H-XX-060	Housing 2	60 W	8,400 lm	140 lm/W	100–277 V AC or IC, 200–480 V AC or 12–48 V DC	80
CNX-EXL-H-XX-080	Housing 2	80 W	11,200 lm	140 lm/W	100–277 V AC or IC, 200–480 V AC or 12–48 V DC	80

I series

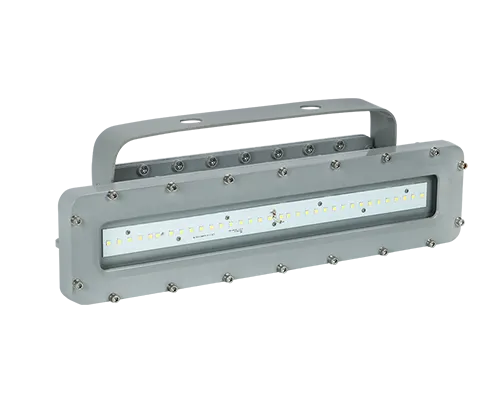

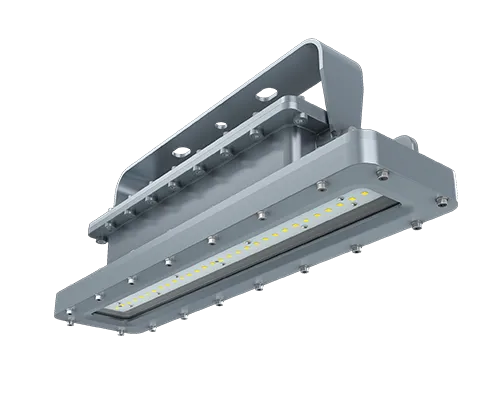

For Zone 1 and Division 1 areas: a linear in two housings, 20 W to 120 W.

Sizes

20–60 WDimensions L × W × H≈ 73.3 × 20.6 × 11.7 cm
80–120 WDimensions L × W × H≈ 133.3 × 20.6 × 11.7 cm

Colour temperature

3,000 K
4,000 K
5,000 K

Control

0–10 V
On/Off

Input voltage100–277 V AC, 200–480 V AC
12–36 V DC
Ingress ratingIP66
Impact ratingIK10
Operating temperature−40 to +60 °C
Rated life> 50,000 h

6 part numbersShow

I series
Part number	Housing	Power	Output	Efficacy	Input voltage	CRI
CNX-EXL-I-XX-020	Housing 1	20 W	2,800 lm	140 lm/W	100–277 V AC, 200–480 V AC or 12–36 V DC	> 70
CNX-EXL-I-XX-040	Housing 1	40 W	5,600 lm	140 lm/W	100–277 V AC, 200–480 V AC or 12–36 V DC	> 70
CNX-EXL-I-XX-060	Housing 1	60 W	8,400 lm	140 lm/W	100–277 V AC, 200–480 V AC or 12–36 V DC	> 70
CNX-EXL-I-XX-080	Housing 2	80 W	11,200 lm	140 lm/W	100–277 V AC, 200–480 V AC or 12–36 V DC	> 70
CNX-EXL-I-XX-100	Housing 2	100 W	14,000 lm	140 lm/W	100–277 V AC, 200–480 V AC or 12–36 V DC	> 70
CNX-EXL-I-XX-120	Housing 2	120 W	16,800 lm	140 lm/W	100–277 V AC, 200–480 V AC or 12–36 V DC	> 70

FLB series

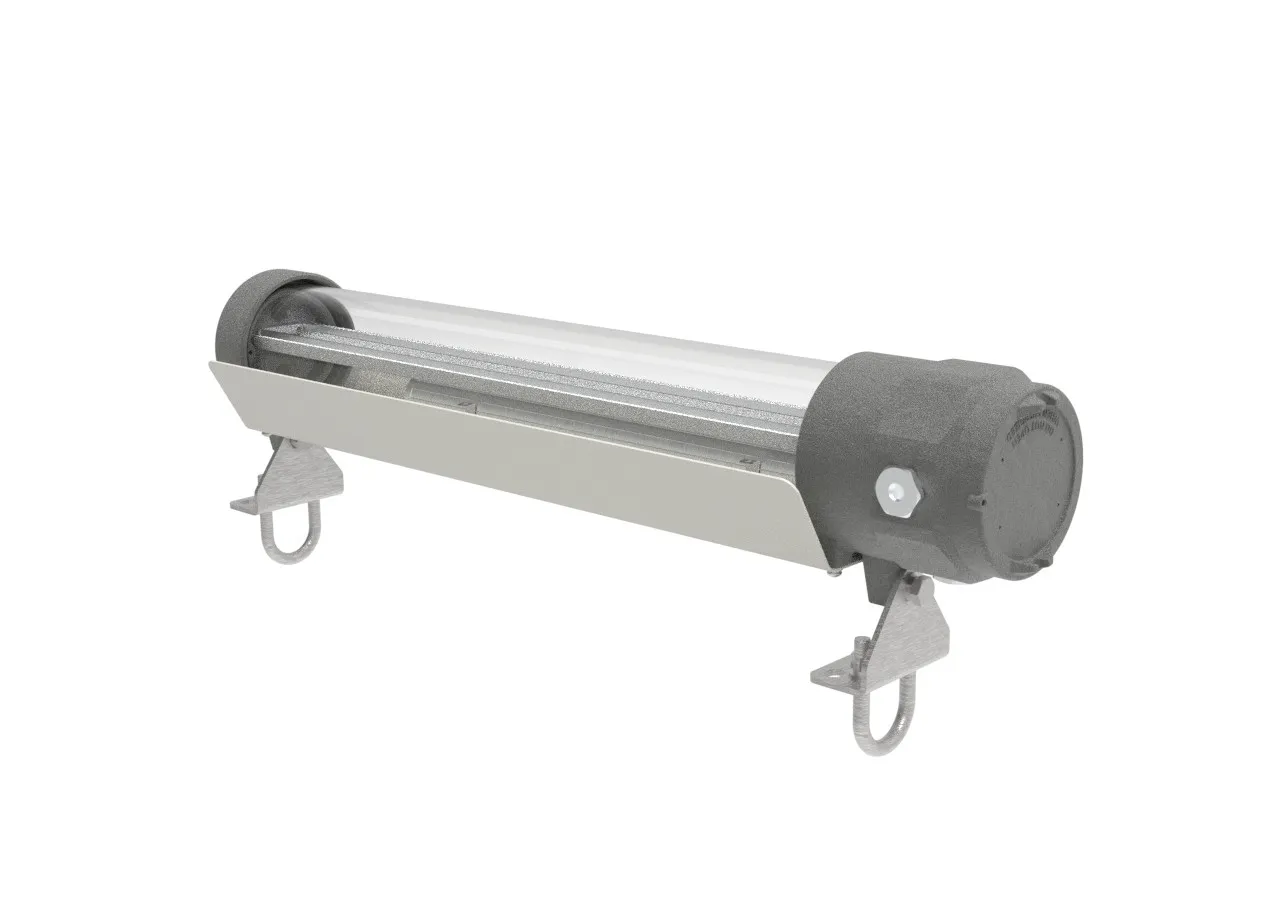

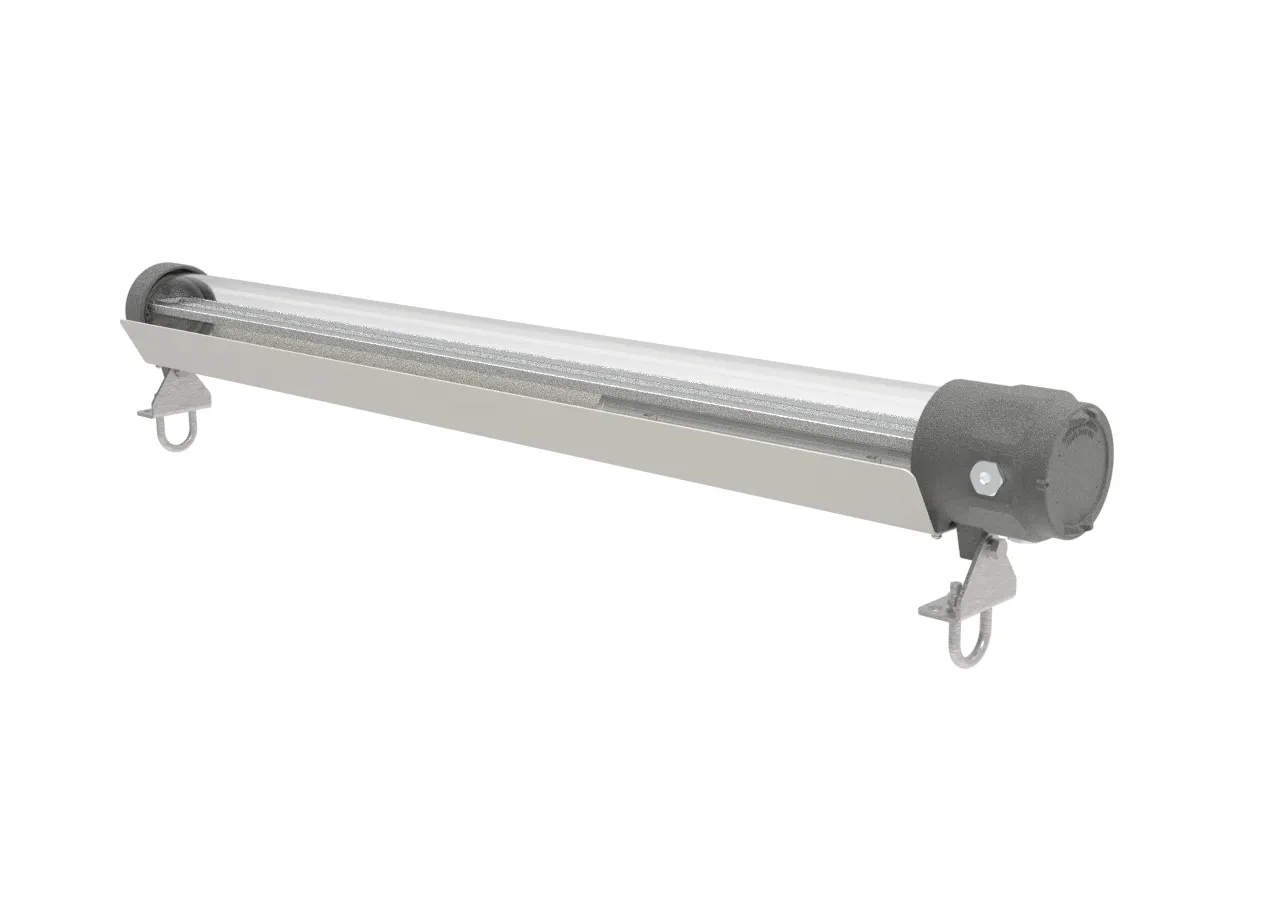

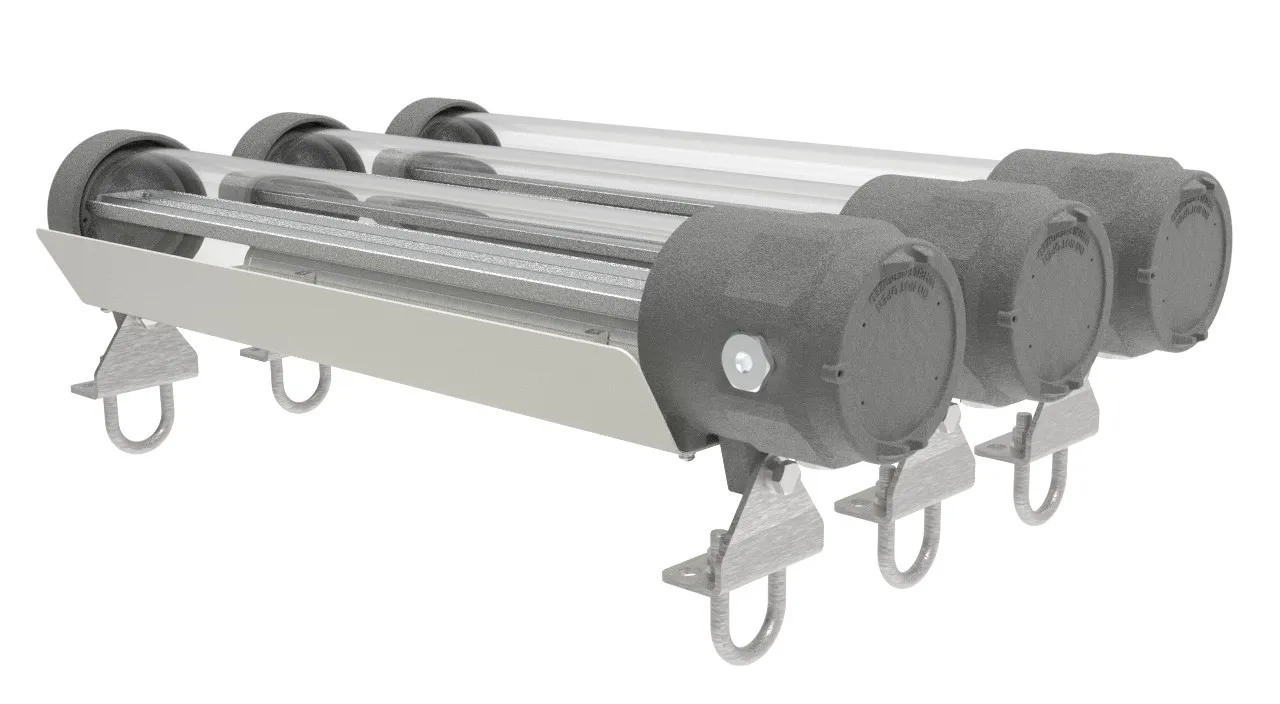

For Zone 1 areas: Ø 100 mm tubes in three lengths, one, two or three to a bracket; pole, ceiling or pendant.

Lengths and section

Colour temperature

3,000 K
4,000 K
5,000 K

Control

0–10 V
On/Off

Input voltage100–277 V AC
12–48 V DC
Ingress ratingIP66 / IP67 / IP68
Impact ratingIK10
Operating temperature−40 to +45 °C (T6)
−40 to +60 °C (T5)
Rated life> 50,000 h

36 part numbersShow

FLB series
Part number	Formats	Power	Output	Efficacy	Input voltage	CRI
CNX-EXL-FLB-1P6-XX-015	1 tube, 760 mm	1 × 15 W = 15 W	2,100 lm	140 lm/W	100–277 V AC or 12–48 V DC	> 70
CNX-EXL-FLB-1P6-XX-018	1 tube, 760 mm	1 × 18 W = 18 W	2,520 lm	140 lm/W	100–277 V AC or 12–48 V DC	> 70
CNX-EXL-FLB-1P6-XX-020	1 tube, 760 mm	1 × 20 W = 20 W	2,800 lm	140 lm/W	100–277 V AC or 12–48 V DC	> 70
CNX-EXL-FLB-1P6-XX-028	1 tube, 760 mm	1 × 28 W = 28 W	3,920 lm	140 lm/W	100–277 V AC or 12–48 V DC	> 70
CNX-EXL-FLB-2P6-XX-015	2 tubes, 760 mm	2 × 15 W = 30 W	4,200 lm	140 lm/W	100–277 V AC or 12–48 V DC	> 70
CNX-EXL-FLB-2P6-XX-018	2 tubes, 760 mm	2 × 18 W = 36 W	5,040 lm	140 lm/W	100–277 V AC or 12–48 V DC	> 70
CNX-EXL-FLB-2P6-XX-020	2 tubes, 760 mm	2 × 20 W = 40 W	5,600 lm	140 lm/W	100–277 V AC or 12–48 V DC	> 70
CNX-EXL-FLB-2P6-XX-028	2 tubes, 760 mm	2 × 28 W = 56 W	7,840 lm	140 lm/W	100–277 V AC or 12–48 V DC	> 70
CNX-EXL-FLB-3P6-XX-015	3 tubes, 760 mm	3 × 15 W = 45 W	6,300 lm	140 lm/W	100–277 V AC or 12–48 V DC	> 70
CNX-EXL-FLB-3P6-XX-018	3 tubes, 760 mm	3 × 18 W = 54 W	7,560 lm	140 lm/W	100–277 V AC or 12–48 V DC	> 70
CNX-EXL-FLB-3P6-XX-020	3 tubes, 760 mm	3 × 20 W = 60 W	8,400 lm	140 lm/W	100–277 V AC or 12–48 V DC	> 70
CNX-EXL-FLB-3P6-XX-028	3 tubes, 760 mm	3 × 28 W = 84 W	11,760 lm	140 lm/W	100–277 V AC or 12–48 V DC	> 70
CNX-EXL-FLB-1P9-XX-020	1 tube, 1060 mm	1 × 20 W = 20 W	2,800 lm	140 lm/W	100–277 V AC or 12–48 V DC	> 70
CNX-EXL-FLB-1P9-XX-028	1 tube, 1060 mm	1 × 28 W = 28 W	3,920 lm	140 lm/W	100–277 V AC or 12–48 V DC	> 70
CNX-EXL-FLB-1P9-XX-036	1 tube, 1060 mm	1 × 36 W = 36 W	5,040 lm	140 lm/W	100–277 V AC or 12–48 V DC	> 70
CNX-EXL-FLB-1P9-XX-045	1 tube, 1060 mm	1 × 45 W = 45 W	6,300 lm	140 lm/W	100–277 V AC or 12–48 V DC	> 70
CNX-EXL-FLB-2P9-XX-020	2 tubes, 1060 mm	2 × 20 W = 40 W	5,600 lm	140 lm/W	100–277 V AC or 12–48 V DC	> 70
CNX-EXL-FLB-2P9-XX-028	2 tubes, 1060 mm	2 × 28 W = 56 W	7,840 lm	140 lm/W	100–277 V AC or 12–48 V DC	> 70
CNX-EXL-FLB-2P9-XX-036	2 tubes, 1060 mm	2 × 36 W = 72 W	10,080 lm	140 lm/W	100–277 V AC or 12–48 V DC	> 70
CNX-EXL-FLB-2P9-XX-045	2 tubes, 1060 mm	2 × 45 W = 90 W	12,600 lm	140 lm/W	100–277 V AC or 12–48 V DC	> 70
CNX-EXL-FLB-3P9-XX-020	3 tubes, 1060 mm	3 × 20 W = 60 W	8,400 lm	140 lm/W	100–277 V AC or 12–48 V DC	> 70
CNX-EXL-FLB-3P9-XX-028	3 tubes, 1060 mm	3 × 28 W = 84 W	11,760 lm	140 lm/W	100–277 V AC or 12–48 V DC	> 70
CNX-EXL-FLB-3P9-XX-036	3 tubes, 1060 mm	3 × 36 W = 108 W	15,120 lm	140 lm/W	100–277 V AC or 12–48 V DC	> 70
CNX-EXL-FLB-3P9-XX-045	3 tubes, 1060 mm	3 × 45 W = 135 W	18,900 lm	140 lm/W	100–277 V AC or 12–48 V DC	> 70
CNX-EXL-FLB-1P12-XX-036	1 tube, 1360 mm	1 × 36 W = 36 W	5,040 lm	140 lm/W	100–277 V AC or 12–48 V DC	> 70
CNX-EXL-FLB-1P12-XX-045	1 tube, 1360 mm	1 × 45 W = 45 W	6,300 lm	140 lm/W	100–277 V AC or 12–48 V DC	> 70
CNX-EXL-FLB-1P12-XX-056	1 tube, 1360 mm	1 × 56 W = 56 W	7,840 lm	140 lm/W	100–277 V AC or 12–48 V DC	> 70
CNX-EXL-FLB-1P12-XX-072	1 tube, 1360 mm	1 × 72 W = 72 W	10,080 lm	140 lm/W	100–277 V AC or 12–48 V DC	> 70
CNX-EXL-FLB-2P12-XX-036	2 tubes, 1360 mm	2 × 36 W = 72 W	10,080 lm	140 lm/W	100–277 V AC or 12–48 V DC	> 70
CNX-EXL-FLB-2P12-XX-045	2 tubes, 1360 mm	2 × 45 W = 90 W	12,600 lm	140 lm/W	100–277 V AC or 12–48 V DC	> 70
CNX-EXL-FLB-2P12-XX-056	2 tubes, 1360 mm	2 × 56 W = 112 W	15,680 lm	140 lm/W	100–277 V AC or 12–48 V DC	> 70
CNX-EXL-FLB-2P12-XX-072	2 tubes, 1360 mm	2 × 72 W = 144 W	20,160 lm	140 lm/W	100–277 V AC or 12–48 V DC	> 70
CNX-EXL-FLB-3P12-XX-036	3 tubes, 1360 mm	3 × 36 W = 108 W	15,120 lm	140 lm/W	100–277 V AC or 12–48 V DC	> 70
CNX-EXL-FLB-3P12-XX-045	3 tubes, 1360 mm	3 × 45 W = 135 W	18,900 lm	140 lm/W	100–277 V AC or 12–48 V DC	> 70
CNX-EXL-FLB-3P12-XX-056	3 tubes, 1360 mm	3 × 56 W = 168 W	23,520 lm	140 lm/W	100–277 V AC or 12–48 V DC	> 70
CNX-EXL-FLB-3P12-XX-072	3 tubes, 1360 mm	3 × 72 W = 216 W	30,240 lm	140 lm/W	100–277 V AC or 12–48 V DC	> 70

Specifications

Construction
Housing	Copper-free aluminium (linear series); Ø 100 mm tubes with stainless-steel 304 hardware (tube luminaire)
Lens	Tempered glass; borosilicate glass or PMMA-coated polycarbonate on the tube luminaire

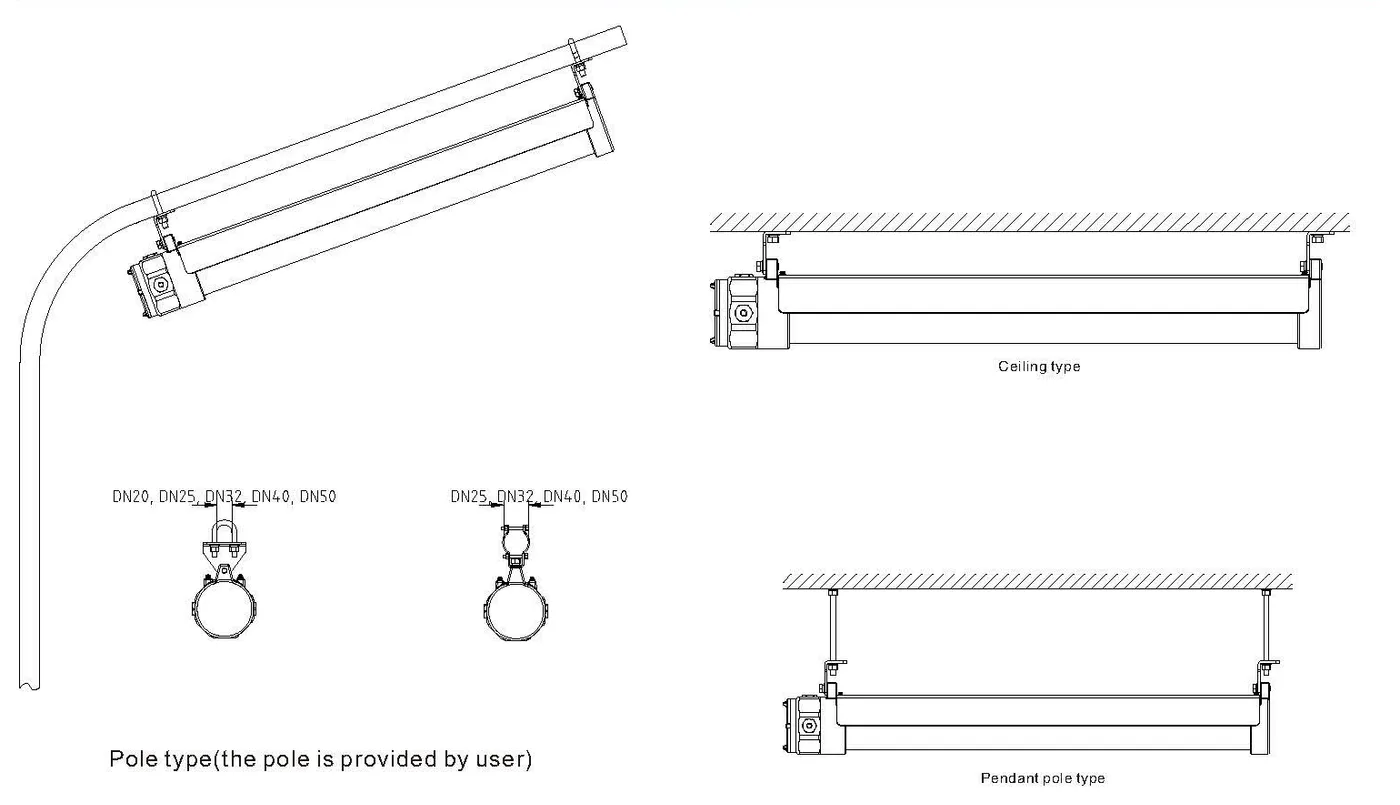

Mounting	Surface or pendant; the tube luminaire also on a pole (DN20–DN50) or ceiling
Impact rating	IK10
Hazardous location	HZone 2 / 21 gas and dust · Class I Division 2, Class II Division 1 IZone 1 / 21 · Class I Division 1 FLBZone 1 / 21 (ATEX, IECEx)
Ingress rating	HIIP66 FLBIP66 / IP67 / IP68
Emergency	HFLBOptional IOptional, 3 h

Optical
Rated life	> 50,000 h
Output	H2,800–11,200 lm I2,800–16,800 lm FLB2,100–30,240 lm

Optical
Colour temperature	H2200–7000 K I2700–7000 K FLB3000–6500 K
CRI	H80 IFLB> 70

Electrical
Dimming	Dimming option on the tube luminaire
Warranty	5 years
Power	H20–80 W I20–120 W FLB15–216 W
Input voltage	H100–277 V AC IC, 200–480 V AC 12–48 V DC I100–277 V AC, 200–480 V AC 12–36 V DC FLB100–277 V AC 12–48 V DC
Operating temperature	HI−40 to +60 °C FLB−40 to +45 °C (T6) −40 to +60 °C (T5)

Hazardous-location markings
ATEX marking	HII 3 G Ex ec IIC T5/T6 Gc · II 2 D Ex tb IIIC T80/100 °C Db IP66 III 2 G Ex db op is IIB T4/T5 Gb · II 2 D Ex op is tb IIIC T135 °C Db IP66 FLBII 2 G Ex eb db mb IIC T6/T5 Gb · II 2 D Ex tb IIIC T80 °C / T95 °C Db IP66/IP67/IP68
IECEx marking	HEx ec IIC T5/T6 Gc · Ex tb IIIC T80/100 °C Db IP66 IEx db op is IIB T4/T5 Gb · Ex op is tb IIIC T135 °C Db IP66 FLBEx eb db mb IIC T6/T5 Gb · Ex tb IIIC T80 °C / T95 °C Db IP66/IP67/IP68
UL 844 (North America)	HClass I Division 2 Groups A, B, C, D · Class II Division 1 Groups E, F, G · Class II Division 2 Groups F, G · Class III IClass I Division 1 Groups C, D · Class I Division 2 Groups A, B, C, D · Class II Division 1 Groups E, F, G · Class II Division 2 Groups F, G · Class III
Marine	HIUL 1598, UL 1598A · ABS
Standards	FLBEN / IEC 60079-0, -1, -7, -18, -31

Dimensions & weight

Model	Length	Width	Height	Weight
H, housing 1 (20–40 W)	73.3 cm	20.6 cm	11.7 cm	4 kg
H, housing 2 (60–80 W)	133.3 cm	20.6 cm	11.7 cm	8 kg
I, housing 1 (20–60 W), approximate	73.3 cm	20.6 cm	11.7 cm	—
I, housing 2 (80–120 W), approximate	133.3 cm	20.6 cm	11.7 cm	—
FLB, one tube, 760 mm	76 cm	12.6 cm	19.3 cm	—
FLB, one tube, 1,060 mm	106 cm	12.6 cm	19.3 cm	—
FLB, one tube, 1,360 mm	136 cm	12.6 cm	19.3 cm	—
FLB, two tubes (760 / 1,060 / 1,360 mm)	76 cm	31.3 cm	19.3 cm	—
FLB, three tubes (760 / 1,060 / 1,360 mm)	76 cm	46.3 cm	19.3 cm	—

Ordering information

Part number format

CNX-EXLProduct type

H1Series

1P62Tubes and length

303Colour temperature

0154Wattage

P15Input voltage

G6Lens

EMG7Emergency

Example: CNX-EXL-H-30-020 — the first part number in the tables above, with 3000 K in place of XX; the options follow the wattage

1Series

2Tubes and length

3Colour temperature

4Wattage

5Input voltage

6Lens

7Emergency

Applications

Petroleum production and refiningPetroleum loading and transportFuel storage and retailChemical production and storagePaint facilitiesPumping stationsSmelting, foundries and fabricationMining operationsOffshore platformsMarine vesselsFood and distillingPower generation

Certifications

ATEXIECEx

Marks as printed on the current spec sheet.
