LED Wall Washers

Five series with high efficacy up to 130 lm/W in white, RGB and RGBW colour and beams from 5° to 60°, available in 9 W to 140 W configurations.

130 lm/Win white
5°–60°round and elliptical beams
5series to choose from
Request a quoteDownloads

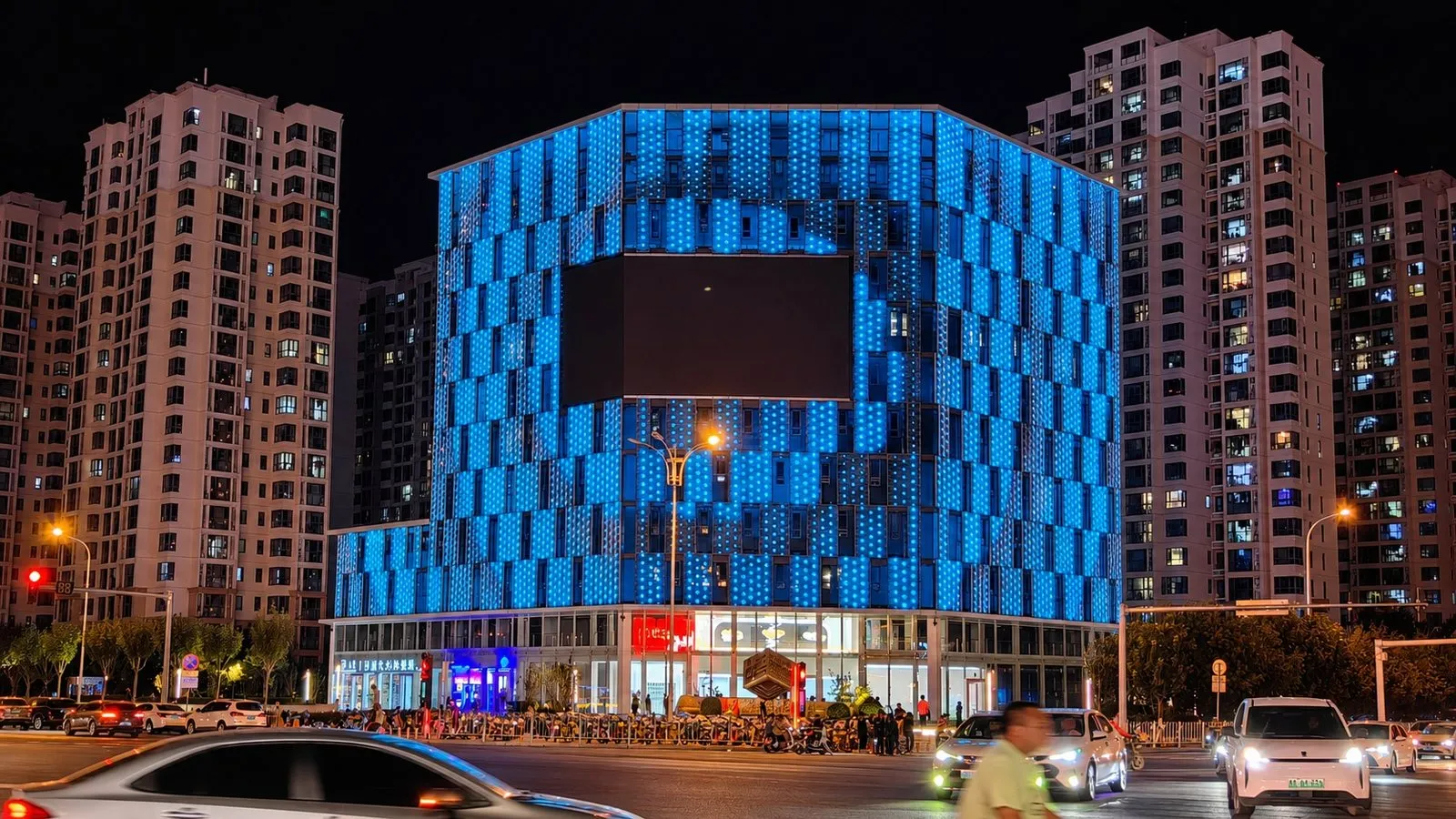

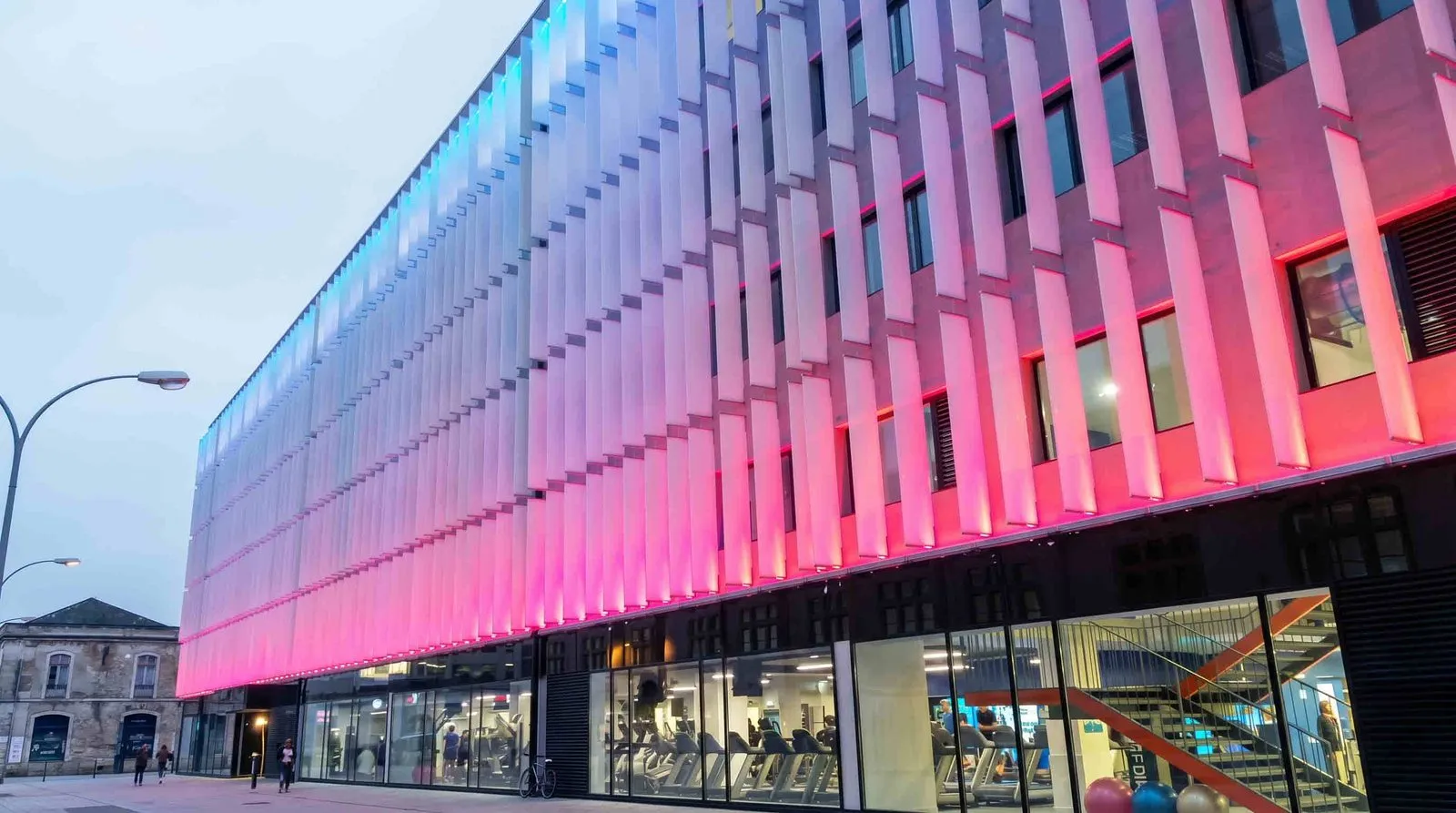

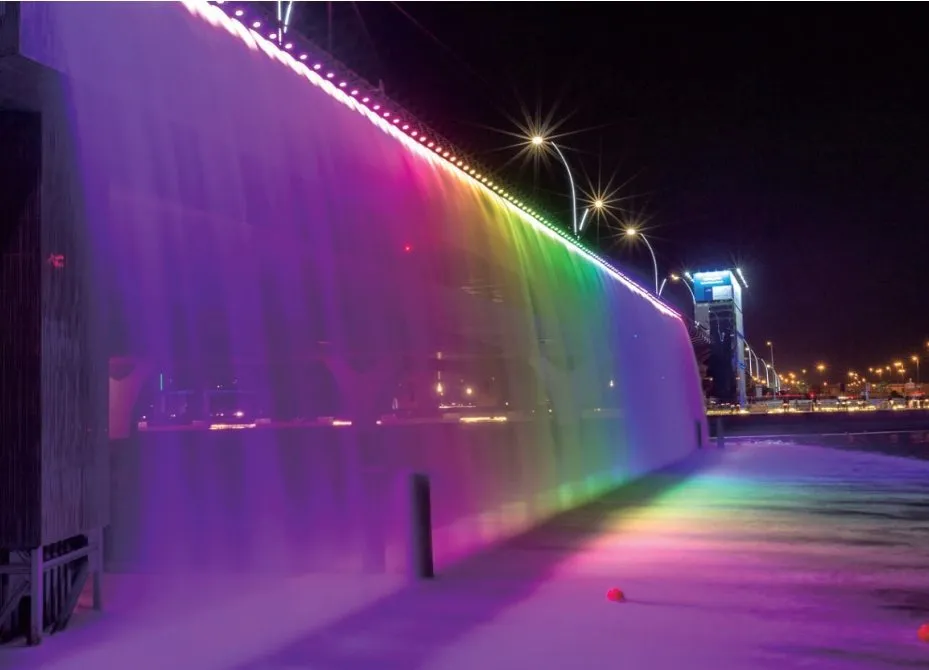

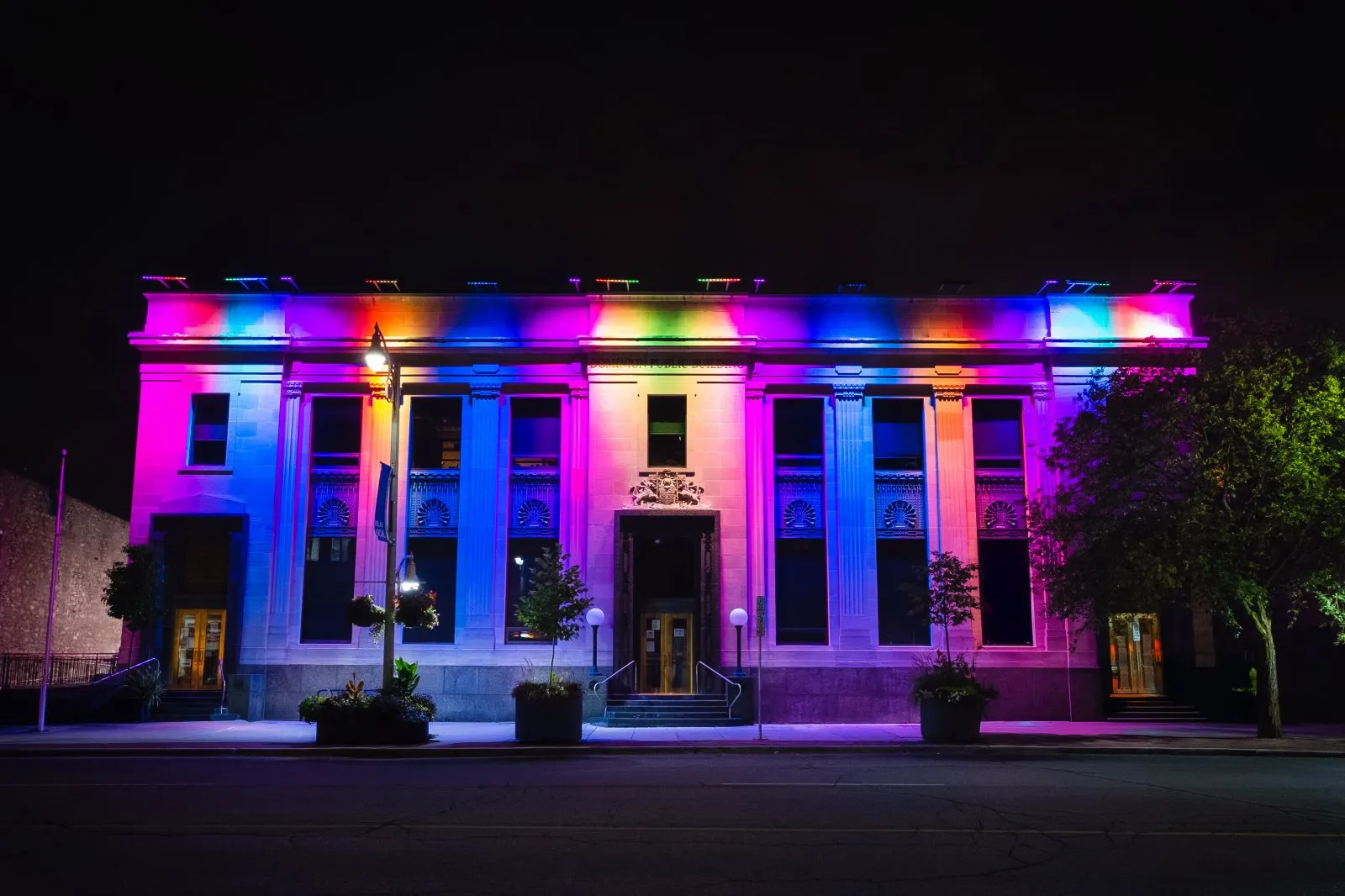

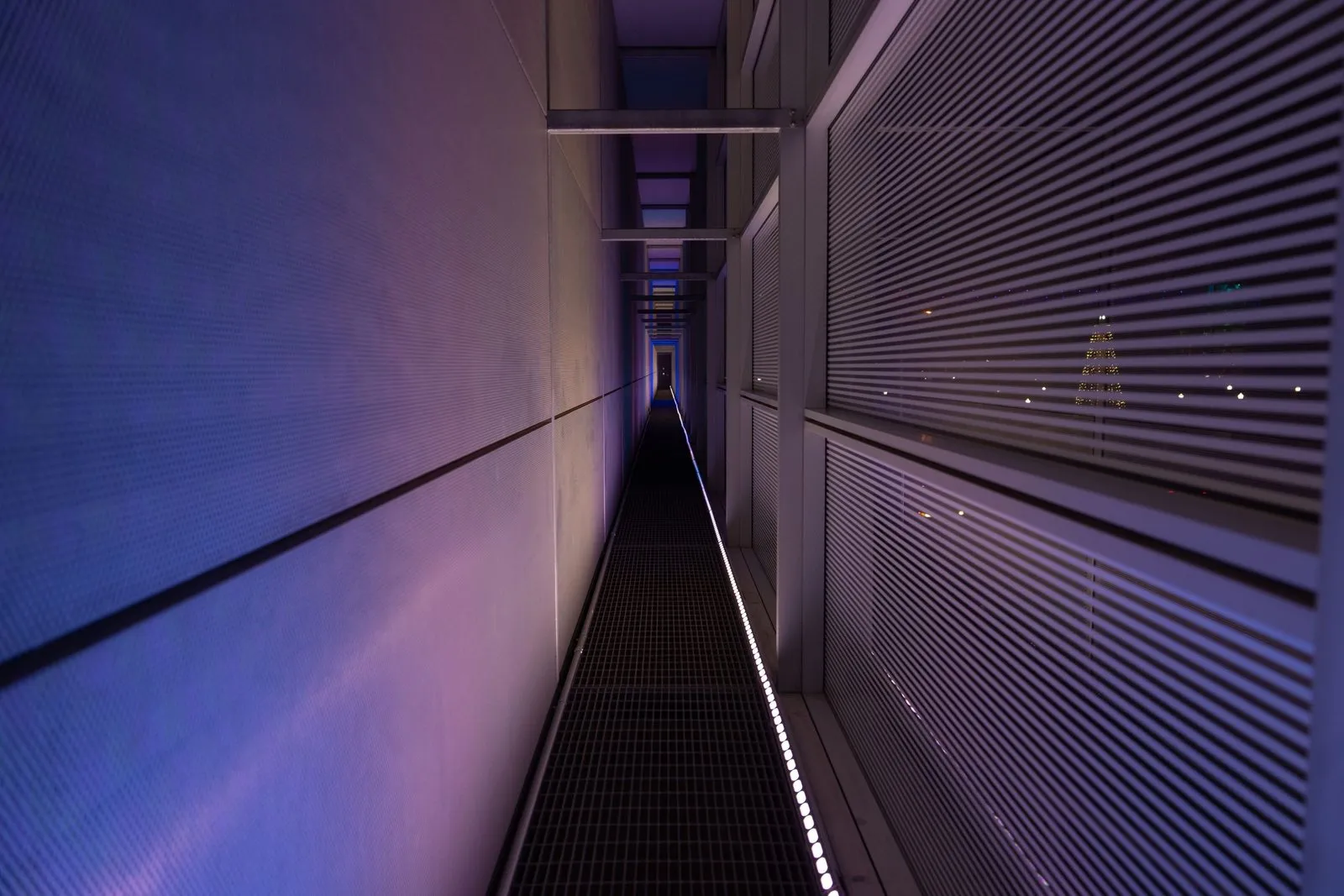

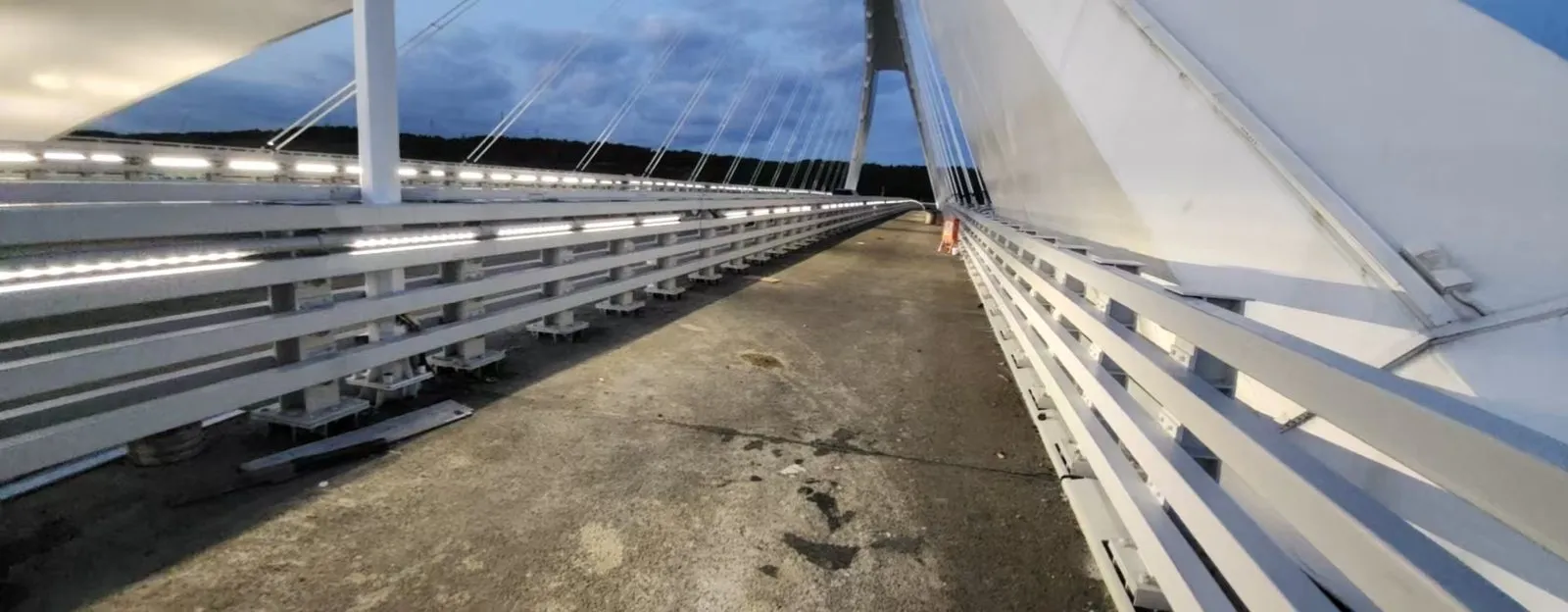

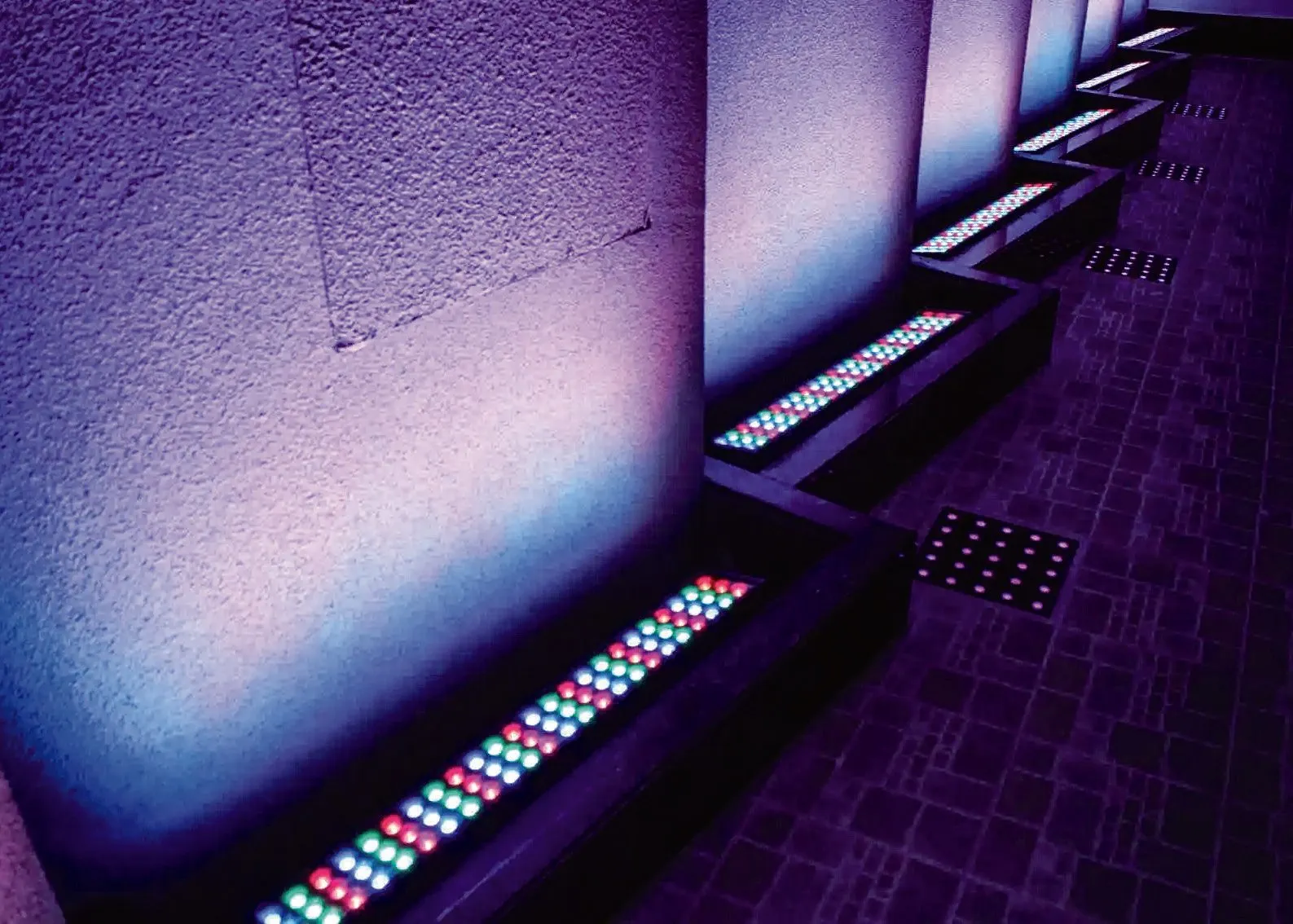

Application example: glass façade in colour

Compare the series

5 series
38 mm profileThe slim one: fits ledges, reveals and tight architectural details.Power9–36 WWhite output1,080–4,320 lmColoursWhite, RGB, RGBWLengths314–1,218 mm, five lengthsOptics5°, 10°, 20°, 30°, 40°, 60°, 10° × 20°, 15° × 40°, 15° × 55°Input voltage24 V DC
100–277 V ACIngress ratingIP66Impact ratingIK06Operating temperature−20 to +45 °CRated life50,000 hSee models 55 mm profileMore output, with a built-in touch panel to run scenes without a controller.Power18–65 WWhite output1,660–5,980 lmColoursWhite, RGB, RGBWLengths350–1,220 mm, four lengthsOptics5°, 10°, 20°, 30°, 40°, 60°, 10° × 20°, 15° × 40°, 15° × 55°Input voltage100–277 V ACIngress ratingIP66Impact ratingIK06Operating temperature−20 to +45 °CRated life50,000 hSee models 80 mm profileMounts from the bottom or the side, with anti-glare lens or grille.Power12–40 WWhite output840–2,800 lmColoursWhite, RGB, RGBWLengths305–1,220 mm, five lengthsOptics10°, 15°, 20°, 30°, 45°, 55°, 20° × 40°, 15° × 55°Input voltage100–277 V ACIngress ratingIP65Impact ratingIK08Operating temperature−20 to +45 °CRated life50,000 hSee models 150 mm profileThe most output: tall façades and large surfaces.Power40–140 WWhite output2,800–9,800 lmColoursWhite, RGB, RGBWLengths330–1,240 mm, three lengthsOptics10°, 15°, 20°, 30°, 45°, 15° × 40°, 15° × 55°Input voltage100–277 V ACIngress ratingIP65Impact ratingIK08Operating temperature−20 to +45 °CRated life50,000 hSee models Round tube, Ø 80 mmSealed round tube for car washes and wash-down areas.Power9–60 WWhite output800–3,348 lm, up to 36 WColoursWhite, RGB, RGBWLengths393–1,290 mm, three lengthsOptics20°, 40°, 20° × 40°Input voltage24 V DC
100–277 V ACIngress ratingIP67 · IP69KImpact ratingIK09Operating temperature−20 to +45 °CRated life50,000 hSee models

Product range

69 models

38 mm profile

The slim one: fits ledges, reveals and tight architectural details.

38 mm profile

Beam patterns

  • 5°
  • 10°
  • 20°
  • 30°
  • 40°
  • 60°
  • 10°×20°
  • 15°×40°
  • 15°×55°

Lengths, section and weights

  • L3Weight0.7 / 0.9 kg
  • L5Weight0.9 / 1.3 kg
  • L6Weight1.0 / 1.5 kg
  • L10Weight1.5 / 2.3 kg
  • L12Weight1.7 / 2.6 kg

Colour temperature

  • 2,200 K
  • 3,000 K
  • 4,000 K
  • 6,000 K
  • Tunable white

Control

  • DMX512 / RDM
  • On/Off
  • Tunable white
  • DALI 2.0
  • 0–10 V
  • ColoursWhite, RGB, RGBW
  • Input voltage24 V DC
    100–277 V AC
  • Ingress ratingIP66
  • Impact ratingIK06
  • Operating temperature−20 to +45 °C
  • Rated life50,000 h

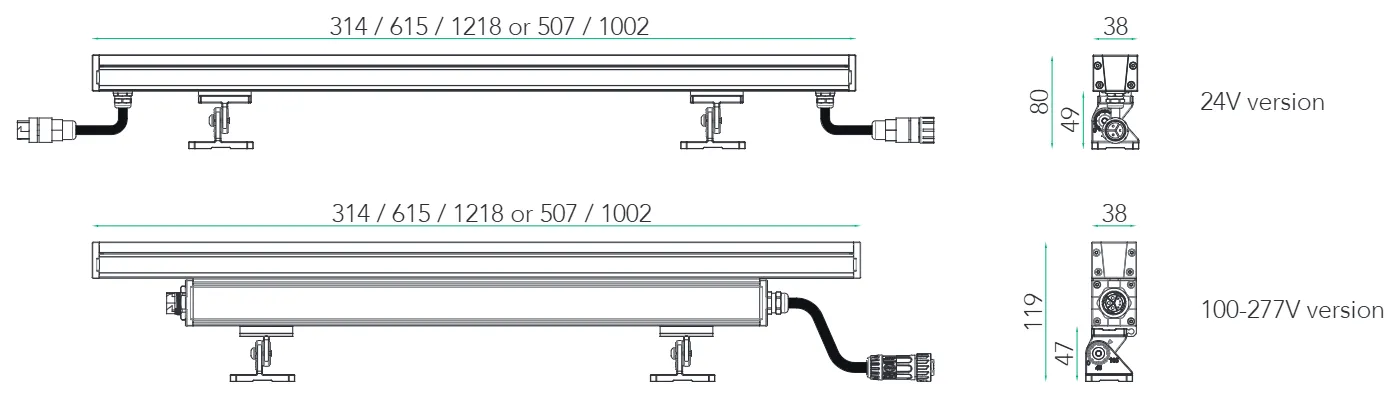

Dimensions (mm)

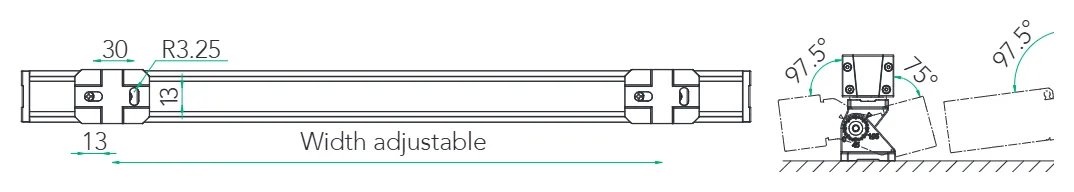

Mounting and adjustment

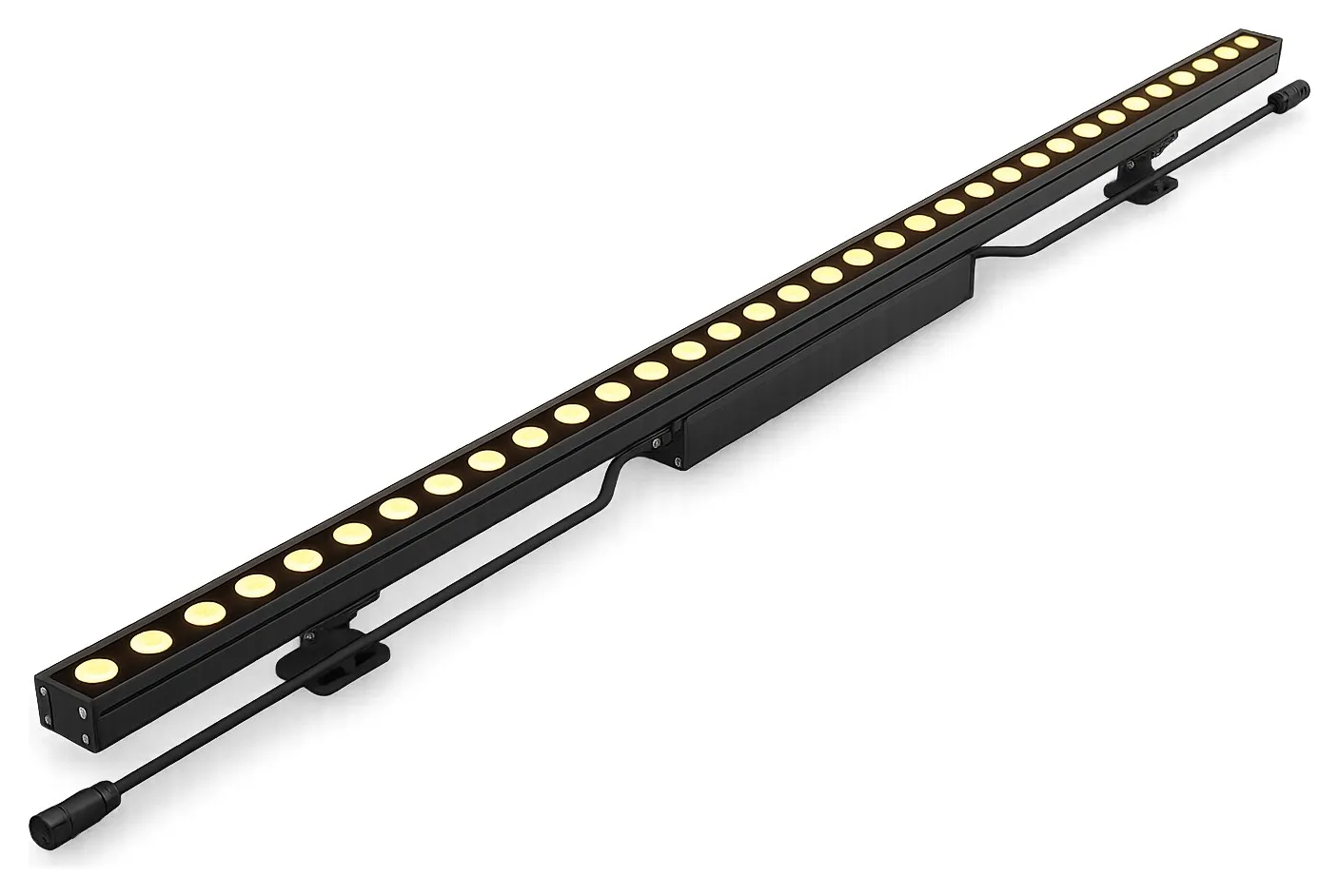

38 mm profile, lit
38 mm profile, lit

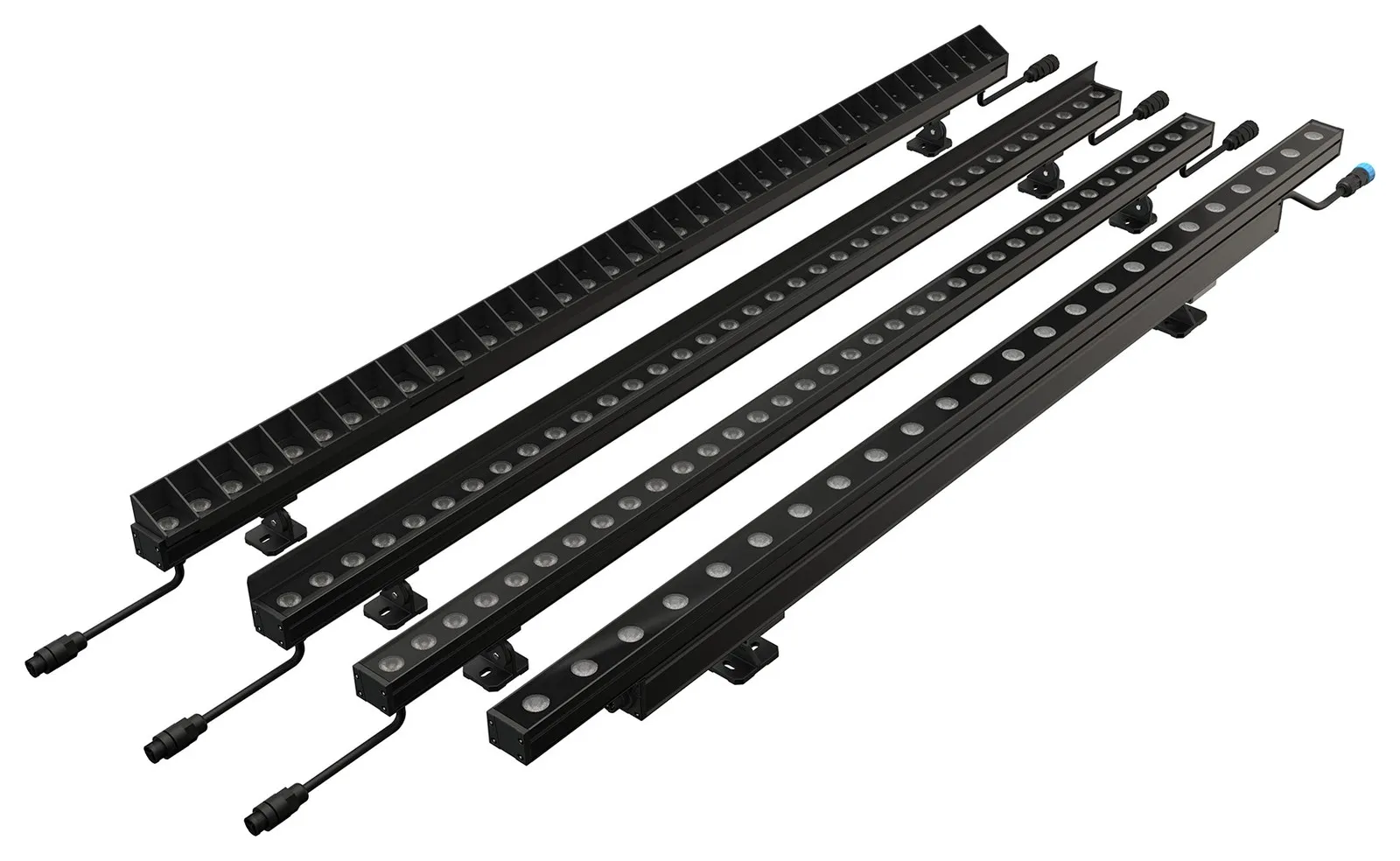

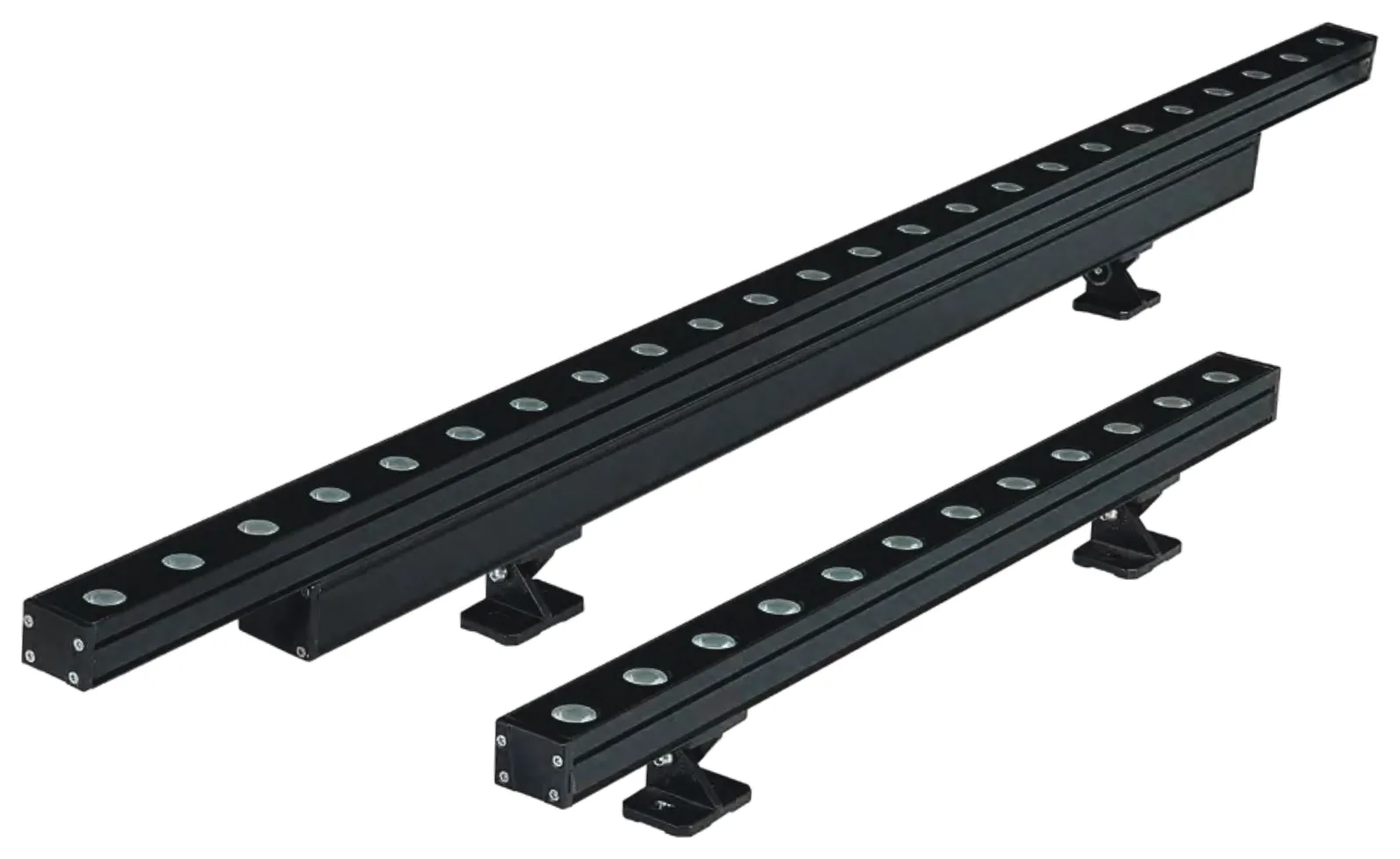

38 mm profile in its lengths
38 mm profile in its lengths
15 part numbersShow
38 mm profile
Part numberColourPowerOutput (lm)L × W × H (mm)Weight (kg)
CNX-LWW-38-L3-WHT-009White9 W1,080314 × 38 × 80/1190.7 / 0.9
CNX-LWW-38-L3-RGB-009RGB9 W335314 × 38 × 80/1190.7 / 0.9
CNX-LWW-38-L3-RGBW-009RGBW9 W405314 × 38 × 80/1190.7 / 0.9
CNX-LWW-38-L5-WHT-018White18 W2,160507 × 38 × 80/1190.9 / 1.3
CNX-LWW-38-L5-RGB-018RGB18 W665507 × 38 × 80/1190.9 / 1.3
CNX-LWW-38-L5-RGBW-018RGBW18 W810507 × 38 × 80/1190.9 / 1.3
CNX-LWW-38-L6-WHT-018White18 W2,160615 × 38 × 80/1191.0 / 1.5
CNX-LWW-38-L6-RGB-018RGB18 W665615 × 38 × 80/1191.0 / 1.5
CNX-LWW-38-L6-RGBW-018RGBW18 W810615 × 38 × 80/1191.0 / 1.5
CNX-LWW-38-L10-WHT-036White36 W4,3201002 × 38 × 80/1191.5 / 2.3
CNX-LWW-38-L10-RGB-036RGB36 W1,3351002 × 38 × 80/1191.5 / 2.3
CNX-LWW-38-L10-RGBW-036RGBW36 W1,6201002 × 38 × 80/1191.5 / 2.3
CNX-LWW-38-L12-WHT-036White36 W4,3201218 × 38 × 80/1191.7 / 2.6
CNX-LWW-38-L12-RGB-036RGB36 W1,3351218 × 38 × 80/1191.7 / 2.6
CNX-LWW-38-L12-RGBW-036RGBW36 W1,6201218 × 38 × 80/1191.7 / 2.6

55 mm profile

More output, with a built-in touch panel to run scenes without a controller.

55 mm profile

Beam patterns

  • 5°
  • 10°
  • 20°
  • 30°
  • 40°
  • 60°
  • 10°×20°
  • 15°×40°
  • 15°×55°

Lengths, section and weights

  • L3Weight1.5 kg
  • L6Weight2.5 kg
  • L10Weight4.1 kg
  • L12Weight4.7 kg

Colour temperature

  • 2,200 K
  • 3,000 K
  • 4,000 K
  • 6,000 K
  • Tunable white

Control

  • DMX512 / RDM
  • On/Off
  • Tunable white
  • DALI 2.0
  • 0–10 V
  • ColoursWhite, RGB, RGBW
  • Input voltage100–277 V AC
  • Ingress ratingIP66
  • Impact ratingIK06
  • Operating temperature−20 to +45 °C
  • Rated life50,000 h

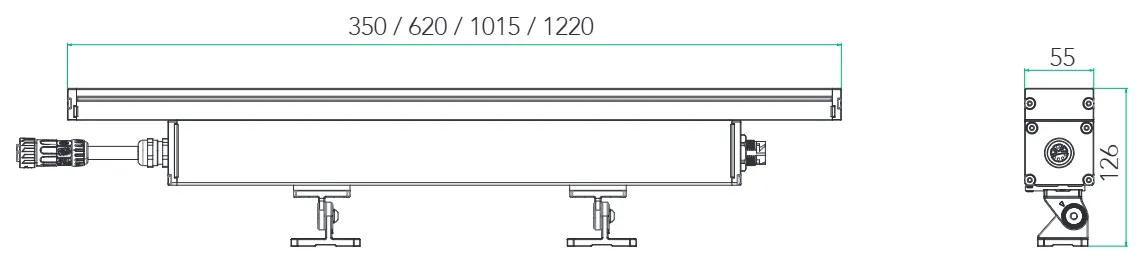

Dimensions (mm)
Mounting and adjustment

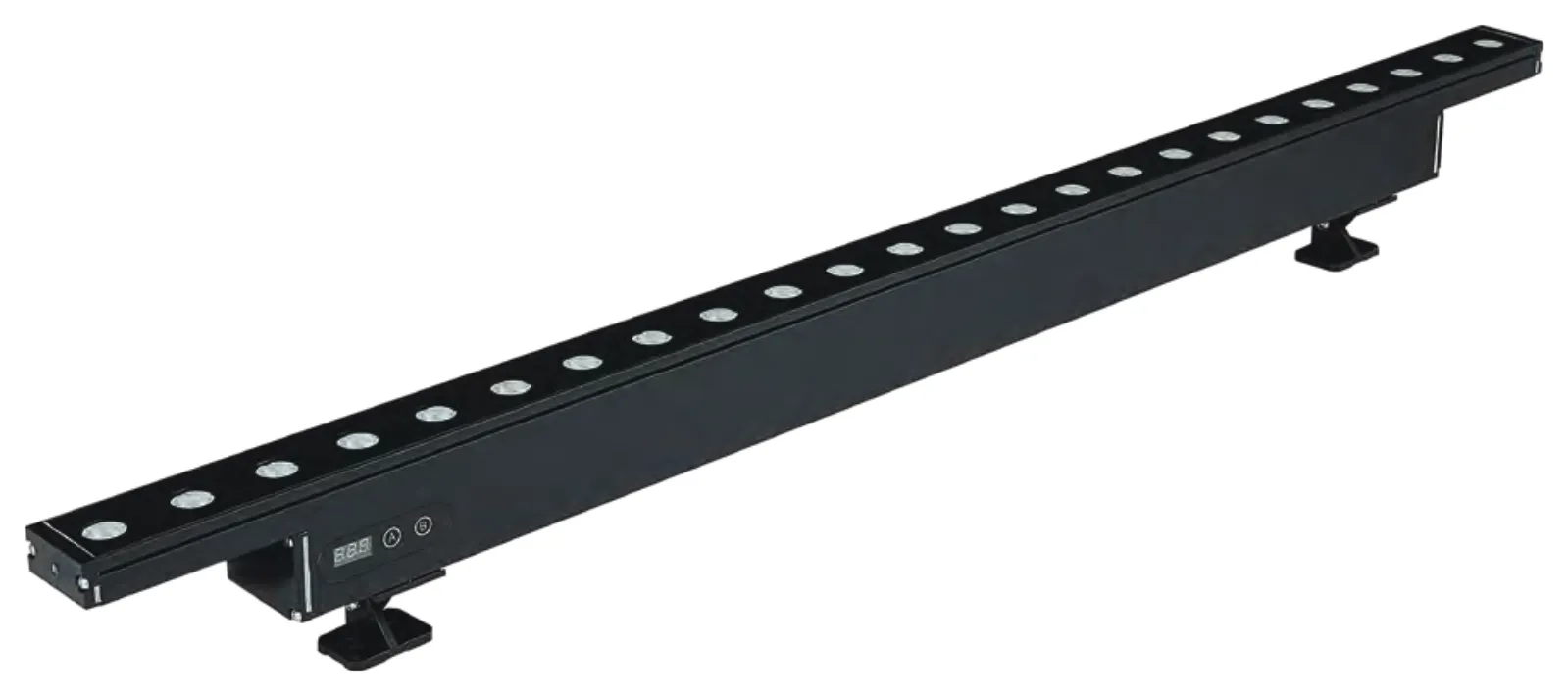

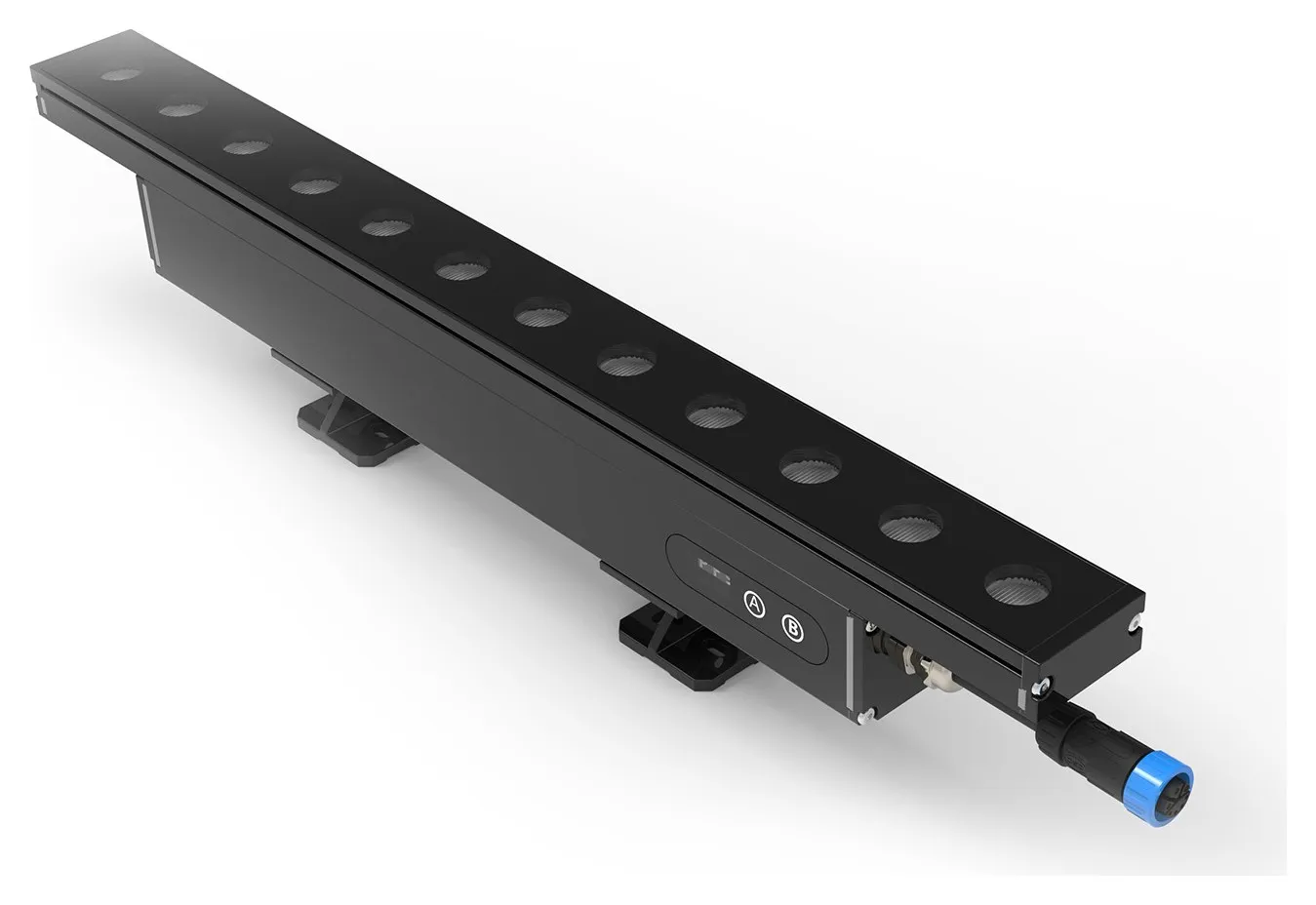

55 mm profile, touch panel at the end
55 mm profile, touch panel at the end

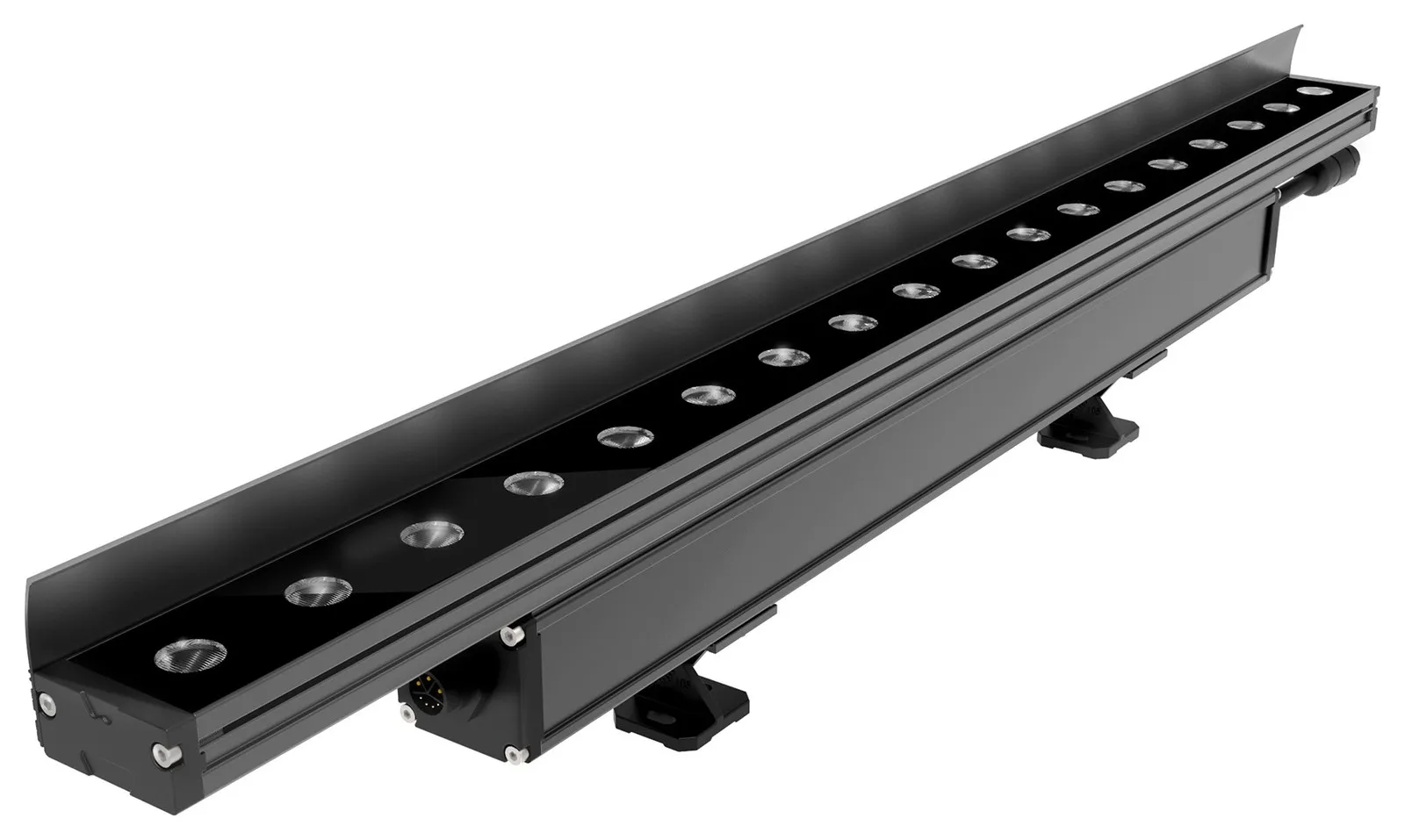

55 mm profile with light barrier
55 mm profile with light barrier

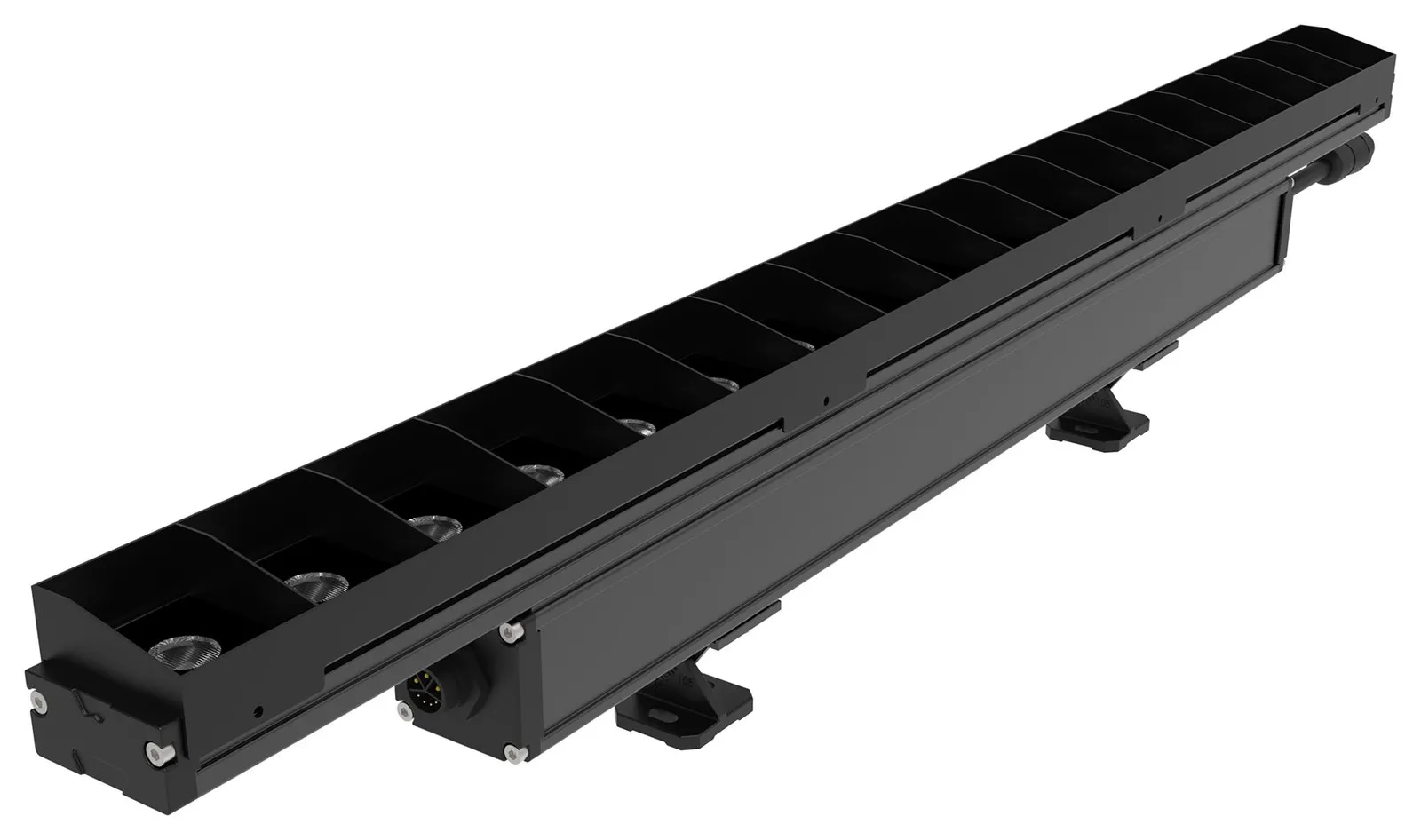

55 mm profile with grille cover
55 mm profile with grille cover

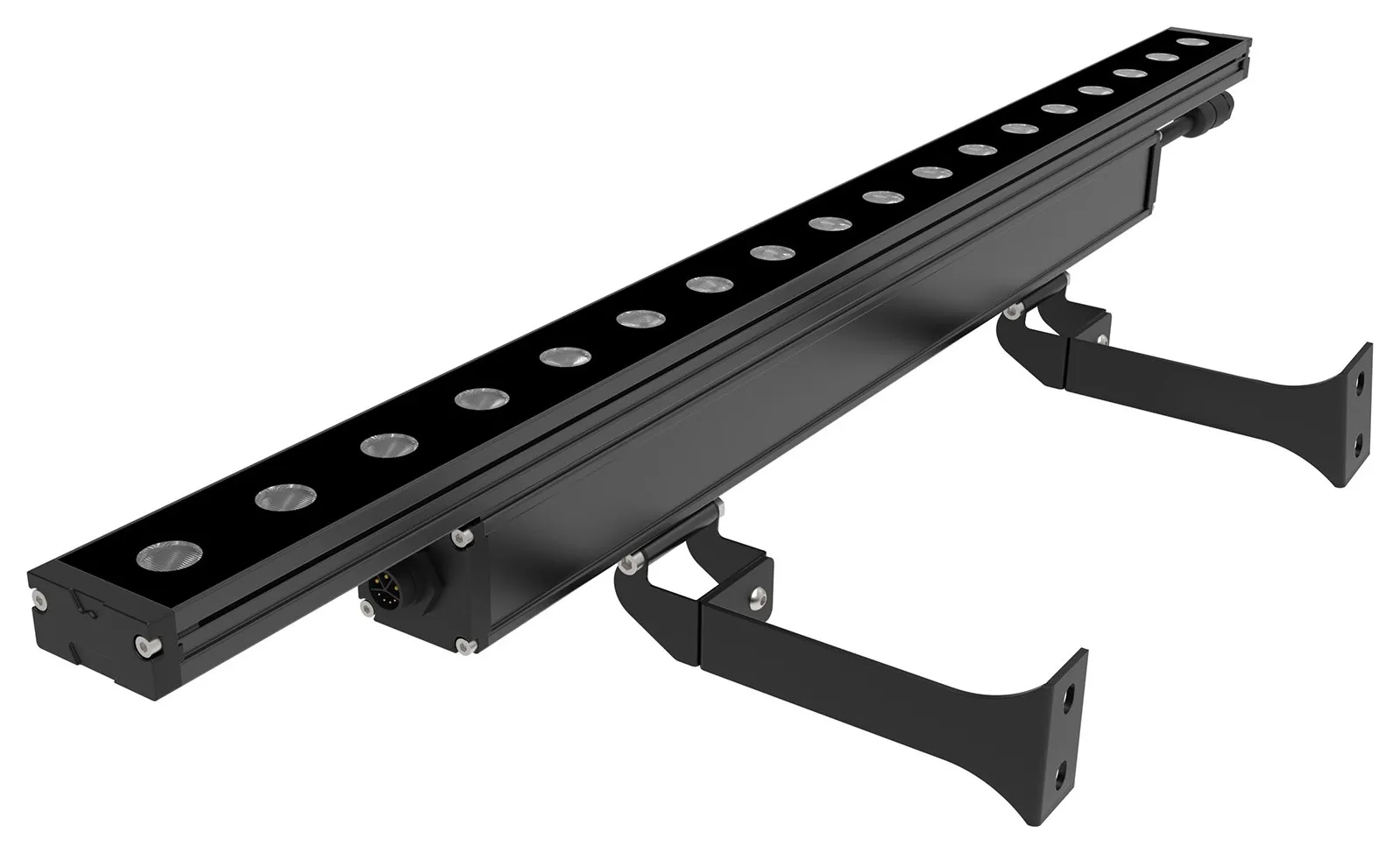

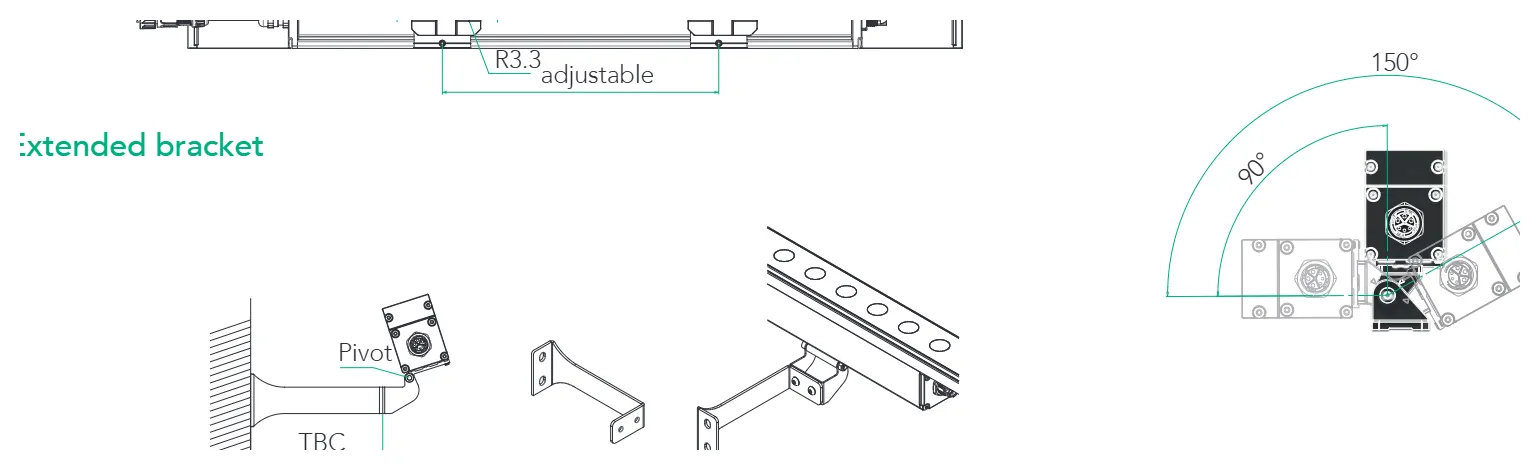

55 mm profile on extended brackets
55 mm profile on extended brackets
12 part numbersShow
55 mm profile
Part numberColourPowerOutput (lm)L × W × H (mm)Weight (kg)
CNX-LWW-55-L3-WHT-018White18 W1,660350 × 55 × 1261.5
CNX-LWW-55-L3-RGB-018RGB18 W740350 × 55 × 1261.5
CNX-LWW-55-L3-RGBW-018RGBW18 W900350 × 55 × 1261.5
CNX-LWW-55-L6-WHT-035White35 W3,220620 × 55 × 1262.5
CNX-LWW-55-L6-RGB-035RGB35 W1,440620 × 55 × 1262.5
CNX-LWW-55-L6-RGBW-035RGBW35 W1,750620 × 55 × 1262.5
CNX-LWW-55-L10-WHT-055White55 W5,0601015 × 55 × 1264.1
CNX-LWW-55-L10-RGB-055RGB55 W2,2651015 × 55 × 1264.1
CNX-LWW-55-L10-RGBW-055RGBW55 W2,7501015 × 55 × 1264.1
CNX-LWW-55-L12-WHT-065White65 W5,9801220 × 55 × 1264.7
CNX-LWW-55-L12-RGB-065RGB65 W2,6751220 × 55 × 1264.7
CNX-LWW-55-L12-RGBW-065RGBW65 W3,2501220 × 55 × 1264.7

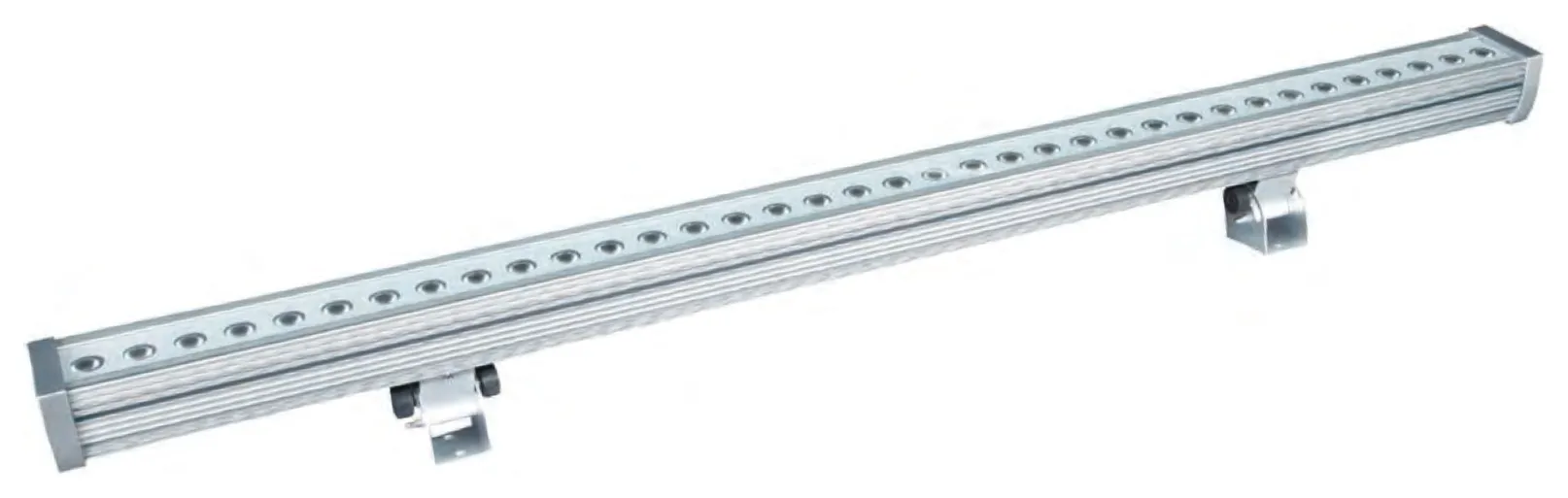

80 mm profile

Mounts from the bottom or the side, with anti-glare lens or grille.

80 mm profile

Beam patterns

  • 10°
  • 15°
  • 20°
  • 30°
  • 45°
  • 55°
  • 15°×55°
  • 20°×40°

Lengths, section and weights

  • L3Weight2.1 kg
  • L5Weight3.5 kg
  • L6Weight3.6 kg
  • L10Weight5.3 kg
  • L12Weight5.6 kg

Colour temperature

  • 2,200 K
  • 3,000 K
  • 4,000 K
  • 6,000 K
  • Tunable white

Control

  • DMX512 / RDM
  • On/Off
  • Tunable white
  • DALI 2.0
  • 0–10 V
  • ColoursWhite, RGB, RGBW
  • Input voltage100–277 V AC
  • Ingress ratingIP65
  • Impact ratingIK08
  • Operating temperature−20 to +45 °C
  • Rated life50,000 h

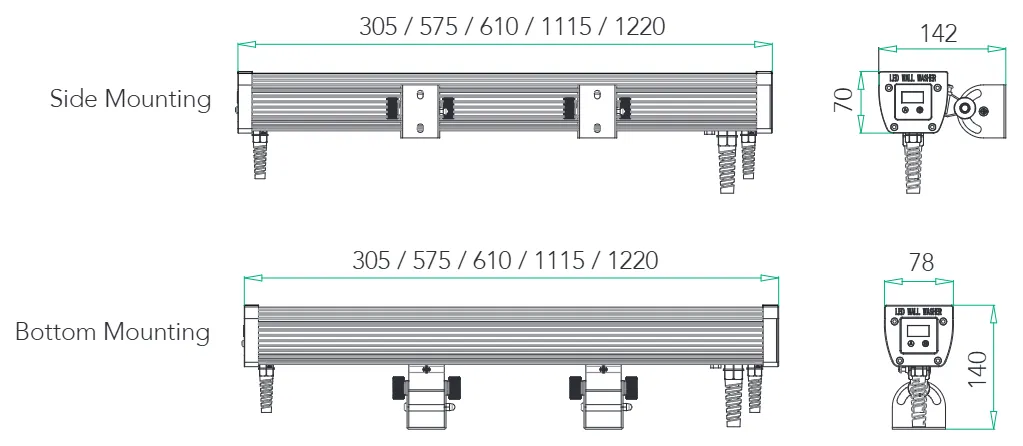

Dimensions (mm)

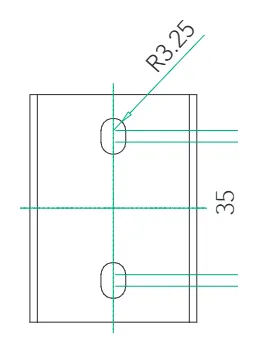

Mounting

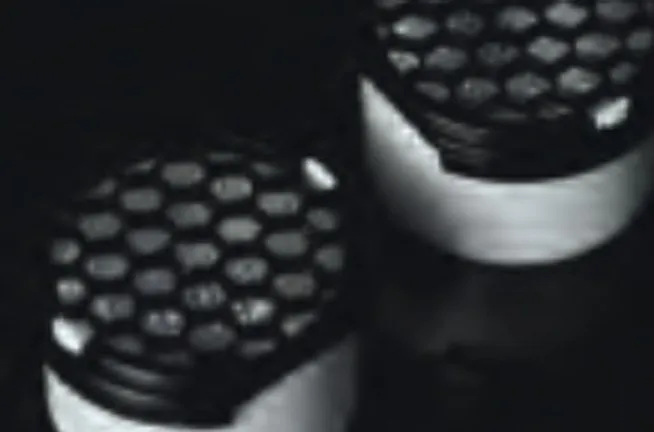

80 mm profile with anti-glare lens
80 mm profile with anti-glare lens

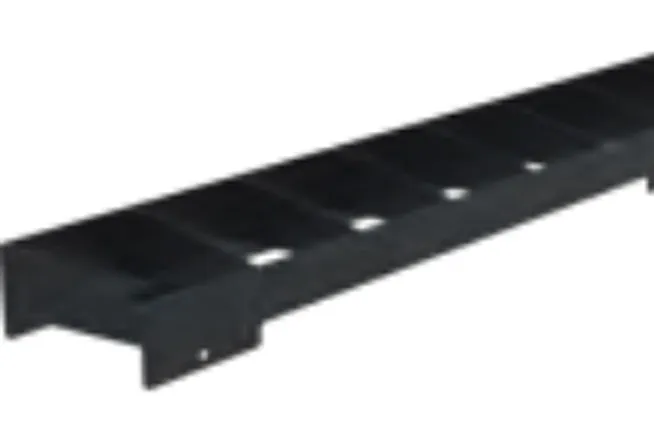

80 mm profile with anti-glare grille
80 mm profile with anti-glare grille
15 part numbersShow
80 mm profile
Part numberColourPowerOutput (lm)L × W × H (mm)Weight (kg)
CNX-LWW-80-L3-WHT-012White12 W840305 × 78 × 1402.1
CNX-LWW-80-L3-RGB-012RGB12 W420305 × 78 × 1402.1
CNX-LWW-80-L3-RGBW-012RGBW12 W510305 × 78 × 1402.1
CNX-LWW-80-L5-WHT-020White20 W1,400575 × 78 × 1403.5
CNX-LWW-80-L5-RGB-020RGB20 W700575 × 78 × 1403.5
CNX-LWW-80-L5-RGBW-020RGBW20 W850575 × 78 × 1403.5
CNX-LWW-80-L6-WHT-020White20 W1,400610 × 78 × 1403.6
CNX-LWW-80-L6-RGB-020RGB20 W700610 × 78 × 1403.6
CNX-LWW-80-L6-RGBW-020RGBW20 W850610 × 78 × 1403.6
CNX-LWW-80-L10-WHT-040White40 W2,8001115 × 78 × 1405.3
CNX-LWW-80-L10-RGB-040RGB40 W1,4001115 × 78 × 1405.3
CNX-LWW-80-L10-RGBW-040RGBW40 W1,7001115 × 78 × 1405.3
CNX-LWW-80-L12-WHT-040White40 W2,8001220 × 78 × 1405.6
CNX-LWW-80-L12-RGB-040RGB40 W1,4001220 × 78 × 1405.6
CNX-LWW-80-L12-RGBW-040RGBW40 W1,7001220 × 78 × 1405.6

150 mm profile

The most output: tall façades and large surfaces.

150 mm profile

Beam patterns

  • 10°
  • 15°
  • 20°
  • 30°
  • 45°
  • 15°×40°
  • 15°×55°

Lengths, section and weights

  • L3Weight3.0 kg
  • L6Weight6.4 kg
  • L12Weight10 kg

Colour temperature

  • 2,200 K
  • 3,000 K
  • 4,000 K
  • 6,000 K
  • Tunable white

Control

  • DMX512 / RDM
  • On/Off
  • Tunable white
  • DALI 2.0
  • 0–10 V
  • ColoursWhite, RGB, RGBW
  • Input voltage100–277 V AC
  • Ingress ratingIP65
  • Impact ratingIK08
  • Operating temperature−20 to +45 °C
  • Rated life50,000 h

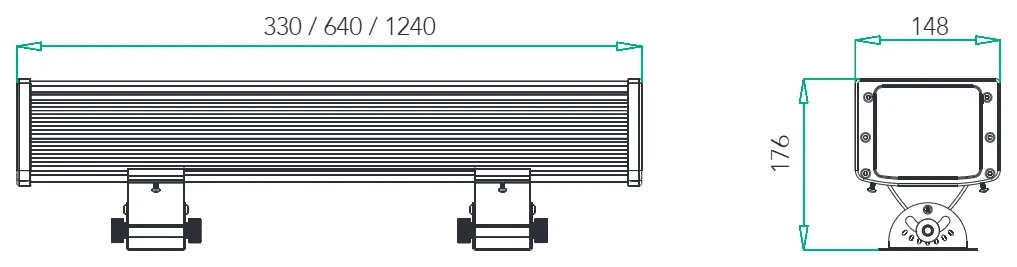

Dimensions (mm)

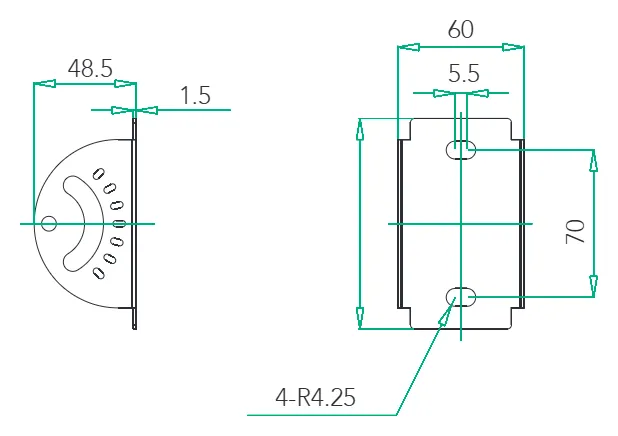

Mounting

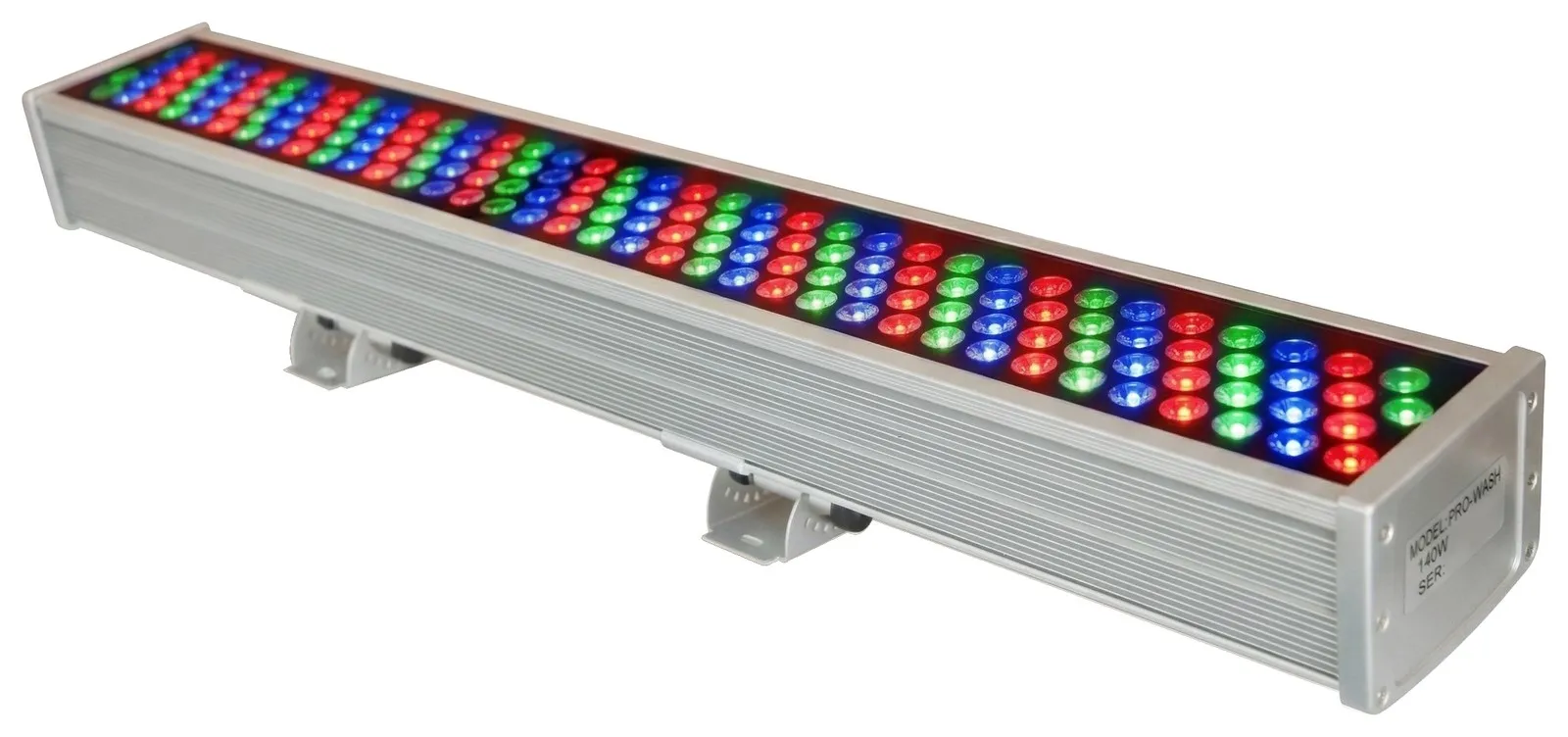

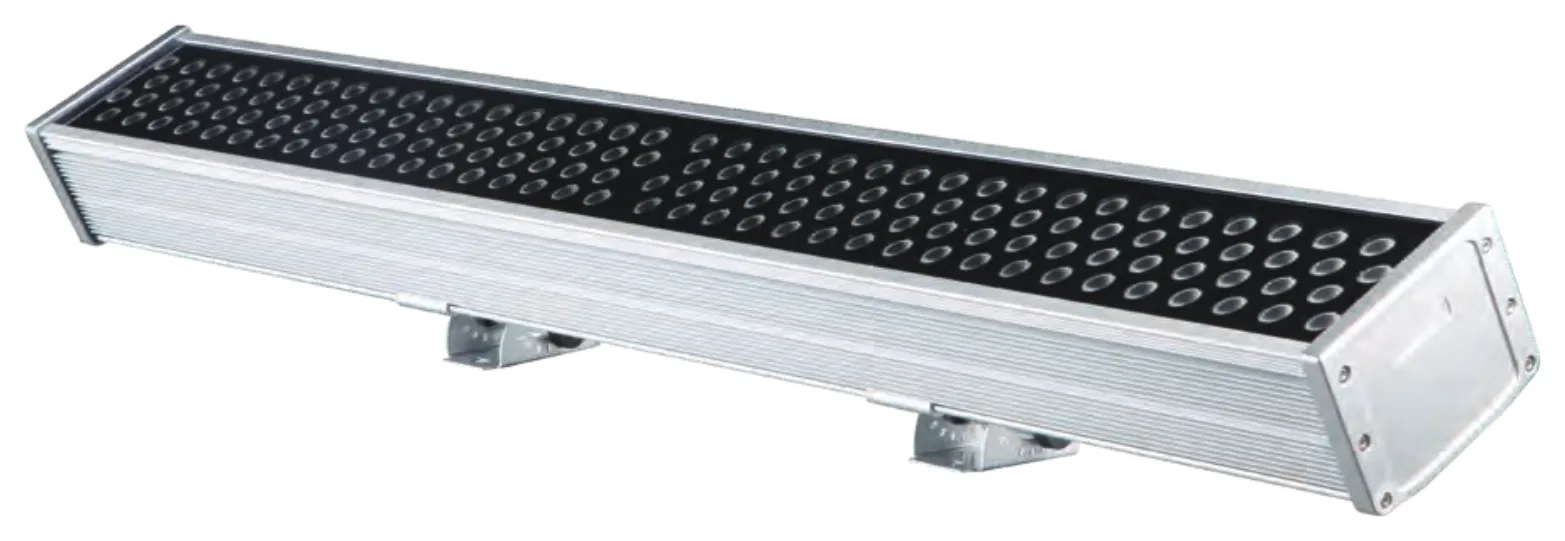

150 mm profile, RGB
150 mm profile, RGB

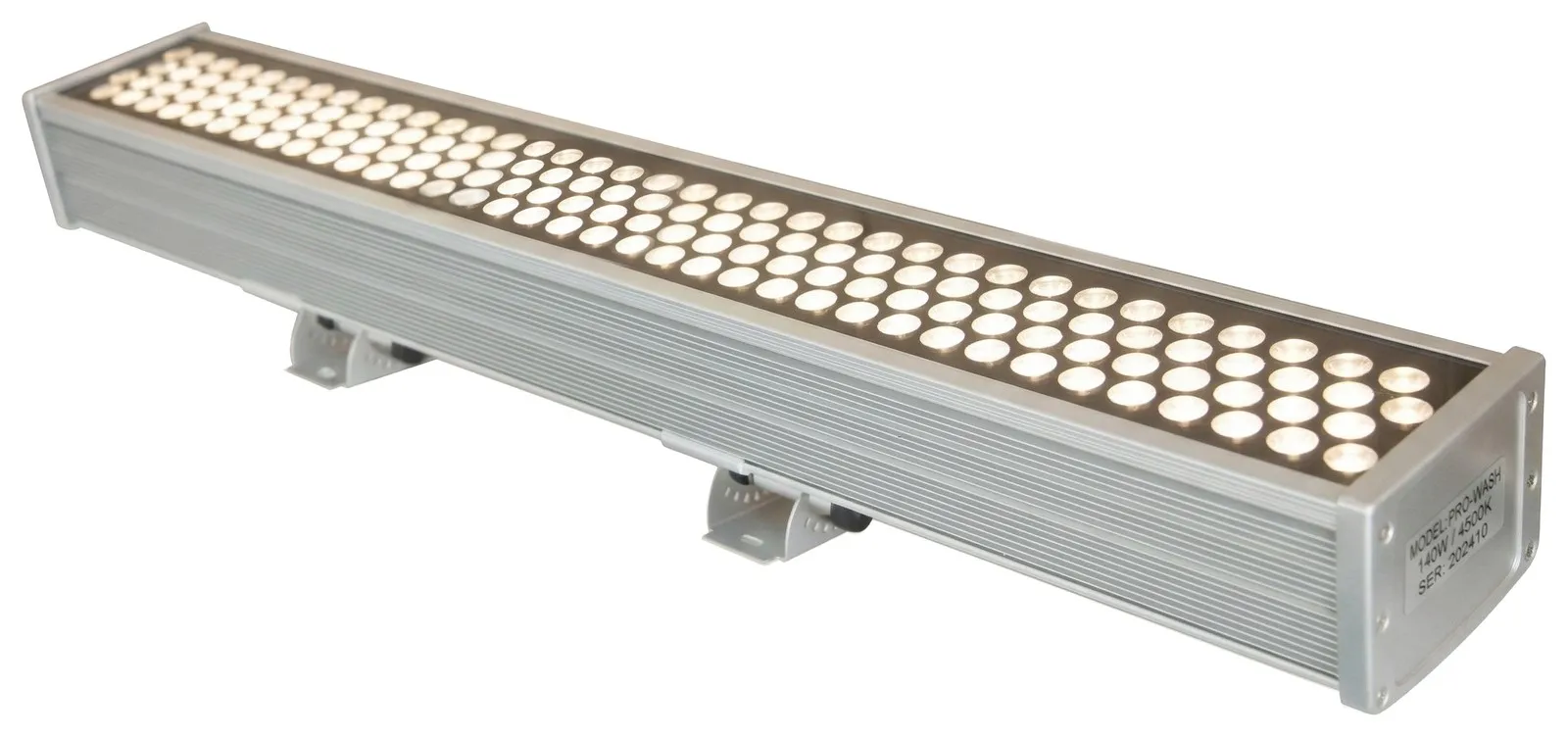

150 mm profile, white
150 mm profile, white
9 part numbersShow
150 mm profile
Part numberColourPowerOutput (lm)L × W × H (mm)Weight (kg)
CNX-LWW-150-L3-WHT-040White40 W2,800330 × 148 × 1763.0
CNX-LWW-150-L3-RGB-040RGB40 W1,400330 × 148 × 1763.0
CNX-LWW-150-L3-RGBW-040RGBW40 W1,700330 × 148 × 1763.0
CNX-LWW-150-L6-WHT-070White70 W4,900640 × 148 × 1766.4
CNX-LWW-150-L6-RGB-070RGB70 W2,450640 × 148 × 1766.4
CNX-LWW-150-L6-RGBW-070RGBW70 W2,975640 × 148 × 1766.4
CNX-LWW-150-L12-WHT-140White140 W9,8001240 × 148 × 17610
CNX-LWW-150-L12-RGB-140RGB140 W4,9001240 × 148 × 17610
CNX-LWW-150-L12-RGBW-140RGBW140 W5,9501240 × 148 × 17610

Round tube, Ø 80 mm

Sealed round tube for car washes and wash-down areas.

Round tube, Ø 80 mm

Beam patterns

  • 20°
  • 40°
  • 20°×40°

Lengths, section and weights

  • L3Weight1.3 kg
  • L6Weight2.5 kg
  • L12Weight4.4 kg

Colour temperature

  • 2,200 K
  • 3,000 K
  • 4,000 K
  • 6,000 K
  • Tunable white

Control

  • DMX512 / RDM
  • On/Off
  • Tunable white
  • DALI 2.0
  • 0–10 V
  • ColoursWhite, RGB, RGBW
  • Input voltage24 V DC
    100–277 V AC
  • Ingress ratingIP67 · IP69K
  • Impact ratingIK09
  • Operating temperature−20 to +45 °C
  • Rated life50,000 h

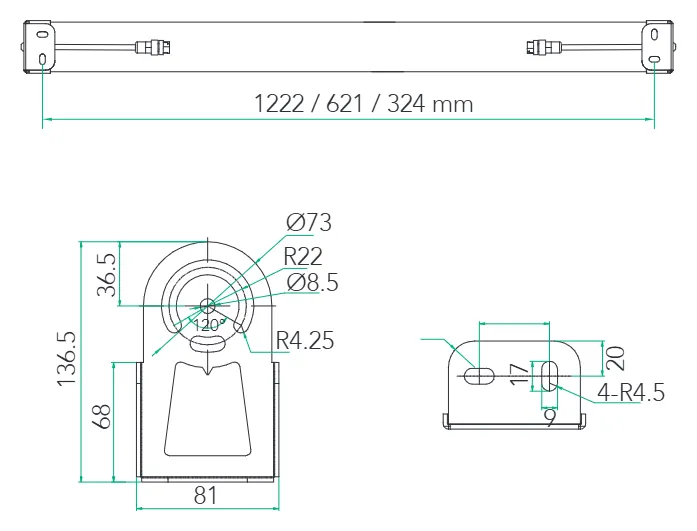

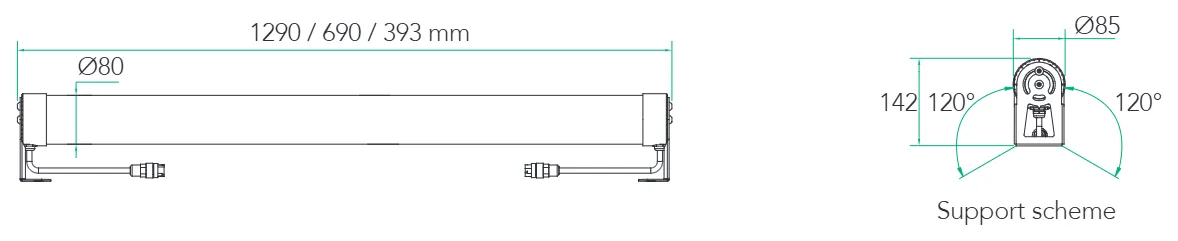

Dimensions (mm)
Mounting

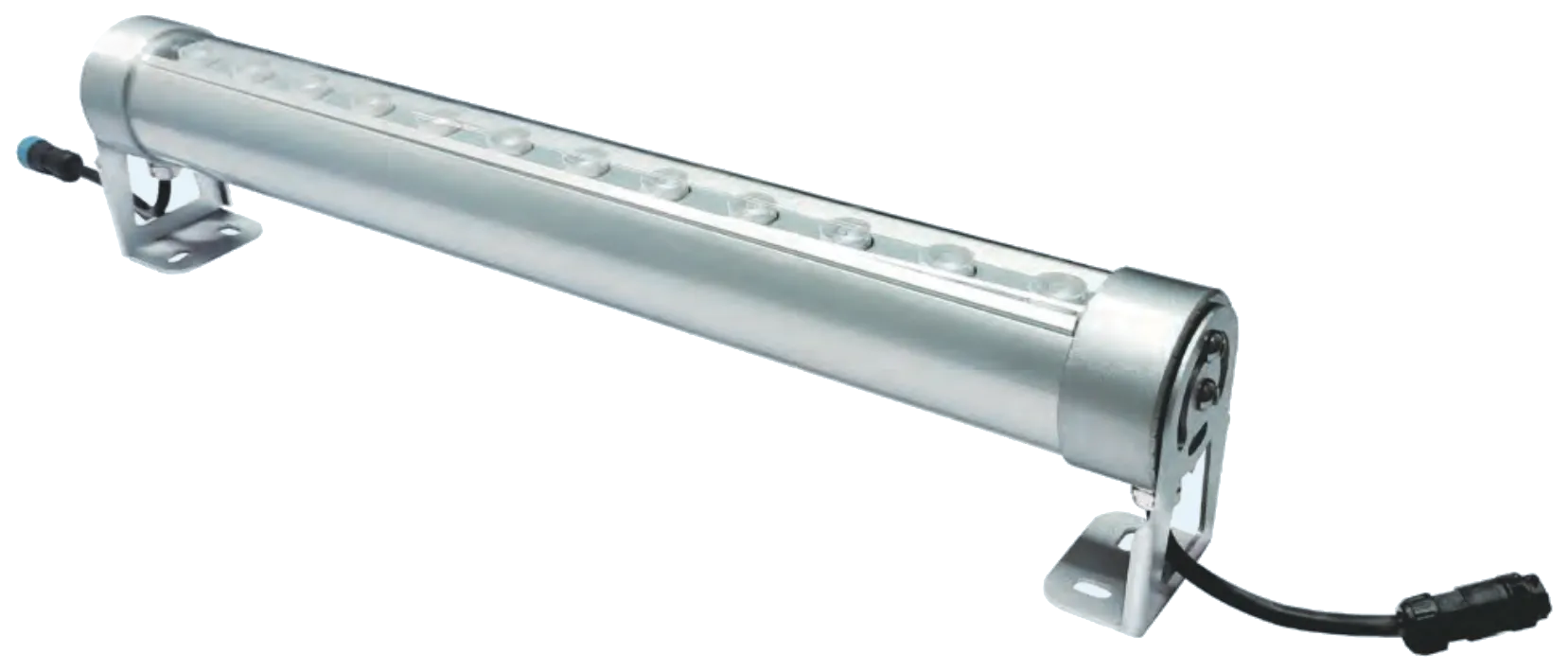

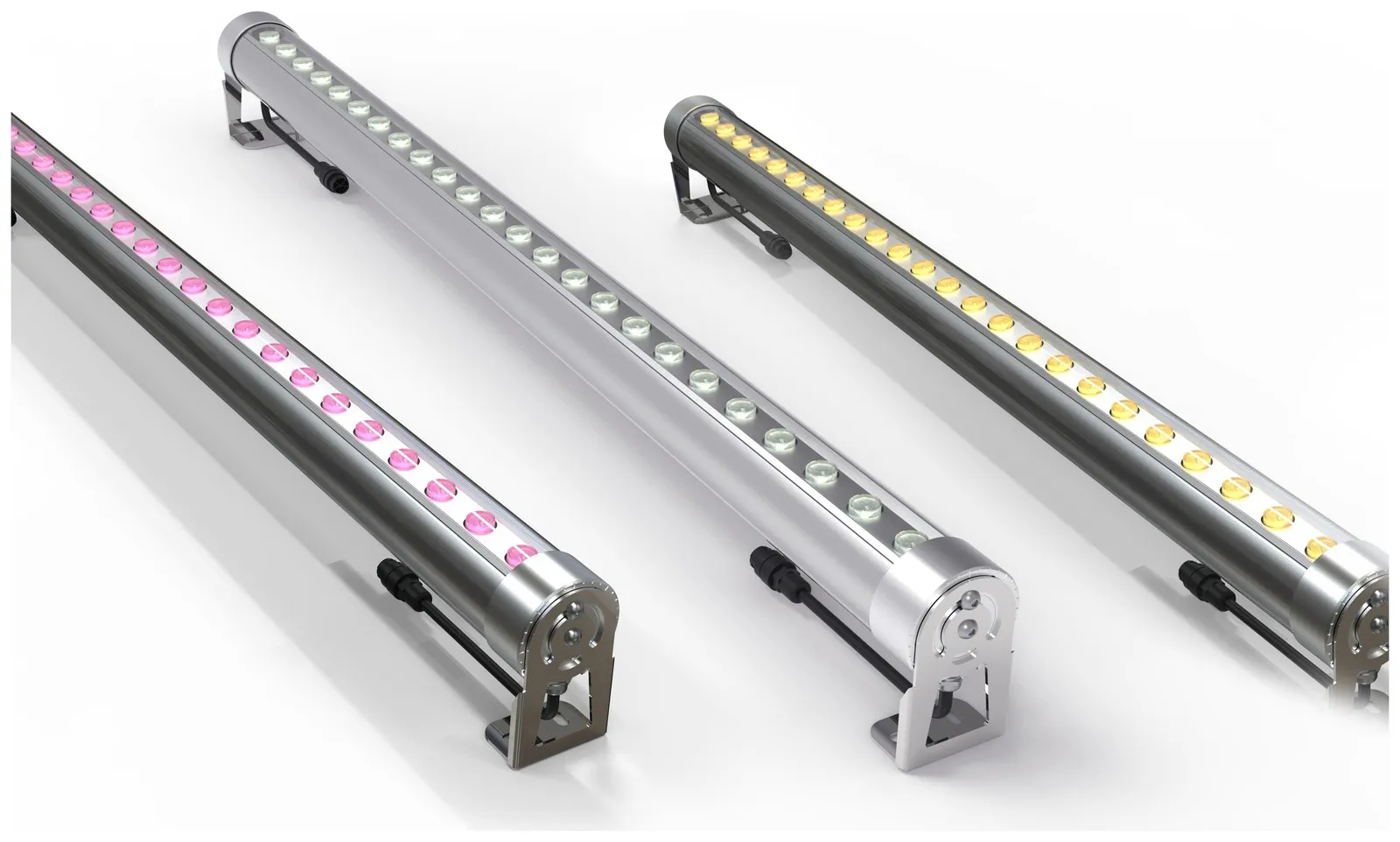

Round tube in RGBW, white and warm white
Round tube in RGBW, white and warm white

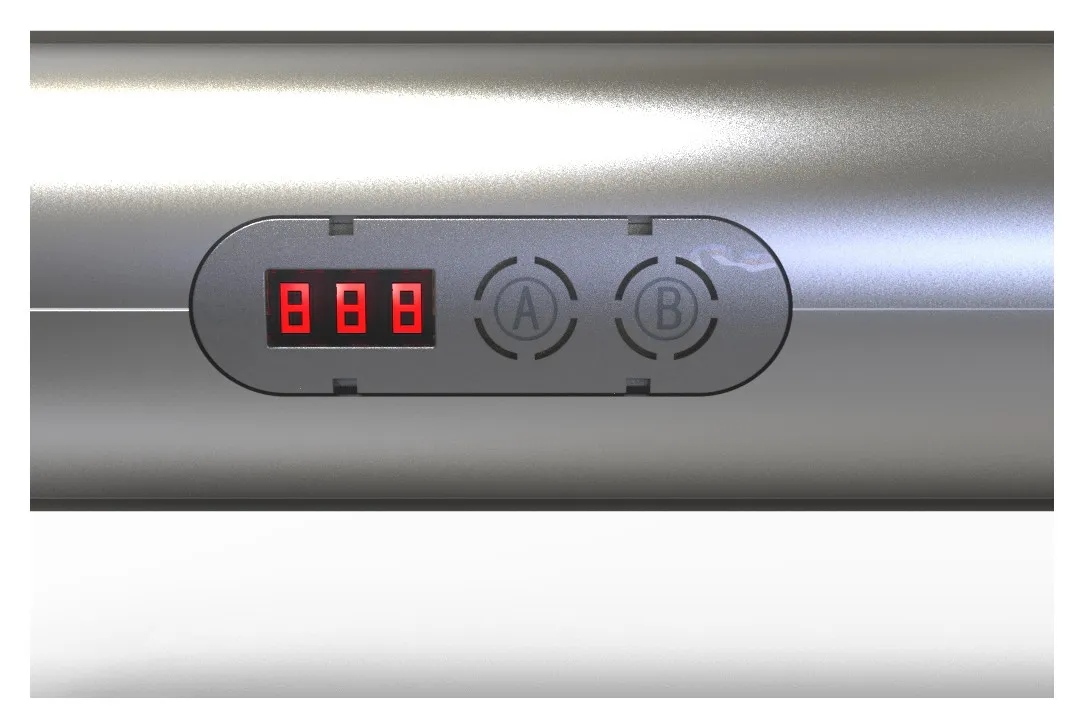

Round tube, control panel
Round tube, control panel
18 part numbersShow
Round tube, Ø 80 mm
Part numberColourPowerOutput (lm)L × Ø (mm)Weight (kg)
CNX-LWW-T80-L3-WHT-009White9 W800393 × 801.3
CNX-LWW-T80-L3-RGB-009RGB9 W410393 × 801.3
CNX-LWW-T80-L3-RGBW-009RGBW9 W500393 × 801.3
CNX-LWW-T80-L3-WHT-015White15 W1,400393 × 801.3
CNX-LWW-T80-L3-RGB-015RGB15 W825393 × 801.3
CNX-LWW-T80-L3-RGBW-015RGBW15 W1,000393 × 801.3
CNX-LWW-T80-L6-WHT-018White18 W1,674690 × 802.5
CNX-LWW-T80-L6-RGB-018RGB18 W860690 × 802.5
CNX-LWW-T80-L6-RGBW-018RGBW18 W1,044690 × 802.5
CNX-LWW-T80-L6-WHT-030White30 W2,800690 × 802.5
CNX-LWW-T80-L6-RGB-030RGB30 W1,645690 × 802.5
CNX-LWW-T80-L6-RGBW-030RGBW30 W2,000690 × 802.5
CNX-LWW-T80-L12-WHT-036White36 W3,3481290 × 804.4
CNX-LWW-T80-L12-RGB-036RGB36 W1,7201290 × 804.4
CNX-LWW-T80-L12-RGBW-036RGBW36 W2,0881290 × 804.4
CNX-LWW-T80-L12-WHT-060White60 W5,6001290 × 804.4
CNX-LWW-T80-L12-RGB-060RGB60 W3,1301290 × 804.4
CNX-LWW-T80-L12-RGBW-060RGBW60 W3,8001290 × 804.4

Specifications

Construction
HousingAluminium body with integrated heat sink; polycarbonate round tube on the tube series
MountingRotating bracket with angle scale; bottom or side mounting on the 80 mm profile
OptionsGrille cover, light barrier, extended bracket, anti-glare lens, anti-glare grille
Lengths
  • 01314–1,218 mm, five lengths
  • 02350–1,220 mm, four lengths
  • 03305–1,220 mm, five lengths
  • 04330–1,240 mm, three lengths
  • 05393–1,290 mm, three lengths
Ingress rating
  • 0102IP66
  • 0304IP65
  • 05IP67 · IP69K
Impact rating
  • 0102IK06
  • 0304IK08
  • 05IK09
Optical
Colour temperature2200 K, 3000 K, 4000 K or 6000 K; tunable white
ColoursWhite, RGB, RGBW
EfficacyUp to 130 lm/W in white; up to 50 lm/W in RGBW (38 and 55 mm profiles)
Rated life50,000 h
Optical
White output
  • 011,080–4,320 lm
  • 021,660–5,980 lm
  • 03840–2,800 lm
  • 042,800–9,800 lm
  • 05800–3,348 lm, up to 36 W
Optics
  • 01025°, 10°, 20°, 30°, 40°, 60°, 10° × 20°, 15° × 40°, 15° × 55°
  • 0310°, 15°, 20°, 30°, 45°, 55°, 20° × 40°, 15° × 55°
  • 0410°, 15°, 20°, 30°, 45°, 15° × 40°, 15° × 55°
  • 0520°, 40°, 20° × 40°
Electrical and control
ControlDMX512 / RDM with pixel addressing, stand-alone programs, steady colour, on/off
Dimming0–10 V or DALI 2.0
Operating temperature−20 to +45 °C
ListingscETLus and CE; RoHS on the round tube
Power
  • 019–36 W
  • 0218–65 W
  • 0312–40 W
  • 0440–140 W
  • 059–60 W
Input voltage
  • 010524 V DC
    100–277 V AC
  • 020304100–277 V AC

Optional accessories

GRL

Grille cover

Louvre over the lenses that cuts the view into the light source.

Fits: 38 mm and 55 mm profiles

LBR

Light barrier

Full-length shield along one side that stops spill light.

Fits: 38 mm and 55 mm profiles

AGL

Anti-glare lens

Honeycomb lens on each LED.

Fits: 80 mm and 150 mm profiles

AGG

Anti-glare grille

Louvre over the full length of the fixture.

Fits: 80 mm profile

EXT

Extended bracket

Holds the fixture off the wall, with a pivot for aiming.

Fits: 38 mm, 55 mm and 80 mm profiles

Connection accessories

Ordered separately, by their own part number
PicturePart numberItemDescription
CNX-ACC-IC-6PInput cable, 6-pinPower and signal; female connector to flying leads.
CNX-ACC-IC-3PInput cable, 3-pinPower; female connector to flying leads.
CNX-ACC-IC-2PInput cable, 2-pinPower; female connector to flying leads.
CNX-ACC-IC-5PInput cable, 5-pinPower and signal; female connector to flying leads.
CNX-ACC-IC-36PInput cable, 3-pin signal + 6-pinSeparate signal lead and a 6-pin power and signal connector.
CNX-ACC-IC-6PTInput cable, 6-pin TPower T-piece: one feed, two fixtures.
CNX-ACC-IC-5PYInput cable, 5-pin YPower Y-piece: one feed, two fixtures.
CNX-ACC-EC-5PAExtension cable, 5-pin, type APower and signal, male to female, as pictured.
CNX-ACC-EC-5PBExtension cable, 5-pin, type BPower and signal, male to female, as pictured.
CNX-ACC-CC-XLR6Conversion cable, XLR to 6-pinSignal: XLR 3-pin male to 6-pin fixture connector, female.
CNX-ACC-CC-3P6PConversion cable, 3-pin to 6-pinSignal: 3-pin male to 6-pin fixture connector, female.
CNX-ACC-WC-AWaterproof connector A3 ports, IP68, for 5 to 12 mm cable.
CNX-ACC-WC-BWaterproof connector B2 ports, IP68, for 5 to 12 mm cable.
CNX-ACC-WC-CWaterproof junction box2 or 3 ports, IP65, for 5 to 12 mm cable.
CNX-ACC-CAPConnector capsTethered protective caps for open cable connectors.

Ordering information

Part number format

CNX-LWWProduct type
381Series
L32Length
WHT3Colour
0094Wattage
055Optic
XXX6Glare control
BRK7Mounting

Example: CNX-LWW-38-L3-WHT-009-05-XXX-BRK — the first part number in the tables above, with its first optic and no accessories; pick one code per position below to build your own

1Series

2Length

3Colour

4Wattage

5Optic

6Glare control

7Mounting

Applications

Building façadesBridgesLandscape wallsHospitalityPublic spacesCar wash and wash-down areas

Certifications

cETLusCE

Marks as printed on the current spec sheet.
